ABB 086362-001 Migration-Ready Bulk Power Supply for Legacy Control Systems

Overview

ABB 086362-001 Migration-Ready Bulk Power Supply for Legacy Control Systems

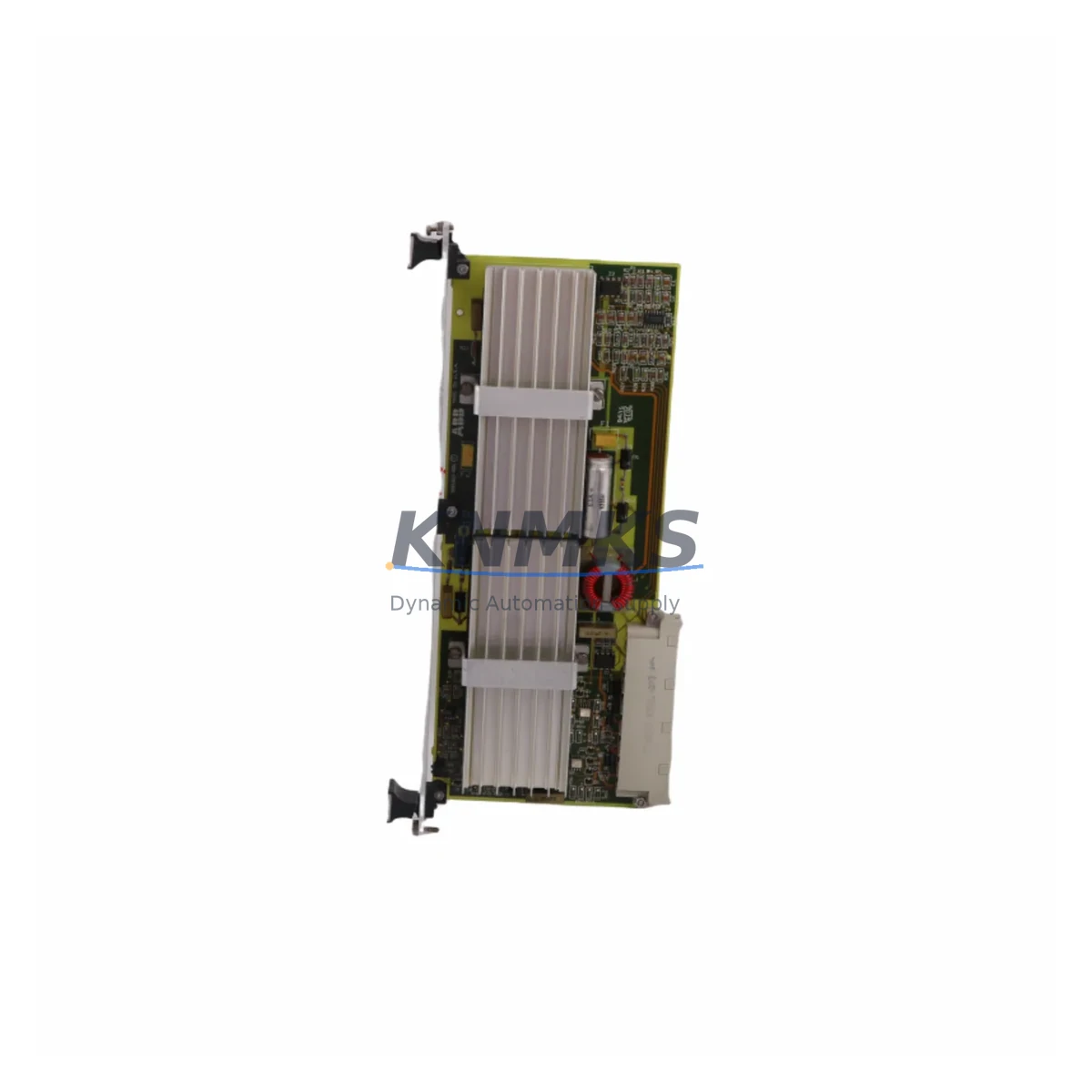

The ABB 086362-001 is a migration-ready bulk power supply engineered for ABB System 800xA distributed control system environments. As legacy power infrastructure reaches end-of-support, engineering teams managing scheduled outages, emergency replacements, or phased control cabinet upgrades rely on this module to maintain system continuity without redesigning the power distribution architecture. The 086362-001 is a direct form-fit-function replacement for obsolete or failing bulk power supply units within the 800xA I/O rack assembly, supporting both Phase 1 stabilization and Phase 2 full migration workflows.

Before installation, engineers must verify the incoming AC supply voltage range, confirm the DC output rail compatibility with downstream I/O modules and communication cards, and check that the physical footprint matches the existing cabinet slot. The terminal block wiring layout on the 086362-001 follows the standard ABB 800xA power distribution convention, but field teams should cross-reference the original wiring diagram to confirm polarity and grounding continuity — particularly in installations where the cabinet has been modified over time. Backplane connector alignment and module address configuration should be validated against the current system topology before energizing.

In retrofit scenarios involving the S800 I/O family — including AI810, AO810, DI810, and DO810 signal modules — the bulk power supply must deliver stable, regulated DC output to prevent nuisance trips or signal drift during the transition period. Where the existing installation includes a TP830 or TP854 termination panel, the power feed routing should be confirmed to avoid overloading the supply during peak I/O scan cycles. Communication modules such as the CI854 PROFIBUS DP interface or the CI840 FOUNDATION Fieldbus linking device draw additional current that must be factored into the total load budget before commissioning the replacement unit.

For sites running parallel HMI systems during migration, the 086362-001 must support uninterrupted DC bus voltage to prevent 800xA Operator Workplace client disconnections. Firmware version compatibility between the power supply management layer and the 800xA base system software should be confirmed with the site’s system version documentation. Where the original unit has been in service for more than seven years, capacitor aging and thermal cycling may have caused subtle voltage regulation drift — the replacement 086362-001 restores factory-spec output tolerance, which can improve overall system stability and reduce spurious alarms during the post-retrofit stabilization period.

All units supplied by KNMKS are pre-shipment tested under load conditions, serialized, and covered by a support terms confirmed by quotation from the date of dispatch. Multi-region stock is maintained to support global delivery details confirmed by RFQ for both emergency breakdown replacements and planned maintenance windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 800xA power supply retrofit begins with a complete load audit of the target cabinet. The 086362-001 must supply adequate current to all installed S800 I/O modules — including analog input modules such as the AI810, analog output modules such as the AO810, and digital I/O modules including the DI810 and DO810. In cabinets where communication density is high, the CI854 PROFIBUS DP interface module and any installed CI840 FOUNDATION Fieldbus linking devices add measurable current draw that must be included in the load calculation before the replacement unit is commissioned.

Where the cabinet layout includes TP830 or TP854 termination panels, the field wiring home-run cables must remain undisturbed during the power supply swap to avoid introducing signal errors into the live process. In phased migration projects, it is common to operate the replacement power supply in parallel with the original unit during a brief overlap window — this requires careful attention to DC bus isolation to prevent circulating currents between supplies.

For sites where the 800xA system interfaces with third-party PLCs or remote I/O via PROFIBUS or FOUNDATION Fieldbus, the communication link must remain active throughout the power supply replacement to avoid triggering process interlocks. The installation team should confirm that the backplane connector on the 086362-001 seats fully and that the module address is recognized by the 800xA configuration database before transferring the load. A programming cable connection to the engineering workstation during commissioning allows real-time monitoring of module status and alarm suppression during the transition.

Downtime Control During System Migration

Minimizing downtime during a bulk power supply replacement in an 800xA system requires a structured pre-outage checklist. Before the maintenance window opens, the engineering team should export the current 800xA plant configuration, back up all controller programs and HMI faceplates, and confirm that the replacement 086362-001 has been bench-tested and is ready for immediate installation. The outage sequence should isolate the affected I/O rack from the process control loop using the 800xA soft bypass or hardware interlock, depending on the site’s safety instrumented system requirements.

During the swap, the terminal block wiring should be transferred one conductor at a time using the original wiring diagram as the reference, with each connection verified for continuity before the next is moved. After the 086362-001 is installed and the terminal connections are complete, the DC output voltage should be measured at the backplane bus before the I/O modules are re-energized. Once the S800 I/O modules come online, the 800xA system should be monitored for alarm floods or communication timeouts that could indicate a wiring error or load imbalance.

Post-retrofit, a 24-hour monitoring period is recommended to confirm stable DC rail voltage, normal I/O scan performance, and clean communication on all PROFIBUS and FOUNDATION Fieldbus segments. KNMKS provides pre-shipment test documentation for each 086362-001 unit, which can be used as the baseline reference during the post-installation verification process. The support terms confirmed by quotation cover any unit that fails to perform within factory specification during normal operating conditions.

Retrofit Support FAQ

Q: Is the ABB 086362-001 a direct replacement for the original bulk power supply in my 800xA cabinet?
A: Yes. The 086362-001 is designed as a form-fit-function replacement for the bulk power supply position in standard 800xA I/O rack assemblies. Terminal wiring layout and backplane interface follow the ABB 800xA convention. Field teams should verify the DC output voltage rating and load capacity against the installed I/O module count before commissioning.

Q: What commissioning steps are required after installing the 086362-001?
A: After installation, verify DC output voltage at the backplane bus, confirm all terminal connections for continuity and correct polarity, check that the module is recognized in the 800xA configuration database, and monitor the system for communication alarms or I/O scan errors during the first operational cycle. A programming cable connection to the engineering workstation is recommended during initial energization.

Q: Does KNMKS test the 086362-001 before shipping?
A: Yes. Every unit undergoes pre-shipment load testing and is serialized before dispatch. Test documentation is available upon request and can be used as the baseline reference during post-installation verification. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q: What is the typical lead time and do you maintain stock for emergency replacements?
A: KNMKS maintains multi-region stock of the ABB 086362-001 to support both emergency breakdown replacements and planned maintenance windows. Contact the sales team for current availability and expedited shipping options for urgent requirements.
