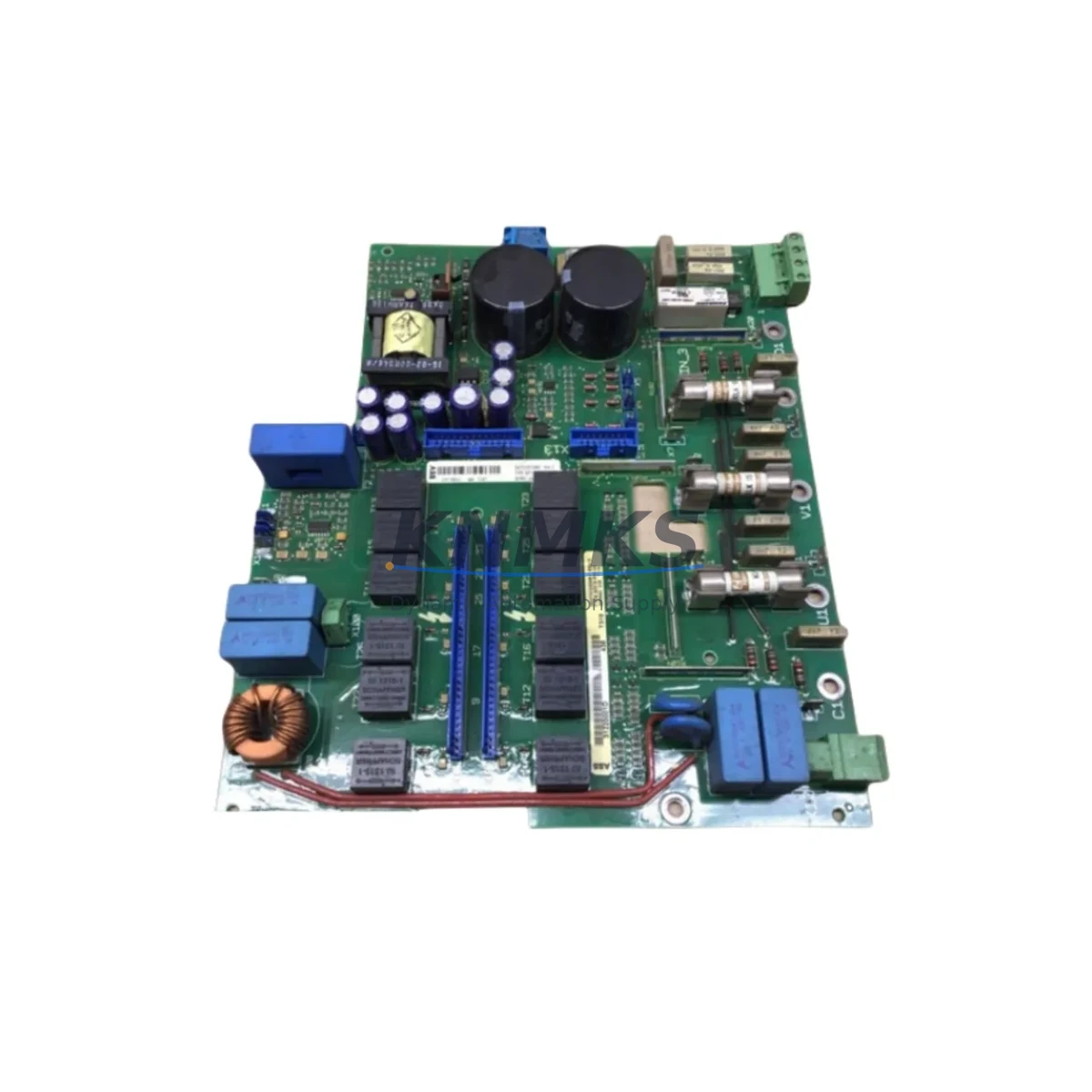

ABB SDCS-PIN-3A Migration-Ready Power Interface for Legacy DCS 500

Overview

ABB SDCS-PIN-3A Migration-Ready Power Interface for Legacy DCS 500 Control Systems

The ABB SDCS-PIN-3A (Part No. 3ADT220120R0002) is a power interface board engineered for the DCS 500 series DC drive platform. As legacy DCS 500 installations approach end-of-support milestones, plant engineers and maintenance teams face increasing pressure to source verified replacement boards that maintain full electrical and functional compatibility with existing control cabinet wiring, backplane connectors, and drive firmware. The SDCS-PIN-3A addresses this challenge directly — it is a direct drop-in replacement for the original power interface position within the DCS 500 drive chassis, requiring no modification to terminal wiring or module addressing when installed in the correct slot.

For facilities operating DCS 500B, DCS 500B-0025 through DCS 500B-2000 variants, or legacy DCS 400 platforms being migrated upward, the SDCS-PIN-3A provides a reliable bridge between the existing power section and the drive’s control electronics. Before installation, engineers should verify the DC bus voltage rating, confirm the gate pulse interface pinout against the existing SDCS-CON-3 or SDCS-CON-4 control board, and review the firmware revision loaded on the SDCS-AMC-DC control module to ensure compatibility with the power interface signal timing. Mismatched firmware revisions between the AMC and PIN boards are a common source of commissioning delays during retrofit projects.

When planning a retrofit around the SDCS-PIN-3A, the power supply capacity of the control cabinet must be assessed carefully. The DCS 500 platform distributes auxiliary power through the SDCS-POW-1 or SDCS-POW-3 power supply modules, and any degradation in these units — common in installations over 10 years old — can cause intermittent faults on the new power interface board that are difficult to diagnose without first ruling out the upstream supply. It is strongly recommended to inspect or replace the SDCS-POW module as part of the same maintenance window to avoid repeat downtime.

Terminal wiring compatibility is a key advantage of the SDCS-PIN-3A in retrofit scenarios. The board preserves the original connector layout used across the DCS 500 series, meaning field wiring from the existing thyristor bridge, current feedback transformers, and synchronization circuits can be reconnected without re-termination. However, engineers should inspect the condition of the existing wiring harness and verify that shielding is intact, particularly on the synchronization input lines, as degraded shielding can introduce noise that triggers overcurrent or phase-loss faults after the new board is energized.

For sites integrating the DCS 500 into a broader PROFIBUS DP or Modbus RTU network, the communication link between the SDCS-AMC-DC module and the fieldbus adapter — typically an SDCS-COM-8 or NPBA-12 PROFIBUS adapter — should be verified before commissioning the replacement board. The SDCS-PIN-3A does not directly handle communication protocol processing, but changes to the power interface can affect drive parameter initialization sequences that fieldbus masters rely on during startup. Updating the drive parameter set via DriveWindow or a compatible programming cable before energizing the system reduces the risk of communication timeouts during the first power-on cycle.

HMI screens connected to the DCS 500 via Panel Bus or serial link should also be reviewed. If the existing HMI displays drive status signals sourced from the power interface diagnostics, the signal mapping should be confirmed against the replacement board’s output register layout. In most standard DCS 500 configurations this mapping is preserved, but custom parameter assignments made during the original commissioning may require re-entry after the board swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-PIN-3A retrofit begins with a structured audit of the existing DCS 500 drive assembly. The drive chassis should be inspected for backplane connector wear, and the SDCS-CON-3 or SDCS-CON-4 control board should be checked for capacitor aging or visible heat damage before the new power interface board is installed. In many legacy installations, the SDCS-CON board and the SDCS-PIN board have been in service for the same duration, and replacing only the power interface while leaving a degraded control board in place can result in a repeat failure within months.

I/O expansion modules connected to the DCS 500 — such as the SDCS-IOB-3 I/O extension board — should be verified for address conflicts after the board swap, particularly if the drive’s parameter set is being reloaded from a backup file. Address settings stored in the IOB module are independent of the main drive parameters and must be confirmed separately during commissioning.

For control cabinets housing multiple DCS 500 drives on a shared DC bus, the installation sequence matters. The replacement board should be installed and tested on a single drive in isolation before the shared bus is re-energized, to avoid propagating a fault condition across the entire drive line. The SDCS-PIN-3A’s gate pulse outputs should be verified with an oscilloscope against the expected firing angle before the thyristor bridge is reconnected to the load.

Programming cables compatible with the DCS 500 platform — such as the NPCT-01 or equivalent USB-to-serial adapter — should be on hand during commissioning to allow real-time parameter monitoring via DriveWindow. Having the original commissioning parameter file available significantly reduces setup time and minimizes the risk of incorrect speed reference scaling or current limit settings after the board replacement.

Downtime Control During System Migration

Minimizing production downtime during a DCS 500 power interface replacement requires preparation before the maintenance window begins. The existing drive parameter set should be backed up using DriveWindow or the drive’s panel interface before any hardware is disturbed. This backup serves as the reference for post-installation verification and allows the commissioning engineer to confirm that all speed references, current limits, ramp times, and protection thresholds are restored correctly after the SDCS-PIN-3A is installed.

Where possible, the replacement board should be bench-tested against a known-good SDCS-AMC-DC module before being brought to site. This pre-commissioning step identifies any board-level defects before the drive is taken out of service, reducing the risk of an extended outage caused by a second fault. Our pre-shipment testing protocol covers power-on verification, gate pulse output check, and interface signal continuity to support this approach.

On-site, the installation sequence should follow the DCS 500 hardware manual: de-energize the drive, discharge the DC bus capacitors, remove the existing SDCS-PIN board, install the replacement, reconnect all wiring in the original sequence, and perform a controlled power-on with the motor disconnected before reconnecting the load. This sequence protects the existing program logic, preserves the fieldbus communication link, and maintains control continuity across the rest of the automation system during the transition.

For sites with strict uptime requirements, maintaining a spare SDCS-PIN-3A in local inventory is the most effective downtime control measure. Given the age profile of most DCS 500 installations, the probability of a second power interface failure within a 24–36 month window is significant, and having a verified spare on hand eliminates the lead time risk associated with sourcing a replacement under emergency conditions.

Retrofit Support FAQ

Q: Is the SDCS-PIN-3A a direct replacement for the SDCS-PIN-3 or SDCS-PIN-2?
The SDCS-PIN-3A is a direct replacement for the SDCS-PIN-3 in standard DCS 500B configurations. Replacement of the earlier SDCS-PIN-2 requires wiring verification against the connector pinout, as minor layout differences exist between revisions. Confirm the drive’s hardware revision before ordering.

Q: What commissioning steps are required after installing the SDCS-PIN-3A?
After installation, reload the drive parameter set from backup, verify the synchronization input signal quality, confirm the PROFIBUS or Modbus communication link is active, and perform a no-load test run before reconnecting the motor. Check the SDCS-AMC-DC firmware revision matches the requirements for the PIN-3A board.

Q: Does the board ship tested, and what support terms is provided?
Yes. Every SDCS-PIN-3A is function-tested before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and board-level failures under normal operating conditions.

Q: What is the typical stock availability and lead time?
The SDCS-PIN-3A (3ADT220120R0002) is maintained availability confirmed by RFQ for immediate dispatch. Contact our team to confirm current inventory levels and lead time for your region.
