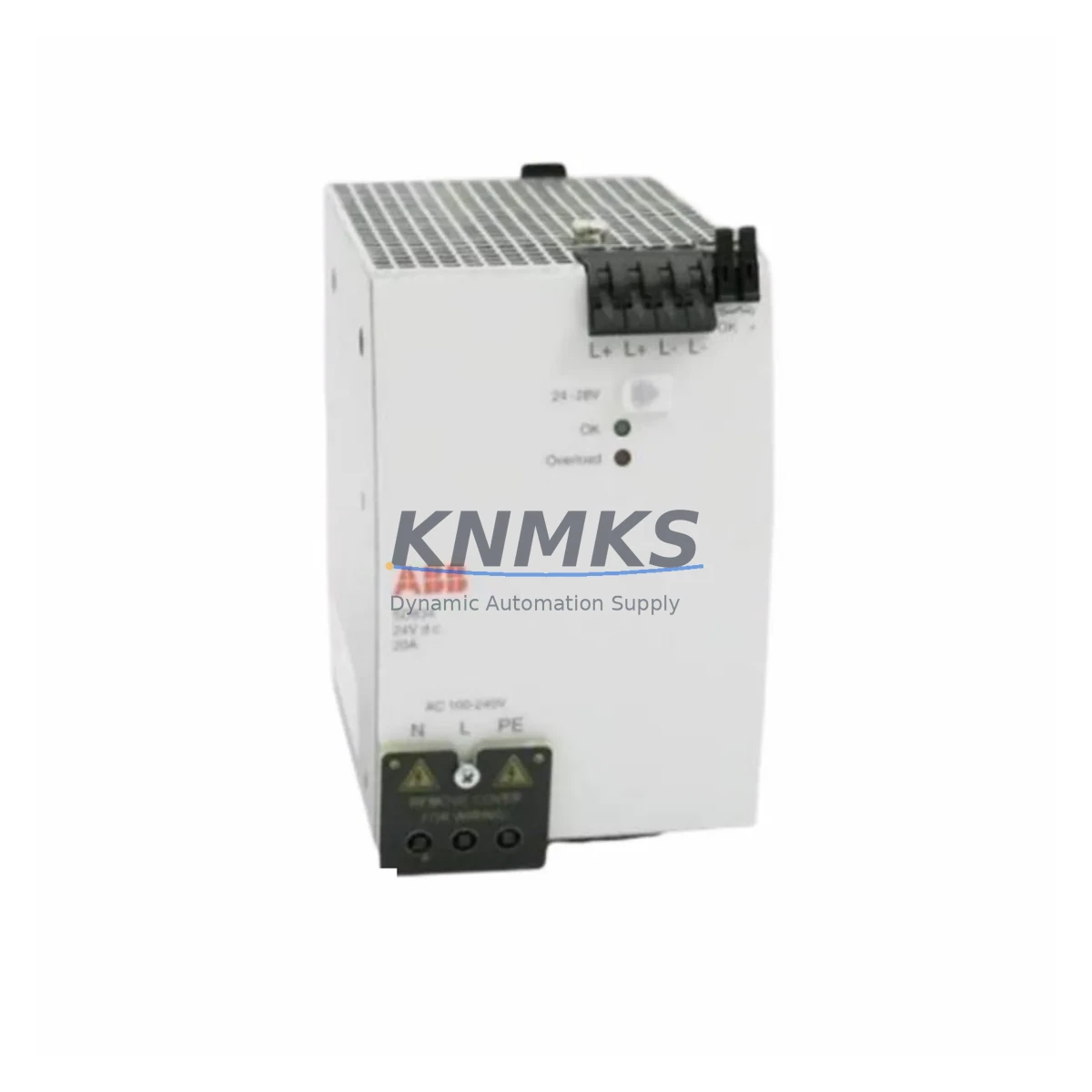

ABB SD834 3BSC610065R1 Fail-Safe Power Supply Module

Overview

ABB SD834 3BSC610065R1 Fail-Safe Power Supply Module: Fault Protection and Critical Industrial Field Reliability

The ABB SD834 (3BSC610065R1) is a dedicated power supply module engineered for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation and safety-critical control architectures. Designed to deliver stable, regulated DC power to S800 I/O station modules under continuous production conditions, the SD834 is built to eliminate unplanned shutdowns caused by power fluctuations, voltage sags, inrush surges, and electromagnetic interference. In environments where control interruption is not an option — petrochemical reactors, power generation switchgear, mining conveyor interlocks, water treatment SCADA panels, and metallurgical furnace control cabinets — the SD834 provides the foundational power integrity that keeps safety loops and process control circuits alive.

Unlike general-purpose DIN-rail power supplies, the SD834 is purpose-built for the S800 I/O backplane architecture, ensuring full electrical compatibility with ABB’s AI810, AO810, DI810, DO810, and other S800 I/O modules. Its regulated output maintains tight voltage tolerance even when upstream AC supply quality degrades — a common challenge in heavy industrial facilities where large motor drives, arc furnaces, and high-frequency welding equipment generate significant harmonic distortion and voltage transients on the same distribution bus.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S800 I/O control cabinet, the SD834 power supply module does not operate in isolation — it is the anchor of a layered protection strategy. Upstream of the SD834, a quality AC/DC panel power supply such as the ABB CP-E 24/5.0 or equivalent 24 VDC DIN-rail PSU provides the primary conversion stage, while the SD834 conditions and distributes regulated power specifically to the I/O station. Alongside the SD834, the ABB TB820V2 ModuleBus Optical Module serves as the communication backbone, linking the S800 I/O station to the AC800M controller via fiber-optic ModuleBus — a topology that inherently eliminates ground loop interference and galvanically isolates the field I/O from the controller backplane.

For analog signal integrity, the ABB AI810 8-channel analog input module and ABB AO810V2 analog output module depend directly on the SD834’s stable power rail to maintain 4–20 mA loop accuracy. Any power ripple or voltage dropout on the SD834 output will manifest as signal drift, measurement offset, or output freeze on these analog channels — conditions that can trigger false alarms, incorrect valve positioning, or missed safety interlock activation in a process plant. Similarly, the ABB DI810 digital input module relies on clean power to correctly resolve 24 VDC field signals from proximity sensors, limit switches, and emergency stop circuits without false triggering caused by power-induced noise.

In cabinets where redundant power is required for SIL-rated safety loops, the SD834 is often paired with a secondary power supply module and an ABB SD832 or SD833 redundancy unit, enabling bumpless power transfer in the event of a primary supply failure. This architecture is particularly critical in continuous process industries — oil refinery distillation columns, LNG compression trains, and chemical reactor temperature control loops — where even a 20-millisecond power interruption to the I/O station can cause a spurious trip of the entire process unit.

Critical Industrial Safety Applications

The ABB SD834 3BSC610065R1 is deployed across a broad spectrum of safety-critical and continuous-process industrial environments:

Petrochemical and Refining: In crude distillation units, hydrocracker reactors, and compressor control panels, the SD834 sustains uninterrupted power to S800 I/O stations managing pressure transmitter inputs, control valve outputs, and emergency shutdown (ESD) relay circuits. Power instability in these environments can cascade into spurious ESD activations or, worse, missed safety responses — both of which carry severe operational and safety consequences.

Power Generation and Substation Control: Turbine governor control systems, excitation control panels, and protection relay cabinets in thermal and hydroelectric power plants rely on stable I/O power to maintain synchronization signals and protection logic. The SD834’s regulated output ensures that digital input modules correctly read breaker status and protection relay trip signals without noise-induced misreads.

Mining and Mineral Processing: Conveyor interlock systems, crusher control panels, and flotation cell automation in underground and open-pit mining operations expose control hardware to extreme vibration, dust ingress, and wide ambient temperature swings. The SD834’s robust construction and IP20 cabinet-mount design, combined with proper cabinet sealing and climate control, supports reliable operation in these demanding conditions.

Water and Wastewater Treatment: SCADA-controlled pump stations, dosing systems, and filtration process panels in municipal water treatment facilities require continuous I/O availability to maintain safe chemical dosing ratios and effluent quality. The SD834 ensures that analog output modules driving dosing pump VFDs receive stable power, preventing output drift that could result in under- or over-dosing events.

Metallurgy and Steel Production: Electric arc furnace (EAF) control systems, rolling mill automation, and ladle metallurgy station controls operate in environments with extreme electromagnetic interference generated by high-current bus bars and thyristor drives. The SD834’s EMI-tolerant design maintains power quality to the I/O station even in these high-interference conditions, protecting analog measurement accuracy and digital control signal integrity.

Port and Marine Automation: Ship-to-shore crane control systems, bulk material handling automation, and vessel engine room control panels in port and marine environments face salt-air corrosion, humidity, and vibration. The SD834, installed in sealed, climate-controlled control cabinets, provides the stable power foundation for S800 I/O stations managing hoist motor drives, load monitoring systems, and safety interlock circuits.

Safety and Quality FAQ

Q1: What support terms does the ABB SD834 3BSC610065R1 carry?
Every SD834 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures, and output voltage non-conformance under normal operating conditions. Support terms replacement or repair is handled directly — no third-party RMA routing required.

Q2: What pre-shipment testing is performed on each unit?
Each SD834 undergoes full functional verification before dispatch, including output voltage measurement, load regulation testing, and visual inspection for physical integrity. Units that do not meet ABB’s original specification tolerances are quarantined and not shipped. Test records are available upon request for quality-critical procurement.

Q3: Is the SD834 3BSC610065R1 compatible with all S800 I/O module variants?
The SD834 is designed as the standard power supply module for ABB S800 I/O stations and is compatible with the full range of S800 I/O modules including AI810, AO810, AO810V2, DI810, DO810, DP820, and related communication and specialty modules. For specific compatibility with non-standard S800 configurations or mixed-generation I/O stations, contact our technical team with your station configuration details.

Q4: Can long-term supply and buffer stock be arranged for the SD834?
Yes. KNMKS supports long-term supply agreements and forward buffer stock programs for the SD834 and related S800 I/O components. Given ABB’s extended lead times for certain S800 series modules through standard distribution channels, maintaining a 12-month forward stock buffer is strongly recommended for plants with multiple S800 I/O stations. Contact our procurement team to discuss volume pricing, consignment stock, and scheduled delivery arrangements.
