ABB SB821 3BSE018109R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SB821 3BSE018109R1 Maintenance-Proven Spare Part for Factory Uptime

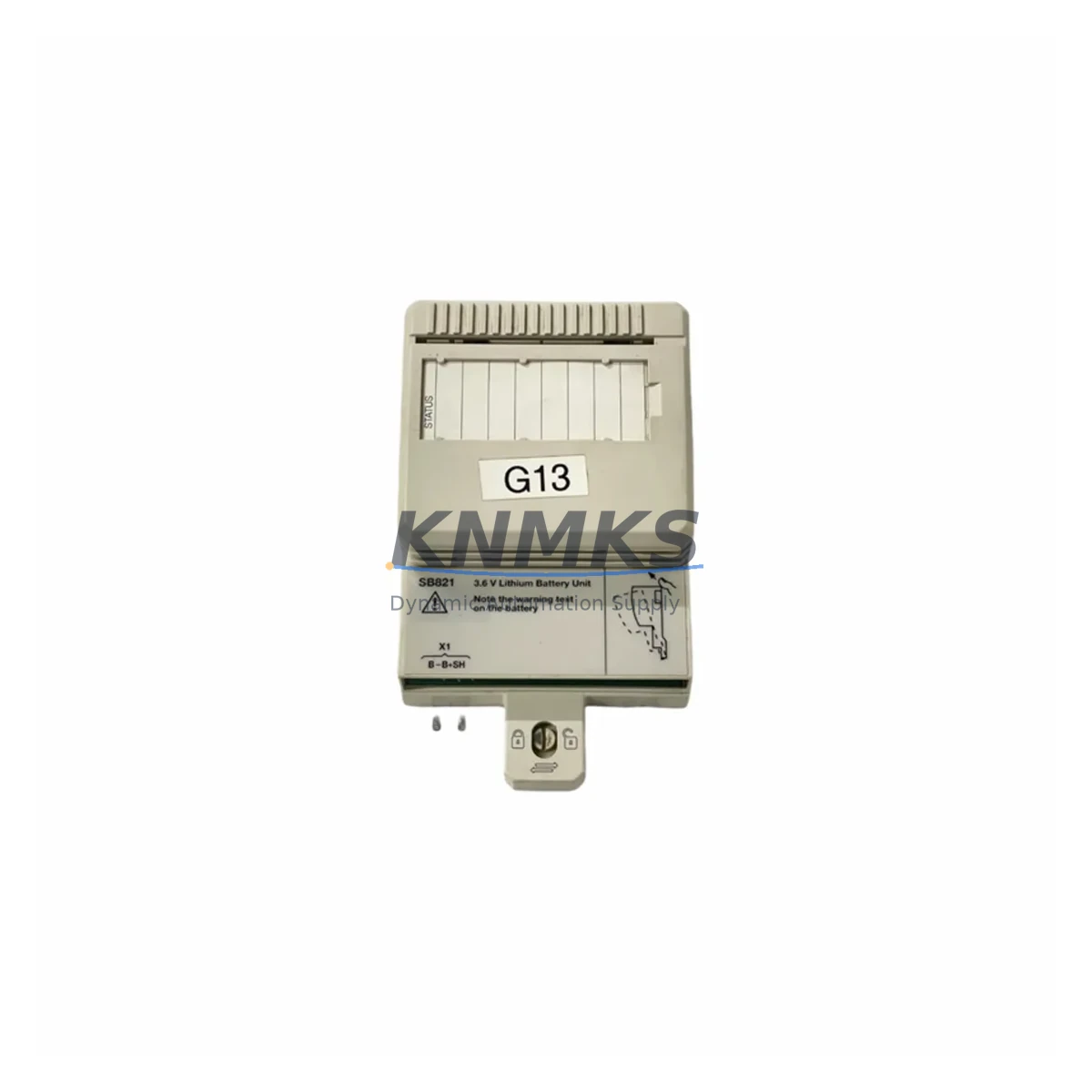

The ABB SB821 (catalog reference 3BSE018109R1) is a dedicated battery backup unit engineered for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As a maintenance-proven spare part, the SB821 ensures that the AC800M controller retains its program memory, real-time clock, and critical process data during planned shutdowns, unplanned power interruptions, and grid instability events. Sourcing a verified replacement unit before failure occurs is the single most effective strategy for eliminating unplanned downtime caused by battery depletion in aging control systems.

Every SB821 3BSE018109R1 unit dispatched from our warehouse undergoes pre-shipment functional testing to confirm charge retention, connector integrity, and compatibility with the AC800M PM8xx processor family. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and performance failures under normal operating conditions. Global dispatch is available with lead times designed to support both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A battery backup unit failure in an AC800M controller is rarely an isolated event — it is typically a signal that the broader control cabinet requires a systematic inspection. When scheduling replacement of the SB821 3BSE018109R1, maintenance engineers should treat the intervention as an opportunity to audit the surrounding electrical environment and associated components.

Begin with the AC800M power supply module (PS701 or PS702 series), verifying output voltage stability and ripple levels under load. A degraded power supply accelerates battery drain and can cause premature BBU failure even after a fresh SB821 is installed. Next, inspect the CI801 or CI854 communication interface modules for firmware currency and connector seating — communication faults during a power event can corrupt the memory that the SB821 is designed to protect. If the cabinet includes an SC520 or SC510 system cabinet, verify that the internal 24 V DC distribution rail and associated fuse blocks are within specification.

For cabinets running mixed I/O configurations, check the DI810 digital input modules and AO810 analog output modules for any latent fault codes that may have been masked by the battery-backed memory. Signal isolators on 4–20 mA loops should be inspected for drift, particularly in high-temperature environments where both battery life and isolator calibration are affected. TB820 or TB840 termination units should be checked for terminal torque and corrosion, as loose connections generate transient voltages that stress the processor’s memory retention circuitry. Finally, confirm that the cabinet door seals and ventilation filters are intact — thermal management directly impacts the service life of the replacement SB821 and all adjacent modules.

Procurement engineers sourcing the SB821 3BSE018109R1 for annual maintenance kits should consider stocking a minimum of two units per AC800M controller cluster, particularly in facilities where the DCS has been in continuous operation for more than seven years. Long-term supply agreements and verified stock availability reduce the risk of sourcing counterfeit or degraded batteries from secondary markets.

Site Replacement Workflow

Replacing the SB821 3BSE018109R1 in the field is a low-risk procedure when performed with the correct preparation. Before beginning, confirm that the AC800M controller is in a safe state and that the process unit it controls is either in manual mode or handed off to a redundant controller. Do not remove the battery backup unit while the processor is actively running a critical control loop without a verified redundancy path in place.

Step 1 — Verify compatibility: Confirm the installed processor model (PM861, PM864, PM866, or PM891) against the SB821 compatibility matrix. All AC800M PM8xx processors accept the SB821 form factor without hardware modification.

Step 2 — Record system state: Use the AC800M engineering tool (Control Builder M) to export the current application program and force a manual save of the real-time database. This provides a recovery baseline in the event of any unexpected memory loss during the swap.

Step 3 — Remove the depleted unit: Locate the battery socket on the front face of the PM8xx processor module. Gently release the locking tab and withdraw the old SB821. Note the installation date marked on the unit for maintenance records.

Step 4 — Install the replacement SB821 3BSE018109R1: Insert the new unit until the locking tab engages. The processor will immediately begin drawing from the fresh battery. No firmware update or configuration change is required.

Step 5 — Verify and document: Confirm that the low-battery alarm clears in the AC800M diagnostic display. Log the replacement date, unit serial number, and technician ID in the site maintenance register. Schedule the next inspection in 12 months.

This workflow is applicable to both hot-standby and simplex AC800M configurations. For redundant controller pairs, the replacement can typically be performed on one controller at a time without process interruption, provided the redundancy switchover has been tested and confirmed functional within the preceding 30 days.

Spare Parts Support FAQ

Q1: How do I know when the SB821 3BSE018109R1 needs to be replaced?
The AC800M processor generates a low-battery diagnostic alarm visible in Control Builder M and on the local status LEDs of the PM8xx module. In the absence of an active alarm, ABB recommends proactive replacement every 3 to 5 years depending on ambient temperature and duty cycle. Facilities operating in high-temperature environments (above 40°C continuous) should target the shorter end of this interval.

Q2: Is the SB821 compatible with all AC800M processor variants?
Yes. The SB821 3BSE018109R1 is compatible with the full PM8xx processor family including PM861, PM864, PM866, and PM891. It is not interchangeable with batteries designed for the older AC800 (non-M) or AC450 platforms. Always verify the processor model before ordering to avoid installation errors.

Q3: What pre-shipment checks are performed on each SB821 unit?
Each unit is tested for charge retention capacity, connector dimensional conformance, and label legibility before dispatch. Units that do not meet the original ABB performance specification are rejected. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and premature capacity loss under normal operating conditions.

Q4: Can you support long-term supply for multi-site maintenance programs?
Yes. We maintain verified stock of the SB821 3BSE018109R1 and can support scheduled annual supply agreements for facilities managing multiple AC800M controller clusters. Contact our technical sales team to discuss volume pricing, lead time commitments, and documentation packages suitable for site maintenance records and procurement audits.
