ABB SAMC19INF Migration-Ready DCS Interface for Legacy Systems

Overview

ABB SAMC19INF Migration-Ready DCS Interface for Legacy Control Systems

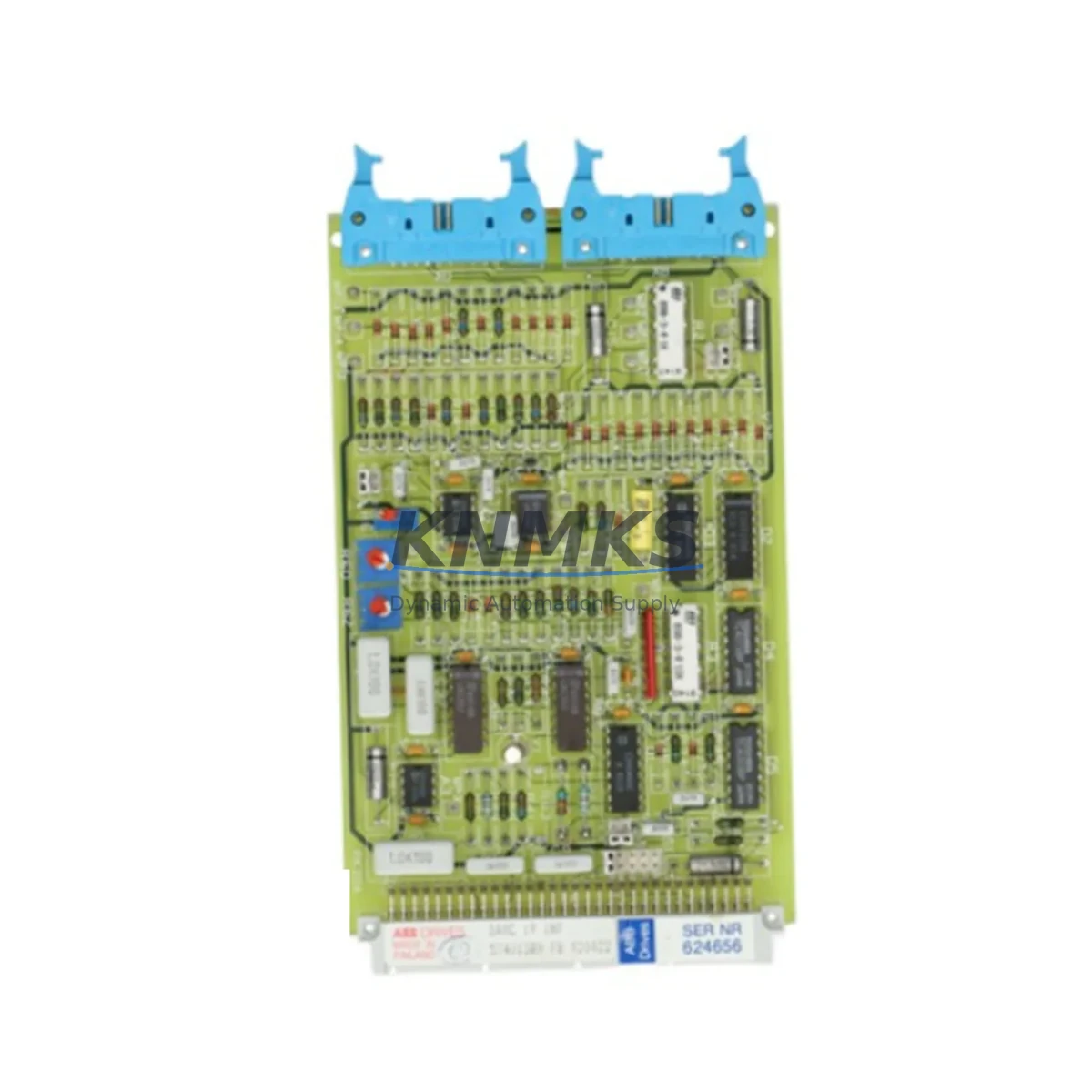

The ABB SAMC19INF (also referenced as SAMC 19 INF, part number 57401389) is a DCS interface module engineered for the ABB SAMC Series distributed control architecture. As legacy SAMC-based control systems approach end-of-life and original spare parts become increasingly scarce, the SAMC19INF remains one of the most critical interface components for engineers managing brownfield retrofits, panel upgrades, and phased migration projects. This module serves as a direct replacement for discontinued SAMC interface variants, enabling control continuity without requiring full platform replacement.

For facilities operating ABB SAMC Series controllers alongside older Advant or MOD 300 infrastructure, the SAMC19INF provides the communication bridge necessary to maintain DCS integrity during staged upgrades. Its compatibility with existing backplane slot assignments, terminal wiring layouts, and communication link configurations makes it a preferred choice for maintenance engineers who need to minimize engineering rework and reduce commissioning risk during replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SAMC19INF into an aging control system requires a structured pre-replacement audit. Before removing the failed or end-of-life module, engineers should document the existing rack configuration, including the slot position of the SAMC19INF relative to adjacent I/O modules, power supply units, and communication modules within the same cabinet. In many SAMC installations, the interface module operates alongside SAMC analog input modules and SAMC digital output modules that share the same backplane bus — any disruption to bus addressing during replacement must be accounted for in the migration plan.

Power supply capacity is a frequent oversight in retrofit projects. The SAMC Series rack power supply must be verified to support the full module complement after replacement, particularly if the retrofit involves adding new I/O capacity or upgrading to higher-density modules. In cabinets where the original SAMC power supply module is also approaching end-of-life, a concurrent replacement is advisable to avoid a secondary unplanned outage shortly after the interface module swap.

For systems that include an ABB SAMC communication module handling Modbus, PROFIBUS, or proprietary ABB fieldbus links, the SAMC19INF replacement must not disrupt the communication link configuration. Engineers should export the current communication parameter set from the engineering workstation before the swap and re-validate link integrity after module installation. In cases where the host DCS is being migrated from an older Advant OCS or MOD 300 platform to a current ABB System 800xA environment, the SAMC19INF can serve as a transitional interface component, maintaining field signal continuity while the supervisory layer is upgraded in phases.

HMI screen tag mapping is another critical checkpoint. If the facility uses an ABB Operator Station or a third-party SCADA system with hardcoded tag references to the SAMC19INF’s I/O addresses, those references must be verified against the replacement module’s address configuration before returning the system to automatic control. Programming cable access to the SAMC controller may be required to confirm or update module address assignments using ABB’s engineering tools.

For I/O expansion projects running in parallel with the interface module replacement, SAMC Series I/O expansion modules and signal isolators should be staged and pre-tested on a bench rack before installation in the live cabinet. This approach reduces the risk of introducing multiple variables into a single maintenance window and allows the commissioning team to validate each component independently before the final cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS retrofit. For the SAMC19INF replacement, the recommended approach is a hot-standby preparation strategy: the replacement module is pre-configured, firmware-verified, and address-matched before the maintenance window opens. This allows the physical swap to be completed within a single planned shutdown, with the control system returning to automatic operation as quickly as possible.

Before the maintenance window, the engineering team should perform a full backup of the SAMC controller program, including all function block configurations, loop tuning parameters, and interlock logic. This backup protects against data loss in the event of an unexpected controller reset during the module swap. If the SAMC Series controller supports online program download, the team should confirm whether the interface module replacement requires a controller restart or can be completed with the controller in run mode — this determination significantly affects the planned downtime duration.

Field control continuity during the swap can be maintained by placing affected control loops in manual mode at the operator station before removing the SAMC19INF. Operators should be briefed on the expected duration of manual operation and the specific loops affected, so that process conditions can be held stable during the replacement window. For critical process loops, a pre-agreed setpoint hold strategy should be documented and approved by the process engineering team before the maintenance window begins.

After the replacement module is installed and powered, the commissioning sequence should follow a structured verification checklist: confirm module recognition by the controller, verify communication link status, validate I/O signal integrity on a channel-by-channel basis, confirm HMI tag updates, and perform a controlled return to automatic mode on each loop before closing the maintenance record. All findings should be documented for the facility’s maintenance management system to support future lifecycle planning.

Retrofit Support FAQ

Q1: Is the SAMC19INF a direct drop-in replacement for the original ABB part number 57401389?
Yes. The SAMC19INF supplied by KNMKS corresponds directly to ABB part number 57401389. Each unit undergoes functional testing prior to shipment to confirm interface operation, communication link integrity, and signal channel performance. Customers are advised to verify the firmware revision of the replacement module against the host controller’s compatibility matrix before installation.

Q2: What wiring changes are required when replacing a failed SAMC19INF?
For a like-for-like replacement within the same SAMC rack slot, no wiring changes are typically required. The existing terminal block layout and signal assignments remain valid. However, if the replacement is part of a broader I/O reconfiguration or panel upgrade, terminal mapping should be re-verified against the current as-built drawings before the module is powered.

Q3: How is communication protocol compatibility confirmed before installation?
Communication compatibility is confirmed by matching the SAMC19INF firmware version to the host SAMC controller’s supported module list. For systems using ABB fieldbus or Modbus links, the communication parameter set should be exported from the engineering workstation before the swap and re-imported or manually re-entered after the replacement module is recognized by the controller. KNMKS technical support can assist with firmware version identification based on the controller generation and existing module configuration.

Q4: What support terms and stock availability does KNMKS provide for the SAMC19INF?
KNMKS maintains inventory of the SAMC19INF and ships from verified stock. All units carry a support terms confirmed by quotation covering functional defects under normal operating conditions. Pre-shipment testing is performed on every unit. For urgent retrofit projects or bulk procurement requirements, contact the KNMKS sales team directly to confirm lead time and available quantity.
