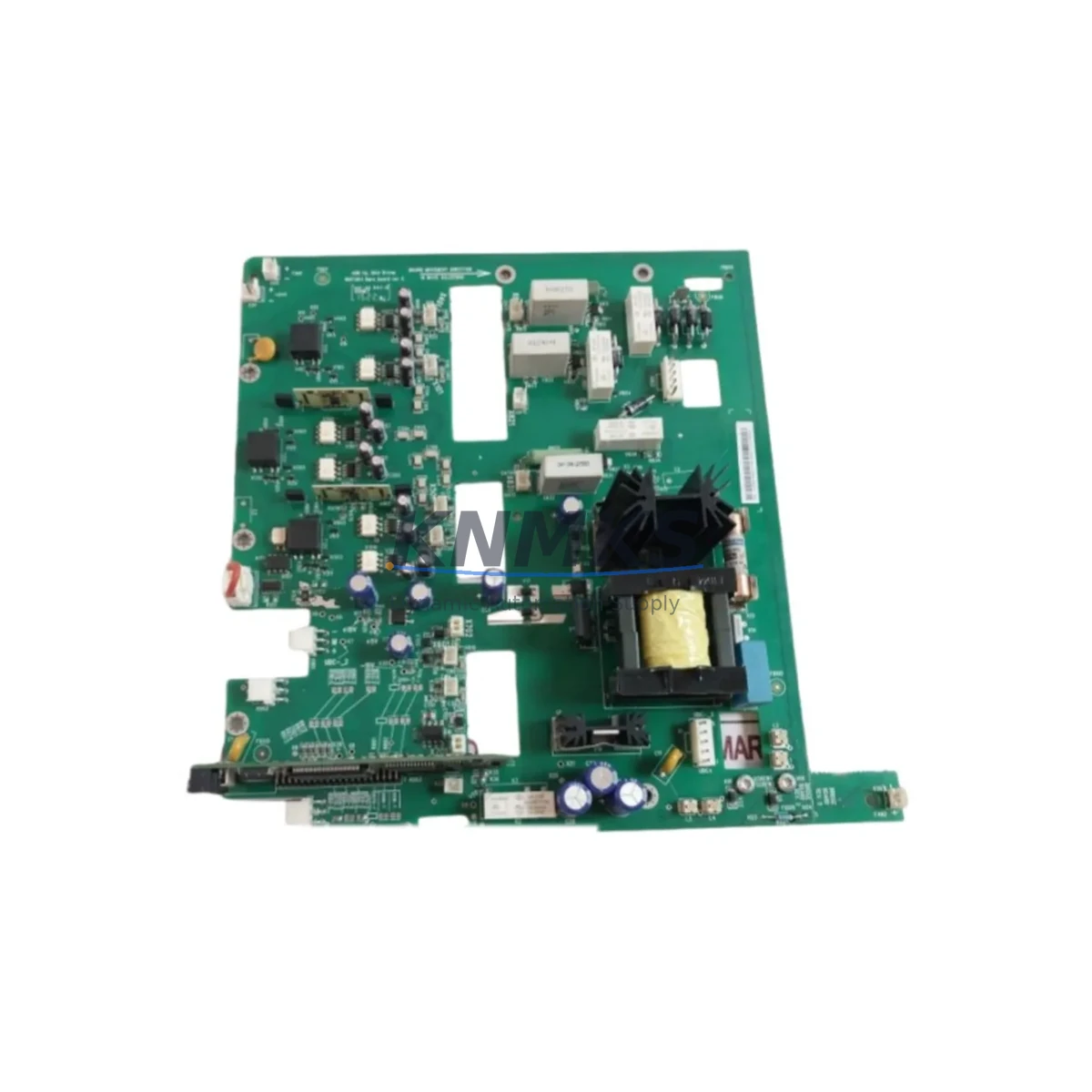

ABB RINT-5611/RINT-6621C Migration-Ready Fiber Optic Interface for Legacy Control Systems

The ABB RINT-5611 / RINT-6621C (part number 64690698) is a DDCS fiber optic communication interface module designed for integration into ABB ACS800 and DCS800 series variable speed drives. As legacy drive platforms approach end-of-life and spare part availability tightens, this module serves as a critical migration-ready replacement that preserves existing control architecture while enabling a structured path toward modernized automation infrastructure.

For maintenance engineers and system integrators managing aging drive cabinets, the RINT-5611/RINT-6621C provides a direct-fit solution that eliminates the need for full drive replacement. The module slots into the standard option board position on ACS800 drive frames, restoring DDCS fiber optic communication links between the drive and upstream controllers — including ABB AC800M DCS controllers, NDIO I/O extension modules, and NPBA-12 PROFIBUS adapter boards — without requiring changes to the existing PLC program logic or HMI screen configurations.

When planning a retrofit around this module, engineers must verify several key parameters before installation. Power supply compatibility is the first checkpoint: the RINT-5611 draws its operating voltage from the drive’s internal option board bus, so confirming that the host ACS800 or DCS800 frame’s internal power budget accommodates the additional load is essential. Terminal wiring on the fiber optic connectors uses standard ST-type plastic optical fiber, and the existing fiber runs should be inspected for bend radius compliance and connector cleanliness before reconnection.

Backplane interface alignment is equally critical. The module occupies a dedicated slot on the ACS800 drive’s option board rack, and the slot address must be correctly configured in the drive’s parameter set — typically via parameter group 70 (DDCS Control) — to ensure the drive recognizes the new board and re-establishes the communication link with the master controller. If the original RINT-5611 was configured as a follower node in a multi-drive DDCS ring, the node address and token-passing sequence must be re-entered after board replacement.

Program compatibility is generally maintained without modification when replacing a like-for-like RINT-5611 or RINT-6621C board, as the firmware interface and parameter map remain consistent across production batches. However, if the replacement board carries a different firmware revision, a brief firmware verification step using the ABB DriveWindow or Drive Composer commissioning tool is recommended before returning the drive to production. This step also confirms that the DDCS link status registers are reporting correctly to the upstream AC800M controller or to any connected NINT-41 or NINT-43 fieldbus adapter modules sharing the same communication ring.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the RINT-5611/RINT-6621C begins with a full audit of the existing drive cabinet layout. In most ACS800 installations, the option board rack accommodates multiple modules simultaneously — a common configuration pairs the RINT-5611 fiber optic interface with an RDIO-01 digital I/O extension module and an RAIO-01 analog I/O module to handle local process signals without routing them through the main DDCS ring. Confirming that these adjacent modules remain seated and undisturbed during the RINT board swap prevents secondary faults from appearing after the drive is re-energized.

For sites running a broader ABB drive network, the RINT-5611 typically operates as one node in a DDCS fiber ring that also includes NDIO I/O extension units and NPBA-12 PROFIBUS adapter boards connected to the plant’s Siemens S7 or ABB AC800M supervisory layer. When the fiber ring is broken for board replacement, the master controller will log a communication fault. Coordinating the replacement window with the control room operator and pre-staging the replacement board with the correct node address minimizes the duration of this fault condition and avoids triggering interlock shutdowns on dependent process equipment.

In DCS800 DC drive applications, the RINT-6621C variant serves the same DDCS interface function and is physically interchangeable with the RINT-5611 in most frame sizes. Sites migrating from older DCS800 installations to newer ACS880 platforms may use the RINT-6621C as an interim measure to maintain DDCS communication continuity while the upstream controller migration is planned separately. During this transition period, the existing NINT-41 fieldbus adapter and any connected PROFIBUS DP segment remain fully operational, reducing the scope of the migration to a single board swap rather than a full communication architecture overhaul.

Cabinet space confirmation is a practical step that is frequently overlooked. The RINT-5611 occupies one option board slot, but the fiber optic cable routing inside the cabinet must also be assessed — ST-type fiber connectors require a minimum bend radius, and in densely populated drive cabinets, the fiber run from the board to the cabinet’s fiber entry point may need to be re-routed using a fiber management tray to avoid signal attenuation from tight bends.

Downtime Control During System Migration

Minimizing unplanned downtime during a RINT-5611/RINT-6621C board replacement requires preparation that begins before the maintenance window opens. The first step is to export the full drive parameter set using ABB DriveWindow or Drive Composer and save it to a laptop or USB drive that will be present on-site during the swap. This parameter backup captures the DDCS node address, communication timeout settings, and all process-specific tuning values, ensuring that if the replacement board requires a full parameter restore, the process can be completed in minutes rather than hours.

The second preparation step is to confirm with the control room that the affected drive can be placed in local control mode before the DDCS link is interrupted. Operating the drive in local mode during the board swap allows the process to continue at a fixed speed setpoint, maintaining production continuity on lines where a brief period of unregulated speed is acceptable. For processes where any deviation from the speed reference is unacceptable, a coordinated shutdown and restart sequence should be agreed upon in advance, with the restart checklist including DDCS link status confirmation, drive fault log clearance, and a brief no-load test run before reconnecting the process load.

Post-installation, the DDCS link status can be verified in real time through the drive’s panel display or through the DriveWindow monitoring view. A healthy link is indicated by the DDCS status word showing active token passing and zero communication error counts. If the link does not establish within 30 seconds of powering the drive, the most common causes are an incorrect node address in parameter group 70, a dirty or misaligned ST fiber connector, or a fiber run with excessive attenuation — all of which can be resolved on-site without returning the board for testing.

All RINT-5611/RINT-6621C units supplied by KNMKS are tested for DDCS communication function and optical signal integrity before shipment. The support terms confirmed by quotation cover both the board’s electronic function and the fiber optic transceiver components, providing assurance that the replacement unit will perform to specification from the first power-on.

Retrofit Support FAQ

Q1: Is the RINT-6621C a direct replacement for the RINT-5611?
In most ACS800 and DCS800 applications, yes. Both modules use the same DDCS fiber optic interface and occupy the same option board slot. The RINT-6621C (64690698) is the current production variant and is backward compatible with installations originally fitted with the RINT-5611. Confirm the drive frame size and option board slot configuration before ordering to ensure physical fitment.

Q2: Will I need to modify my PLC program or HMI screens after replacing this board?
For a like-for-like replacement, no program or HMI changes are required. The DDCS communication interface and parameter map are consistent between RINT-5611 and RINT-6621C variants. The only configuration step required is re-entering the DDCS node address in parameter group 70 if the drive’s parameters were reset during the swap, and verifying the DDCS link status using DriveWindow or Drive Composer before returning the drive to automatic control.

Q3: How do I verify the board is functioning correctly after installation?
Power the drive and check the DDCS status word via the drive panel or DriveWindow. The status word should show active token passing with zero error counts within 30 seconds of power-on. If the link does not establish, check the ST fiber connector seating, verify the node address in parameter group 70, and confirm that the fiber run has no tight bends causing signal attenuation. All units are pre-tested for optical signal integrity before shipment.

Q4: What is the support terms and lead time for the RINT-5611/RINT-6621C 64690698?
All units carry a support terms confirmed by quotation covering electronic function and fiber optic transceiver performance. Stock is maintained in regional warehouses to support urgent maintenance requirements. Contact [email protected] or +86 18359268345 for current availability and lead time confirmation.
