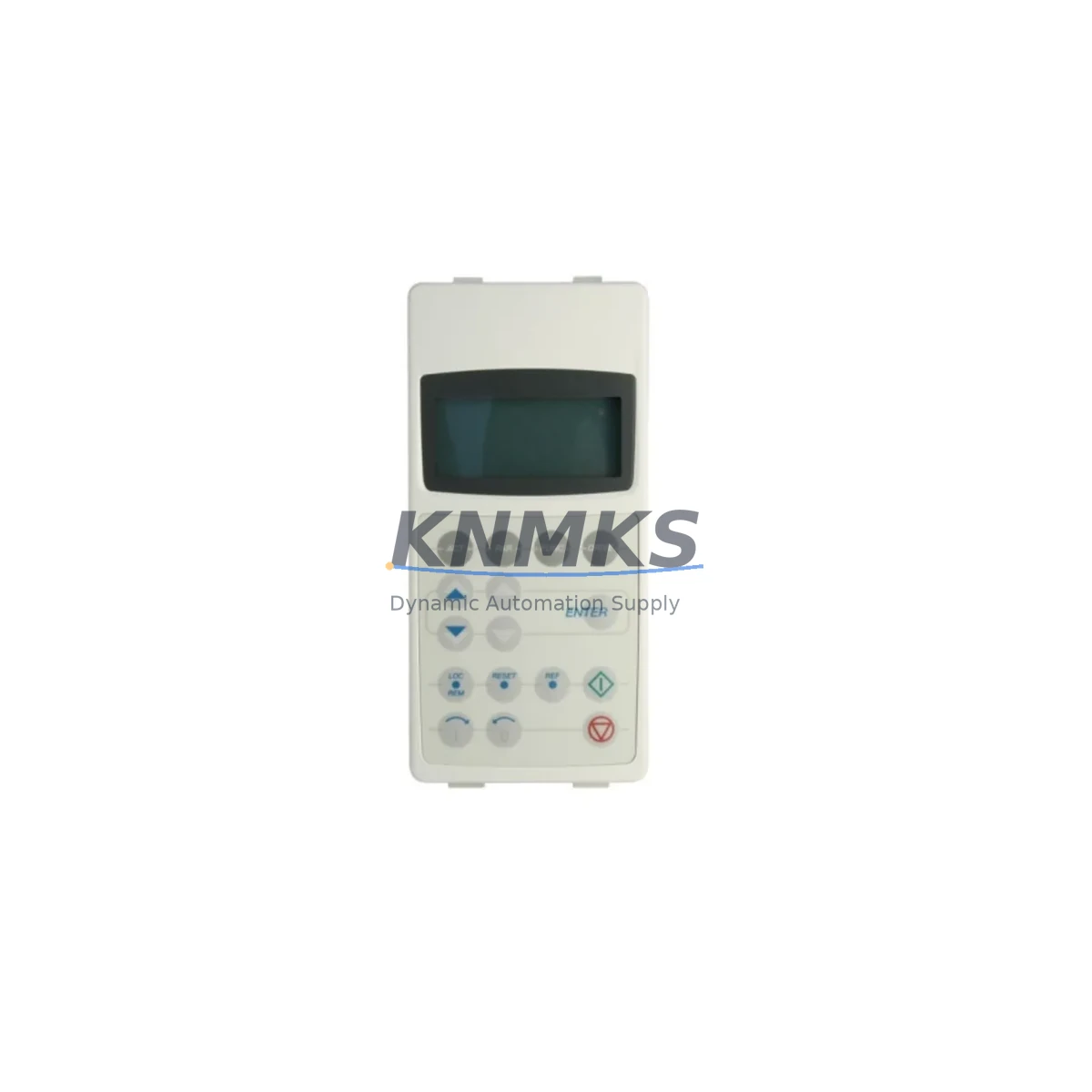

ABB CDP-312R Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB CDP-312R Maintenance-Proven Spare Part for Factory Uptime

The ABB CDP-312R is the original Control Display Panel used across ABB’s ACS600, ACS800, DCS600, and DCS800 drive series — one of the most widely deployed operator interface components in industrial automation environments worldwide. For maintenance engineers managing aging drive systems, the CDP-312R represents a critical spare: it provides local parameter access, fault diagnostics, drive control, and real-time status monitoring directly at the drive cabinet. Keeping a verified CDP-312R in your spare parts inventory is a proven strategy for reducing unplanned downtime and accelerating fault recovery on the production floor.

Whether you are managing a paper mill, a water treatment facility, a steel processing line, or a chemical plant, the CDP-312R is the interface your technicians rely on during commissioning, routine inspection, and emergency fault isolation. Its plug-and-play compatibility with the ACS800 and DCS800 series means replacement can be completed in minutes without reconfiguration — a decisive advantage when every minute of downtime carries production cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the CDP-312R in the field, a disciplined maintenance engineer will not stop at the panel itself. The CDP-312R interfaces directly with the drive’s control board — on ACS800 platforms this is typically the RMIO board — and any degradation in the panel bus signal or connector integrity can produce intermittent communication faults that are difficult to diagnose without a known-good spare panel on hand.

During a scheduled cabinet inspection or emergency fault response, the following components should be evaluated alongside the CDP-312R replacement:

• RMIO Control Board (ACS800) — The primary control interface board that the CDP-312R communicates with. If the panel replacement does not resolve fault codes, the RMIO board should be the next diagnostic target. Keeping an RMIO spare in your cabinet kit is strongly recommended for critical drive lines.
• RDCO Communication Module — If your ACS800 or DCS800 is integrated into a PROFIBUS, DeviceNet, or DDCS fiber ring, the RDCO module governs fieldbus communication. A CDP-312R fault that coincides with fieldbus dropouts may indicate RDCO degradation rather than a panel failure.
• Drive Input Fuses and Fuse Holders — Overcurrent events that trigger drive faults often damage input fuses before the drive’s internal protection activates. Inspect and replace fuses rated for the drive’s input current class during any unplanned shutdown.
• 24 VDC Control Power Supply — The CDP-312R and the drive’s control electronics are powered by the internal 24 VDC rail. A sagging or noisy control supply can cause panel resets, parameter corruption, and false fault indications. Verify control supply voltage stability with a calibrated meter before concluding the panel is faulty.
• I/O Terminal Blocks and Signal Wiring — Loose or corroded terminal connections on the drive’s analog and digital I/O terminals are a common root cause of intermittent faults that surface as panel errors. Re-torque all terminals and inspect for oxidation during the replacement procedure.
• Backup Memory Unit (MFDT-01 or equivalent) — For ACS800 installations where parameter sets are stored on an external memory unit, verify that the parameter backup is current before swapping the CDP-312R. A panel replacement that inadvertently resets drive parameters can cause unexpected behavior on restart.

Procurement engineers sourcing CDP-312R spares should account for lead time variability on ABB legacy components. The CDP-312R has been in service for over two decades across global installations, and while ABB continues to support the ACS800 and DCS800 platforms, original panel availability from distribution channels can be inconsistent. Maintaining a minimum stock of one to two CDP-312R units per critical drive line is a recognized best practice in facilities with high uptime requirements.

Site Replacement Workflow

The CDP-312R is designed for rapid field replacement without special tooling. The following workflow is recommended for minimizing downtime during an unplanned panel failure:

1. Isolate and document: Before removing the faulty panel, record all active fault codes and the current parameter set using a laptop with DriveWindow or DriveStudio software, or photograph the panel display if the drive is still partially operational.
2. Power-down sequence: Follow the drive’s lockout/tagout procedure. The CDP-312R can be removed with the drive powered in some configurations, but ABB recommends de-energizing the control supply before panel removal to prevent connector damage.
3. Physical swap: Disconnect the panel bus cable from the rear of the CDP-312R, remove the panel from its mounting slot, and insert the replacement unit. Reconnect the panel bus cable and verify the connector is fully seated.
4. Power-up and verify: Restore control power and confirm the replacement CDP-312R displays the drive’s firmware version and parameter group correctly. Navigate to the fault log to confirm no new faults were introduced during the swap.
5. Parameter verification: If the drive parameters were not stored externally, use the CDP-312R’s parameter copy function (where supported) or re-enter critical parameters from your maintenance records. Verify speed reference, acceleration/deceleration ramps, and protection settings before returning the drive to service.
6. Functional test: Run the drive at reduced load and confirm all I/O signals, speed feedback, and communication status are normal before resuming full production.

This workflow applies equally to ACS600, ACS800, DCS600, and DCS800 installations. For older ACS600 systems, confirm that the CDP-312R firmware version is compatible with the drive’s software revision before committing to the replacement — ABB’s compatibility matrix for CDP-312R covers multiple firmware generations.

Spare Parts Support FAQ

Q1: Is the CDP-312R compatible with both ACS800 and DCS800 drives?
Yes. The CDP-312R is the standard operator panel for the ACS600, ACS800, DCS600, and DCS800 drive families. It uses the same panel bus interface across all four platforms, allowing a single spare unit to cover multiple drive types in a mixed installation. Always verify the firmware revision compatibility with your specific drive software version before installation.

Q2: What pre-shipment testing is performed on CDP-312R units?
Every CDP-312R unit shipped by KNMKS undergoes function verification testing prior to dispatch, including display operation, keypad response, panel bus communication, and parameter read/write confirmation. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: How many CDP-312R units should we stock for a facility with multiple ACS800 drives?
For facilities operating three or more ACS800 or DCS800 drives in critical process roles, a minimum stock of two CDP-312R units is recommended. For larger installations or those with extended supplier lead times, a stock of one unit per five drives is a common industry benchmark. The CDP-312R’s long service life and cross-platform compatibility make it an efficient spare to hold.

Q4: Can KNMKS guarantee long-term supply of the CDP-312R?
KNMKS maintains dedicated inventory of ABB legacy spare parts including the CDP-312R to support customers managing aging ACS and DCS drive installations. We provide sourcing continuity planning for maintenance teams and can advise on alternative panel options if the CDP-312R reaches end-of-availability. Contact our team to discuss volume pricing and reserved stock arrangements for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CDP-312R
S800 Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB CDP-312R
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
