ABB NPCU-01 Fail-Safe Serial PC Interface for Industrial Control

Overview

ABB NPCU-01 Fail-Safe Serial PC Interface for Industrial Control

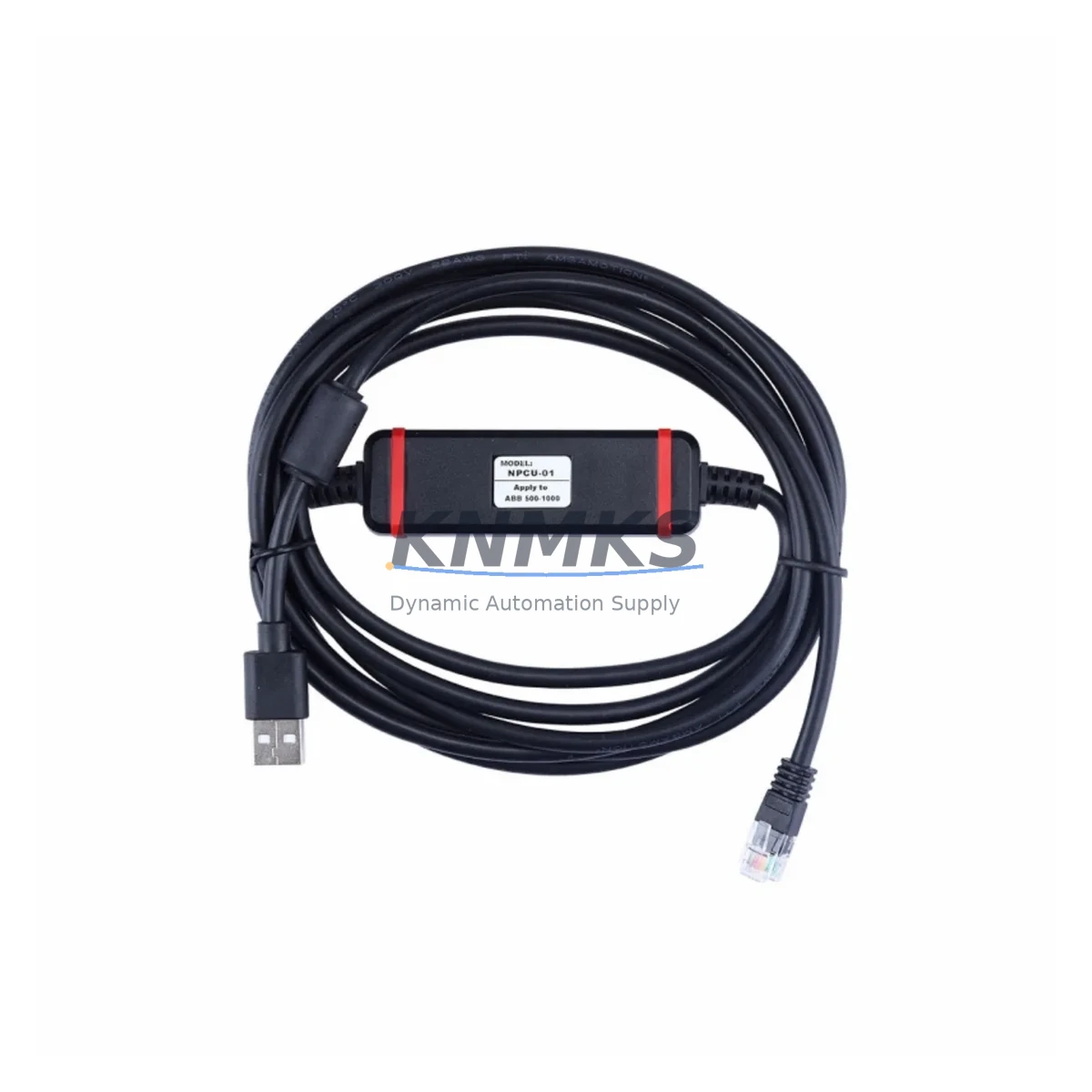

The ABB NPCU-01 is a dedicated serial PC interface module engineered for ACS600 and ACS800 series variable-speed drives, delivering fail-safe communication between host control systems and drive hardware in demanding industrial environments. Designed to sustain uninterrupted serial data exchange under conditions of high electromagnetic interference, voltage transients, and mechanical vibration, the NPCU-01 is a critical component in any control architecture where communication loss translates directly to process downtime, safety interlock failure, or unplanned equipment shutdown.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical mills, and water treatment infrastructure — the integrity of the drive-to-PC communication link is non-negotiable. The NPCU-01 addresses this requirement by providing a hardened RS-232/RS-485 serial interface that maintains signal fidelity even in cabinet environments subject to capacitive coupling, ground loops, and conducted EMI from adjacent variable-frequency drives, motor starters, and high-current switching equipment. Its robust signal isolation architecture prevents communication faults from propagating into the broader control loop, protecting upstream PLC inputs and SCADA data acquisition channels from spurious state changes.

When deployed alongside the ABB RDCO-02 DDCS fiber optic communication module, the NPCU-01 forms a complementary communication layer: fiber handles high-speed drive-to-drive or drive-to-controller links, while the NPCU-01 provides the local PC diagnostic and parameterization channel. This dual-path architecture ensures that maintenance engineers retain full drive visibility and parameter access even during active production, without interrupting the primary control loop. Similarly, in cabinets where the ABB AINT-02 analog interface board manages process variable feedback, the NPCU-01 enables real-time parameter monitoring and fault log retrieval without requiring physical drive panel access — a significant safety advantage in high-voltage enclosures.

For installations using ABB’s RMIO-02 or RMIO-11 drive control boards, the NPCU-01 integrates directly into the established communication hierarchy, supporting DriveWindow and DriveMonitor PC tools for commissioning, trending, and predictive maintenance workflows. In mining and mineral processing applications, where drives control conveyor systems, crushers, and slurry pumps under continuous heavy-load cycles, the ability to remotely monitor drive parameters via the NPCU-01 without halting production is a direct contributor to operational safety and equipment longevity. The module’s tolerance for ambient temperatures up to 55°C and its resistance to particulate ingress make it suitable for deployment in dusty, humid, or thermally stressed control rooms.

Port and marine installations present additional challenges: salt-laden air, condensation cycles, and shipboard vibration profiles that exceed standard industrial ratings. The NPCU-01’s conformal-coated PCB construction and sealed connector interface resist corrosion and moisture ingress, maintaining communication reliability in these environments. In power utility substations, where the ABB ACS800 drives control large fan and pump loads critical to transformer cooling and auxiliary systems, an NPCU-01 communication fault could delay fault diagnosis and extend equipment outage windows. Stocking a verified replacement unit — pre-tested and immediately deployable — is therefore a standard element of any responsible spare parts strategy for ACS600/ACS800 fleets.

The NPCU-01 is also relevant in retrofit and migration scenarios. As legacy ACS600 installations approach end-of-support timelines, engineering teams planning phased migration to ACS880 or ACS580 platforms frequently maintain NPCU-01 units in their spare parts inventory to sustain existing ACS600 communication infrastructure during the transition period. Pairing the NPCU-01 with an ABB NAMC-03 or NAMC-11 motor control board ensures that the full drive communication stack remains operational throughout multi-phase upgrade projects, avoiding the risk of a single component failure forcing an unplanned, full-drive replacement ahead of schedule.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS600/ACS800 control cabinet depends on the coordinated performance of multiple modules working in concert. The NPCU-01 serial interface anchors the PC communication layer, but its effectiveness is amplified when the surrounding cabinet components are equally robust. The ABB RDCO-02 DDCS fiber optic module eliminates ground-loop interference on the primary drive communication bus, while the ABB AINT-02 analog interface board maintains accurate process variable feedback under fluctuating load conditions. For power supply integrity, the ABB APOW-01 power supply module provides regulated internal bus voltage, protecting all installed option boards — including the NPCU-01 — from supply rail transients caused by motor switching events or upstream grid disturbances.

In cabinets subject to high inrush currents or capacitor bank switching, surge protection at the incoming supply rail is essential. Coordinating the NPCU-01 with properly rated surge suppression devices and the ABB RMIO-02 drive control board ensures that transient overvoltages do not corrupt serial communication buffers or damage interface circuitry. For installations requiring fieldbus integration alongside serial PC access, the ABB NPBA-12 PROFIBUS adapter can be installed in a parallel option slot, allowing simultaneous PROFIBUS DP network participation and local DriveWindow connectivity — a configuration commonly used in DCS-integrated process plants where both centralized control and local maintenance access are required.

Critical Industrial Safety Applications

The NPCU-01 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical refineries, it supports real-time parameter monitoring of ACS800 drives controlling compressor trains and cooling water pumps, enabling operators to detect incipient faults — such as rising motor temperature or increasing output current — before they escalate to process trips. In electric power generation facilities, ACS600-driven boiler feed pumps and induced draft fans rely on continuous drive communication for load-following control; the NPCU-01 ensures that control room operators maintain full drive visibility during all operating modes.

Mining operations present some of the harshest environments for drive communication hardware. Conveyor drives, hoist systems, and grinding mill drives in underground and open-pit mines operate under continuous vibration, high dust loading, and wide ambient temperature swings. The NPCU-01’s hardened construction sustains reliable serial communication in these conditions, supporting predictive maintenance programs that reduce unplanned conveyor stoppages and extend drive service intervals. In water and wastewater treatment plants, where ACS800 drives control high-duty-cycle pump stations, the NPCU-01 enables remote parameter adjustment and fault log access without requiring personnel to enter potentially hazardous electrical enclosures — a direct contribution to site safety compliance.

Metallurgical and steel mill applications demand drives and their communication modules to withstand intense electromagnetic fields generated by arc furnaces, induction heaters, and large transformer banks. The NPCU-01’s isolation architecture provides the necessary immunity to sustain data integrity in these environments. Port and terminal operations, where ACS600 drives power crane hoists and container handling equipment, benefit from the NPCU-01’s ability to support rapid fault diagnosis and parameter recovery after emergency stops, minimizing crane downtime and maintaining cargo throughput schedules.

Safety and Quality FAQ

Q: What support terms coverage is provided with the NPCU-01?
A: Every NPCU-01 unit is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes replacement dispatch and technical guidance for installation verification.

Q: Is the NPCU-01 tested before shipment?
A: Yes. Each unit undergoes full functional verification prior to dispatch, including serial communication interface testing, power supply rail checks, and visual inspection for physical integrity. Test records are available upon request.

Q: Is this module compatible with both ACS600 and ACS800 drive families?
A: The NPCU-01 is designed for use with ABB ACS600 and ACS800 series drives. Compatibility with specific drive variants depends on the drive’s option slot configuration and firmware version. Our technical team can confirm compatibility for your specific drive model and software revision before order confirmation.

Q: Can long-term supply continuity be assured for ongoing maintenance programs?
A: We maintain dedicated stock of the NPCU-01 to support both emergency replacement and planned maintenance programs. Multi-unit orders for spare parts inventory are accommodated, and we can advise on recommended stock levels based on fleet size and criticality of the driven equipment.
