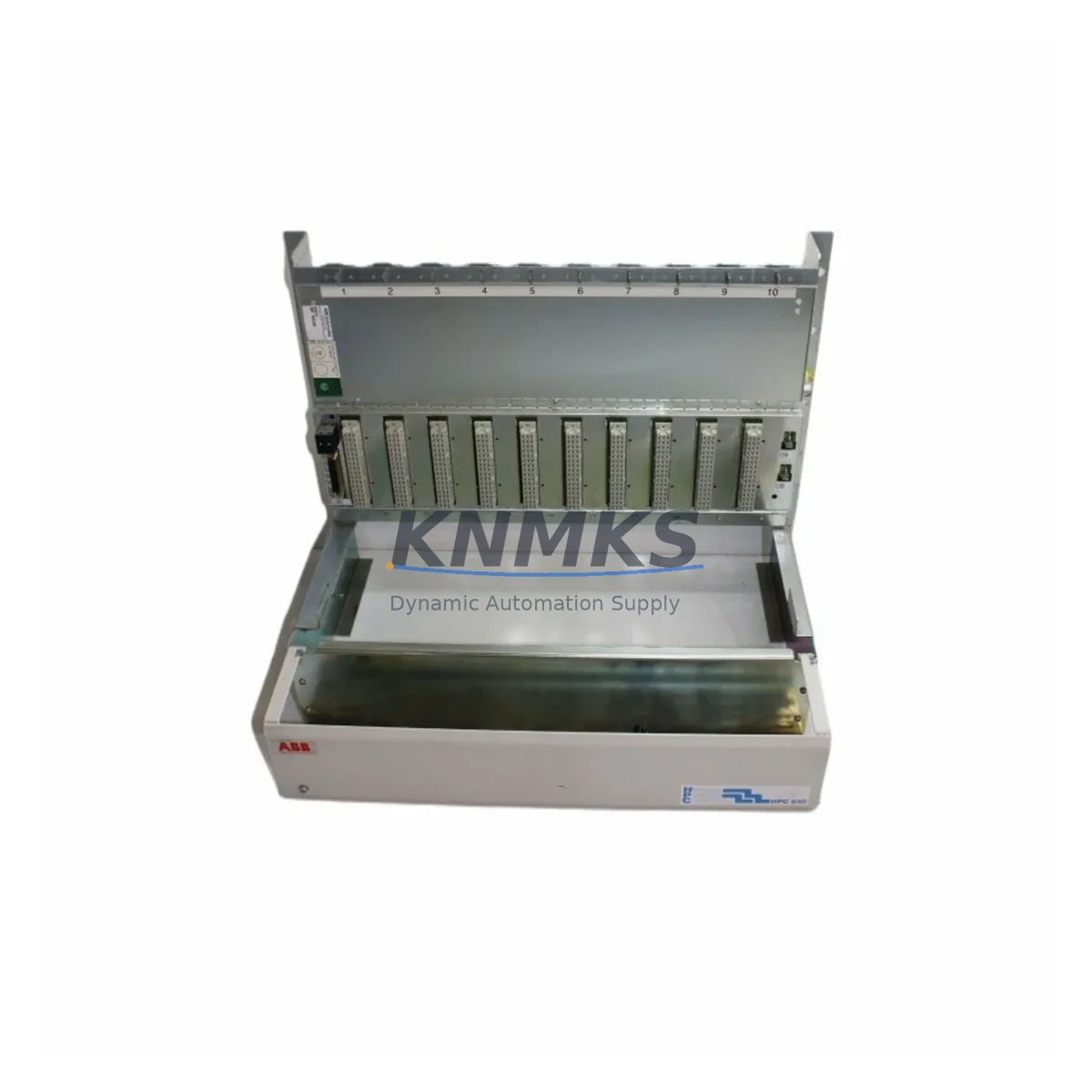

ABB RF615 3BHT100010R1 Fail-Safe Card Rack for Industrial Control

Overview

ABB RF615 3BHT100010R1 Fail-Safe Card Rack for Industrial Control Reliability

The ABB RF615 3BHT100010R1 is a ruggedized DCS card rack engineered for the AC800M controller platform, purpose-built to sustain fail-safe operation in continuous production environments where control interruption carries direct safety and financial consequences. Designed to house I/O and communication modules within the AC800M architecture, this card rack provides the structural and electrical backbone that keeps critical control loops alive under demanding field conditions — including high electromagnetic interference, power fluctuation, thermal stress, mechanical vibration, and corrosive or dusty atmospheres.

In petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines, the integrity of the DCS backplane is non-negotiable. The RF615 3BHT100010R1 addresses this by delivering a mechanically stable, thermally managed, and electrically shielded mounting environment for AC800M modules. Its robust bus connectors resist contact degradation caused by vibration and thermal cycling, while its grounded chassis construction provides a low-impedance path that suppresses conducted EMI — a critical factor in environments where variable frequency drives, high-current switchgear, and inductive loads generate persistent electrical noise that can corrupt signal integrity and trigger spurious trips.

Power supply stability is a foundational requirement for any safety-rated control cabinet. The RF615 3BHT100010R1 is designed to operate alongside ABB’s SD802F and SD803F redundant power supply modules, which provide regulated 24 VDC to the backplane with built-in surge and reverse-polarity protection. When paired with the PM866 or PM891 AC800M processor modules, the card rack supports hot-standby redundancy configurations that eliminate single points of failure in the control architecture. Communication continuity is maintained through CI854 PROFIBUS DP interface modules or CI873 PROFINET modules mounted within the same rack, ensuring that field device data reaches the controller without interruption even during partial cabinet faults.

For installations in water treatment facilities, port logistics systems, and offshore marine control rooms — where humidity, salt fog, and condensation are persistent threats — the RF615 3BHT100010R1’s conformal-coating-compatible design and sealed backplane bus protect against insulation breakdown and corrosion-induced contact resistance. In high-temperature furnace control or cement kiln automation, where ambient cabinet temperatures can approach operational limits, the rack’s thermal design supports adequate airflow channeling to prevent module derating or thermal shutdown. Vibration-resistant module retention clips prevent card unseating in mobile or high-vibration installations such as ship engine rooms or mining conveyors.

From a maintenance and lifecycle perspective, the RF615 3BHT100010R1 supports planned spare part strategies. Stocking this card rack as a critical spare — alongside compatible AI810 analog input modules and DI810 digital input modules — enables rapid module-level replacement without controller downtime. Pre-shipment functional testing of each unit against ABB’s factory acceptance criteria ensures that every rack dispatched is verified operational before it reaches the field, eliminating the risk of installing a defective component into a live safety system.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC800M control cabinet is built around the RF615 3BHT100010R1 as its structural core, but sustained fail-safe performance depends on the coordinated selection of every component in the enclosure. The SD802F redundant power supply module provides the regulated, surge-protected 24 VDC feed that the backplane requires, with automatic switchover that prevents power interruption from propagating into the control loop. Upstream, a SACE Tmax XT series circuit breaker or equivalent ABB-rated protection device provides overcurrent and short-circuit isolation, preventing a downstream fault from collapsing the entire cabinet supply rail.

Within the rack, AI810 analog input modules handle 4–20 mA process signals from pressure transmitters, flow meters, and temperature sensors. Signal integrity at these inputs is directly dependent on the backplane’s EMI shielding — any ground loop or conducted interference that reaches the AI810 input stage can introduce signal drift that causes false process readings and unnecessary safety trips. The DI810 digital input module handles discrete safety interlock signals, and its response time characteristics must be matched to the safety function’s required reaction time as defined in the SIL assessment. For process communication, the CI854 PROFIBUS DP module mounted in the same RF615 rack provides deterministic fieldbus connectivity to remote I/O stations and intelligent field devices, maintaining communication availability even under high bus load conditions.

Cabinet thermal management is completed by ABB’s recommended forced-air cooling accessories, which maintain module junction temperatures within rated limits during peak summer ambient conditions in outdoor substations or non-air-conditioned plant rooms. Surge protection on all field cable entries — using DIN-rail-mounted SPD modules rated to IEC 61643-21 — prevents lightning-induced transients from reaching the backplane bus through connected I/O wiring.

Critical Industrial Safety Applications

In petrochemical refineries and LNG terminals, the RF615 3BHT100010R1 serves as the backplane for emergency shutdown (ESD) and process control system (PCS) cabinets where SIL 2 or SIL 3 interlock functions are hosted. Its ability to maintain module seating integrity under continuous vibration from rotating machinery — compressors, pumps, and turbines — makes it suitable for installation in machinery control rooms adjacent to process equipment.

In thermal and hydroelectric power generation, the card rack supports turbine governor control and boiler management system (BMS) cabinets, where loss of controller communication for even a few seconds can trigger unit trip and grid instability. The rack’s hot-standby redundancy support, when combined with redundant PM866 processors, provides the fault tolerance required for continuous generation without planned outage windows.

In mining and mineral processing, where blasting vibration, coal dust ingress, and high-humidity underground environments challenge conventional electronics, the RF615 3BHT100010R1’s robust mechanical design and sealed bus connectors provide the durability needed for conveyor control, crusher automation, and ventilation safety systems. In municipal water treatment and wastewater facilities, the card rack supports SCADA-integrated pump station control and chemical dosing automation, where unplanned downtime directly affects public health compliance obligations.

Port and terminal automation systems — including ship-to-shore crane control and automated stacking crane (ASC) systems — rely on the RF615 3BHT100010R1 for motion control cabinet backplanes that must withstand the mechanical shock and vibration of heavy-lift operations while maintaining deterministic control loop execution.

Safety and Quality FAQ

Q1: What support terms coverage applies to the ABB RF615 3BHT100010R1?
Every RF615 3BHT100010R1 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch to minimize field downtime.

Q2: Is each unit tested before shipment?
Yes. Every RF615 3BHT100010R1 undergoes pre-shipment functional verification, including backplane bus continuity checks and visual inspection against ABB’s quality acceptance criteria. Units that do not pass inspection are not dispatched. Test records are available upon request for critical safety system procurement.

Q3: Is the RF615 3BHT100010R1 compatible with all AC800M processor and I/O modules?
The RF615 3BHT100010R1 is designed for the AC800M platform and is compatible with the full range of AC800M processor modules (PM864A, PM866, PM891) and standard I/O modules (AI810, AO810, DI810, DO810) as well as communication interface modules (CI854, CI873). Compatibility with specific hardware revisions should be confirmed against ABB’s system compatibility matrix for the target firmware version.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
KNMKS maintains forward buffer stock of the RF615 3BHT100010R1 to support planned maintenance programs, scheduled turnarounds, and emergency replacement requirements. Long-term supply agreements are available for customers with multi-year maintenance contracts, ensuring that critical spare availability is not subject to OEM lead-time variability or end-of-life discontinuation risk.
