ABB QVAR-5B2 Migration-Ready DCS Module for Legacy Systems

Overview

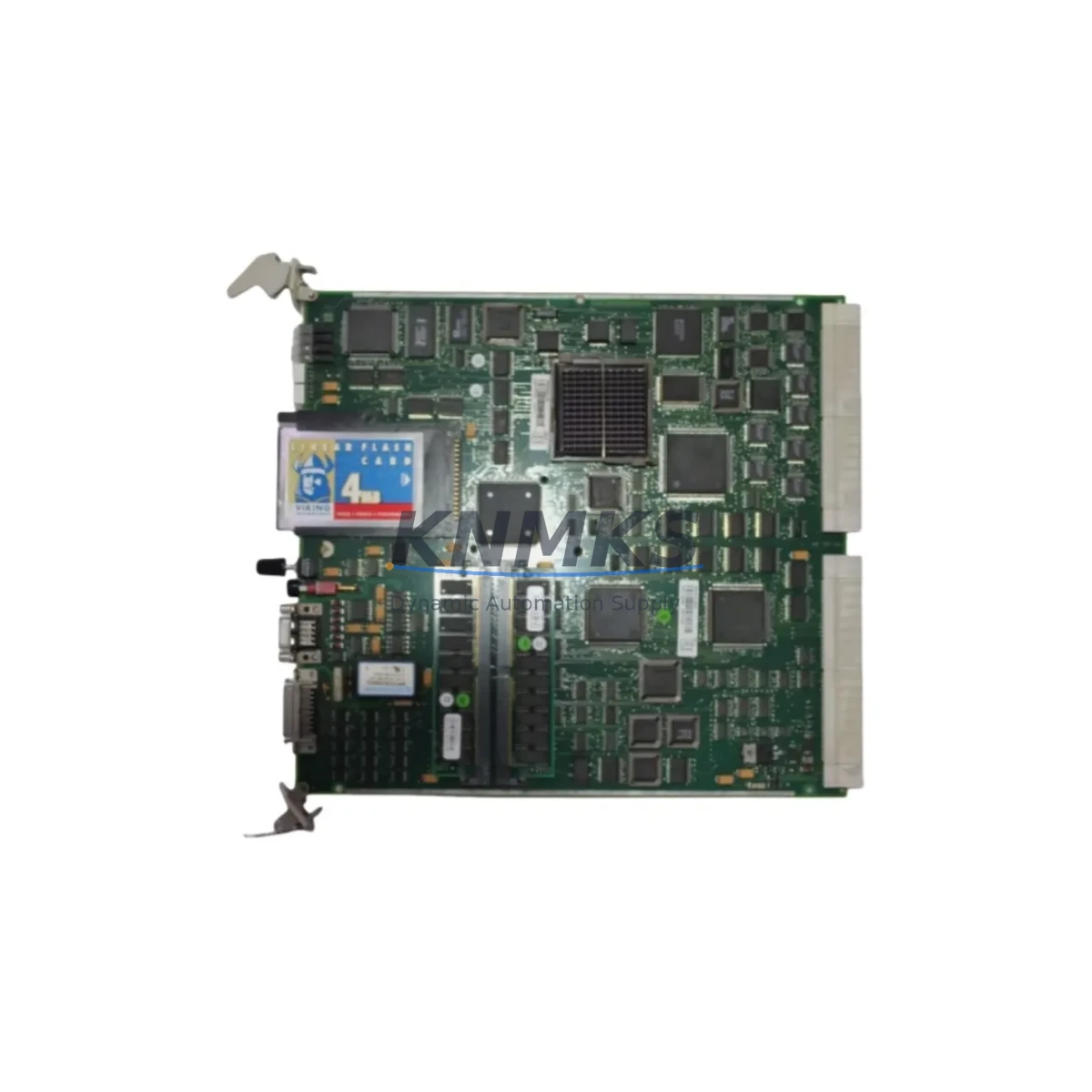

ABB QVAR-5B2 Migration-Ready DCS Communication Module for Legacy Control Systems

The ABB QVAR-5B2 is a DCS communication module engineered for the QVAR Series distributed control architecture. As legacy QVAR-based control systems approach end-of-life and original spare parts become increasingly scarce, the QVAR-5B2 serves as a migration-ready, drop-in replacement that preserves existing backplane wiring, terminal assignments, and communication link configurations — minimizing retrofit risk and unplanned downtime across process industries including oil & gas, chemical, power generation, and water treatment.

For facilities operating aging DCS infrastructure, sourcing a verified QVAR-5B2 with documented compatibility is a critical step in extending the operational life of the control cabinet without committing to a full platform migration. This module ships from global stock with pre-dispatch functional testing and is backed by a support terms confirmed by quotation covering hardware defects under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a QVAR-5B2 within an operating DCS environment requires a structured approach that accounts for the interdependencies between communication modules, I/O subsystems, and the host controller. Before initiating the swap, engineers should audit the rack power supply — typically a QVAR Series PSU module — to confirm that available current headroom accommodates the replacement module without triggering under-voltage faults on adjacent I/O cards.

Terminal wiring on QVAR Series terminal bases is generally retained during a module swap, but field engineers should photograph and document all wiring before removal, particularly on mixed analog and digital I/O assemblies where signal isolation requirements may differ between module generations. If the installation includes QVAR analog input modules or QVAR digital output modules sharing the same rack, their diagnostic status should be confirmed healthy before and after the QVAR-5B2 replacement to isolate any communication-related faults.

Communication link integrity is a key validation step. The QVAR-5B2 interfaces with the host DCS controller via the QVAR backplane bus, and any mismatch in firmware revision between the module and the controller can result in communication timeouts or module non-recognition. Engineers should cross-reference the ABB firmware compatibility matrix and, where necessary, update the host controller firmware using the ABB engineering workstation and the appropriate programming cable before inserting the replacement module.

For control cabinets that also house QVAR Series HMI interface modules or remote I/O gateway modules, the replacement sequence should be planned to avoid interrupting active communication paths. In multi-rack configurations connected via QVAR expansion backplanes, the affected rack should be isolated logically at the controller level before the physical swap, and communication diagnostics should be run from the engineering station to confirm full link restoration after reinsertion.

Where the retrofit scope extends beyond a single module — for example, when upgrading an entire QVAR rack assembly or migrating from a legacy QVAR controller to a current ABB platform — the QVAR-5B2 replacement is typically the first step in a phased migration plan. Subsequent phases may involve replacing QVAR power supply modules, upgrading the rack backplane, or transitioning field I/O to a current ABB I/O platform while retaining existing field wiring through marshalling panels and signal isolators.

Downtime Control During System Migration

Minimizing unplanned downtime during a QVAR-5B2 replacement depends on preparation quality. The most effective approach is to pre-configure the replacement module offline using the ABB engineering workstation before the maintenance window begins. This includes loading the correct module configuration, verifying the firmware revision, and confirming the module address matches the original installation record.

During the maintenance window, the original program logic in the host DCS controller should not be modified. The QVAR-5B2 is a communication module, and its replacement does not require changes to control strategy files, function block diagrams, or PID tuning parameters — provided the module address and firmware are correctly matched. This preserves control continuity and reduces the risk of introducing logic errors during the hardware swap.

After reinsertion, the commissioning sequence should include: confirming module recognition at the engineering station, running communication diagnostics on the QVAR backplane bus, validating I/O signal integrity on connected field devices, checking HMI tag updates and alarm status, and performing a controlled return-to-service with operations personnel present. For critical process loops, a manual-to-auto transfer test should be completed before handing control back to the DCS.

Where hot-swap capability is supported by the rack configuration, the QVAR-5B2 can be replaced without a full rack power-down, further reducing process interruption. Confirm hot-swap support with the rack revision documentation before attempting live replacement.

Retrofit Support FAQ

Q: Is the QVAR-5B2 a direct drop-in replacement for the original ABB QVAR Series communication module?
A: Yes. The QVAR-5B2 is designed as a direct slot replacement for compatible QVAR Series racks. No backplane adapter or terminal rewiring is required for standard QVAR installations. Verify the rack revision and firmware compatibility before installation.

Q: What commissioning steps are required after replacing the QVAR-5B2?
A: After insertion, confirm module recognition at the ABB engineering workstation, run backplane communication diagnostics, validate I/O signal integrity, check HMI tag mapping and alarm setpoints, and perform a controlled return-to-service. Document all steps for maintenance records.

Q: How is the QVAR-5B2 tested before shipment?
A: Each unit undergoes pre-dispatch functional testing to verify communication interface integrity and hardware health. A support terms confirmed by quotation is provided covering hardware defects under normal industrial operating conditions.

Q: What is the stock availability and lead time for the QVAR-5B2?
A: The QVAR-5B2 is available from global stock. Contact our sales team for current inventory status, lead time confirmation, and volume pricing. We support urgent retrofit requirements with expedited dispatch options.
