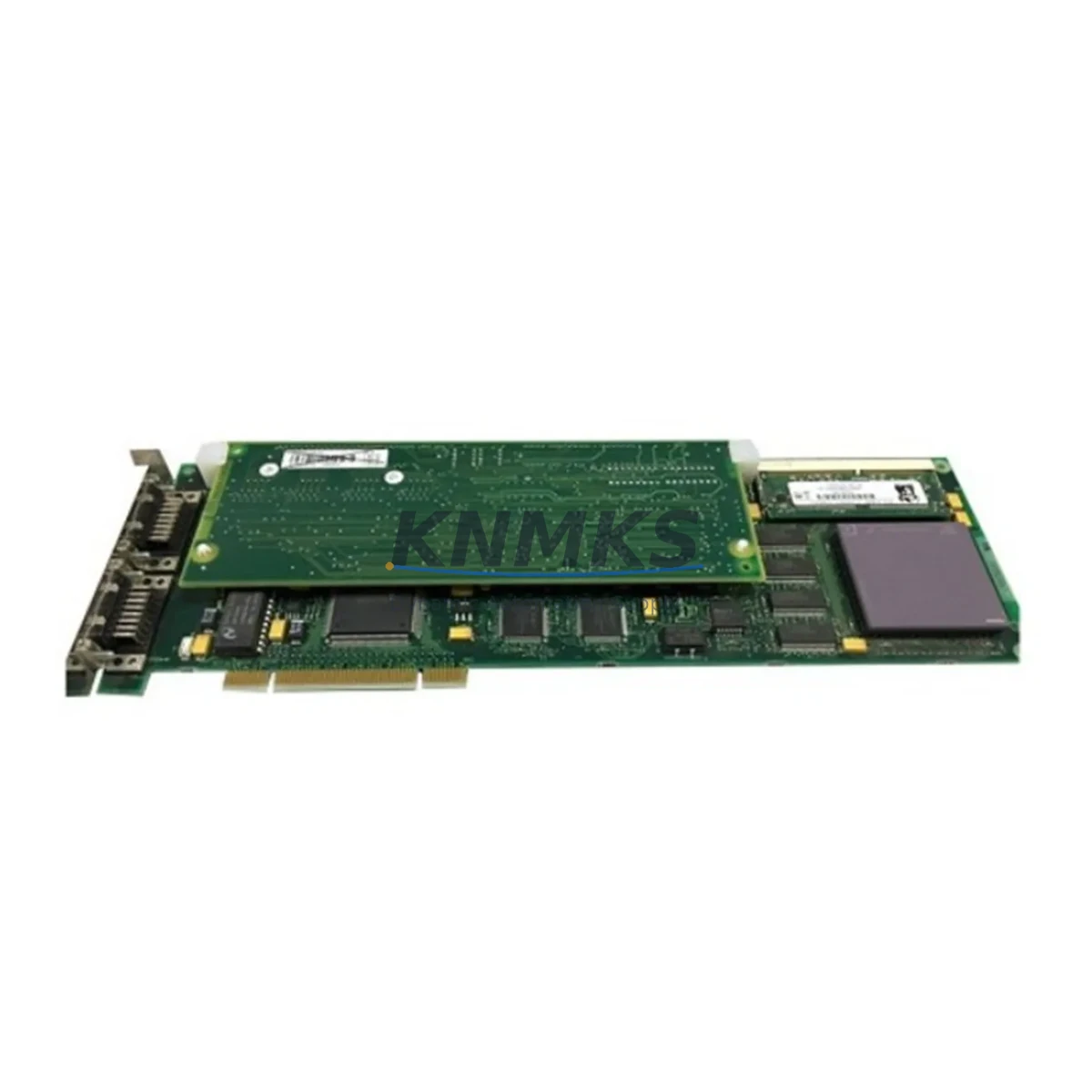

ABB PU515A 3BSE032401R1 Fail-Safe Real-Time Accelerator

Overview

ABB PU515A 3BSE032401R1 Fail-Safe Real-Time Accelerator: Fault Protection for Critical Industrial Control Reliability

The ABB PU515A (3BSE032401R1) is a high-performance real-time accelerator module designed for the ABB AC800M Distributed Control System platform. In continuous production environments — petrochemical plants, power generation facilities, metallurgical operations, and water treatment infrastructure — unplanned control interruptions carry severe safety and financial consequences. The PU515A is engineered to eliminate those risks by delivering deterministic real-time processing, robust fault isolation, and sustained operational integrity under the harshest field conditions.

Unlike general-purpose computing modules, the PU515A is purpose-built for industrial safety-critical loops. Its architecture supports high-speed scan cycles essential for closed-loop control, interlock logic, and emergency shutdown sequences. When paired with the ABB PM865A processor module in a redundant AC800M configuration, the PU515A ensures that processing capacity never becomes the bottleneck in a safety-critical response chain. This combination is widely deployed in continuous manufacturing lines where a single missed scan can cascade into a full-line trip or, worse, a hazardous release.

Signal drift and communication anomalies are among the leading causes of spurious trips and unplanned downtime in DCS-controlled facilities. The PU515A’s real-time acceleration capability reduces latency in I/O processing and inter-module communication, directly mitigating the risk of timing-induced false alarms. In high-EMI environments — such as those adjacent to large variable-frequency drives, arc furnaces, or high-voltage switchgear — the module’s shielded backplane interface and noise-hardened design maintain signal fidelity where lesser hardware fails. Facilities running ABB S800 I/O modules on the same rack benefit from tightly synchronized data exchange, reducing the window for transient-induced errors.

Power quality is a persistent threat in heavy industrial cabinets. Voltage surges, brownouts, and inrush events from motor starts can corrupt module state or force cold restarts. The PU515A is rated for the AC800M’s standard 24 VDC supply range and is designed to ride through transient supply disturbances without losing program state. When deployed alongside a properly specified ABB PSMV power supply module and a dedicated UPS buffer, the control cabinet achieves a layered power protection strategy that guards against both surge damage and supply interruption. This is particularly critical in offshore platforms and mining headframes where utility power quality is inherently unstable.

Cabinet thermal management directly affects long-term module reliability. The PU515A operates within a wide ambient temperature range and is designed for natural convection cooling within standard 19-inch DIN-rail enclosures. In high-density cabinets where heat accumulation is a concern — common in tropical climates or poorly ventilated substations — pairing the module with adequate cabinet cooling and monitoring the AC800M’s built-in diagnostics via ABB Control Builder M software allows operators to detect thermal stress before it causes hardware degradation. The module’s onboard diagnostics continuously report health status to the system controller, enabling predictive maintenance rather than reactive replacement.

Dusty, humid, and vibration-prone environments present additional challenges. Port crane control rooms, cement plant control cabinets, and shipboard automation panels all expose DCS hardware to conditions that accelerate connector oxidation and PCB contamination. The PU515A’s conformal-coated PCB construction and sealed connector interfaces provide a meaningful barrier against these ingress risks, extending mean time between failures in environments where peer modules from less rigorous manufacturers routinely fail within 18–24 months. For facilities maintaining a strategic spare inventory, the PU515A’s compatibility with the broader ABB AC800M module family — including the PM864A and PM866A processor variants — means a single spare can serve multiple system configurations, reducing inventory carrying costs without sacrificing coverage.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC800M control cabinet is never built around a single module — it is a system of interdependent components, each contributing to overall fault tolerance. The PU515A real-time accelerator functions as the processing backbone, but its safety value is fully realized only when the surrounding cabinet architecture is equally robust.

At the processor layer, the ABB PM865A provides the primary CPU function, with the PU515A offloading real-time computation to maintain deterministic scan times even under peak I/O load. For safety-critical applications requiring IEC 61508 SIL compliance, this combination is often deployed in a hot-standby redundant configuration, ensuring that a single processor fault does not interrupt the safety function.

At the I/O layer, ABB S800 I/O modules — including AI810 analog input and DO810 digital output variants — interface directly with field instruments and actuators. The PU515A’s accelerated processing ensures that I/O scan latency remains within the tolerances required for fast-acting interlock loops, such as those protecting compressor anti-surge systems or reactor emergency depressurization valves.

At the power layer, the ABB PSMV power supply module provides regulated 24 VDC to the backplane, with built-in overcurrent protection and redundant supply capability. Surge events from nearby motor starts or lightning-induced transients on field cable runs are absorbed at the power entry point, preventing upstream disturbances from reaching the sensitive logic modules.

At the communication layer, ABB CI854A PROFIBUS DP communication interface modules extend the AC800M’s reach to remote I/O stations and third-party field devices. The PU515A’s real-time acceleration directly benefits communication cycle management, reducing the risk of watchdog timeouts that can trigger spurious safety trips in tightly timed PROFIBUS networks.

Together, these components form a layered protection strategy that addresses power quality, processing determinism, I/O integrity, and communication reliability — the four pillars of control cabinet fault protection in critical industrial applications.

Critical Industrial Safety Applications

The ABB PU515A 3BSE032401R1 is deployed across a wide range of safety-critical industrial sectors where control system reliability is non-negotiable.

In petrochemical and refinery operations, the module supports emergency shutdown (ESD) and fire-and-gas (F&G) system controllers where response time and fault tolerance are governed by IEC 61511 functional safety requirements. A processing delay or module failure in these environments can delay a safety function activation, with potentially catastrophic consequences.

In power generation and grid substations, the PU515A supports turbine control, boiler management, and load dispatch automation. The deterministic real-time processing it provides is essential for maintaining generator synchronization and preventing grid instability events.

In mining and mineral processing, the module is used in conveyor interlock systems, crusher control panels, and flotation circuit automation. These environments combine high vibration, heavy dust loading, and aggressive electrical noise — conditions the PU515A is specifically hardened to withstand.

In water and wastewater treatment, the module supports SCADA-integrated DCS architectures managing pump stations, chemical dosing systems, and filtration process control. Continuous operation requirements in these facilities make unplanned downtime unacceptable, and the PU515A’s onboard diagnostics support the predictive maintenance strategies that keep these systems running.

In port and maritime automation, including ship engine room control systems and terminal automation, the module’s vibration resistance and wide operating temperature range make it suitable for mobile and marine-grade control cabinet installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB PU515A 3BSE032401R1?
All PU515A modules supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement logistics.

Q2: How is each module tested before shipment?
Every PU515A unit undergoes functional verification testing prior to dispatch. This includes power-on self-test validation, backplane interface continuity checks, and firmware version confirmation. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PU515A compatible with all AC800M system configurations?
The PU515A is compatible with the ABB AC800M platform and is designed to operate alongside PM864A, PM865A, and PM866A processor modules. Compatibility with specific firmware versions and system configurations should be confirmed against the ABB AC800M hardware documentation for your installed base revision.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains strategic inventory of ABB AC800M series modules, including the PU515A, to support long-term maintenance and emergency replacement requirements. For facilities managing multi-year maintenance contracts or critical spare parts programs, volume reservation and scheduled supply agreements are available. Contact our technical sales team to discuss your specific supply continuity requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PU515A 3BSE032401R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PU515A 3BSE032401R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
