ABB PPC322BE HIEE300900R0001 Migration-Ready CPU for Legacy Systems

Overview

ABB PPC322BE HIEE300900R0001 Migration-Ready CPU for Legacy Control Systems

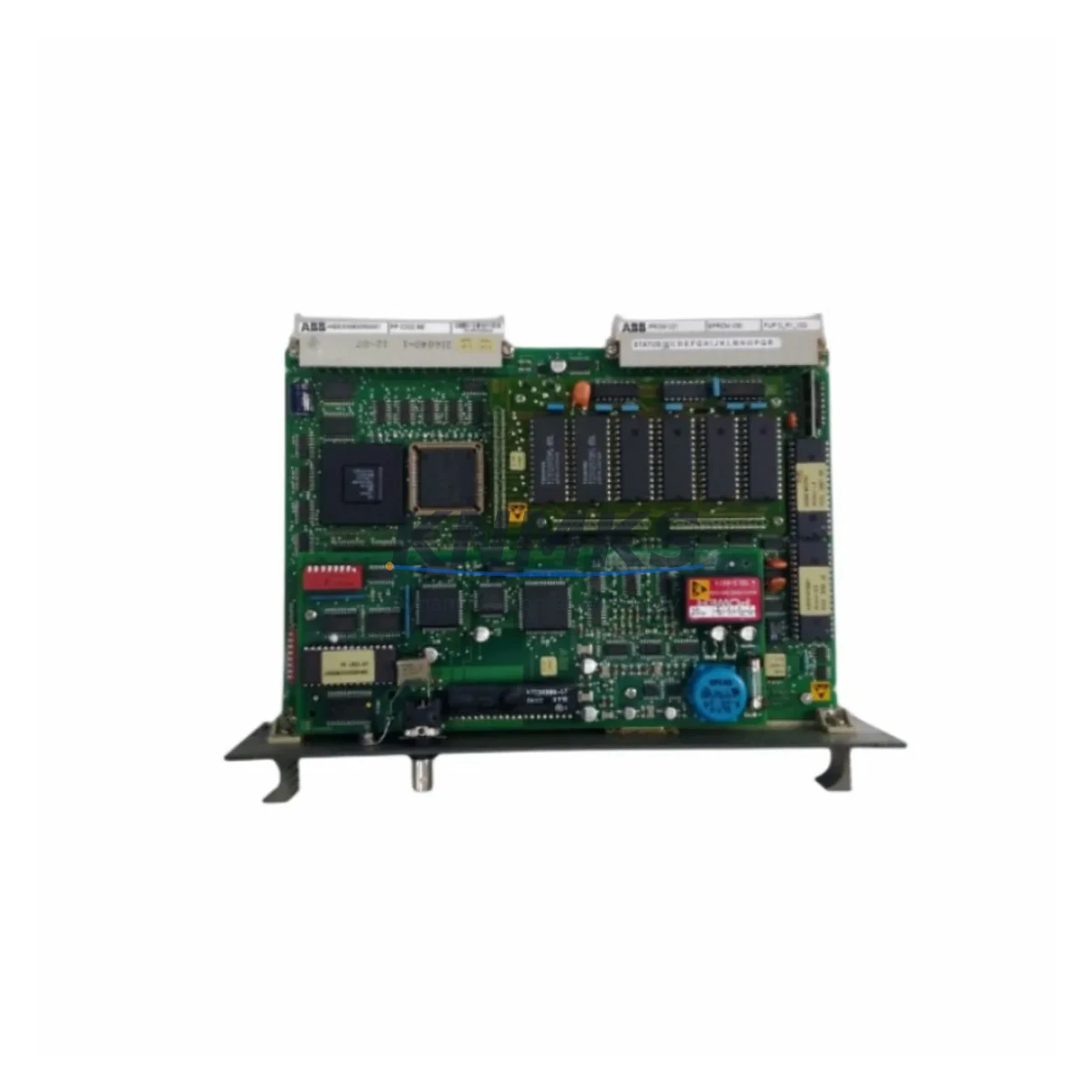

The ABB PPC322BE (HIEE300900R0001) is a high-performance CPU module engineered for the AC800M controller platform, and remains one of the most sought-after components for engineers undertaking legacy system migrations, discontinued spare part replacements, and control cabinet upgrades across process industries. Whether you are modernizing an aging DCS backbone, recovering a production line after an unexpected CPU failure, or extending the service life of an existing AC800M rack, the PPC322BE delivers the processing headroom and protocol compatibility needed to maintain operational continuity without a full platform overhaul.

For facilities running older AC800M configurations — particularly those originally commissioned with earlier-generation processor boards — the PPC322BE represents a verified, drop-in upgrade path. Its compatibility with the standard TB807 and TB840A termination units means that existing field wiring, terminal assignments, and marshalling cabinet layouts can be preserved, dramatically reducing the scope of physical rework during a retrofit. Engineers should confirm backplane slot addressing and module position settings prior to installation, as the AC800M rack architecture assigns logical node addresses based on physical slot location.

Before committing to a replacement, site teams should audit the following parameters against the existing system documentation: power supply rail capacity (the SD802 or SD803 power supply modules must be verified for adequate current headroom when adding or upgrading CPU modules), backplane interface revision, firmware version compatibility between the PPC322BE and the installed PM866 or PM891 controller modules sharing the same rack, and the HMI screen tag database if the facility operates ABB 800xA or a third-party SCADA system with hardcoded OPC server node references.

Communication link integrity is a critical checkpoint during any AC800M CPU migration. The PPC322BE supports MMS (Manufacturing Message Specification) over Ethernet and integrates cleanly with CI854 PROFIBUS DP and CI857 FOUNDATION Fieldbus communication interface modules already installed in the rack. If the legacy system uses serial-based communication links, a protocol migration plan should be prepared in advance to avoid signal interruption during the cutover window. Verifying that the replacement CPU’s firmware revision matches or exceeds the version expected by the communication interface modules prevents initialization errors at startup.

Installation space confirmation is straightforward for standard 19-inch control cabinet configurations, but should be double-checked in compact or custom enclosures where rack depth and cable management clearances may be constrained. The PPC322BE occupies a single module slot in the AC800M rack and does not require additional mounting hardware beyond the standard rail clip retention system.

Program logic compatibility is typically preserved when replacing a like-for-like CPU within the same AC800M generation, but engineers should export and archive the full Control Builder M project — including all application programs, hardware configuration files, and library references — before powering down the existing module. This backup serves as both a recovery baseline and a commissioning reference during the post-installation functional test sequence.

All units supplied by KNMKS are subject to pre-shipment functional testing, including power-on verification, communication port integrity checks, and visual inspection for physical damage. Each PPC322BE HIEE300900R0001 is covered by a support terms confirmed by quotation from the date of shipment, with documented test records available upon request.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M retrofit begins well before the physical module swap. The engineering team should compile a complete rack inventory, documenting every installed module by slot position, firmware version, and I/O assignment. In a typical AC800M cabinet, the PPC322BE will coexist with a mix of analog and digital I/O modules — such as the AI810 analog input and DO810 digital output modules — as well as communication interface cards and the power distribution assembly. Each of these components has its own firmware dependency chain, and a CPU upgrade can expose latent version mismatches that were previously masked by the older processor’s tolerance thresholds.

For sites where the control system also interfaces with a PM866 controller module in a redundant configuration, the migration plan must account for the handshake protocol between the primary and standby CPUs. Redundancy switchover behavior should be tested in a non-production window before the final cutover. Similarly, if the rack includes a CI854 PROFIBUS DP communication interface, the PROFIBUS segment configuration — including station addresses, baud rate settings, and GSD file versions — should be exported and verified against the replacement CPU’s expected configuration baseline.

Signal isolators installed between the field junction boxes and the I/O modules are generally unaffected by a CPU replacement, but their loop power supply status should be confirmed as part of the pre-commissioning checklist. Programming cables used for direct module access during commissioning — such as the standard RJ45-to-USB adapter supported by Control Builder M — should be on-site and tested before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU migration requires a structured cutover protocol. The recommended approach is to complete all preparatory steps — firmware verification, program backup, communication link documentation, and spare parts staging — during normal production hours, reserving the physical swap and recommissioning for a planned maintenance window.

Before removing the existing CPU, the full Control Builder M project should be exported to a secure offline location, including all application programs, hardware configuration files, and any custom function block libraries. This export serves as the primary recovery baseline if the replacement module requires a clean program download rather than a warm restart from retained memory.

During the swap itself, the rack should remain powered where the system architecture permits partial hot-swap procedures. If a full rack power-down is required, the sequence should be coordinated with the field operations team to ensure that all process loops are in manual mode and that any interlock logic dependent on the CPU’s output states is safely bypassed or held at last-known-good values.

Post-installation, the commissioning sequence should follow the standard AC800M startup checklist: verify module recognition in Control Builder M, confirm slot addressing, restore the application program, check communication link status for all interface modules, and perform a functional I/O test before returning the system to automatic control. HMI screens should be verified for correct tag resolution and alarm state accuracy before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the PPC322BE HIEE300900R0001 a direct replacement for older AC800M CPU modules?
Yes. The PPC322BE is designed as a drop-in replacement within the AC800M rack architecture. Physical slot dimensions, backplane connector pinout, and power rail requirements are consistent with the AC800M standard. Firmware version compatibility should be confirmed against the installed communication interface modules before installation.

Q2: What commissioning steps are required after installing the replacement CPU?
After physical installation, connect to the module via Control Builder M, verify hardware configuration recognition, restore the application program from the archived project backup, confirm communication link status for all interface modules (PROFIBUS, Fieldbus, Ethernet), and perform a full I/O functional test. HMI tag database integrity should also be verified before returning to automatic operation.

Q3: How is the unit tested before shipment, and what support terms is provided?
Every PPC322BE HIEE300900R0001 supplied by KNMKS undergoes pre-shipment testing including power-on verification, communication port integrity checks, and physical inspection. A support terms confirmed by quotation is provided from the date of shipment. Test records are available upon request for quality assurance documentation purposes.

Q4: What is the typical lead time and stock availability?
KNMKS maintains inventory of the PPC322BE HIEE300900R0001 to support urgent replacement and planned retrofit projects. Lead time and current stock levels can be confirmed by contacting the sales team directly. Priority dispatch is available for emergency breakdown situations.
