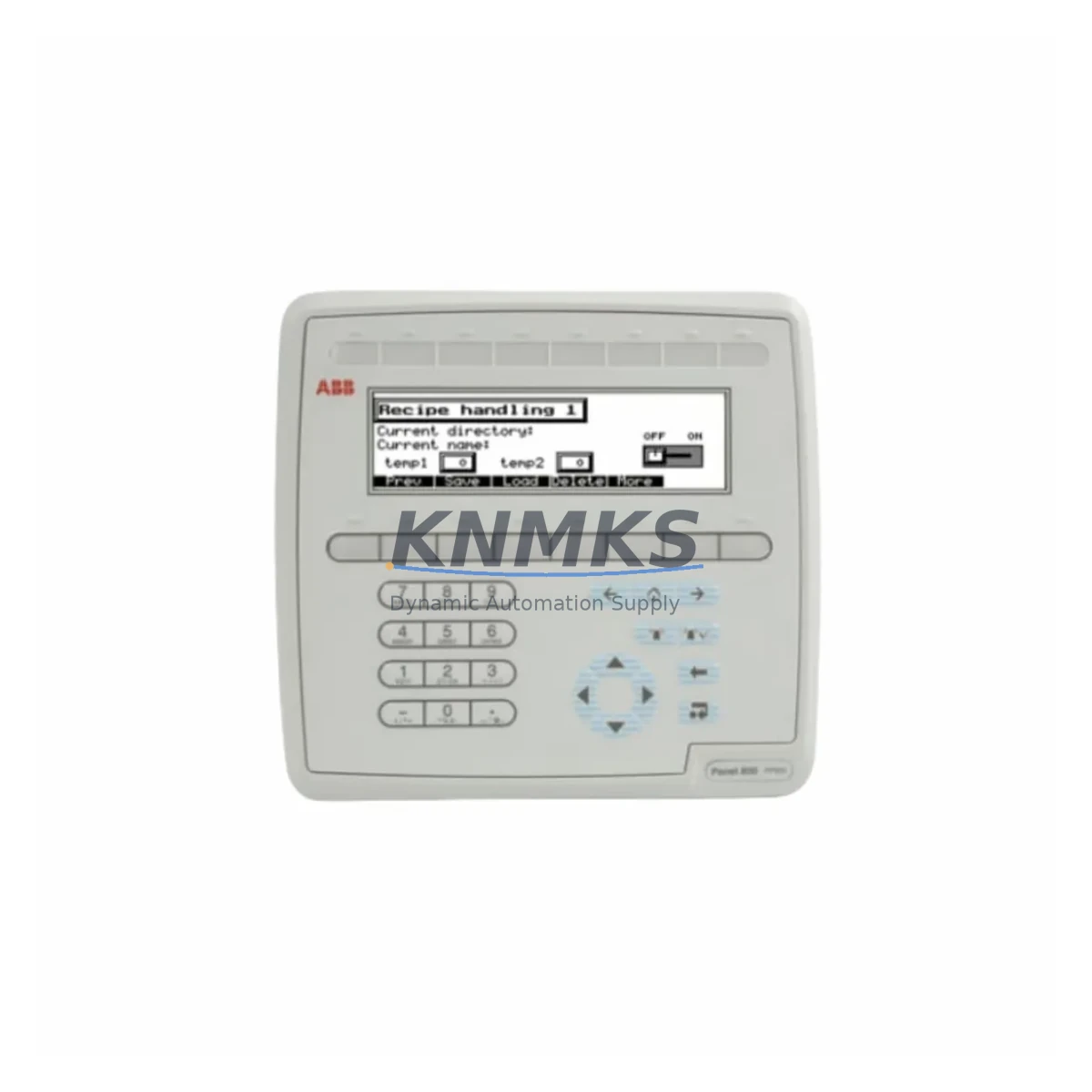

ABB PP820 3BSE042243R1 Spare Part for AC800M Uptime

The ABB PP820 (part number 3BSE042243R1) is an original HMI function key panel engineered for integration within ABB’s AC800M distributed control system architecture. Deployed across petrochemical, power generation, pulp and paper, and heavy manufacturing facilities, the PP820 serves as the primary operator interface for process visualization, alarm acknowledgment, and function-key-driven control sequences. When this panel fails or degrades, operators lose direct interaction with the DCS loop — making rapid, verified replacement a critical maintenance priority.

Sourcing a maintenance-proven PP820 3BSE042243R1 from a reliable spare parts supplier eliminates the risk of extended downtime caused by obsolescence or counterfeit components. Each unit dispatched from our inventory undergoes pre-shipment functional verification, ensuring electrical integrity, keypad response, and communication handshake with the AC800M controller are confirmed before the part leaves the warehouse. A support terms confirmed by quotation cover all dispatched units, providing procurement engineers with the supply assurance required for both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PP820 3BSE042243R1 in an AC800M control cabinet is rarely an isolated task. Maintenance engineers conducting a planned or emergency swap should treat the panel replacement as an opportunity to audit the surrounding electrical and communication infrastructure. The 24 VDC supply rail feeding the PP820 should be verified against the PM865 or PM866 processor module power budget — voltage sag or ripple on this rail is a common root cause of intermittent HMI faults that are misdiagnosed as panel failure.

The CI854 or CI858 communication interface module, which bridges the AC800M backplane to the field network, should be inspected for firmware version compatibility with the replacement PP820. Mismatched firmware revisions between the HMI panel and the communication module have been documented to cause handshake failures after hot-swap replacement. Similarly, the TB820V2 or TB825 termination boards connected to the I/O modules in the same cabinet should be checked for loose terminal connections, as vibration-induced loosening can generate spurious alarms that mask the true source of a process upset.

For facilities running extended AC800M installations, the SD821 or SD822 power supply modules warrant inspection during any HMI panel replacement window. These units supply regulated DC power to the controller backplane and are subject to capacitor aging in high-ambient-temperature environments. Proactively stocking a replacement SD821 alongside the PP820 3BSE042243R1 is a recognized best practice in facilities with 10+ year AC800M deployments. Additionally, the TP830 or TP854 operator panel cables connecting the PP820 to the controller rack should be inspected for insulation cracking or connector pin corrosion — degraded cables are a frequent cause of intermittent display faults that persist even after panel replacement.

Site Replacement Workflow

Before removing the PP820 3BSE042243R1 from service, document the current operator panel configuration, including function key assignments, display page mappings, and any site-specific alarm thresholds stored in the panel’s non-volatile memory. Export or photograph the configuration via the AC800M engineering tool (Control Builder M) to ensure the replacement unit can be restored to the exact operational state without requiring a full recommissioning cycle.

Power down the panel supply at the cabinet distribution fuse — do not rely solely on the software shutdown command, as residual voltage on the backplane bus can cause data corruption during physical removal. After installing the replacement PP820 3BSE042243R1, restore power incrementally and verify the communication link status LED sequence before loading the saved configuration. Confirm function key response across all programmed sequences and validate alarm acknowledgment behavior against the site’s loop test procedure. Total replacement time for a prepared maintenance team with a pre-tested spare is typically under 45 minutes, minimizing production impact during a planned maintenance window.

For legacy AC800M installations where the original PP820 model has been superseded, the 3BSE042243R1 part number remains the current active replacement reference. No hardware modification or firmware downgrade is required when substituting a new-stock 3BSE042243R1 into an existing AC800M rack running firmware version 5.1 or later. This backward compatibility significantly reduces the risk profile of emergency replacements performed outside of scheduled maintenance windows.

Spare Parts Support FAQ

Q1: Is the PP820 3BSE042243R1 compatible with all AC800M controller variants?
The PP820 3BSE042243R1 is designed for use within the ABB AC800M platform, including configurations built around the PM865, PM866, and PM891 processor modules. Compatibility with Symphony Plus and Freelance-based operator stations should be confirmed against the site’s engineering documentation, as panel integration behavior may vary by system revision. Contact our technical team with your controller firmware version for a pre-purchase compatibility check.

Q2: What pre-shipment testing is performed on each PP820 unit?
Every PP820 3BSE042243R1 dispatched from our inventory undergoes a structured functional verification: power-on self-test, keypad matrix scan, display output check, and communication port continuity test. Units that do not pass all verification steps are quarantined and not dispatched. Test records are retained and available upon request for quality audit purposes.

Q3: How should the PP820 3BSE042243R1 be stored if purchased for inventory rather than immediate installation?
Store the unit in its original anti-static packaging in a dry environment between -25°C and +70°C with relative humidity below 85% non-condensing. Avoid storage near strong magnetic fields or high-vibration equipment. Inspect the unit annually if held in long-term inventory, and perform a power-on verification test before installation if the unit has been stored for more than 24 months.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, component failure under normal operating conditions, and communication interface faults attributable to the unit itself. Damage caused by incorrect installation voltage, reverse polarity, physical impact, or use outside the specified environmental range is excluded. Support requests are processed with a replacement-first policy to minimize site downtime — contact [email protected] with the unit serial number and fault description to initiate a claim.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PP820 3BSE042243R1
AC800M Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB PP820 3BSE042243R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
