ABB 3BHB006943R0001 UNS0885A-Z Migration-Ready Operator Panel

Overview

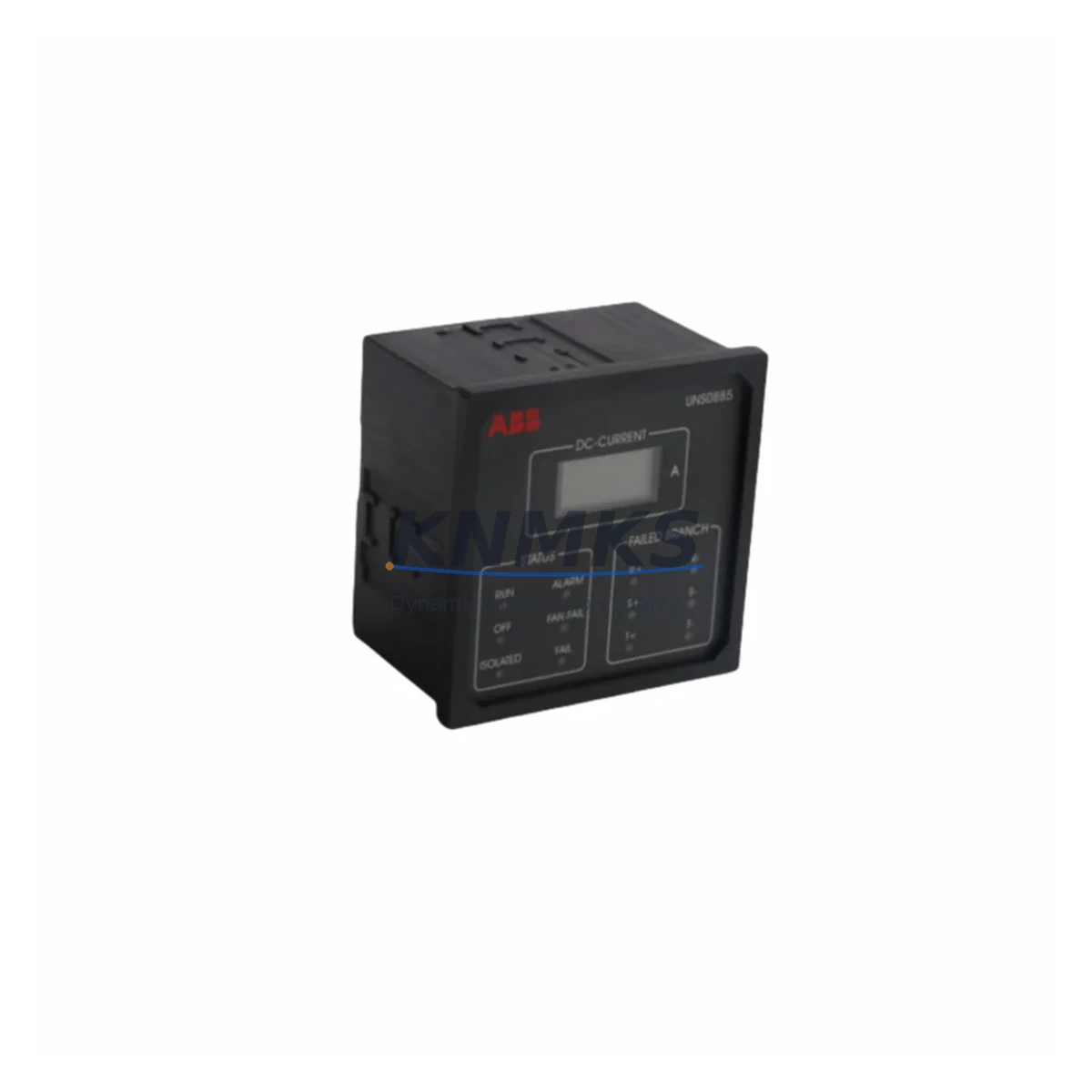

ABB 3BHB006943R0001 UNS0885A-Z Migration-Ready Operator Panel for Legacy Control Systems

The ABB 3BHB006943R0001 (UNS0885A-Z, V1) is a Symphony Plus operator panel engineered for direct replacement in legacy ABB Harmony and Symphony DCS environments. As ABB progressively phases out older Harmony AC450 and Advant OCS platforms, engineering teams managing critical process industries — power generation, pulp and paper, oil and gas, and chemical processing — face increasing pressure to source verified, wiring-compatible operator interface modules that can be installed without rewriting control logic or redesigning cabinet layouts.

This unit is stocked as a migration-ready replacement, pre-tested prior to shipment, and supplied with a support terms confirmed by quotation from the date of dispatch. It is suitable for both emergency breakdown replacements and scheduled outage upgrades, with multi-region inventory maintained to support fast global dispatch.

Before installing the 3BHB006943R0001 into an existing Symphony Plus or Harmony cabinet, engineers must verify the following: backplane slot compatibility with the existing S800 or S900 I/O rack, 24 VDC power supply capacity at the local panel bus (confirm SD821 or SD822 output headroom), terminal block wiring assignments against the original loop drawings, module address configuration in the AC800M controller project, and firmware version alignment with the active Symphony Plus software release. Where the existing HMI screens reference the legacy panel node address, those graphic objects must be remapped in the 800xA or Composer engineering environment before commissioning.

In retrofit projects where the 3BHB006943R0001 is being installed alongside updated I/O infrastructure, it is common to simultaneously replace the adjacent CI854 PROFIBUS communication interface module and the SD821 or SD822 power supply unit to ensure the entire operator station segment meets current hardware revision standards. Where the legacy system used TB820 or TB840 Termination Units, the existing field wiring can typically be reused without modification, significantly reducing installation time during a planned outage window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3BHB006943R0001 into an active Symphony Plus or Harmony system requires a structured pre-outage engineering review. The operator panel does not function in isolation — it operates as part of a tightly integrated control station that includes the AC800M controller, the CI854 PROFIBUS DP communication interface, the SD821 or SD822 power supply module, and the TB820 or TB840 Termination Units that connect field instrumentation to the I/O rack.

During retrofit planning, the engineering team should extract the current hardware configuration from the AC800M project in the Control Builder M environment and cross-reference the panel’s node address, I/O channel assignments, and communication link parameters. If the existing installation uses an older CI853 or CI801 communication module, this is an appropriate time to evaluate upgrading to the CI854 to align with current Symphony Plus hardware standards and ensure long-term spare parts availability.

For sites running 800xA as the supervisory layer, the operator graphics associated with the legacy panel node should be reviewed in the 800xA Graphics Builder before the outage begins. Any faceplate objects, trend displays, or alarm list filters that reference the old panel address will need to be updated to reflect the new module configuration. This pre-work eliminates the most common source of post-installation commissioning delays.

Where the retrofit scope extends beyond the operator panel itself, it is common to simultaneously address the S800 I/O modules — particularly any AI810, AO810, DI810, or DO810 modules that are approaching end-of-support status. Replacing these alongside the 3BHB006943R0001 during a single planned outage window reduces total lifecycle risk and avoids the need for a second shutdown within the same maintenance cycle. For sites where the existing programming cable or engineering workstation connection relies on a legacy TK212A or TK210 cable set, confirming USB-to-serial adapter compatibility with the current Control Builder M version is an additional pre-outage checkpoint that is frequently overlooked.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS panel replacement. For the 3BHB006943R0001, the recommended approach is to complete all pre-installation engineering work — address verification, firmware confirmation, HMI graphic review, and wiring audit — before the maintenance window opens. This reduces the in-cabinet installation and commissioning time to a predictable, bounded activity.

Where the process cannot tolerate a full control system shutdown, a staged migration approach is possible: the new panel can be configured and address-tested on a bench setup using a portable AC800M controller before being moved to the live cabinet. This allows the commissioning engineer to verify communication link establishment, I/O channel response, and HMI display behavior in a controlled environment, with the live cutover reduced to a physical swap and final loop check.

The 3BHB006943R0001 is supplied pre-tested, which eliminates the most common source of installation delay — receiving a module that requires bench verification before it can be trusted in a live environment. Combined with multi-region stock availability and fast global dispatch, this ensures that emergency replacement scenarios can be resolved within the shortest possible timeframe, protecting process continuity and reducing the financial impact of unplanned outages.

Post-installation, the commissioning checklist should include: confirmation of panel power-up sequence, verification of PROFIBUS communication link status in the AC800M diagnostic view, loop check of all connected I/O channels, review of active alarms in the 800xA alarm list, and sign-off on HMI display accuracy against the updated graphic configuration. Where the SD821 or SD822 power supply was also replaced, confirm output voltage stability under full I/O load before releasing the system to operations.

Retrofit Support FAQ

Q: Is the 3BHB006943R0001 a direct replacement for the legacy UNS0885A-Z operator panel?
A: Yes. The 3BHB006943R0001 is the current stocking reference for the UNS0885A-Z, V1 operator panel within the ABB Symphony Plus product family. It is designed as a direct replacement for legacy Harmony and Symphony DCS operator stations. Confirm the hardware revision (V1) matches your existing installation before ordering.

Q: What commissioning steps are required after installation?
A: After physical installation, verify the module address in the AC800M Control Builder M project, confirm PROFIBUS DP communication link status, perform a full I/O loop check on all connected channels, and review HMI graphic displays in 800xA to confirm node address mapping is correct. If the CI854 communication module was also replaced, re-establish the PROFIBUS segment configuration before powering up the panel.

Q: Can the existing field wiring be reused when replacing the operator panel?
A: In most cases, yes. Where the installation uses TB820 or TB840 Termination Units, the existing field wiring can be retained without modification. The terminal block assignments on the 3BHB006943R0001 are consistent with the legacy UNS0885A-Z wiring standard. Always verify against the original loop drawings before assuming full wiring compatibility.

Q: What support terms and pre-shipment testing does this unit include?
A: Every 3BHB006943R0001 unit is functionally tested prior to shipment and supplied with a support terms confirmed by quotation from the date of dispatch. Multi-region inventory is maintained to support both emergency breakdown replacements and scheduled outage upgrades. Contact [email protected] or +86 18359268345 for stock confirmation and lead time.
