ABB PP245B 3BSC690126R2 Retrofit-Ready HMI for 800xA Systems

Overview

ABB PP245B 3BSC690126R2 Retrofit-Ready HMI for 800xA Systems

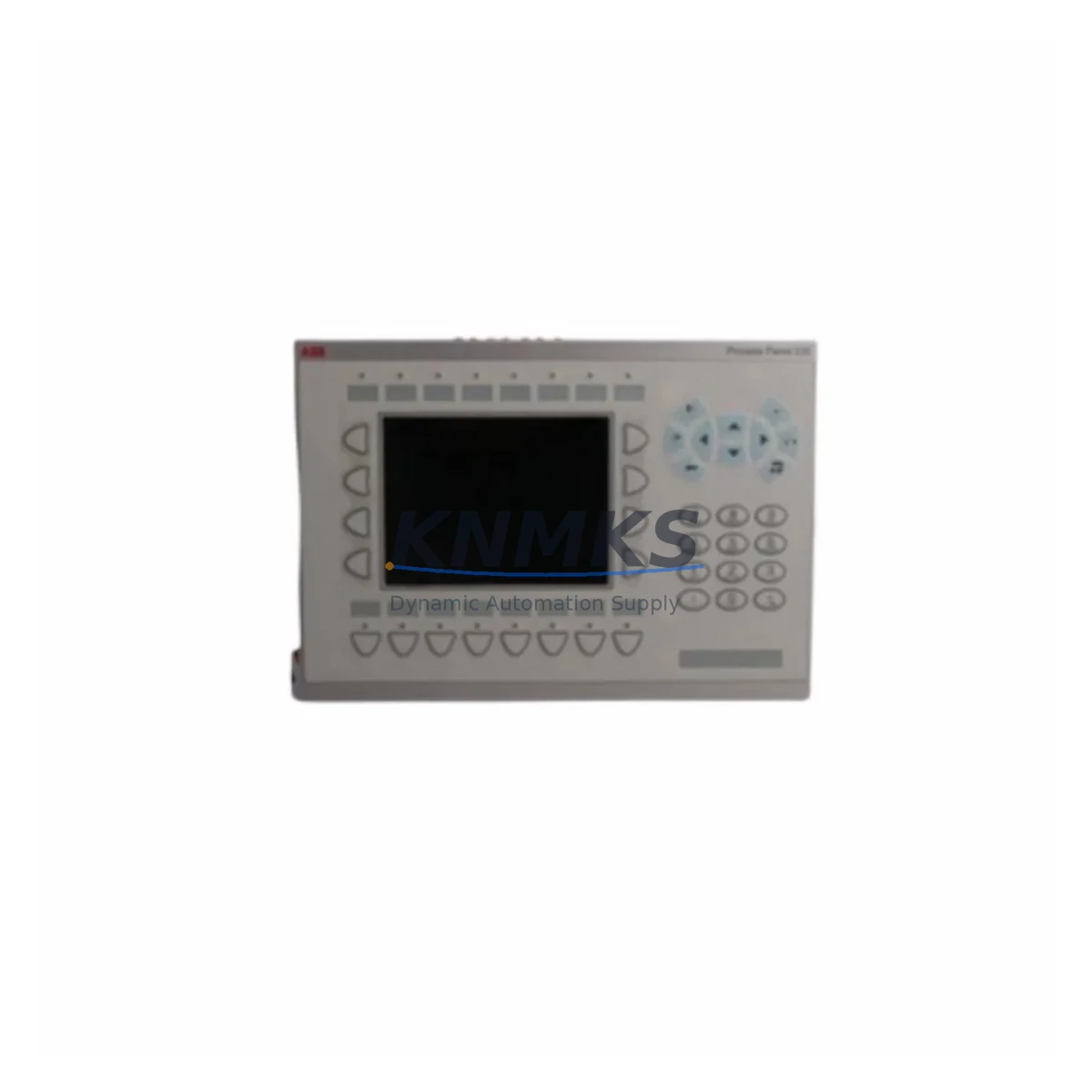

The ABB PP245B (3BSC690126R2) is a high-performance operator panel engineered for the ABB 800xA Distributed Control System platform. As legacy HMI hardware reaches end-of-life across process industries, the PP245B serves as a validated migration-ready replacement for discontinued operator interfaces in AC800M-based control architectures. Whether you are managing a planned system upgrade or responding to an unplanned panel failure, the PP245B provides a reliable, drop-in compatible solution that minimises engineering rework and reduces total downtime exposure.

Designed to integrate directly into existing 800xA cabinet layouts, the PP245B supports the same mounting footprint and backplane interface as predecessor models in the ABB operator panel family. This dimensional compatibility is critical for retrofit projects where control cabinet space is fixed and structural modifications are not feasible. Before installation, engineers should confirm the panel cutout dimensions, DIN rail or panel-mount bracket configuration, and available depth clearance behind the mounting surface to ensure a clean mechanical fit.

On the electrical side, the PP245B operates within the standard 24 VDC supply range common to 800xA field cabinets. Power budget verification is an essential pre-installation step: the existing ABB SD831 or SD832 power supply module feeding the operator station rail must be confirmed to have sufficient residual capacity to support the PP245B alongside co-located I/O and communication modules. Undersized power supply headroom is one of the most common causes of intermittent panel faults during retrofit commissioning.

Terminal wiring on the PP245B follows the standard ABB signal convention for the 800xA platform. Technicians migrating from an older ABB PP835 or PP836 operator panel should cross-reference the terminal assignment drawings carefully, as connector pinouts may differ between hardware generations even when the functional signal list is identical. Labelling all field wiring before disconnection and performing a point-to-point continuity check after reconnection are strongly recommended steps to protect wiring integrity during the swap.

Communication link configuration is another area requiring careful attention. The PP245B connects to the AC800M controller via the ABB CI854 or CI858 PROFIBUS communication interface module, depending on the fieldbus topology in use. Node address assignment must match the address previously held by the replaced panel to avoid requiring a full network re-scan and address reallocation. Where the existing system uses Ethernet-based connectivity through the 800xA Plant Network, IP address reservation and MAC binding should be updated in the network switch configuration before the new panel is brought online.

Program and HMI screen compatibility is a key concern for any operator panel replacement. The PP245B is compatible with 800xA graphic display configurations built in ABB Operate IT and the standard 800xA HMI environment. In most cases, existing faceplates, trend displays, and alarm overview screens can be loaded directly onto the replacement panel without modification. However, if the legacy panel was running a customised screen resolution or a non-standard aspect ratio layout, a display scaling review should be conducted in the engineering workstation before the panel is commissioned in the field.

Firmware version alignment is mandatory prior to commissioning. The PP245B must be loaded with a firmware release that is compatible with the installed 800xA system version. Mismatched firmware can result in communication handshake failures or incomplete graphic rendering. The firmware update procedure should be performed using the ABB Service Port connection and the appropriate 800xA software toolkit, following the release notes for the target firmware build.

For sites running mixed-generation hardware — for example, a cabinet that combines the PP245B with legacy ABB TB820 or TB840 I/O terminal units — module address mapping must be validated against the controller configuration database. Any address conflicts introduced during the hardware swap must be resolved in the AC800M project before the system is returned to automatic control mode. A structured pre-commissioning checklist covering power, communications, I/O mapping, and HMI screen validation is the most effective way to compress on-site commissioning time and reduce the risk of extended unplanned downtime.

All PP245B units supplied by KNMKS are sourced from verified industrial channels, individually inspected prior to dispatch, and covered by a support terms confirmed by quotation against manufacturing defects and functional failure. Global shipping is available with lead times confirmed at order placement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PP245B retrofit begins well before the replacement unit arrives on site. The engineering team should compile a complete hardware inventory of the target control cabinet, identifying every module that shares the same power rail or communication bus as the operator panel being replaced. In a typical 800xA cabinet, this will include the AC800M controller module, one or more CI854 PROFIBUS interface modules, a set of AI810 or AO810 analogue I/O modules mounted on the S800 I/O rail, and the SD831 24 VDC power supply. Each of these components has a defined role in the signal chain that the PP245B operator panel supervises, and any configuration change to one element can affect the behaviour of the others.

For sites where the control cabinet also hosts a PM866 or PM891 AC800M processor module, the project engineer should export and archive the current controller application program before beginning any hardware work. This backup protects the existing ladder logic, function block diagrams, and I/O variable assignments against accidental overwrite during the commissioning phase. The archived program should be stored on a secure engineering workstation and version-labelled with the date and cabinet tag number.

Where the PP245B is being introduced into a cabinet that previously used a standalone ABB CP600 or CP620 HMI panel on a separate communication drop, the network topology drawing must be updated to reflect the new panel’s address and communication path. This is particularly important in multi-drop PROFIBUS segments where the total bus load and termination resistor placement must be recalculated after any node addition or removal.

Installation space confirmation should be completed using the PP245B mechanical drawing before the unit is ordered. The panel cutout template, gasket seating surface, and rear connector clearance zone must all be verified against the as-built cabinet drawing. If the cabinet was originally designed for an older-generation panel with a different bezel profile, a filler plate or adapter frame may be required to achieve a clean IP-rated seal around the new panel perimeter.

Downtime Control During System Migration

Minimising production downtime during an operator panel replacement requires a structured approach that separates preparation work from live system intervention. The majority of the migration effort — firmware preparation, program backup, wiring documentation, and spare parts staging — can be completed while the existing panel remains in service. This pre-work phase should be fully signed off before any live cabinet work begins.

On the day of the physical swap, the recommended sequence is: isolate the panel supply, photograph all wiring connections before disconnection, remove the legacy panel, install the PP245B, reconnect all terminals in sequence, restore power, and perform a structured commissioning check before returning the system to operator control. The entire physical swap, if pre-work is complete, can typically be accomplished within a two- to four-hour maintenance window for a single operator station.

To protect original program logic during the transition, the AC800M controller should remain in its current operating state throughout the panel swap wherever process safety permits. The controller will continue executing its scan cycle independently of the operator panel connection status, meaning that field I/O control is maintained even while the HMI is offline. This architecture significantly reduces the risk of process upset during the panel replacement window.

After the PP245B is powered and communicating, a structured commissioning walkthrough should confirm: correct display of all process values on the HMI faceplates, alarm acknowledgement functionality, trend data continuity, and correct response to operator inputs at the field level. Any discrepancies identified during this walkthrough should be resolved before the maintenance window is closed and the system is returned to normal operation.

Retrofit Support FAQ

Q1: Is the PP245B 3BSC690126R2 a direct drop-in replacement for the PP835 or PP836?
The PP245B is functionally compatible with the 800xA platform served by the PP835 and PP836, but it is not a pin-for-pin mechanical identical replacement. Mounting dimensions, connector positions, and terminal assignments should be verified against the specific cabinet drawing before ordering. In most cases, the PP245B can be installed in the same panel cutout with minor bracket adjustment.

Q2: What pre-shipment testing is performed on the PP245B units supplied by KNMKS?
Each unit undergoes individual functional inspection prior to dispatch, covering power-on verification, display integrity, and communication port functionality. Units that do not pass inspection are not shipped. All supplied units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure from the date of delivery.

Q3: Can the PP245B be commissioned without an ABB-certified engineer on site?
The PP245B commissioning procedure is well-documented within the ABB 800xA hardware installation guides. Experienced automation technicians familiar with the 800xA platform can typically complete the installation and commissioning using the standard documentation. For sites without in-house 800xA expertise, KNMKS can provide pre-commissioning configuration support and technical guidance to assist the on-site team.

Q4: What is the typical lead time and stock availability for the PP245B 3BSC690126R2?
KNMKS maintains inventory of the PP245B 3BSC690126R2 to support urgent replacement and planned retrofit projects. Lead time is confirmed at order placement. For time-critical applications, contact the sales team directly to confirm current stock position and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PP245B 3BSC690126R2
AC800M Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB PP245B 3BSC690126R2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
