ABB PP B624 A01 Migration-Ready PCB Control for Legacy Systems

Overview

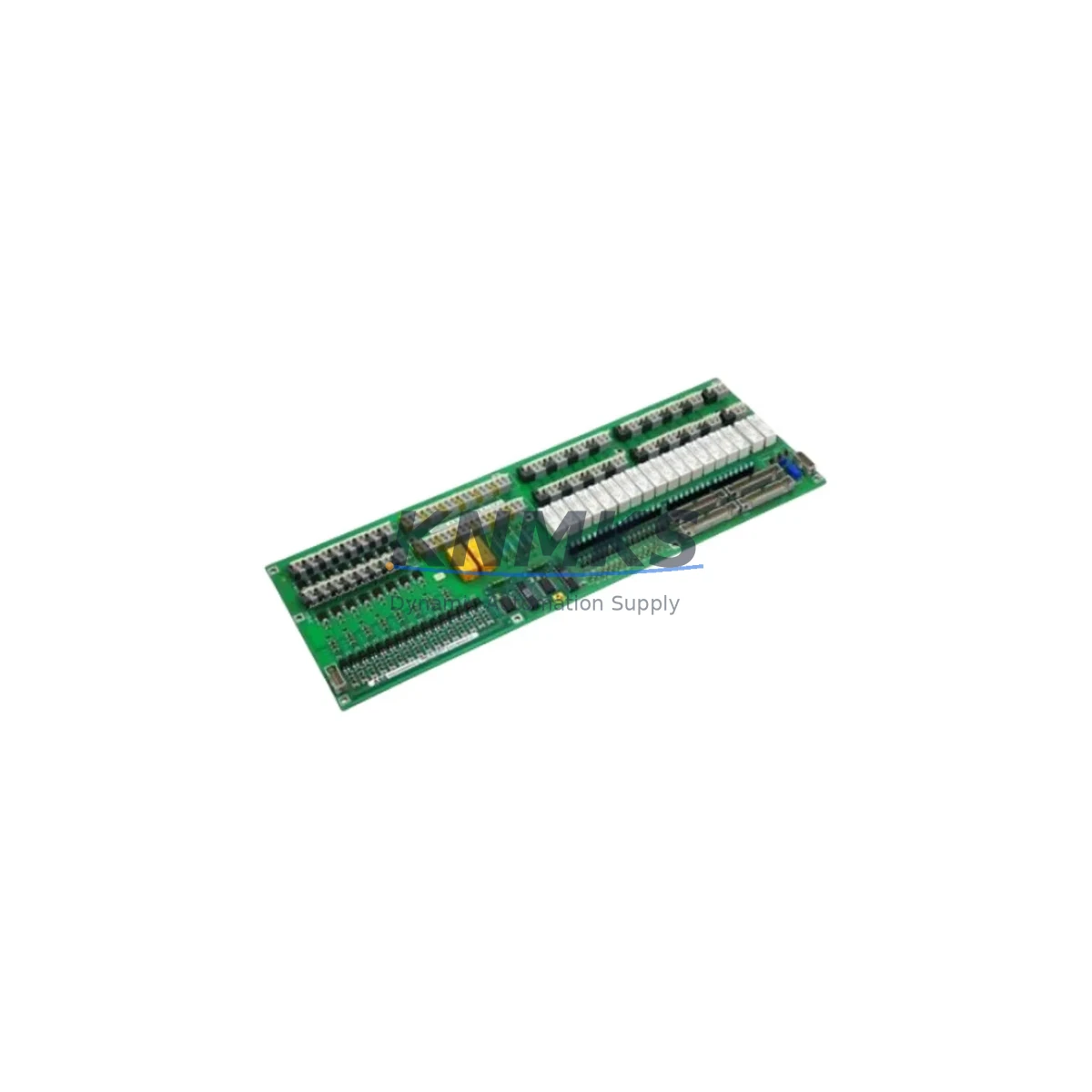

ABB PP B624 A01 HIET404828R0001 Migration-Ready PCB Control for Legacy Systems

The ABB PP B624 A01 (part number HIET404828R0001) is a migration-ready PCB control module designed for direct replacement and retrofit integration within ABB HIET Series drive and control systems. As legacy HIET Series installations approach end-of-support milestones, plant engineers and maintenance teams increasingly rely on verified replacement modules to extend operational life, reduce unplanned downtime, and maintain process continuity without committing to a full platform overhaul.

This module is sourced from authorized supply channels, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation. Each unit undergoes functional verification covering power rail integrity, signal path continuity, and communication interface response before dispatch — ensuring that field installation proceeds without the diagnostic delays common to untested surplus stock.

When planning a retrofit or spare parts replenishment for HIET Series systems, engineers must confirm several critical parameters before swapping the PP B624 A01 into an existing control cabinet. Power supply capacity at the backplane level should be verified against the module’s rated draw; the HIET Series backplane typically accommodates multiple I/O and communication modules simultaneously, and adding or replacing a PCB control board without auditing total rail load can introduce instability. Terminal wiring assignments on the existing harness should be mapped against the PP B624 A01 pinout before disconnection — particularly for analog signal inputs and digital output channels that may have been field-modified on older installations.

Backplane slot addressing is another area requiring attention. In multi-rack HIET configurations, the module address is set either via DIP switch or firmware parameter depending on the firmware revision installed on the host controller. If the replacement unit ships with a different firmware baseline than the original, address conflicts or communication timeouts may occur during initial power-up. It is recommended to document the existing module’s firmware version using the ABB DriveWindow or equivalent configuration tool prior to removal, and to confirm compatibility with the replacement unit’s firmware before installation.

Program logic compatibility is a frequent concern during HIET Series PCB control replacements. The PP B624 A01 retains the same functional register map as earlier HIET control boards, which means that existing PLC ladder logic, function block diagrams, and HMI screen variable bindings typically transfer without modification. However, if the host system includes an ABB AC500 series PLC or a third-party controller communicating over PROFIBUS DP or Modbus RTU, the communication link parameters — baud rate, station address, and polling cycle — should be re-validated after module swap to confirm that the new board responds correctly within the existing network topology.

HMI screen integrity is often overlooked during control module replacements. Where the HIET system interfaces with an ABB CP600 operator panel or a legacy CP400 series HMI, variable tag addresses linked to the PCB control module’s output registers should be verified post-installation. In systems where the HMI communicates directly with the drive controller rather than through the PLC, a brief communication re-initialization sequence may be required to re-establish the data exchange after the PP B624 A01 is installed.

For installations involving I/O expansion — particularly where the HIET rack includes additional digital input modules, analog output cards, or signal isolators for field instrument loops — the PP B624 A01’s installation should be coordinated with a review of the I/O module addressing scheme. Displacement of a control module within the rack can shift slot-based addressing for adjacent modules if the system firmware uses positional rather than fixed addressing. Confirming the rack layout against the original system documentation before physical installation prevents address remapping errors that would otherwise require a full I/O re-scan and program update.

Installation space confirmation is straightforward for standard HIET rack configurations, as the PP B624 A01 occupies a standard single-width backplane slot. However, in retrofit scenarios where the original cabinet has been modified — for example, where a third-party communication gateway or an ABB NETA-21 remote monitoring adapter has been added — physical clearance around the target slot should be verified before ordering to avoid installation delays.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HIET Series retrofit typically involves more than a single module swap. In practice, the PP B624 A01 replacement is often one step within a broader control cabinet modernization that may include updating the power supply module feeding the HIET backplane, replacing aging digital I/O cards with current-production equivalents, and refreshing the communication infrastructure connecting the drive system to the plant-level SCADA or DCS.

When the HIET backplane power supply is approaching end-of-life alongside the PCB control module, it is advisable to replace both components during the same maintenance window. Attempting to commission a new PP B624 A01 on a degraded power rail introduces diagnostic ambiguity — instability symptoms that originate from the power supply may be incorrectly attributed to the replacement module, extending troubleshooting time unnecessarily.

For systems where the HIET drive communicates with a supervisory controller via an ABB RPBA-01 PROFIBUS adapter or an RCAN-01 CANopen module, the communication adapter’s configuration should be reviewed as part of the retrofit plan. These fieldbus adapter modules retain their own parameter sets independently of the PCB control board, but a firmware mismatch between the new PP B624 A01 and the adapter module can cause node initialization failures on the fieldbus segment.

Signal isolators installed between the HIET system’s analog outputs and field instruments — particularly in applications involving 4–20 mA process control loops — should be verified for loop impedance compatibility with the replacement module’s output driver specifications. In older installations, signal isolators may have been selected to match the output characteristics of the original PCB control board; if the PP B624 A01 has different output impedance characteristics, loop calibration may need to be repeated after installation.

Where the retrofit scope includes updating the operator interface, migration from a legacy ABB CP400 HMI to a current CP600 panel can be executed in parallel with the PP B624 A01 replacement, provided that the communication driver configuration on the new HMI is aligned with the fieldbus parameters of the updated control module. This parallel approach minimizes total cabinet downtime by consolidating two separate maintenance interventions into a single planned outage.

Programming cable access is a practical consideration that is sometimes overlooked in retrofit planning. The PP B624 A01 requires a compatible USB or serial programming interface for firmware verification and parameter upload. Confirming that the appropriate ABB programming cable and software license are available on-site before the maintenance window begins prevents delays caused by last-minute equipment sourcing.

Downtime Control During System Migration

Minimizing control system downtime during a HIET Series PCB control module replacement requires a structured pre-outage preparation protocol. The most effective approach begins with a complete parameter backup of the existing module using ABB DriveWindow or the equivalent configuration utility, capturing all drive parameters, I/O assignments, communication settings, and any application-specific function block configurations that have been applied to the original installation.

Before physical removal of the existing PP B624 A01 or its predecessor, the current program logic should be exported and stored in a version-controlled backup location. This ensures that if the replacement module requires a firmware update or parameter re-entry, the original configuration is available as a reference without relying on field memory or incomplete documentation.

Where the HIET system is integrated into a continuous process line, coordinating the module swap with the plant’s scheduled maintenance window — rather than responding reactively to a module failure — allows the replacement to be executed with full preparation time. Pre-staging the replacement PP B624 A01 with the correct firmware version, pre-loading the backed-up parameter set where the module architecture supports offline parameter transfer, and pre-testing communication link response on a bench setup before installation all contribute to reducing the active outage window to the minimum time required for physical swap and on-machine verification.

Post-installation verification should follow a defined sequence: power-up confirmation, communication link establishment, I/O channel functional test, HMI variable binding check, and a controlled process restart under supervision before returning the system to full automatic operation. Documenting this sequence as a site-specific commissioning checklist ensures consistency across multiple retrofit events and provides an audit trail for maintenance records.

All units supplied by KNMKS are pre-shipment tested and ship with a support terms confirmed by quotation, reducing the risk of receiving a non-functional replacement module and eliminating the diagnostic time that would otherwise be spent isolating a hardware fault in a newly installed component.

Retrofit Support FAQ

Q: Is the ABB PP B624 A01 HIET404828R0001 a direct drop-in replacement for the original HIET Series PCB control board?
A: Yes, the PP B624 A01 is designed as a direct replacement for the original HIET Series PCB control module. The backplane connector, slot dimensions, and register map are compatible with standard HIET rack configurations. Firmware version alignment with the host controller should be confirmed before installation to avoid communication initialization issues.

Q: What pre-shipment testing is performed on each unit?
A: Each PP B624 A01 supplied by KNMKS undergoes functional load testing, signal path continuity verification, and communication interface response testing before dispatch. A support terms confirmed by quotation is provided from the date of shipment. Contact [email protected] for test documentation requests.

Q: How should terminal wiring be handled during the replacement?
A: Before disconnecting the existing module, photograph or document all terminal connections and map them against the PP B624 A01 wiring diagram. Pay particular attention to analog signal inputs and digital output channels that may have been field-modified on older installations. Reconnect in sequence and verify each channel during the post-installation functional test.

Q: What is the stock availability and lead time for the PP B624 A01?
A: Stock is maintained for immediate dispatch. Lead time confirmation and quantity availability can be obtained by contacting [email protected] or calling +86 18359268345. For planned maintenance projects requiring multiple units or extended supply agreements, KNMKS can provide inventory reservation arrangements to support 12–36 month spare parts programs.
