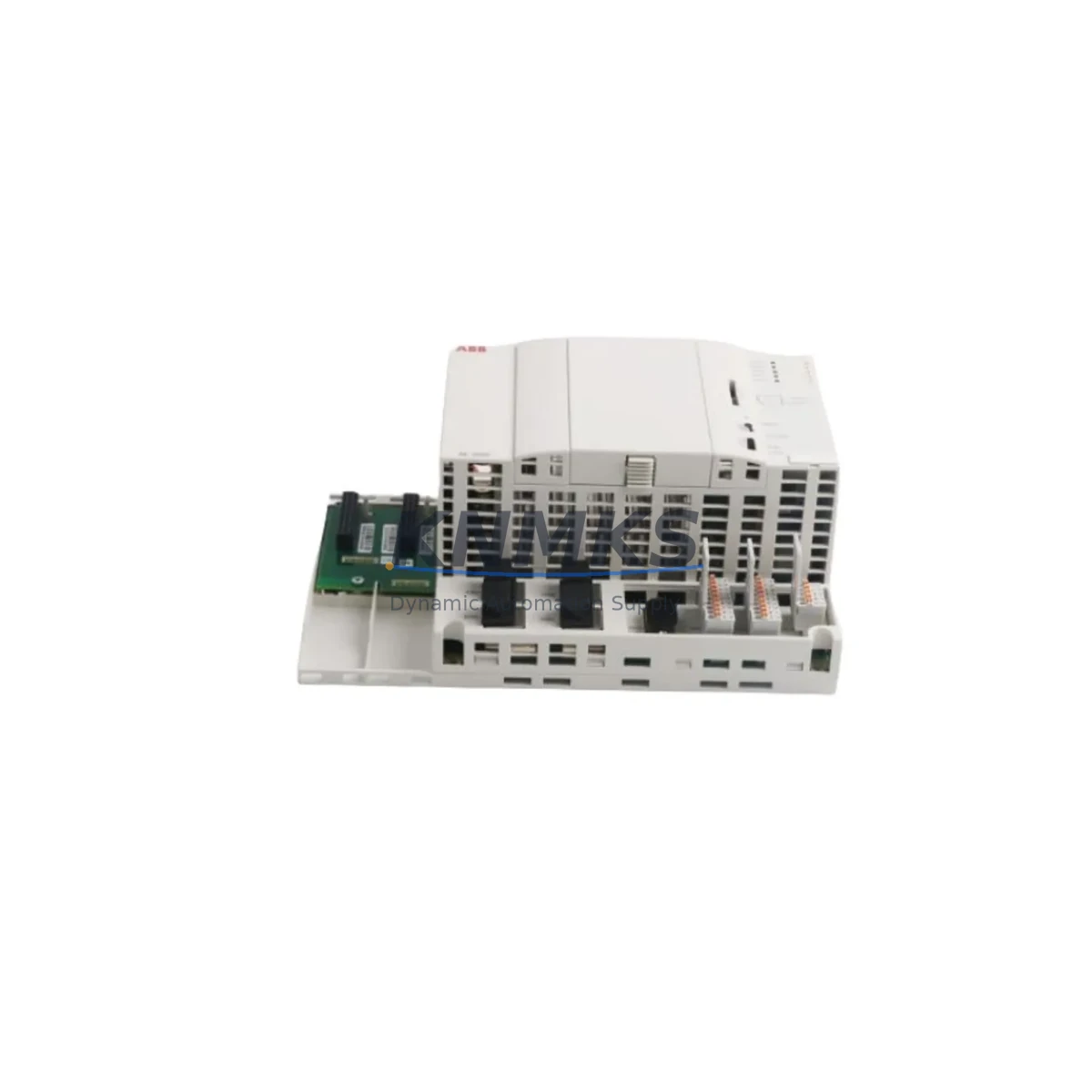

ABB PM902F 3BDH001000R0005 Maintenance-Proven DCS CPU

Overview

ABB PM902F 3BDH001000R0005 Maintenance-Proven DCS CPU: Factory Uptime Starts with the Right Spare

The ABB PM902F (part number 3BDH001000R0005) is a high-performance CPU module designed for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and pulp & paper industries. When a PM902F fails or approaches end-of-life, every minute of unplanned downtime translates directly into production loss. Stocking a verified, pre-tested PM902F spare is the single most effective step a maintenance team can take to protect continuous operation.

At KNMKS, every PM902F 3BDH001000R0005 unit is sourced as an original ABB component, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Our supply chain is structured for long-term availability — supporting maintenance contracts, annual overhaul schedules, and emergency replacement scenarios with equal reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a PM902F 3BDH001000R0005 is rarely an isolated task. A thorough maintenance engineer will treat a CPU swap as an opportunity to audit the entire control cabinet. Before or during replacement, the following components in the same AC800M rack and electrical circuit should be inspected or staged as concurrent spares:

The TB807 or TB840A backplane that hosts the PM902F should be checked for oxidized connector pins and mechanical damage — a degraded backplane can cause intermittent CPU faults that are misdiagnosed as CPU failure. The SD802F or SD812F power supply module feeding the backplane is a critical companion spare; power supply degradation is a leading cause of CPU instability in aging AC800M cabinets. Inspect the CI857 or CI858 PROFIBUS/PROFINET communication interface modules in adjacent slots, as communication faults often surface immediately after a CPU replacement if these modules carry latent faults. The DI810 or DO810 I/O modules connected to the same backplane should be verified for correct addressing and signal integrity before the new CPU is commissioned. For systems using redundant CPU configurations, the PM902F redundancy link cable (3BSE018161R1) must be inspected for continuity and connector seating. Finally, review the 24 VDC cabinet power distribution fuses and terminal blocks — a blown fuse on the CPU supply rail is a common root cause of apparent CPU failure that is overlooked until after an unnecessary module replacement.

For sites running ABB 800xA or Symphony Plus SCADA layers above the AC800M, also verify that the OPC server configuration and MMS communication settings are backed up before the swap, as firmware version mismatches between a replacement CPU and the supervisory layer can delay restart by hours.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Export the AC800M application program, hardware configuration, and firmware version from the existing PM902F using ABB Control Builder M. Store the backup on an isolated engineering workstation, not on the controller itself.

Step 2 — Cabinet isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. For non-redundant systems, coordinate with operations to schedule a controlled process hold. For redundant PM902F configurations, the standby CPU can be swapped online — confirm redundancy status in Control Builder before proceeding.

Step 3 — Module extraction: Release the PM902F locking lever, slide the module out of the backplane slot, and immediately place it in an ESD-protective bag. Note the firmware label on the module faceplate.

Step 4 — Replacement installation: Verify the replacement PM902F firmware version matches or is compatible with the existing application. Insert the new module, seat firmly, and engage the locking lever. The module will perform a self-test sequence on power-up — confirm the RUN LED status before releasing process control.

Step 5 — Functional verification: Confirm all I/O channels are reporting correctly, communication links to CI8xx modules are active, and the 800xA/Symphony Plus operator station shows no unacknowledged hardware alarms. Log the replacement in the site maintenance record with the new module serial number and support terms start date.

This workflow applies equally to legacy AC800M installations running older firmware and to modernized systems. The PM902F 3BDH001000R0005 is a direct form-fit-function replacement for earlier PM902 variants, making it a preferred choice for system life extension without full DCS migration.

Spare Parts Support FAQ

Q1: Is the PM902F 3BDH001000R0005 compatible with both standard and High Integrity AC800M configurations?
Yes. The PM902F is the designated CPU for AC800M High Integrity (HI) systems and is also compatible with standard AC800M backplanes. Always confirm the backplane type (TB807 vs. TB840A) and firmware revision before installation to ensure seamless integration.

Q2: How does KNMKS verify the PM902F before shipment?
Each unit undergoes a pre-shipment functional test covering power-on self-test, communication interface check, and firmware version confirmation. Units that do not pass are not shipped. A test report is available upon request. All shipped units are covered by a support terms confirmed by quotation from the date of delivery.

Q3: Can KNMKS support long-term or blanket purchase orders for PM902F spares?
Yes. KNMKS supports 12–36 month supply agreements for critical spare parts including the PM902F 3BDH001000R0005. Long-term agreements include reserved stock allocation, priority fulfillment, and fixed pricing — reducing procurement risk for multi-site maintenance programs.

Q4: What is the recommended spare holding strategy for AC800M CPU modules?
For single-CPU (non-redundant) AC800M systems, a minimum of one PM902F spare per controller is recommended. For redundant configurations, one spare per site is typically sufficient given the online swap capability. Sites with more than five AC800M controllers should consider a centralized spare pool with documented firmware version tracking to avoid compatibility delays during emergency replacements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM902F 3BDH001000R0005
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM902F 3BDH001000R0005
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
