ABB PM891K01 Migration-Ready CPU for Legacy AC800M Systems

Overview

ABB PM891K01 Migration-Ready CPU for Legacy AC800M Systems

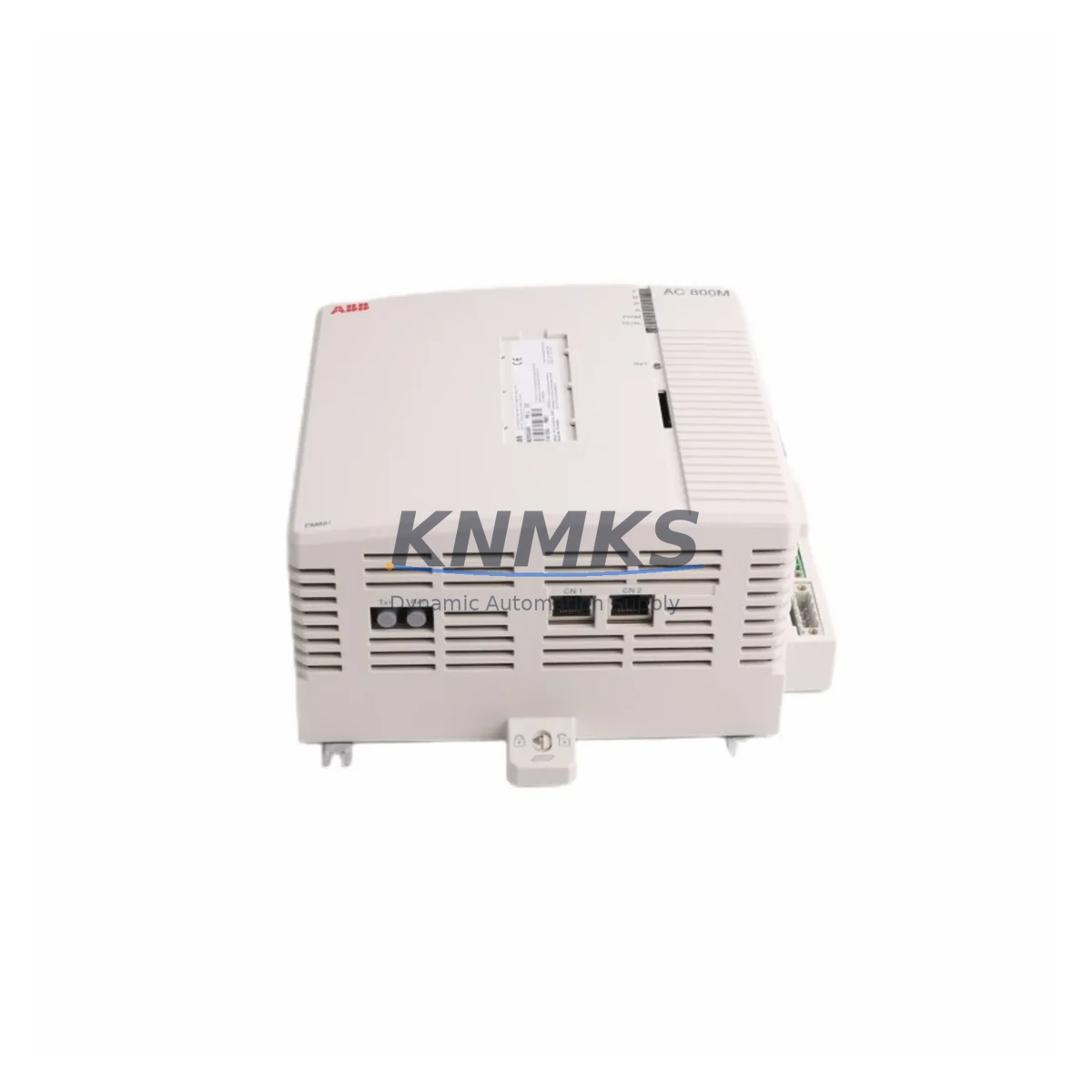

The ABB PM891K01 (order number 36BSE053241R1) is a high-performance process controller CPU designed for the AC800M platform — one of ABB’s most widely deployed distributed control architectures in oil & gas, power generation, pulp & paper, and chemical processing facilities. As legacy AC800M installations approach end-of-life support cycles, the PM891K01 has become the preferred migration-ready replacement for earlier AC800M CPU variants such as the PM860K01 and PM864A, offering expanded memory capacity, improved cycle time performance, and continued compatibility with existing I/O infrastructure and communication networks.

For engineers managing brownfield retrofit projects, the PM891K01 delivers a critical advantage: it installs directly into the existing AC800M rack without requiring backplane modifications or new cabinet fabrication. Before proceeding with a CPU swap, site teams should verify available power budget on the TB807 or TB840A power supply modules, confirm that the backplane slot addressing matches the existing controller configuration, and review the firmware version loaded on the replacement unit against the project’s Control Builder M software revision. Mismatched firmware can prevent the controller from loading the application program and may require an online firmware upgrade prior to commissioning.

Wiring and terminal adaptation is typically straightforward when migrating from PM860K01 or PM864A, as the PM891K01 shares the same physical form factor and connector pinout. However, engineers should audit the CI854B or CI858 communication interface modules installed in adjacent slots, since the PM891K01’s expanded communication stack may require updated parameter blocks in the Control Builder M project file. Profibus DP and FOUNDATION Fieldbus H1 segment configurations should be re-validated after the CPU swap to confirm that device addresses, baud rates, and GSD file assignments remain intact.

Program compatibility is a key concern in any legacy CPU migration. The PM891K01 supports the full IEC 61131-3 function block library used across the AC800M platform, meaning that existing SFC, FBD, and ST programs can be reloaded without recompilation in most cases. Teams should nonetheless perform a full offline simulation in Control Builder M before the maintenance window, paying particular attention to any application code that references hardware-specific memory addresses or uses time-critical interrupt tasks. HMI screens built on ABB’s 800xA System or linked via OPC DA/UA should be tested against the new CPU’s tag database to confirm that all process variable bindings remain valid after the migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM891K01 retrofit typically involves coordinating several interdependent hardware and software elements. On the hardware side, the existing AC800M rack — whether a TB820V2 or TB840A baseplate — must be inspected for slot availability and power rail integrity. If the legacy installation includes SM811K01 or SM812K01 serial communication modules for Modbus RTU links to third-party field devices, these modules should be re-addressed in the new CPU’s configuration to avoid communication conflicts after startup.

I/O expansion via CI801 or CI830B remote I/O adapters connected over PROFIBUS should be audited for node address conflicts, particularly in installations where multiple AC800M controllers share a common fieldbus segment. The PM891K01’s enhanced memory allows larger I/O maps, but the physical segment topology and termination resistors must remain unchanged to preserve signal integrity. For installations using S800 I/O modules — such as AI810, AO810, DI810, or DO810 — no hardware changes are required; these modules communicate through the existing CI801 adapter and are fully recognized by the PM891K01 without reconfiguration.

Where the legacy system includes an TP830 or PP836 operator panel connected via the AC800M’s built-in Ethernet port, the panel’s IP address and communication parameters should be documented before the CPU swap and restored immediately after commissioning to minimize operator interface downtime. Similarly, any historian connections to ABB’s Industrial IT or third-party SCADA systems via OPC should be tested during the commissioning window to confirm data continuity.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any legacy CPU migration. For PM891K01 installations, the recommended approach is a pre-staged swap: the replacement CPU is pre-loaded with the correct firmware version and the application program is pre-downloaded in offline mode before the maintenance window begins. This reduces the in-window commissioning time to physical installation, power-up verification, and a controlled online test sequence.

Where process continuity is critical — such as in continuous chemical reactors or power plant auxiliary systems — teams should coordinate the CPU swap with a planned process hold or reduced-load operating state. The PM891K01 supports warm restart after a power cycle, meaning that output states and internal data blocks are preserved across a controlled shutdown if the application program is configured with retain variables. Engineers should confirm that all retain variable declarations in the Control Builder M project are current before the migration to avoid unexpected output behavior on restart.

Post-swap, a structured commissioning checklist should cover: CPU status LED confirmation, communication link verification for all Profibus and Fieldbus segments, I/O channel spot-checks against the P&ID, HMI alarm and interlock validation, and historian data flow confirmation. All findings should be documented in the site’s management-of-change record. KNMKS supplies each PM891K01 unit with a pre-shipment functional test report to support site acceptance testing and reduce commissioning risk.

Retrofit Support FAQ

Q: Is the PM891K01 a direct drop-in replacement for the PM860K01 and PM864A?
A: Yes. The PM891K01 shares the same physical form factor and backplane connector as the PM860K01 and PM864A, allowing direct slot replacement without rack or cabinet modifications. Firmware version alignment with your Control Builder M project is required before loading the application program.

Q: What commissioning steps are required after installing the PM891K01?
A: After physical installation, verify the CPU status LED, confirm Profibus and Fieldbus communication links, perform I/O channel spot-checks, validate HMI tag bindings, and test historian data flow. A pre-staged firmware load and offline program download before the maintenance window significantly reduces in-window commissioning time.

Q: Does KNMKS provide pre-shipment testing for the PM891K01?
A: Yes. Every PM891K01 unit is functionally tested before shipment. A test report is included with the delivery to support site acceptance testing and management-of-change documentation requirements.

Q: What support terms coverage applies to the PM891K01?
A: All PM891K01 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch to minimize system downtime.
