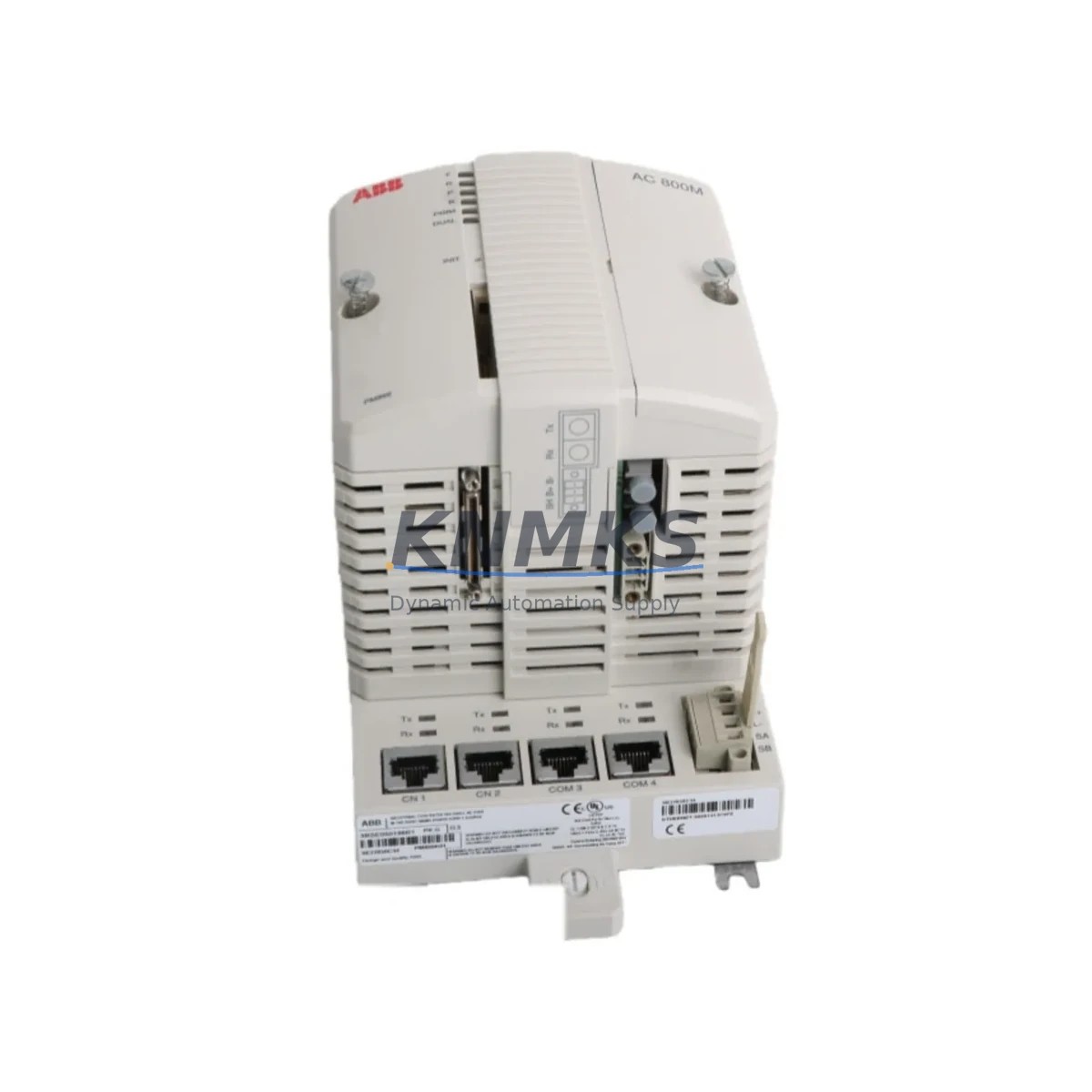

ABB PM866K01 3BSE050198R1 Migration-Ready CPU for AC800M

Overview

ABB PM866K01 3BSE050198R1 Migration-Ready CPU for Legacy AC800M Control Systems

The ABB PM866K01 (part number 3BSE050198R1) is a high-performance CPU module designed for the AC800M controller platform — one of ABB’s most widely deployed process automation controllers across energy, petrochemical, pulp & paper, and infrastructure sectors. As legacy AC800M installations approach end-of-support milestones, the PM866K01 has become the preferred migration-ready replacement for earlier processor variants such as the PM864A and PM865, offering a direct mechanical and electrical fit within the existing S800 I/O and TB820 PROFIBUS DP communication infrastructure.

For engineers managing aging DCS or hybrid PLC/DCS architectures, the PM866K01 provides a controlled upgrade path that avoids full panel redesign. The module slots into the standard AC800M rack without mechanical modification, preserving existing backplane wiring, terminal assignments, and cabinet footprint. This is critical in brownfield environments where installation space is fixed and downtime windows are measured in hours, not days.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM866K01 retrofit begins well before the physical swap. Engineers should start by auditing the existing AC800M rack configuration: confirm the number of occupied CPU slots, the installed CI854A or CI857 PROFIBUS communication interface modules, and the current S800 I/O module addresses. The PM866K01 supports the full S800 I/O family — including AI810 analog input, AO810V2 analog output, DI810 digital input, and DO810 digital output modules — so existing field wiring and terminal blocks remain undisturbed.

Power budget verification is a mandatory pre-retrofit step. The SD821 or SD822 power supply modules feeding the AC800M rack must provide sufficient headroom for the PM866K01’s increased processing load. In multi-rack configurations where a TB820V2 PROFIBUS DP termination board connects remote I/O clusters, confirm that the communication load on each DP segment remains within the CI854A coupler’s rated node count.

Application program migration is handled through ABB’s Control Builder M engineering tool. Export the existing application from the legacy PM864A or PM865, verify library version compatibility with the PM866K01’s OS 5.1 runtime, and perform a full offline simulation before the live cutover. If the plant uses an 800xA System or Operate IT HMI, validate that all OPC DA/UA tag references resolve correctly after the CPU replacement — mismatched node addresses are the most common source of post-retrofit HMI alarms.

For sites running Modbus TCP or IEC 61850 communication links alongside PROFIBUS, the PM866K01’s dual Ethernet ports allow simultaneous connection to the plant LAN and a dedicated control network, eliminating the need for an external protocol gateway in most retrofit scenarios. Signal isolators may still be required at the field terminal level if legacy 4–20 mA loops share common ground with newer HART-enabled instruments.

Downtime Control During System Migration

Minimizing production downtime during a CPU swap requires a structured cutover plan. The recommended approach is a cold-standby swap: with the rack powered down, remove the legacy CPU, insert the PM866K01, restore power, and load the pre-validated application image from a USB flash drive or via the Control Builder M download function. Total mechanical swap time is typically under 15 minutes for a trained technician.

To protect original program logic, always maintain a version-controlled backup of the Control Builder M project before initiating any hardware change. Store the backup on an offline engineering workstation and verify the checksum against the last known-good build. If the plant operates a redundant CPU configuration using a paired PM866K01 in hot-standby mode, the switchover can be performed online with zero process interruption — the standby module assumes control within milliseconds of the primary being removed.

For non-redundant installations, coordinate the cutover with the operations team to align with a scheduled maintenance window. Pre-stage all replacement hardware — including a spare CI854A communication module and a set of S800 I/O fuses — at the panel before the window opens. Post-swap, perform a structured I/O force test to confirm all field signals are reading correctly before releasing the loop to automatic control. Document the as-found and as-left configuration in the plant’s change management system to satisfy audit and safety integrity requirements.

KNMKS ships the PM866K01 3BSE050198R1 with a pre-shipment functional test report, confirming that the module powers up, communicates on PROFIBUS, and passes internal diagnostics. This reduces on-site commissioning risk and supports compressed downtime windows. In-stock units are available for same-week dispatch to most global destinations.

Retrofit Support FAQ

Q1: Is the PM866K01 a direct replacement for the PM864A and PM865 without rack modification?
Yes. The PM866K01 occupies the same CPU slot in the standard AC800M rack and uses the same backplane connector. No mechanical modification to the rack, cabinet, or field wiring is required. Confirm that the installed AC800M OS version on the replacement module is compatible with your existing Control Builder M project libraries before loading the application.

Q2: What commissioning steps are required after installing the PM866K01?
After physical installation, power up the rack and verify that the PM866K01 passes its self-diagnostic LED sequence. Download the application via Control Builder M, confirm PROFIBUS DP communication with all CI854A-connected I/O clusters, and perform a full I/O scan to validate field signal integrity. If the system includes an 800xA HMI, restart the OPC server and confirm that all faceplates display live process values before handing back to operations.

Q3: Can the PM866K01 operate in a redundant CPU configuration?
Yes. Two PM866K01 modules can be configured in a hot-standby redundant pair using ABB’s standard AC800M redundancy architecture. Both modules must run identical firmware versions and application builds. The redundancy link uses the dedicated CPU-to-CPU synchronization port; no additional communication module is required for the redundancy channel itself.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
The support terms confirmed by quotation cover hardware defects, premature component failure, and dead-on-arrival (DOA) units confirmed by functional test. KNMKS maintains in-stock inventory of the PM866K01 3BSE050198R1 for immediate dispatch. Each unit ships with a pre-shipment test report. For volume orders or long-term supply commitments supporting multi-site retrofit programs, contact our sales team for lead time and pricing confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AC800M PM866K01 3BSE050198R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AC800M PM866K01 3BSE050198R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
