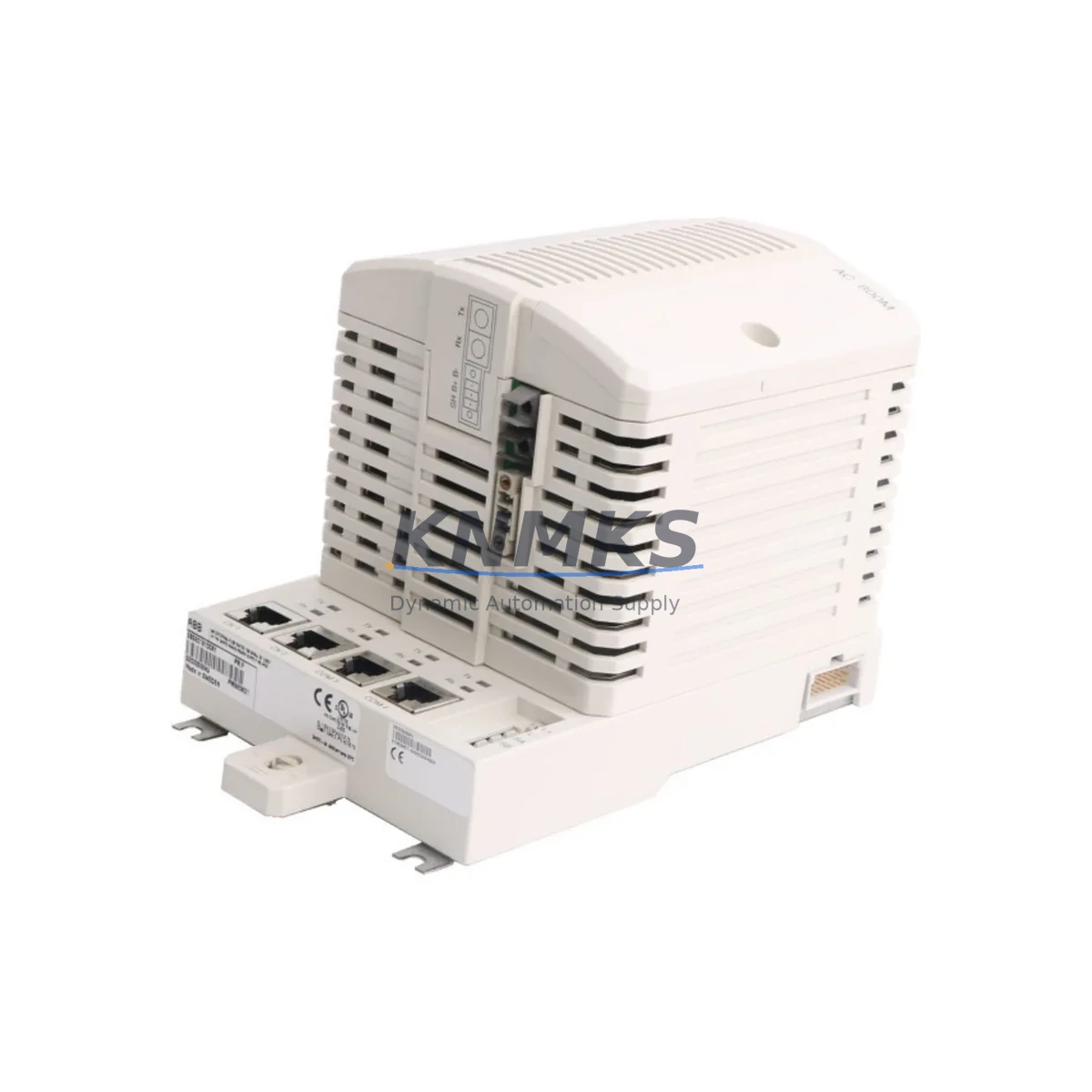

ABB PM860K01 3BSE018100R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB PM860K01 3BSE018100R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB PM860K01 (Part No. 3BSE018100R1) is a central processor module designed for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, pulp & paper, and water treatment industries. As a maintenance-proven spare part, the PM860K01 is a critical component for any facility operating AC800M controllers, where unplanned processor failure can result in full production line shutdown and significant financial loss.

At KNMKS, every PM860K01 3BSE018100R1 unit is sourced from verified supply channels, inspected for physical integrity, and tested prior to shipment. We maintain ready stock to support emergency replacement, scheduled annual overhaul, and long-term spare parts inventory programs. All units are backed by a support terms confirmed by quotation and dispatched with full documentation to support your maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM860K01 processor module is flagged for replacement — whether due to firmware corruption, hardware fault, battery depletion, or end-of-life cycle — maintenance engineers must treat the event as a system-level intervention, not an isolated module swap. The AC800M architecture integrates the processor tightly with surrounding hardware, and a thorough site assessment before and after replacement is essential to restore full system integrity and prevent secondary failures.

Begin by verifying the TB820V2 or TB840A communication interface module seated on the same backplane. These modules manage the CEX-Bus and ModuleBus connections that the PM860K01 relies on for I/O scanning and inter-controller communication. A degraded TB820V2 can cause intermittent communication faults that are incorrectly attributed to the processor itself. Inspect the module for corrosion on the bus connectors and confirm firmware compatibility with the replacement PM860K01.

Next, assess the SD802F or SD831 power supply modules feeding the AC800M rack. Processor modules are sensitive to voltage ripple and transient spikes; an aging power supply that passes basic checks may still introduce instability under load. If the PM860K01 failure occurred without a clear external cause, the power supply should be treated as a suspect and tested under full rack load conditions. Maintaining a spare SD802F in your cabinet inventory is strongly recommended for any facility running continuous processes.

During the replacement window, inspect all AI810, AO810, DI810, and DO810 I/O modules installed in the same controller station. Processor faults sometimes cascade from I/O module failures that generate excessive bus traffic or short-circuit the ModuleBus. Confirm that each I/O module’s LED status is normal after the new PM860K01 is initialized and the application program is loaded. Pay particular attention to analog input modules connected to field transmitters, as signal loop faults can trigger processor watchdog resets.

For facilities using CI854A or CI857 fieldbus communication modules (PROFIBUS DP or FOUNDATION Fieldbus), verify that the fieldbus master configuration is correctly restored after processor replacement. Communication module parameters are stored in the processor’s application database, and a version mismatch between the restored backup and the current field device configuration can cause fieldbus segment failures that delay production restart.

Finally, review the TP830 or PP836 operator panel and HMI connections if the AC800M controller interfaces directly with a local panel. Confirm that the panel communication link is re-established after processor initialization and that all alarm and status displays reflect the correct system state before releasing the line to production.

Maintaining a documented spare parts list that includes the PM860K01, a compatible TB820V2, one SD802F power supply, and a set of critical I/O modules provides the minimum inventory buffer for a 24-hour emergency recovery capability at most process facilities.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Export the full AC800M application project from Control Builder M before any hardware intervention. Confirm the backup includes the current firmware version, hardware configuration, and all function block libraries. Store the backup on an isolated engineering workstation and a secondary USB drive kept in the control room.

Step 2 — System State Documentation: Record all active alarms, controller mode (RUN/STOP), redundancy status, and I/O channel states. Photograph the physical wiring and module positions in the rack. This documentation is critical for verifying full restoration after replacement.

Step 3 — Safe Isolation: For non-redundant systems, coordinate with operations to place the process in a safe hold state before removing the PM860K01. For redundant PM860K01 pairs, initiate a controlled switchover to the standby processor before removing the faulty unit, minimizing process disruption to seconds rather than minutes.

Step 4 — Module Replacement: Remove the faulty PM860K01 by releasing the front locking mechanism and sliding the module from the backplane slot. Insert the replacement unit, ensuring the backplane connector is fully seated. The module will perform a self-test sequence on power-up; confirm the RUN LED status before proceeding.

Step 5 — Application Restore and Verification: Download the backed-up application to the new PM860K01 via Control Builder M. Verify firmware version compatibility before download. After successful download, confirm all I/O modules are recognized, fieldbus segments are active, and HMI displays are updating correctly.

Step 6 — Return to Service: Conduct a staged return to automatic control, monitoring key process variables for the first 30 minutes of operation. Document the replacement in the site maintenance log, including the old module’s serial number, fault description, replacement date, and the new module’s serial number and support terms reference.

The PM860K01 3BSE018100R1 is a direct replacement for earlier AC800M processor revisions. Facilities migrating from older PM860 variants should confirm firmware compatibility with existing I/O and communication modules before deployment to avoid configuration conflicts.

Spare Parts Support FAQ

Q1: Is the PM860K01 3BSE018100R1 compatible with all AC800M controller configurations?
The PM860K01 is the standard processor module for the AC800M platform and is compatible with the full range of AC800M backplanes and I/O modules, including TB820V2, TB840A, AI810, DI810, AO810, and DO810 series. For redundant configurations, two PM860K01 units are required. Always verify firmware version compatibility with your existing system configuration before installation, particularly if the site is running an older Control Builder M project version.

Q2: What pre-shipment testing does KNMKS perform on the PM860K01?
Each PM860K01 3BSE018100R1 unit undergoes a power-on functional test, communication port verification (Ethernet and RS-232), visual inspection for connector damage and component integrity, and a battery backup check. Units that do not pass all test criteria are not dispatched. A test record is available upon request for quality documentation purposes.

Q3: How should the PM860K01 be stored if purchased for long-term spare inventory?
Store the PM860K01 in its original anti-static packaging in a dry environment at 0°C to +40°C with relative humidity below 75% (non-condensing). The internal battery backup has a shelf life of approximately 5 years under storage conditions; inspect and replace the battery if the module has been in storage for more than 3 years before deployment. Avoid storing near strong magnetic fields or in environments with high vibration.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) units. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or unauthorized modification. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference, module serial number, and a description of the fault. Replacement or repair will be arranged within 5 business days of claim confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM860K01 3BSE018100R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM860K01 3BSE018100R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
