ABB PM860 3BSE018110R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB PM860 3BSE018110R1 Maintenance-Proven Spare Part for Factory Uptime

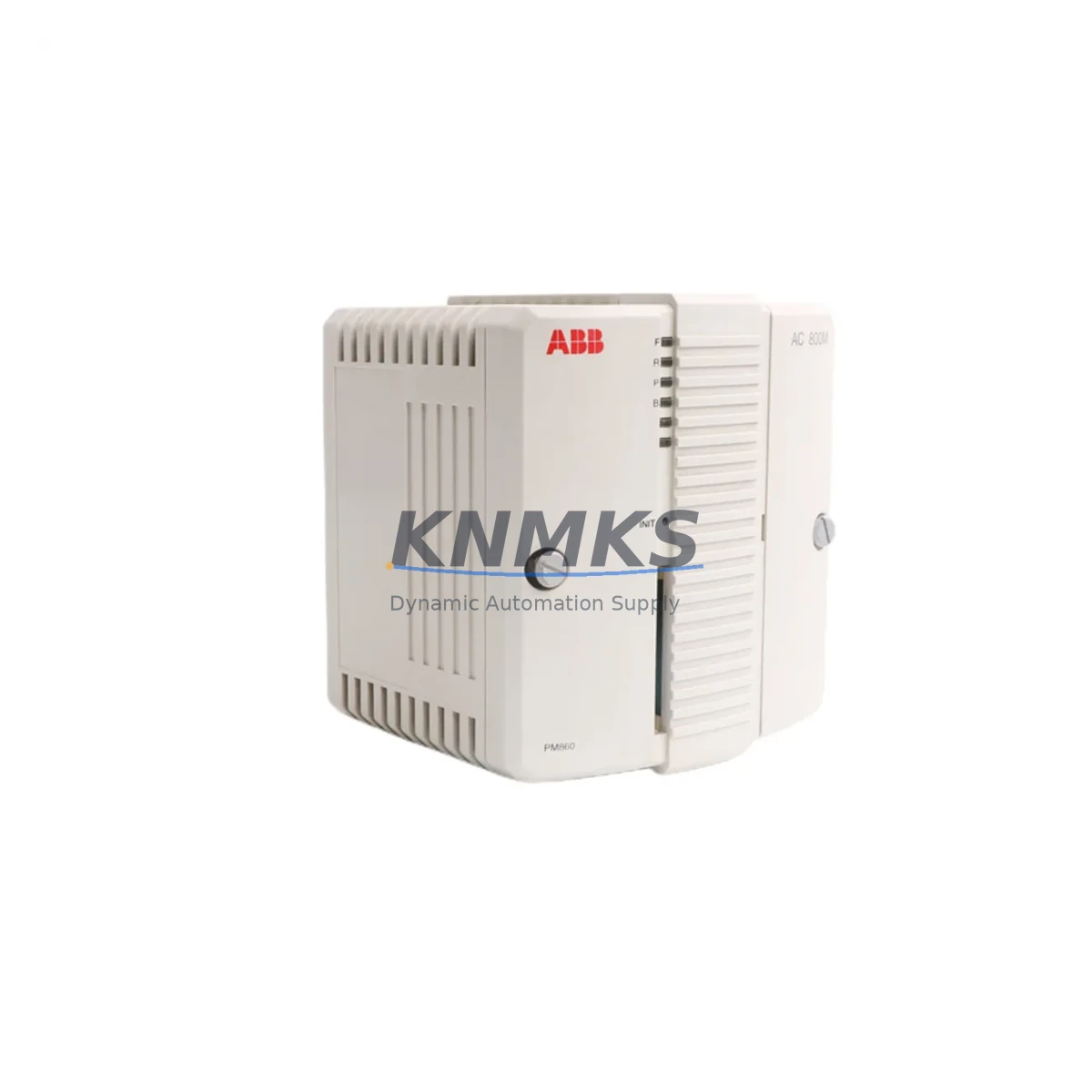

The ABB PM860 (3BSE018110R1) is a central processor module for the AC800M distributed control system (DCS) and PLC platform — one of ABB’s most widely deployed automation architectures in power generation, oil & gas, chemical processing, pulp & paper, and heavy manufacturing. Maintaining an on-hand spare of the PM860 is a proven strategy for reducing unplanned downtime, accelerating fault recovery, and protecting long-cycle production lines from extended outages caused by processor failure or firmware corruption.

At KNMKS, every PM860 3BSE018110R1 unit is sourced as an original ABB component, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Our global logistics network supports urgent spare part requirements with fast international shipping to manufacturing sites across Asia, Europe, the Middle East, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM860 processor module is flagged for replacement during a scheduled outage or emergency fault response, experienced maintenance engineers treat the event as an opportunity to audit the surrounding control cabinet for latent faults. The PM860 operates at the heart of the AC800M controller stack, and its health is directly dependent on the quality of power delivery, backplane integrity, and communication module status.

Begin by verifying the AC800M power supply module (typically the SD821 or SD822 series) — an aging or under-spec power supply is a leading cause of processor instability and premature CPU failure. Confirm output voltage is within tolerance before installing the replacement PM860. Next, inspect the TB820 or TB840 backplane for physical damage, oxidized contacts, or loose module seating; a compromised backplane can cause intermittent CEX-Bus faults that mimic processor failure.

Review the CI857 or CI862 communication interface modules installed alongside the PM860. These modules handle PROFIBUS DP, Modbus, or IEC 61850 connectivity, and a failing CI module can generate alarms that are incorrectly attributed to the processor. During the replacement window, also check DI810 and DO810 I/O modules for blown channel fuses, wiring terminal corrosion, or signal drift — conditions that stress the processor’s scan cycle and can accelerate wear.

For sites running legacy AC800M configurations with older firmware, confirm that the replacement PM860 3BSE018110R1 firmware version is compatible with the existing application program before hot-swapping. Where the system includes an OP516 or Panel 800 HMI, verify OPC or Ethernet communication parameters are preserved post-swap to avoid HMI reconnection delays during restart. Finally, inspect panel-level 24 VDC distribution fuses and terminal blocks — a blown fuse on the controller supply rail is a common, easily overlooked root cause of processor shutdowns.

Site Replacement Workflow

Step 1 — Pre-Replacement Audit: Back up the current AC800M application program and configuration via ABB Control Builder M. Document all CI module addresses, I/O assignments, and network parameters. Confirm the replacement PM860 3BSE018110R1 firmware version matches or is compatible with the existing project.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Power down the AC800M controller via the SD821/SD822 power supply. Do not hot-swap the PM860 without confirming the system supports redundant CPU operation — single-CPU configurations require a controlled shutdown.

Step 3 — Module Exchange: Remove the failed PM860 from the TB820/TB840 backplane. Seat the replacement unit firmly, ensuring all backplane connector pins are fully engaged. Restore power and observe the CPU status LEDs — a normal boot sequence will show RUN status within 60–90 seconds.

Step 4 — Program Restore & Verification: Download the backed-up application program via Control Builder M. Verify all I/O channels, communication links (CI modules), and HMI connections are restored. Run a full I/O scan and confirm process values are within expected ranges before returning the system to automatic control.

Step 5 — Documentation & Spare Replenishment: Log the replacement event in the site CMMS. Immediately initiate a procurement order for a replacement PM860 3BSE018110R1 to restore your on-hand spare inventory. Sites with extended lead-time risk should maintain a minimum of one cold-standby PM860 per AC800M controller cluster.

Spare Parts Support FAQ

Q1: Is the PM860 3BSE018110R1 compatible with all AC800M controller configurations?
The PM860 3BSE018110R1 is the standard processor module for the AC800M controller family. It is compatible with TB820 and TB840 backplanes and operates alongside the full range of AC800M I/O and communication modules. For systems running specific firmware versions or redundant CPU configurations (PM860K01), confirm the exact hardware revision required before ordering.

Q2: What pre-shipment testing does KNMKS perform on the PM860?
Each PM860 3BSE018110R1 unit undergoes functional power-on verification, boot sequence confirmation, and communication bus integrity checks prior to dispatch. Units are packaged in anti-static ESD-safe materials with physical protection for the backplane connector. A support terms confirmed by quotation is included with every shipment.

Q3: Can KNMKS support long-term or blanket purchase orders for PM860 spare parts?
Yes. KNMKS supports 12–36 month supply agreements for the PM860 3BSE018110R1 and related AC800M components. Long-term agreements provide price stability, priority allocation, and reduced lead times for multi-site maintenance programs. Contact [email protected] to discuss volume and scheduling requirements.

Q4: What should I do if the replacement PM860 does not boot after installation?
First, verify the SD821/SD822 power supply output is within specification (24 VDC ±10%). Check the TB820/TB840 backplane for damaged connector pins or module seating issues. Confirm the application program firmware version is compatible with the PM860 hardware revision. If the unit fails to reach RUN status after these checks, contact KNMKS technical support — all units are covered under the support terms confirmed by quotation and will be replaced or refunded if a manufacturing defect is confirmed.
