ABB PM825 3BSE010796R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB PM825 3BSE010796R1 Maintenance-Proven Spare Part for Factory Uptime

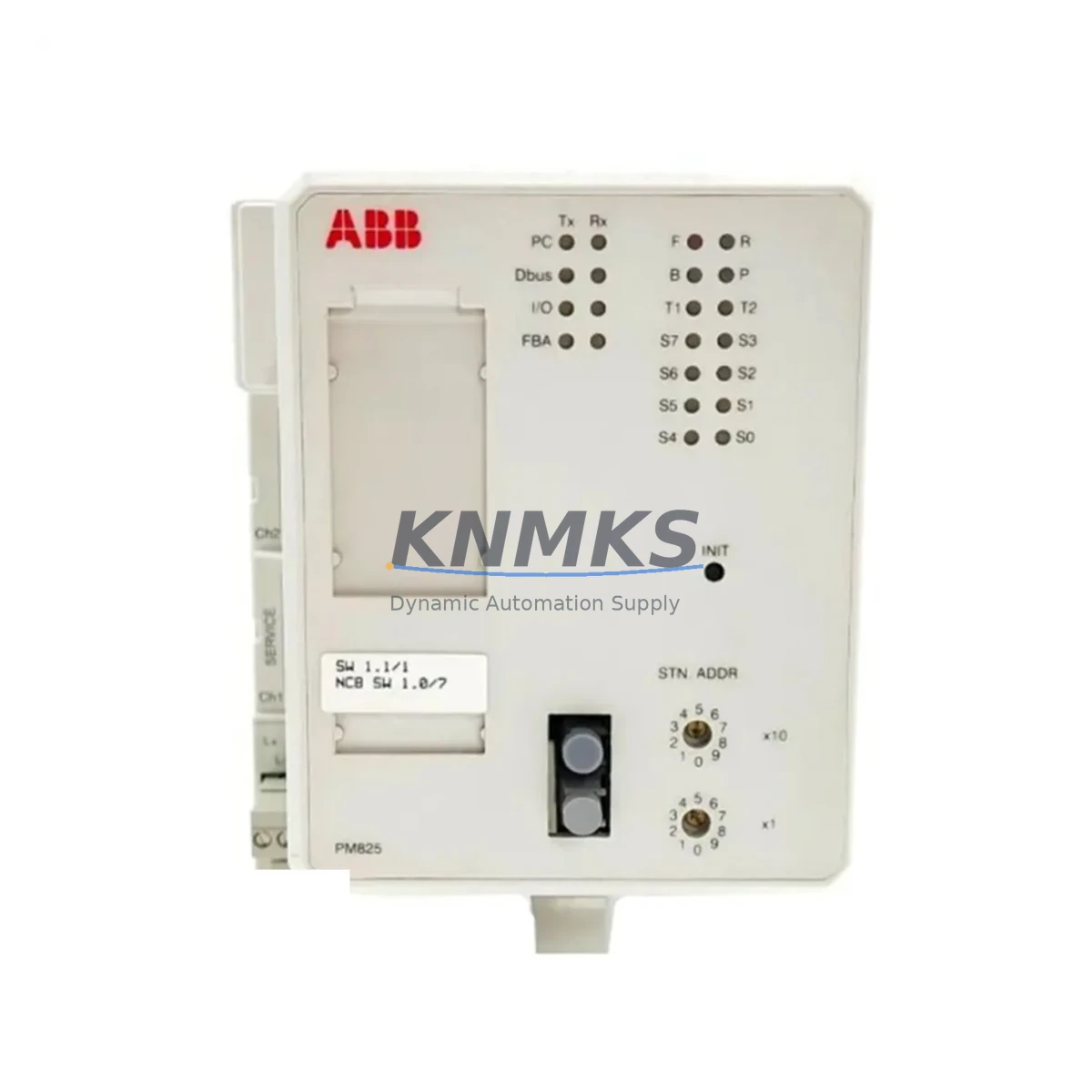

The ABB PM825 (3BSE010796R1) is a central processor module for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in continuous process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. Maintaining an on-hand spare of the PM825 is a fundamental element of any serious maintenance strategy for facilities running AC800M-based control systems.

When a PM825 processor fails or degrades, the consequences extend far beyond a single loop. The entire controller node — including all connected I/O modules, fieldbus segments, and communication links — becomes unavailable until the processor is restored. For process-critical applications, this translates directly into unplanned downtime, production loss, and potential safety incidents. Stocking a verified, tested PM825 spare eliminates the lead-time risk associated with sourcing a replacement under emergency conditions.

Each PM825 3BSE010796R1 unit supplied by KNMKS is sourced from verified industrial channels, inspected for physical integrity, and tested prior to shipment. A support terms confirmed by quotation is provided on all units, covering functional defects under normal operating conditions. Units are packaged for safe transit and can be dispatched rapidly to support urgent maintenance requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a PM825 processor in the field is rarely an isolated task. Experienced maintenance engineers understand that a processor fault often signals stress across the broader control cabinet environment. Before returning the system to service after a PM825 swap, a structured inspection of adjacent components is strongly recommended.

Begin with the power supply module — the PM825 draws its operating power from the AC800M backplane, which is fed by the cabinet’s 24 VDC power supply (typically an ABB SD802F or equivalent). A degraded or undersized power supply can cause intermittent processor resets that mimic CPU faults. Verify output voltage stability under load before commissioning the replacement module.

Next, inspect the backplane and rack assembly. Connector pins on the AC800M backplane are subject to oxidation and mechanical wear, particularly in high-humidity or high-vibration environments. A damaged backplane connector can prevent a new PM825 from initializing correctly, leading to misdiagnosis of the replacement unit.

Review the communication modules installed in the same controller rack — modules such as the CI854 PROFIBUS DP interface or CI801 FOUNDATION Fieldbus interface share the ModuleBus with the PM825. If the processor fault was preceded by communication errors on these fieldbus segments, the communication module itself may require inspection or replacement.

For systems using redundant processor configurations, the partner PM825 module should be evaluated simultaneously. A redundancy switchover event that preceded the fault may indicate the backup processor has been operating in a degraded state. Replacing only the failed unit without verifying the redundant partner leaves the system exposed to a second unprotected failure.

I/O modules connected via the S800 I/O bus — including AI810, AO810, DI810, and DO810 series modules — should be checked for diagnostic alarms following processor restoration. In some fault scenarios, I/O modules may latch error states that require a manual reset or re-initialization after the CPU is replaced.

Finally, review the HMI and operator station connectivity. The PM825 communicates with ABB System 800xA operator stations via the plant network. After replacement, confirm that the controller node is correctly recognized by the 800xA server and that all control loops are returning expected process values before releasing the system to operations.

Maintaining a coordinated spare parts inventory — covering the PM825 processor, at least one power supply module, one or two critical I/O modules, and the relevant communication interface cards — provides the fastest path to production recovery when an unplanned outage occurs.

Site Replacement Workflow

1. Pre-Replacement Preparation: Download and archive the current controller application from the AC800M using ABB Control Builder M before any hardware is disturbed. Confirm the firmware version of the installed PM825 and ensure the replacement unit carries a compatible or identical firmware revision. If firmware upgrade is required, plan this as a separate step with appropriate change management approval.

2. Safe Isolation: Follow site-specific lockout/tagout (LOTO) procedures. For non-redundant systems, coordinate with operations to place affected control loops in manual mode at the DCS operator station before powering down the controller rack. For redundant systems, initiate a controlled switchover to the partner controller before removing the faulty PM825.

3. Module Removal and Installation: Remove the faulty PM825 by releasing the front-panel locking mechanism and sliding the module clear of the backplane connector. Insert the replacement PM825, ensuring full seating of the backplane connector. Secure the locking mechanism before restoring power.

4. Application Restore and Verification: Power up the rack and observe the PM825 status LEDs. A healthy startup sequence will progress through initialization to RUN state. Download the archived application using Control Builder M if the replacement module does not retain the previous configuration. Verify all I/O channels, fieldbus segments, and communication links are restored to normal status.

5. Return to Service: Return control loops to automatic mode progressively, monitoring process values for stability. Document the replacement event, including the failed module’s serial number, fault symptoms, replacement date, and post-restoration verification results, in the site maintenance management system.

This workflow is applicable to both emergency replacements and planned maintenance outages. For legacy AC800M installations where the PM825 has been in service for more than five years, proactive replacement during a scheduled shutdown — rather than waiting for failure — is a cost-effective strategy for extending system life and avoiding unplanned production loss.

Spare Parts Support FAQ

Q1: Is the PM825 3BSE010796R1 supplied by KNMKS an original ABB module?
Yes. All PM825 units are sourced from verified industrial supply channels and are original ABB-manufactured components. Each unit undergoes physical inspection and functional testing prior to shipment. A test report can be provided upon request.

Q2: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation on the PM825 3BSE010796R1 covering functional defects under normal operating conditions. The confirmed support period begins from the date of shipment. Units that develop functional faults within the confirmed support period will be repaired or replaced at no additional cost, subject to inspection confirming the fault is not attributable to installation error, overvoltage, or physical damage.

Q3: How do I confirm compatibility between the replacement PM825 and my existing AC800M system?
Compatibility is primarily determined by the AC800M hardware generation and the Control Builder M software version in use at your site. The PM825 3BSE010796R1 is compatible with standard AC800M controller racks. Provide your existing module’s serial number and firmware version when placing your order, and KNMKS will confirm compatibility before shipment.

Q4: Can KNMKS support long-term or repeat supply of the PM825 for multi-site maintenance programs?
Yes. KNMKS maintains stock of the PM825 3BSE010796R1 and can support scheduled procurement for multi-site maintenance programs, annual spare parts budgets, and emergency replenishment orders. Contact our technical sales team to discuss volume pricing, lead times, and consignment stock arrangements for high-priority spare parts.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM825 3BSE010796R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM825 3BSE010796R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
