ABB PM645B 3BSE010535R1 Fail-Safe DCS CPU Industrial Control

Overview

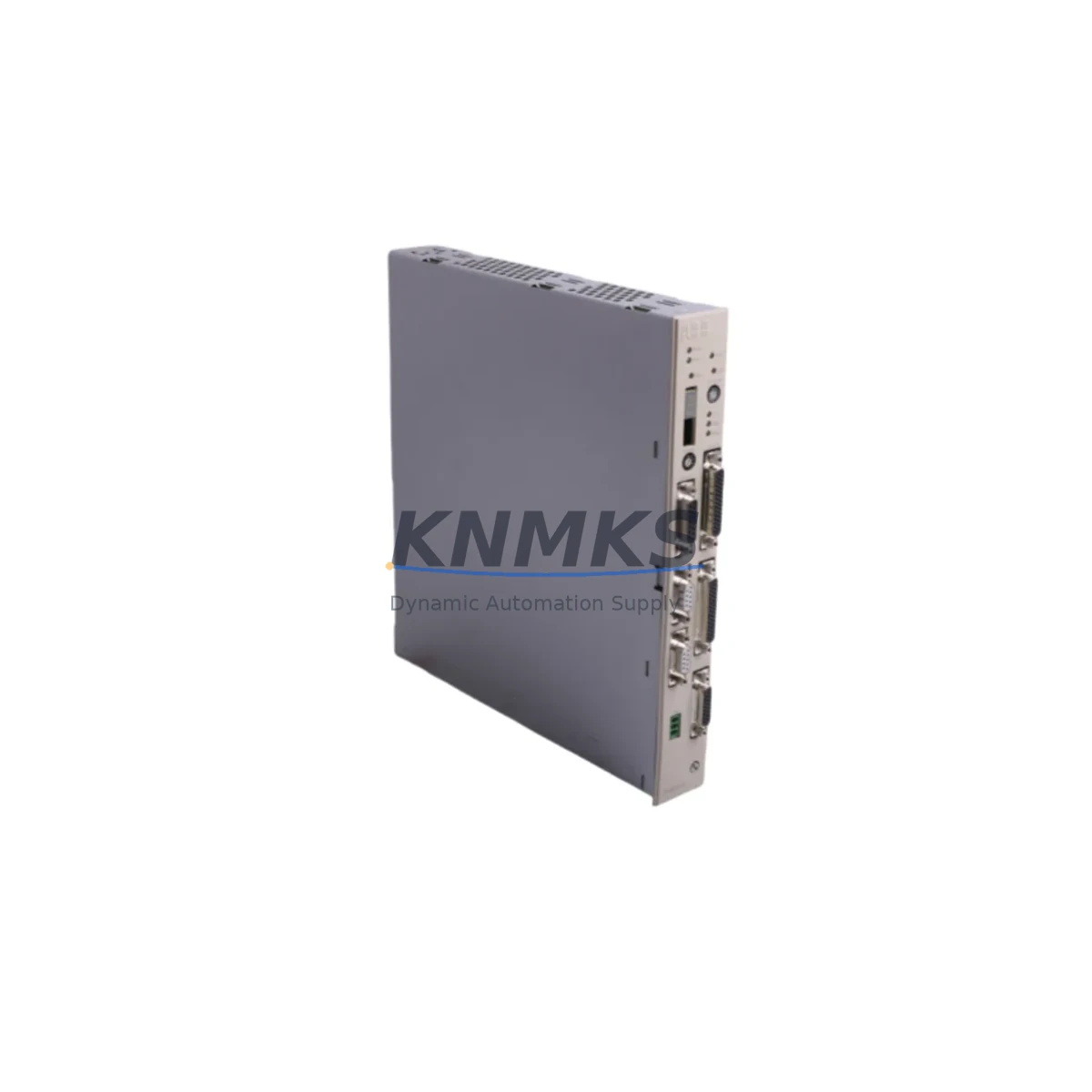

ABB PM645B 3BSE010535R1 Fail-Safe DCS CPU Industrial Control: Fault-Protected Reliability for Critical Industrial Sites

The ABB PM645B (3BSE010535R1) is a high-integrity processor module within the ABB AC 800M Distributed Control System platform — engineered specifically for continuous production environments where control interruption is not an option. Designed to operate reliably in the harshest industrial conditions, this DCS CPU delivers deterministic scan-cycle performance, robust fault isolation, and fail-safe logic execution across petrochemical, power generation, mining, water treatment, metallurgical, and port automation applications.

Unlike standard automation controllers, the PM645B is built to sustain operation under high electromagnetic interference (EMI), voltage transients, surge impulses, and wide thermal cycling — conditions routinely encountered in heavy-duty control cabinets, motor control centers, and safety instrumented system (SIS) panels. Its architecture supports redundant CPU configurations, ensuring that a single processor fault does not cascade into a plant-wide shutdown or unplanned production loss.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered DCS control cabinet, the PM645B does not operate in isolation — it functions as the command core of a tightly integrated protection architecture. To maintain signal integrity and prevent control loop disruption, the PM645B is typically paired with ABB TB820V2 ModuleBus Optical Port units, which isolate the internal bus from external noise sources and eliminate ground loop interference across long cable runs in large process plants.

Power stability is equally critical. The PM645B relies on clean, regulated DC supply from modules such as the ABB SD821 24VDC Power Supply or the ABB SD823 redundant power unit, which provide over-voltage protection, current limiting, and automatic switchover in the event of a primary supply failure. In high-load cabinets with multiple I/O modules, a dedicated power distribution rail with surge suppression is strongly recommended to prevent voltage dips from propagating to the CPU backplane.

For I/O expansion and field signal conditioning, the PM645B integrates seamlessly with ABB AI810 Analog Input modules and ABB DI810 Digital Input modules, both of which provide galvanic isolation between field wiring and the controller bus — a key safeguard in environments with high ground potential differences, such as substations, offshore platforms, and chemical processing units. Where safety interlock logic is required, the PM645B can be configured alongside ABB SM811 Safety Module units to enforce hardware-level trip functions independent of application software state.

Communication redundancy is maintained through dual Ethernet paths and optional ABB CI854 PROFIBUS DP Communication Interface modules, ensuring that fieldbus dropouts or network segment failures do not result in loss of supervisory control. This layered architecture — CPU, power, I/O, safety, and communication — forms a complete fail-safe control cabinet strategy for continuous and batch process industries.

Critical Industrial Safety Applications

The PM645B 3BSE010535R1 is deployed across a wide range of safety-critical and continuous-process industries where control reliability directly impacts personnel safety, environmental compliance, and production economics.

In petrochemical and refinery environments, the PM645B manages burner management sequences, emergency shutdown (ESD) logic, and compressor anti-surge control — applications where a CPU fault could trigger a full-plant trip or, worse, an uncontrolled process excursion. Its EMI hardening and redundancy capability make it a preferred replacement for aging DCS CPUs in brownfield upgrade projects.

In power generation and grid substations, the module supports turbine governor control, excitation system interfacing, and protection relay coordination. The deterministic scan cycle of the AC 800M platform ensures that trip signals are processed within defined latency windows, meeting IEC 61511 functional safety requirements for SIL 2 and SIL 3 loops.

In mining and mineral processing operations — including SAG mill control, flotation circuit automation, and conveyor interlock management — the PM645B withstands the high vibration, dust ingress, and wide temperature swings typical of underground and open-pit environments. Its conformal-coated variants provide additional protection against humidity and corrosive airborne particulates.

In water and wastewater treatment facilities, the module controls dosing pump sequences, UV disinfection interlocks, and SCADA-integrated alarm management. Long-term supply continuity is essential in these applications, and the PM645B’s availability as a stocked spare part — with a support terms confirmed by quotation — supports both planned maintenance cycles and emergency replacement scenarios.

In port automation and ship-to-shore crane control, the PM645B handles motion sequencing, load monitoring, and safety interlock logic in high-cycle, high-load environments. Its surge immunity and optical bus isolation are particularly valuable in marine and coastal installations where lightning-induced transients are a recurring threat to control system integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the PM645B 3BSE010535R1?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions. If the module fails to perform its specified DCS CPU functions within the confirmed support period, we provide replacement or repair at no additional cost. Support terms coverage begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each PM645B unit?
Every PM645B 3BSE010535R1 unit undergoes a full functional verification test prior to dispatch, including power-on self-test (POST) validation, communication interface checks, and a burn-in cycle to screen for early-life component failures. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PM645B 3BSE010535R1 compatible with existing AC 800M DCS installations?
Yes. The PM645B is a direct-fit replacement within the ABB AC 800M hardware family. It is compatible with existing S800 I/O modules, TB820V2 optical bus units, CI854 PROFIBUS interfaces, and SD8xx power supply modules without requiring hardware modifications to the control cabinet backplane or field wiring.

Q4: Can long-term supply and spare part continuity be guaranteed?
We maintain forward stock of the PM645B 3BSE010535R1 to support both planned maintenance schedules and emergency replacement requirements. For high-criticality sites with extended lead-time risk, we recommend establishing a consignment or buffer stock arrangement. Contact our sales team to discuss long-term supply agreements tailored to your plant’s maintenance strategy.
