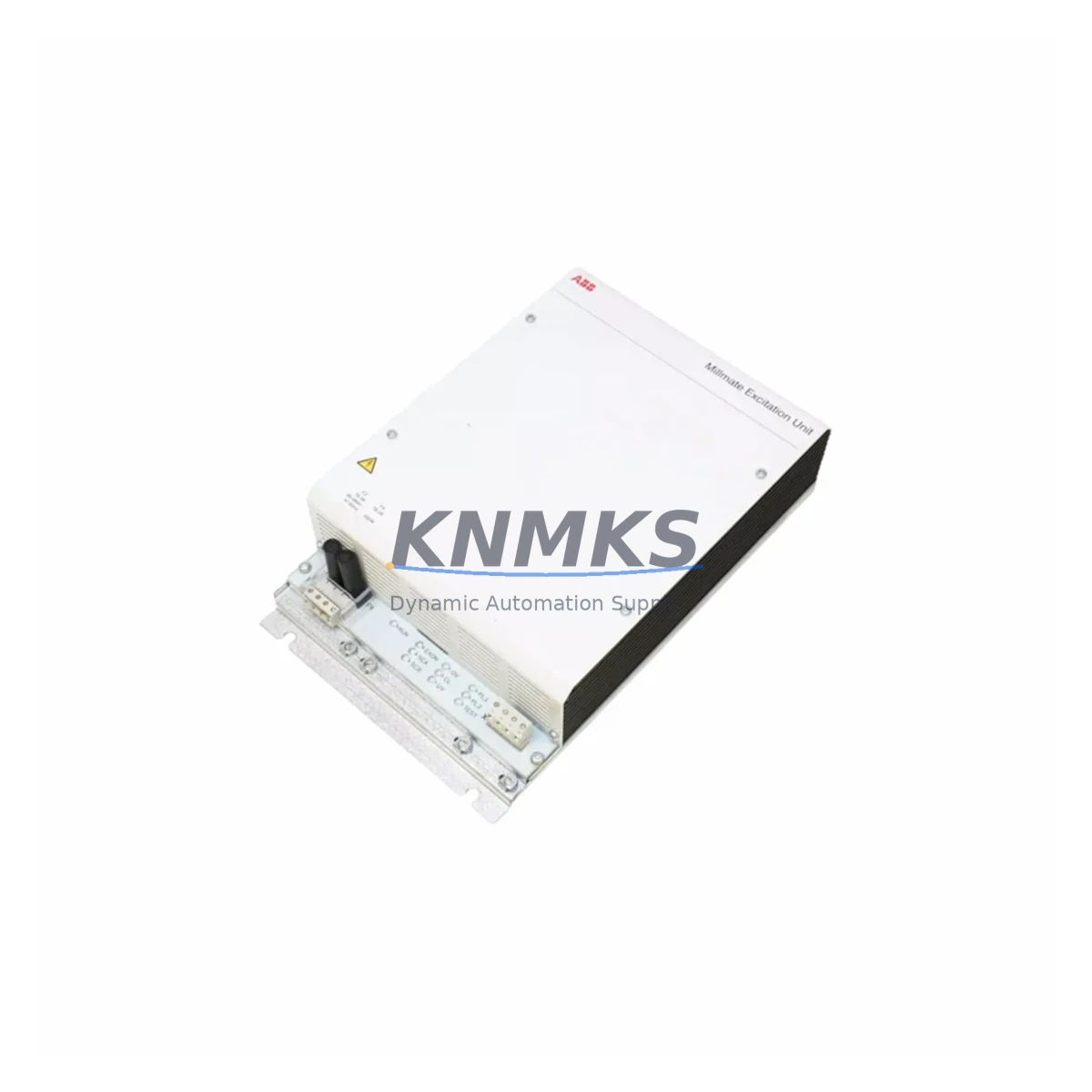

ABB PFVI401 3BSE032423R1 Migration-Ready Excitation Unit

Overview

ABB PFVI401 3BSE032423R1 Migration-Ready Excitation Unit: Legacy System Retrofit and Compatibility Upgrade

The ABB PFVI401 3BSE032423R1 is a migration-ready excitation unit engineered for seamless integration into ABB AC800M and 800xA distributed control system environments. As legacy excitation hardware reaches end-of-life or becomes increasingly difficult to source, the PFVI401 3BSE032423R1 serves as a verified drop-in replacement that preserves existing control logic, terminal wiring, and backplane communication without requiring full system redesign. This module is stocked for immediate dispatch and is backed by a support terms confirmed by quotation with pre-shipment functional testing on every unit.

For plants operating legacy ABB Advant, MOD 300, or early-generation AC800M control cabinets, the PFVI401 represents a critical upgrade path. Its compatibility with the S800 I/O backplane architecture and the AC800M controller family means that engineers can execute a controlled replacement without disrupting adjacent modules such as the PM865 processor module, AI810 analog input modules, or AO810 analog output modules already installed in the same rack. The excitation function is preserved across firmware revisions, reducing the risk of program incompatibility during cutover.

When planning a retrofit using the PFVI401 3BSE032423R1, engineers must verify several key parameters before committing to installation. Power supply capacity within the control cabinet must be confirmed — the PFVI401 draws from the 24 VDC rail shared with other S800 I/O modules, and insufficient headroom can cause instability across the entire rack. Terminal wiring from the legacy excitation unit should be mapped against the PFVI401 terminal block layout to identify any pin reassignments. Backplane slot addressing must be reconfigured in the AC800M engineering tool (Control Builder M) to reflect the new module position if the physical slot changes during the swap.

Module address assignment is particularly important in multi-rack configurations where the PFVI401 may share a communication link with other field modules via the ModuleBus or PROFIBUS DP network. If the existing control system uses a CI854 PROFIBUS master module or a CI840 AF100 communication interface, the PFVI401’s node address must be set consistently with the existing network topology to avoid address conflicts. HMI screens built on ABB 800xA or linked to a third-party SCADA system should be reviewed to confirm that excitation status tags remain mapped correctly after the module swap.

Installation space confirmation is a routine but essential step. The PFVI401 3BSE032423R1 occupies a standard S800 module slot and is compatible with the TB820 ModuleBus modem and standard S800 I/O rail mounting. Engineers should confirm that the target slot is not obstructed by cable bundles or adjacent modules with extended footprints. Firmware version alignment between the PFVI401 and the AC800M processor should be verified using the Control Builder M version matrix prior to commissioning to avoid runtime exceptions during startup.

Field commissioning of the PFVI401 typically involves a structured sequence: power-down of the affected rack section, physical module swap, terminal reconnection verification, power restoration, module recognition confirmation in Control Builder M, and a functional test of the excitation output under controlled load conditions. Where possible, a parallel run with the legacy unit still in circuit is recommended to validate signal integrity before full cutover. This approach minimizes unplanned downtime and protects the integrity of the broader control loop.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the PFVI401 3BSE032423R1 depends on a coordinated review of the surrounding control architecture. In a typical AC800M control cabinet, the PFVI401 operates alongside a PM865 or PM866 processor module, which manages the primary control loop execution. The processor’s scan cycle and the excitation module’s response time must be aligned to avoid timing mismatches that could trigger fault conditions during startup. Engineers should also confirm that the SA811 power supply module or equivalent 24 VDC source feeding the S800 rack has sufficient current capacity after the PFVI401 is added or swapped.

In systems where the excitation unit interfaces with motor drives or generator control panels, the signal wiring between the PFVI401 terminal block and the downstream drive — such as an ABB ACS800 or ACS880 series drive — must be verified for correct polarity, shielding continuity, and cable routing to minimize electromagnetic interference. If the existing installation uses a signal isolator between the excitation module and the drive input, the isolator’s input range and output scaling should be confirmed against the PFVI401’s output specification.

For plants migrating from older Advant OCS or MOD 300 platforms, the transition to the AC800M architecture often involves parallel changes to the communication infrastructure. The introduction of a CI854 PROFIBUS DP master or a CI840 AF100 interface module alongside the PFVI401 is common in phased migration projects. In these scenarios, the PROFIBUS network segment carrying the excitation module’s status data must be re-terminated and the GSD file updated in the engineering tool to reflect the new module configuration. An IM800 interface module or equivalent gateway may also be required if the legacy HMI system communicates over a protocol not natively supported by the AC800M.

Downtime Control During System Migration

Minimizing downtime during a PFVI401 3BSE032423R1 swap requires a disciplined pre-outage preparation process. Before the maintenance window opens, engineers should export the current AC800M application program from Control Builder M and store a verified backup on an isolated engineering workstation. All current module configuration parameters — including slot addresses, I/O channel assignments, and communication node IDs — should be documented and cross-checked against the as-built drawings for the control cabinet.

During the outage window, the physical swap of the PFVI401 should be the last step after all preparatory wiring checks are complete. Powering the rack back up with the new module in place and immediately monitoring the Control Builder M online view for module recognition errors allows engineers to catch configuration mismatches before the process is restarted. If the excitation output is connected to a rotating machine, a no-load test of the excitation function should be performed before the machine is brought back online under full process load.

Where a parallel run is feasible — for example, in dual-redundant control architectures — the PFVI401 can be commissioned on the standby controller while the primary remains in service. This approach allows full functional validation of the new module, including HMI tag verification and SCADA alarm testing, without interrupting the live process. Once the standby controller with the new PFVI401 is confirmed healthy, a controlled switchover can be executed with minimal process impact.

Retrofit Support FAQ

Q: Is the PFVI401 3BSE032423R1 a direct drop-in replacement for older ABB excitation modules in AC800M racks?
A: Yes, the PFVI401 3BSE032423R1 is designed for direct slot replacement within S800-compatible racks. Terminal wiring and backplane interface are consistent with the S800 I/O standard. Minor configuration updates in Control Builder M may be required to register the new module address, particularly if the physical slot position changes during the swap.

Q: What commissioning steps are required after installing the PFVI401?
A: After physical installation, power up the rack and confirm module recognition in Control Builder M. Verify that the excitation output parameters match the application requirements. Perform a functional test under controlled conditions before returning the system to full process operation. If PROFIBUS or AF100 communication is used, confirm node address assignment and network segment integrity.

Q: How is wiring compatibility confirmed between the PFVI401 and the existing terminal block layout?
A: Compare the PFVI401 terminal block pinout (available in the ABB S800 I/O hardware documentation) against the as-built wiring drawings for the legacy excitation module. Pay particular attention to signal polarity, shield grounding points, and any jumper settings that affect output range or mode selection. Where signal isolators are in the circuit, verify their input/output scaling against the PFVI401 specification.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
A: Every PFVI401 3BSE032423R1 unit is functionally tested prior to shipment to verify excitation output, backplane communication, and power supply interface. The support terms confirmed by quotation cover hardware defects and functional failures under normal operating conditions. Units are dispatched from multi-region stock to support urgent replacement requirements globally. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PFVI401 3BSE032423R1
AC800M Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB PFVI401 3BSE032423R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
