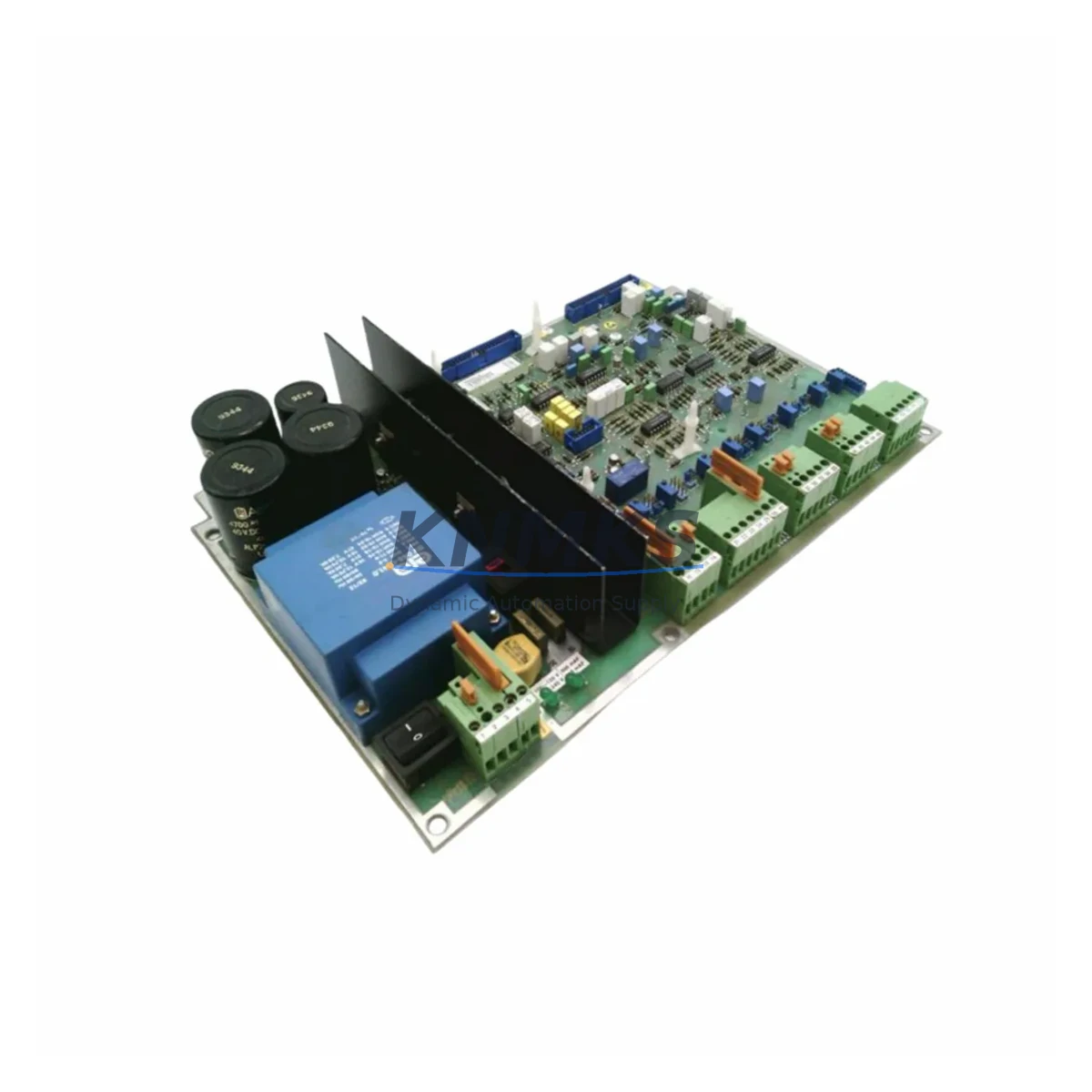

ABB PFTK101A YM222001-UC Fail-Safe ModuleBus Interface

Overview

ABB PFTK101A YM222001-UC Fail-Safe ModuleBus Interface for Industrial Control Reliability

The ABB PFTK101A YM222001-UC is a ruggedized ModuleBus interface module engineered for mission-critical process automation environments where control interruption is not an option. Designed to bridge the ABB AC800M controller with the S800 I/O distributed I/O family, this module delivers deterministic, fail-safe communication across the ModuleBus backplane — even under sustained electromagnetic interference, power transients, and harsh ambient conditions found in petrochemical plants, power generation facilities, metallurgical operations, and continuous manufacturing lines.

In high-stakes control cabinets where a single communication fault can cascade into an unplanned shutdown, the PFTK101A YM222001-UC provides the signal integrity and fault-tolerance that engineering teams depend on. Its hardened design addresses the most common failure vectors in field-deployed automation systems: signal drift, surge-induced latch-up, bus contention, and thermal stress — making it a trusted backbone component for both greenfield installations and legacy migration projects.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a continuous process plant is only as strong as its weakest communication link. The PFTK101A YM222001-UC anchors the ModuleBus segment, but its effectiveness is maximized when deployed alongside a coordinated set of protection and power components. In high-load cabinets handling motor drives, safety interlocks, and distributed I/O simultaneously, engineers typically pair this module with the ABB PM856 AC800M processor module to ensure the controller side maintains deterministic scan cycles without bus timeout faults.

On the power supply side, the ABB SD831 24VDC power supply unit provides the stable, low-ripple DC rail that the PFTK101A requires for consistent bus arbitration. In environments with frequent voltage sags or utility switching events, adding a ABB UPS24V buffer module upstream prevents the momentary power dips that can cause ModuleBus re-initialization — a critical concern in interlock-heavy safety loops. For the I/O layer, ABB AI810 analog input modules and ABB DI810 digital input modules connect directly to the ModuleBus segment managed by the PFTK101A, and their signal conditioning circuits depend on the interface module maintaining clean, jitter-free bus timing.

In cabinets exposed to high electromagnetic interference — common near large variable frequency drives or high-current switchgear — the ABB TK801V007 ModuleBus cable assembly with its shielded twisted-pair construction complements the PFTK101A’s onboard EMI hardening, forming a complete shielded communication path from controller to field I/O. This layered approach — hardened interface module, stable power supply, buffered UPS rail, shielded cabling, and matched I/O modules — is the standard protection strategy for ABB AC800M cabinets in petrochemical and power generation applications where unplanned downtime carries significant operational and safety consequences.

Critical Industrial Safety Applications

The ABB PFTK101A YM222001-UC is deployed across a wide range of critical industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery operations, the module supports emergency shutdown (ESD) and process safety management (PSM) systems where the AC800M controller must maintain uninterrupted communication with field I/O during high-temperature, high-pressure process upsets. Any ModuleBus communication fault in these environments can trigger spurious trips or, worse, mask a genuine process hazard — making the PFTK101A’s surge protection and EMI hardening directly safety-relevant.

In power generation and grid substations, the module is used in turbine control and excitation systems where millisecond-level response times are required. The deterministic ModuleBus communication it enables is essential for governor control loops and protection relay coordination. In metallurgical and steel mill environments, where high-current arc furnaces generate extreme electromagnetic noise, the PFTK101A’s shielded design maintains bus integrity across the I/O network serving cooling water control, fume extraction interlocks, and casting line automation.

Water and wastewater treatment facilities rely on the module for SCADA-connected pump station control and chemical dosing systems, where the combination of high humidity, chemical vapors, and remote location makes a pre-tested, support terms-backed spare module essential for rapid fault recovery. In mining and mineral processing operations, the PFTK101A supports conveyor control, crusher automation, and ventilation safety systems in environments characterized by dust ingress, vibration, and wide temperature swings — all conditions the module is rated to withstand.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the PFTK101A YM222001-UC?
The support terms confirmed by quotation cover all manufacturing defects, communication failures, and component-level faults identified under normal operating conditions consistent with ABB AC800M system specifications. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every PFTK101A YM222001-UC unit undergoes a full functional test including ModuleBus communication verification, power rail integrity check, surge protection circuit validation, and visual inspection for connector and PCB condition. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all AC800M controller variants and S800 I/O generations?
The PFTK101A YM222001-UC is compatible with the full AC800M controller family (PM851 through PM866 series) and all S800 I/O modules using the standard ModuleBus backplane interface. Compatibility with specific firmware revisions should be confirmed against the ABB AC800M hardware and installation manual (3BSE041434) for your site configuration.

Q4: Can long-term supply and scheduled replacement stock be arranged?
Yes. Multi-unit stock reservations and scheduled delivery agreements are available for maintenance programs, planned outages, and migration projects requiring phased replacement of AC800M I/O infrastructure. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options for critical spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PFTK 101A YM222001-UC
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PFTK 101A YM222001-UC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
