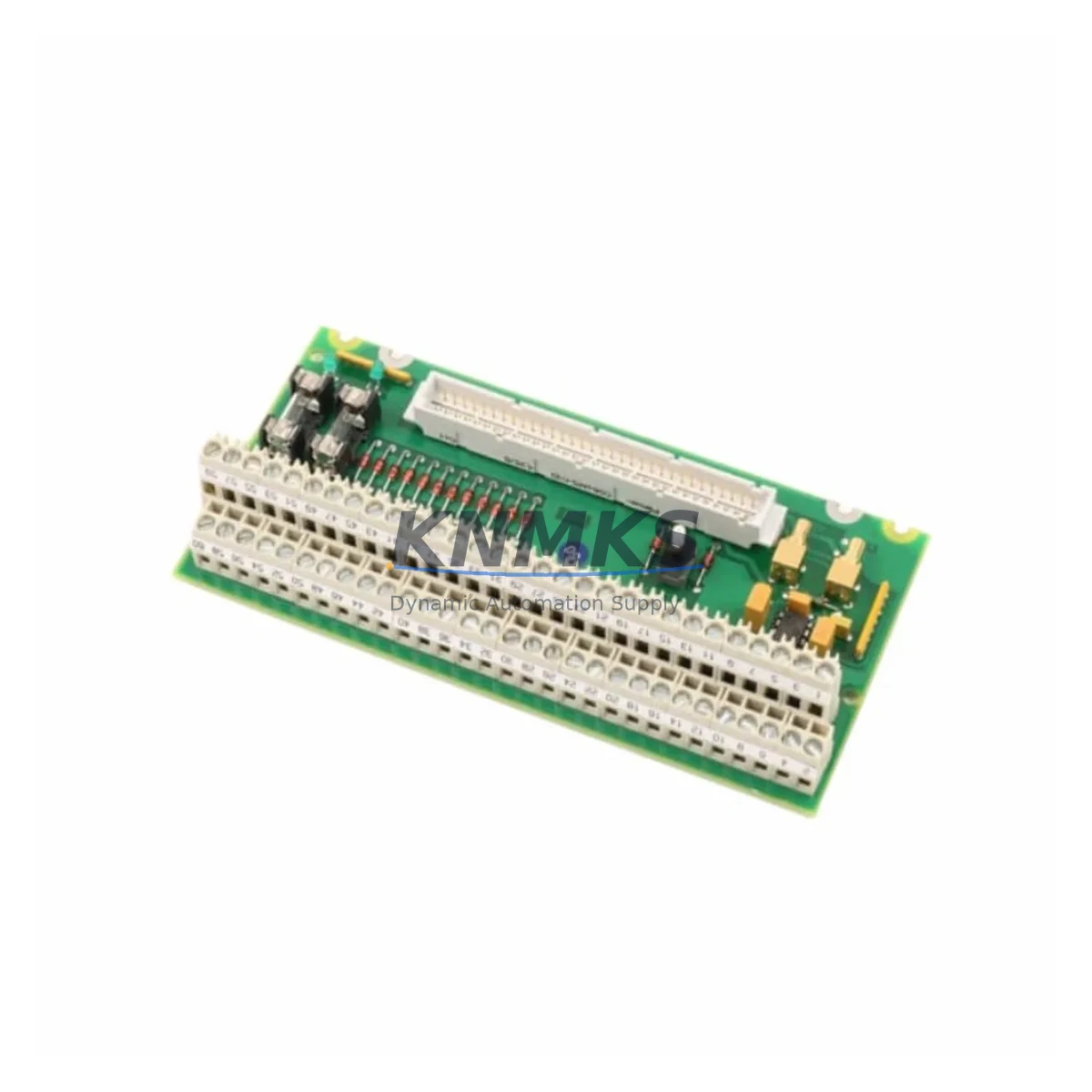

ABB PFSK109 YM322001-EK Migration-Ready DCS Module

Overview

ABB PFSK109 YM322001-EK Migration-Ready DCS Connection Module for Legacy Control Systems

The ABB PFSK109 YM322001-EK is a migration-ready DCS connection module engineered for seamless integration into legacy control system retrofit projects. As industrial facilities face the growing challenge of maintaining aging Advant OCS and MOD 300 distributed control architectures, the PFSK109 provides a reliable, drop-in-compatible solution that extends the operational life of existing control infrastructure while bridging the path toward modern automation platforms. Whether you are replacing a discontinued PFSK101, PFSK102, or PFSK107 module, or undertaking a full control cabinet upgrade, the PFSK109 YM322001-EK delivers the compatibility, signal integrity, and field-proven reliability that critical industrial environments demand.

Sourced directly from verified supply channels and subjected to pre-shipment functional testing, every PFSK109 unit shipped by KNMKS is backed by a support terms confirmed by quotation and supported by in-stock inventory for rapid deployment. Our technical team is available to assist with wiring adaptation, firmware version confirmation, and commissioning guidance to minimize downtime during your migration project.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on site. When planning a PFSK109 YM322001-EK replacement, engineers must systematically audit the existing control cabinet to confirm compatibility across every integration layer. Start with the power supply module — the PFSK102 YM322001-EG or equivalent 24 VDC rail supply must have sufficient headroom to support the PFSK109 without triggering undervoltage protection on adjacent I/O modules. Verify the total current draw across all populated backplane slots before proceeding.

Next, inspect the backplane and rack assembly. PFSK-series modules share a common rack form factor, but connector pin assignments and slot addressing can vary between rack generations. Confirm the rack revision and cross-reference the PFSK109 installation manual to ensure the module address is correctly set — incorrect addressing will prevent the controller from recognizing the new module during startup. If the existing rack is a legacy MOD 300 chassis, check whether a PFSK107 or PFSK101 adapter plate was previously used, as this may affect the physical mounting and terminal block alignment.

Communication link integrity is critical. The PFSK109 operates on MasterBus 300 or RCOM protocol depending on system configuration. Before removal of the old module, document the active communication parameters — node address, baud rate, and link redundancy settings — using the existing Advant Controller 450 (AC 450) or AC 800M engineering station. This data will be required to reconfigure the PFSK109 after installation. If the system uses a PROFIBUS DP gateway or INSUM communication interface for upstream SCADA connectivity, verify that the new module’s communication stack is compatible with the gateway firmware version currently deployed.

For I/O signal continuity, cross-check the existing PFSK-series terminal modules and signal isolators connected downstream. In high-density control cabinets, it is common to find DSAI 130A analog input modules or DSDO 115A digital output modules daisy-chained through the PFSK connection layer. Ensure that signal routing through the PFSK109 does not introduce ground loops or impedance mismatches that could cause signal drift on 4–20 mA loops or false triggering on discrete outputs.

Finally, before closing the cabinet and returning the system to service, perform a full I/O scan from the engineering workstation, verify HMI faceplate tag bindings, and confirm that all interlock logic referencing the replaced module is functioning correctly. KNMKS provides pre-shipment test documentation for each PFSK109 unit, which can be used as a baseline reference during site acceptance testing.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system module replacement. The PFSK109 YM322001-EK is designed to support a structured, low-risk swap procedure when the following practices are observed:

Pre-migration preparation: Export and archive the full controller configuration from the AC 450 or AC 800M engineering station before any hardware is touched. Back up all function block diagrams, loop configurations, and alarm setpoints. If the system supports online backup via Control Builder M or the legacy Advant Builder toolset, perform a live snapshot while the plant is still running.

Staged replacement: Where process conditions allow, schedule the module swap during a planned maintenance window or low-throughput period. In continuous process environments — such as chemical reactors, power generation units, or water treatment dosing systems — coordinate with operations to place the affected control loop in manual mode before removing the PFSK109’s predecessor. This preserves field actuator positions and prevents uncontrolled process excursions during the transition.

Post-installation verification: After seating the PFSK109 in the rack, power up the module and observe the diagnostic LEDs for fault indication. Use the engineering station to force a module scan and confirm that all I/O channels are reporting correctly. Re-enable automatic control loop by loop, verifying each output against the expected process response before releasing the system to full automatic operation.

Documentation update: Update the as-built wiring diagrams, spare parts register, and maintenance log to reflect the PFSK109 YM322001-EK as the installed module. This ensures that future maintenance personnel have accurate reference documentation and that the correct spare part is ordered for the next replacement cycle. KNMKS maintains ongoing inventory of PFSK-series modules to support your long-term spare parts strategy.

Retrofit Support FAQ

Q1: Is the PFSK109 YM322001-EK a direct drop-in replacement for the PFSK101 and PFSK102?
The PFSK109 is functionally compatible with PFSK101 and PFSK102 in most Advant OCS and MOD 300 applications, sharing the same backplane slot form factor and communication protocol. However, customers should verify the rack generation, terminal block pin mapping, and firmware revision before installation, as minor hardware revisions across production batches may require wiring adaptation or address reconfiguration. KNMKS provides pre-shipment test documentation and technical support to assist with compatibility verification.

Q2: What pre-shipment testing is performed on each PFSK109 unit?
Every PFSK109 YM322001-EK unit undergoes functional testing prior to dispatch, including power-on verification, communication interface check, and visual inspection for connector integrity and component condition. A test record is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the PFSK109 be used in systems that have already been partially upgraded to AC 800M?
Yes, in hybrid migration scenarios where legacy Advant OCS racks coexist with newer AC 800M controllers, the PFSK109 can continue to serve as the connection interface for the legacy rack segment. Communication bridging between the PFSK layer and the AC 800M platform is typically handled via a gateway module or protocol converter. KNMKS recommends confirming the specific communication architecture with your system integrator before ordering.

Q4: What is the lead time and long-term supply availability for the PFSK109 YM322001-EK?
KNMKS maintains in-stock inventory of the PFSK109 YM322001-EK to support urgent replacement requirements and planned maintenance programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers managing multi-year spare parts programs, we offer reserved stock arrangements and periodic availability updates. Contact our sales team to discuss your long-term supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PFSK109 YM322001-EK
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PFSK109 YM322001-EK
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
