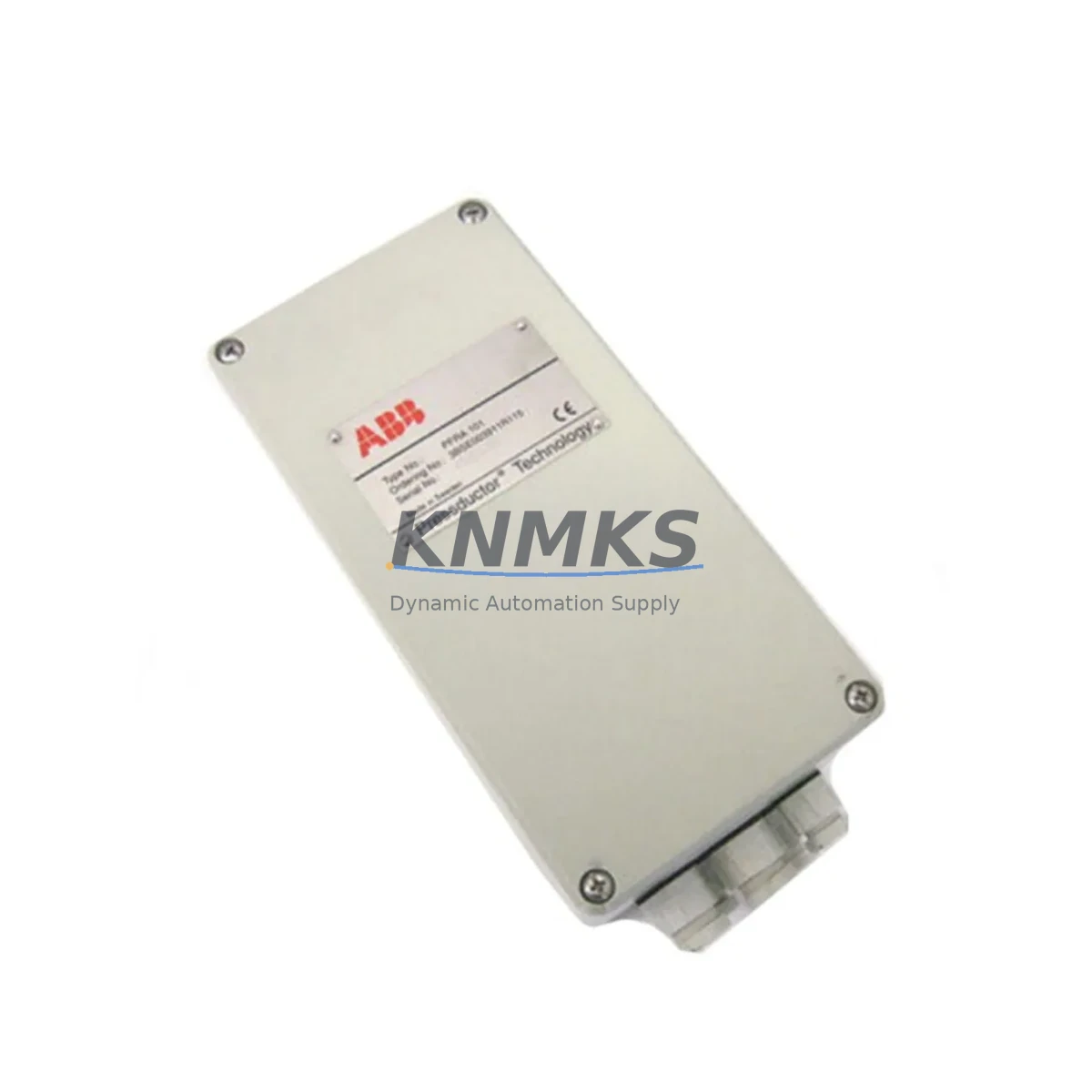

ABB PFRA101 3BSE003911R115 Migration-Ready Force Controller

Overview

ABB PFRA101 3BSE003911R115 Migration-Ready Force Controller for Legacy Control Systems

The ABB PFRA101 (part number 3BSE003911R115) is a precision force controller designed for integration within ABB’s Pressductor-based measurement and control platforms. As legacy rolling mill automation systems, press control cabinets, and tension measurement loops approach end-of-life, the PFRA101 3BSE003911R115 serves as a validated retrofit solution — enabling engineers to restore force measurement accuracy, maintain closed-loop control continuity, and extend the operational lifespan of existing ABB control architectures without full system replacement.

When planning a retrofit involving the PFRA101, the first step is to audit the existing force measurement chain. Pressductor load cells connected to the original PFRA-series controller must be verified for excitation voltage compatibility and signal output range. The PFRA101 3BSE003911R115 accepts standard Pressductor transducer inputs and delivers conditioned analog output signals compatible with ABB AC800M controller analog input modules. Before installation, engineers should confirm the backplane slot assignment, verify that the rack’s power budget accommodates the module’s supply current draw, and check that the terminal block wiring layout matches the legacy PFRA pinout — particularly the force signal, reference, and shield connections.

Program compatibility is a critical checkpoint. If the existing AC800M application uses function blocks referencing the original PFRA module’s I/O addresses, those address mappings must be preserved or remapped in Control Builder M before the new module is commissioned. HMI screens displaying force trends, setpoints, and alarm thresholds should be reviewed to confirm that tag references remain valid after the module swap. Communication links between the force controller and the supervisory PLC — typically routed via the S800 I/O bus or a dedicated analog signal path — must be tested under load conditions before returning the line to production.

Firmware version alignment is another area requiring attention. The PFRA101 3BSE003911R115 should be confirmed against the firmware baseline supported by the installed AC800M CPU module, such as the PM864A or PM866, to avoid initialization errors or diagnostic faults on startup. If the existing system runs an older firmware release, a controlled firmware update on the controller side may be necessary prior to module installation — a step that should be planned during a scheduled maintenance window to minimize unplanned downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PFRA101 retrofit typically involves coordinating several interdependent components within the same control cabinet or rack assembly. The AC800M controller — often a PM864A or PM866 CPU module — must be online and accessible via Control Builder M during the commissioning phase to allow live I/O verification. The S800 I/O bus coupler, such as the TB820V2 or TB840A, provides the communication backbone between the force controller and the CPU; its configuration should be backed up before any hardware change is made.

On the power side, the PFRA101 draws supply from the rack’s internal power distribution. If the existing power supply module — for example, an SD821 or SD822 — is already operating near capacity due to other I/O modules in the same rack, a power audit is essential before adding or replacing modules. Terminal block assemblies connected to the Pressductor load cells should be inspected for corrosion, loose ferrules, and correct shielding practice, as signal integrity at the transducer interface directly affects force measurement accuracy.

For systems that also include analog output modules driving downstream actuators or tension control loops, the AI810 or AO810V2 modules in the same S800 rack may need recalibration after the PFRA101 is installed, particularly if the force signal feeds a cascade control loop. In rolling mill or press applications where an HMI panel — such as an ABB CP600 or Panel 800 series — displays real-time force data, the HMI tag database should be validated post-commissioning to confirm that force trend displays and alarm setpoints reflect the new module’s output correctly.

Downtime Control During System Migration

Minimizing production downtime during a PFRA101 module replacement requires a structured pre-outage preparation plan. Before the maintenance window opens, engineers should export the full AC800M application backup from Control Builder M, document all current I/O tag assignments and force calibration parameters, and photograph the existing terminal block wiring for reference during reinstallation.

During the outage, the module swap itself is typically completed within 30–60 minutes if the rack slot, terminal block, and wiring layout are unchanged. The critical time investment lies in post-installation verification: running a force calibration check against a known reference load, confirming analog output signal levels at the AI module input, and validating that the AC800M application resumes normal scan cycle behavior without diagnostic alarms.

To protect original program logic, no changes should be made to the AC800M application during the hardware swap unless address remapping is explicitly required. Keeping the control program unchanged reduces the risk of introducing software faults during what is fundamentally a hardware maintenance operation. Once the PFRA101 is confirmed operational under live load conditions, the system can be returned to automatic control mode and the maintenance record updated with the new module’s serial number and installation date.

Retrofit Support FAQ

Q1: Is the PFRA101 3BSE003911R115 a direct drop-in replacement for earlier PFRA-series force controllers?
A: In most cases, yes. The PFRA101 shares the same rack slot form factor, Pressductor transducer interface, and S800 I/O bus compatibility as earlier PFRA-series modules. However, engineers should verify the terminal block pinout and confirm that the AC800M firmware version supports the PFRA101 before installation.

Q2: What commissioning steps are required after installing the PFRA101?
A: After physical installation, connect to the AC800M via Control Builder M, verify that the module appears correctly in the I/O configuration, run a force calibration sequence using a reference load, and confirm analog output signal levels at the downstream AI module. HMI tag references should also be validated before returning the system to automatic operation.

Q3: Does the PFRA101 3BSE003911R115 ship pre-tested?
A: Yes. Each unit undergoes functional testing prior to shipment, including power-on verification and signal output checks. Units are shipped with protective packaging to prevent transit damage. A support terms confirmed by quotation is provided from the date of shipment.

Q4: What is the typical lead time and stock availability?
A: The PFRA101 3BSE003911R115 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent retrofit requirements, expedited shipping options are available. Contact our team to confirm current inventory status before placing your order.
