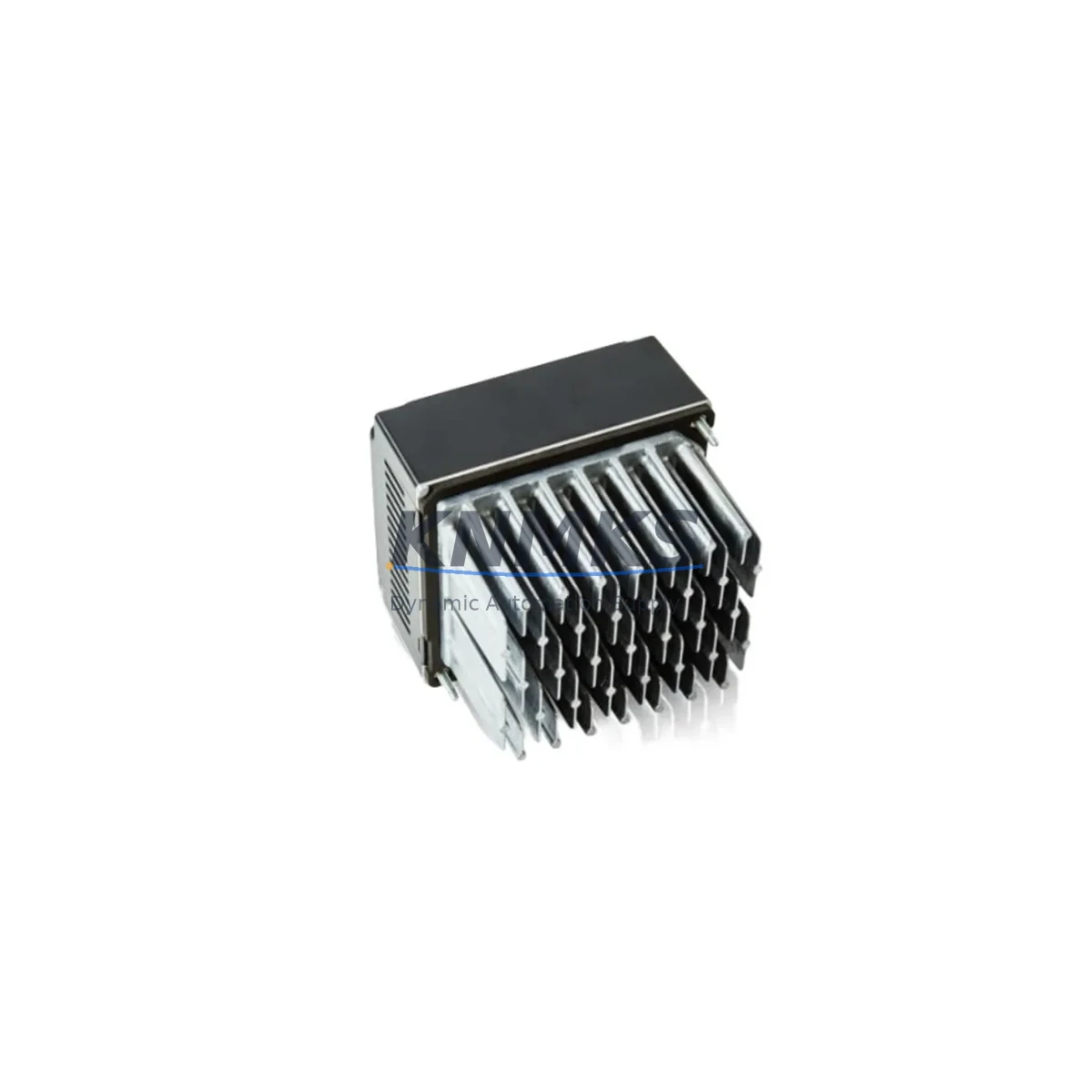

ABB PDB-02 3HNA023093-001 Migration-Ready Rectifier for Legacy Control Systems

Overview

ABB PDB-02 3HNA023093-001 Migration-Ready Rectifier for Legacy Control Systems

The ABB PDB-02 (3HNA023093-001) is a DC bus rectifier module originally designed for the ABB IRB2400 industrial robot controller operating under the S4C+ control platform. As ABB progressively phases out S4C+ era hardware, procurement teams and automation engineers face increasing pressure to source verified replacement units that can be installed without redesigning the control cabinet or rewriting robot programs. This module addresses that challenge directly — it is a migration-ready, drop-in rectifier replacement that has been compatibility-verified against the original S4C+ power supply architecture, with support terms confirmed by quotation coverage and confirmed in-stock availability for immediate dispatch.

The PDB-02 rectifier converts incoming three-phase AC supply into the regulated DC bus voltage required by the IRB2400 drive system. When the original unit fails or reaches end-of-service life, the downstream axis drive boards — including the DSQC 346G drive unit and associated DSQC 508 I/O modules — lose their DC rail, causing the entire robot cell to halt. Sourcing a verified PDB-02 replacement with traceable part number 3HNA023093-001 is the fastest path to restoring production without commissioning a full controller upgrade to the IRC5 platform.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PDB-02 replacement begins well before the module arrives on site. Engineers should first audit the incoming AC supply to confirm that line voltage and phase balance fall within the rectifier’s rated input range. Voltage deviations common in older facilities — particularly those running legacy Siemens S5 or Allen-Bradley SLC 500 lines in adjacent cells — can stress a new rectifier if not corrected upstream.

Terminal wiring on the S4C+ power supply board must be inspected and re-torqued to specification. Loose connections on the AC input terminals or the DC bus output rails are a leading cause of premature rectifier failure and can produce intermittent fault codes that are difficult to distinguish from drive board faults. While the cabinet is open, it is advisable to inspect the DSQC 346G axis drive unit for signs of capacitor aging or thermal stress, since a failing drive board can impose abnormal load on the rectifier and shorten its service life.

If the retrofit is part of a broader control system modernization — for example, migrating from S4C+ to IRC5 — the PDB-02 replacement can serve as an interim measure to restore production while the migration project is planned. In parallel, teams should verify that the DSQC 508 digital I/O module and any connected DSQC 328A serial measurement board are functioning correctly, as these modules share the same DC bus and will be affected by any instability in the rectifier output. For cells using DeviceNet or PROFIBUS communication, the fieldbus adapter card should also be inspected to confirm that communication integrity is maintained after the power cycle associated with the rectifier swap.

Where the IRB2400 is integrated with an ABB Panel 800 or legacy TP230 teach pendant, operators should confirm that the HMI screen retains its program references and that no teach pendant calibration data is lost during the power-down sequence. Backing up the robot program via RobotStudio or a direct PCMCIA card dump before beginning the swap is strongly recommended.

Downtime Control During System Migration

Minimizing unplanned downtime during a rectifier replacement on an S4C+ controller requires a structured pre-swap checklist. Before de-energizing the cabinet, the full robot program — including module data, system parameters, and I/O configuration — should be backed up to an external storage device. This protects against data loss in the event that the SRAM battery on the main computer board (DSQC 326 or equivalent) has degraded and cannot hold memory during the power interruption.

Once the cabinet is safely isolated and the DC bus has discharged (allow a minimum of five minutes after AC isolation before touching bus bars), the PDB-02 can be removed by releasing the backplane connector and the front panel fasteners. The replacement unit should be visually inspected for shipping damage before installation. After seating the new module, restore AC power and monitor the DC bus voltage on the drive system diagnostic display before enabling the servo axes.

A controlled brake test and mastering verification should be completed before returning the robot to automatic mode. If the cell uses a safety PLC — such as an ABB JSHD4 safety board or a third-party safety relay module — the safety circuit should be validated after the power restoration to confirm that emergency stop and safeguarding functions are intact. This sequence typically allows a trained engineer to complete the swap and return the cell to production within two to four hours, significantly reducing the cost impact of an unplanned outage.

Retrofit Support FAQ

Q: Is the PDB-02 3HNA023093-001 a direct drop-in replacement for the original ABB unit?
A: Yes. The 3HNA023093-001 is the OEM part number for the PDB-02 rectifier used in the IRB2400 S4C+ controller. Our unit is sourced to match the original specification and has been cross-referenced against 3HAC0017328-1/01 and 3HAC14549-1. No cabinet modification or firmware change is required for a like-for-like swap.

Q: What pre-shipment testing is performed on this module?
A: Each PDB-02 unit undergoes functional power-on testing and DC output verification before dispatch. Units are inspected for physical integrity, connector condition, and correct part number labeling. A test report is available upon request. The module ships with support terms confirmed by quotation coverage from the date of shipment.

Q: What should I verify on the wiring side before installing the replacement rectifier?
A: Confirm that the three-phase AC input voltage is within the rated range, that all terminal connections are clean and torqued to specification, and that the DC bus capacitors in the drive system have fully discharged before handling. Check that the backplane connector on the controller chassis is free of corrosion or bent pins, as connector damage is a common cause of intermittent faults after module replacement.

Q: How quickly can this module be shipped, and is stock guaranteed?
A: The PDB-02 3HNA023093-001 is held availability confirmed by RFQ and is available for same-day or next-business-day dispatch depending on order cut-off time and destination. For urgent requirements, contact our team directly to confirm current stock levels and expedited freight options. Our support terms confirmed by quotation applies from the date of shipment regardless of shipping method.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PDB-02 3HNA023093-001 IRB2400 3HAC0017328-1/01SGMAS-04ARA-AB11 3HAC14549-1
Legacy Control Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PDB-02 3HNA023093-001 IRB2400 3HAC0017328-1/01SGMAS-04ARA-AB11 3HAC14549-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
