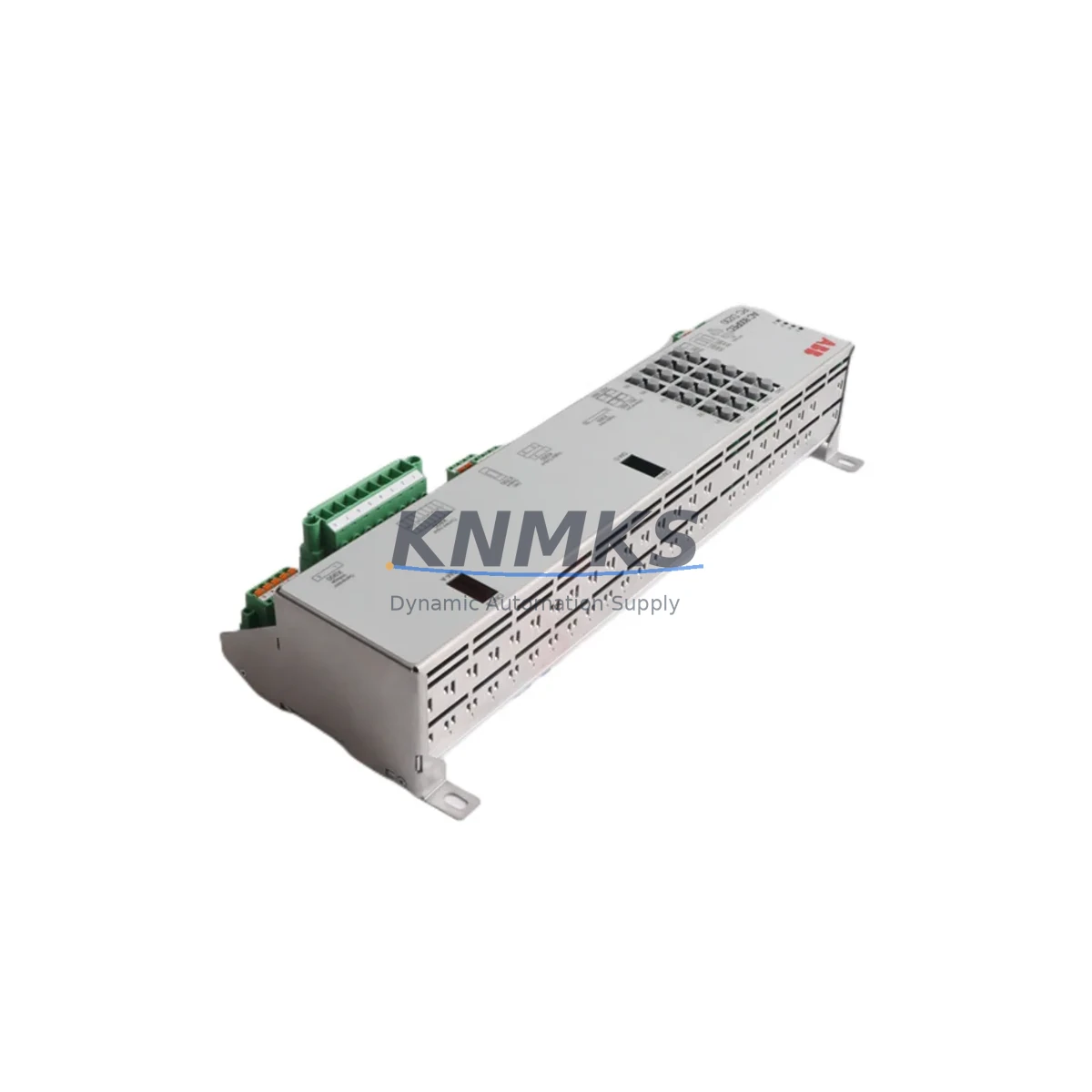

ABB PCD230 A101 3BHE022291R0101 Migration-Ready DCS Module

Overview

ABB PCD230 A101 3BHE022291R0101 Migration-Ready DCS Module: Legacy System Migration and Compatible Upgrade

The ABB PCD230 A101 (part number 3BHE022291R0101) is a processor and communication module designed for the ABB AC800M distributed control system platform. As industrial facilities continue to operate aging DCS infrastructure, the PCD230 A101 has become a critical replacement component for plants running legacy AC800M controllers that are approaching end-of-life or have experienced module failure. KNMKS maintains verified inventory of the 3BHE022291R0101 to support unplanned shutdowns, scheduled turnarounds, and phased system modernization programs.

When integrating the PCD230 A101 into an existing AC800M rack, engineers must confirm several parameters before installation. Power budget on the S800 I/O bus must be recalculated if the replacement module carries a different firmware baseline than the original. Terminal wiring on associated AI810, AO810, DI810, and DO810 I/O modules should be documented and verified against the existing marshalling cabinet drawings before the rack is powered down. Backplane slot addressing must match the original configuration stored in the Control Builder M project file to avoid address conflicts during restart. If the plant is running an older version of Control Builder M, firmware compatibility between the PCD230 A101 and the engineering workstation software must be confirmed prior to commissioning.

For facilities migrating from earlier AC800M hardware generations, the PCD230 A101 supports the same Ethernet-based communication architecture used across the AC800M family, simplifying integration with existing MMS and OPC DA/UA server configurations. Plants that previously relied on the PM861 or PM864 processor modules will find the PCD230 A101 occupies the same physical slot format, though installation space in the control cabinet should be measured to confirm clearance for cabling and ventilation. Where communication links to third-party SCADA or historian systems are involved, the module’s Ethernet port configuration and IP addressing must be updated in both the DCS project and the network switch before the system is brought back online.

HMI screen mapping is a frequently overlooked step during DCS module replacement. If the plant uses ABB 800xA or a third-party HMI platform connected to the AC800M, all faceplates and trend displays referencing the replaced module’s function blocks should be validated after the new PCD230 A101 is commissioned. Signal isolation requirements between the DCS and field instruments should also be reviewed, particularly where legacy 4–20 mA loops interface with updated I/O modules such as the AI835 or AI845 analog input modules, which may have different input impedance characteristics than older hardware.

Spare part lifecycle planning is a key consideration for any facility operating AC800M-based control systems. As ABB transitions its installed base toward the AC800M xA and Symphony Plus platforms, availability of original PCD230 A101 units on the open market has become increasingly constrained. Procurement teams should assess their installed module count, mean time between failures for their specific process environment, and lead times for sourcing verified replacements. KNMKS provides pre-shipment functional testing, original packaging where available, and a support terms confirmed by quotation on all PCD230 A101 units to reduce procurement risk and support maintenance planning cycles.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PCD230 A101 retrofit begins with a complete audit of the existing AC800M rack configuration. The module occupies a defined slot in the AC800M controller unit, and its replacement must account for the full I/O load distributed across connected S800 I/O stations. During planning, engineers should document all AI810, AO810, DI810, and DO810 module assignments, confirm the TB820 Modulebus Optical Port Unit configuration if fiber-optic I/O communication is in use, and verify that the CI854 PROFIBUS communication interface module settings are preserved in the Control Builder M project backup.

Power supply capacity in the control cabinet must be assessed before the retrofit. The SD821 or SD822 power supply units feeding the AC800M rack should be confirmed to provide adequate margin for the replacement module under full I/O load. If the existing power supply is operating near its rated capacity, the retrofit plan should include a power budget review before the maintenance window begins.

Where the AC800M system interfaces with a PROFIBUS DP network, the CI854 interface module’s GSD file configuration and node addressing must be preserved across the module swap. Any changes to the PCD230 A101’s firmware version may require a re-download of the Control Builder M application program to ensure function block library compatibility. Programming cables and a verified engineering workstation with the correct Control Builder M version should be on-site before the maintenance window opens.

Downtime Control During System Migration

Minimizing unplanned downtime during a PCD230 A101 replacement requires preparation before the maintenance window begins. A full backup of the Control Builder M project, including all function block configurations, communication settings, and I/O assignments, should be exported and stored offline before the existing module is removed. If the plant operates a redundant AC800M controller configuration, the switchover sequence should be tested in simulation before the physical swap to confirm that the standby controller can assume control without process interruption.

During the physical replacement, terminal wiring on connected I/O modules should remain undisturbed unless a wiring fault has been identified. The new PCD230 A101 should be inserted into the same rack slot as the original, with slot addressing confirmed against the project file before power is restored. After power-up, the Control Builder M online diagnostic tools should be used to verify that all I/O modules are communicating correctly and that no address conflicts exist before the system is returned to automatic control.

For plants where continuous process control is required, a phased migration approach — replacing the PCD230 A101 during a scheduled low-production window and running parallel verification before full handover — reduces the risk of extended downtime. KNMKS can provide technical documentation and pre-tested units to support compressed maintenance schedules.

Retrofit Support FAQ

Q: Is the ABB PCD230 A101 (3BHE022291R0101) a direct drop-in replacement for the existing module in my AC800M rack?
A: The PCD230 A101 is designed for the AC800M platform and occupies the standard module slot. Before installation, confirm that the slot address, firmware version, and Control Builder M project configuration match the original module to ensure a seamless replacement without reprogramming.

Q: What commissioning steps are required after installing the PCD230 A101?
A: After physical installation, restore the Control Builder M project backup, verify I/O module communication status, confirm Ethernet IP addressing and communication link integrity, and validate HMI function block mapping before returning the system to automatic control. A full I/O loop check is recommended if the module has been out of service for an extended period.

Q: Does KNMKS perform pre-shipment testing on the PCD230 A101?
A: Yes. All PCD230 A101 units undergo functional testing before shipment. Test records are available on request. Each unit is supplied with a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 3BHE022291R0101?
A: KNMKS maintains stock of the PCD230 A101 to support urgent replacement requirements. Lead time for in-stock units is typically 1–3 business days for domestic shipment. Contact [email protected] or +86 18359268345 for current availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PCD230 A101 3BHE022291R0101
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PCD230 A101 3BHE022291R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
