ABB P-HB-AOT-15010000 Migration-Ready Analog Output for Legacy DCS

Overview

ABB P-HB-AOT-15010000 Migration-Ready Analog Output for Legacy DCS

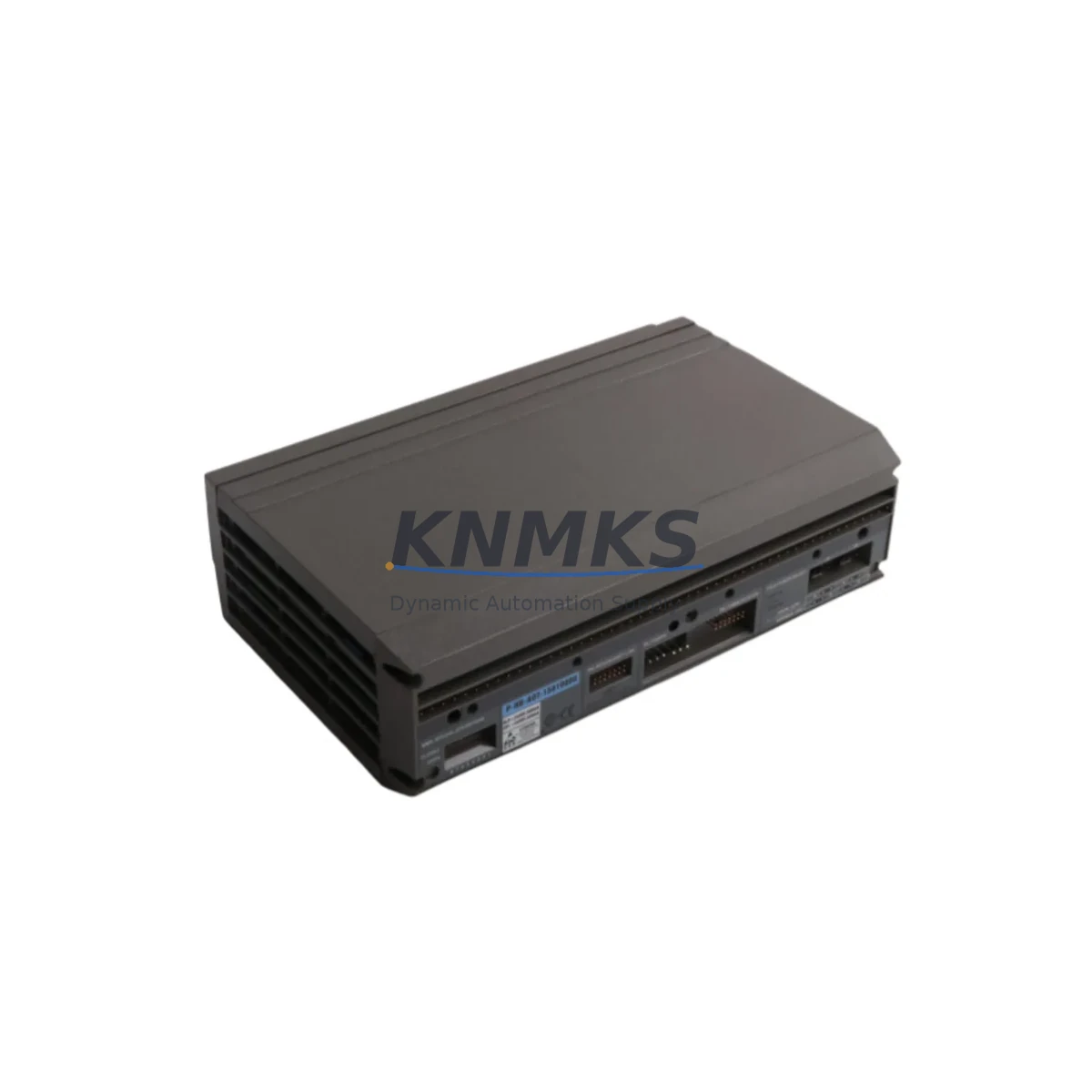

The ABB P-HB-AOT-15010000 (also referenced as PHBAOT15010000) is a DCS analog output module engineered for the ABB Harmony HB control platform. As legacy Harmony HB installations approach end-of-support milestones, this module serves as a verified migration-ready replacement for discontinued analog output cards in existing control cabinets, marshalling panels, and distributed I/O racks. Whether your facility is executing a phased retrofit, a full DCS migration, or an emergency spare replacement, the P-HB-AOT-15010000 is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation.

Procurement teams and control system engineers managing aging Harmony HB infrastructure frequently encounter obsolete analog output modules with no direct OEM supply path. The P-HB-AOT-15010000 addresses this gap by providing a functionally equivalent, slot-compatible replacement that preserves existing terminal wiring, backplane addressing, and loop calibration data — minimizing retrofit scope and reducing unplanned downtime risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Harmony HB analog output retrofit requires more than a module swap. Engineers must audit the full control loop chain before committing to a replacement schedule. Begin by confirming the Harmony HB backplane revision and rack slot assignment — the P-HB-AOT-15010000 occupies a standard I/O slot, but mixed-generation racks may require a firmware update on the Harmony HB controller module to recognize the replacement card’s device descriptor.

Terminal block wiring should be documented and photographed before removal. In most Harmony HB installations, the analog output module interfaces with field instruments via marshalling cabinets using individually shielded twisted pairs. Confirm whether the existing loop is configured for active (module-sourced) or passive (field-sourced) 4–20 mA operation, as this affects loop power budget calculations and may require adjustment at the Harmony HB power supply module level if additional current capacity is needed.

For facilities running HART-enabled field devices, verify that the replacement module’s HART pass-through behavior matches the original. HART multiplexers or asset management systems connected to the loop will need to re-poll the new module after commissioning. If the control system also includes Harmony HB analog input modules on the same rack, confirm that the backplane communication scan rate is not affected by the module swap — particularly in high-speed process loops.

Where the retrofit scope extends beyond a single module, consider staging the replacement alongside related infrastructure: Harmony HB digital output modules sharing the same rack, Harmony HB communication interface modules managing upstream DCS links, and any signal isolators or loop conditioners installed between the marshalling panel and the field device. Replacing these components in a coordinated window reduces cumulative commissioning risk and avoids repeated process interruptions.

For sites migrating from Harmony HB to a newer ABB control platform, the P-HB-AOT-15010000 can serve as a bridge component — maintaining analog output continuity on legacy loops while the broader migration is staged across multiple outage windows. This approach is particularly effective in continuous process industries where a full cutover is not operationally feasible.

Downtime Control During System Migration

Minimizing downtime during a Harmony HB analog output replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, export all relevant controller configuration data, including module addressing, channel scaling parameters, alarm limits, and HART device tags. Store this data in a format accessible to the commissioning engineer on-site — not solely within the DCS engineering workstation.

During the swap, maintain loop continuity where possible by placing affected control loops in manual mode at the DCS operator station before powering down the rack. This preserves the last known output value at the field actuator and prevents process upsets caused by output dropout. After installing the P-HB-AOT-15010000, restore power to the rack and allow the controller to complete its module recognition sequence before returning loops to automatic control.

Post-installation verification should include a full channel-by-channel output check against a calibrated loop calibrator, confirmation of HART communication on all enabled channels, and a review of the DCS alarm log for any module fault codes generated during the restart sequence. If the system includes redundant controller modules, verify that the standby controller also recognizes the new module before releasing the system to normal operations.

For sites with strict change management requirements, document the pre- and post-swap configuration states and retain the removed module for failure analysis if applicable. All units supplied are pre-shipment tested and include a support terms confirmed by quotation from the dispatch date, providing coverage through the initial post-retrofit operational period.

Retrofit Support FAQ

Q1: Is the P-HB-AOT-15010000 a direct replacement for discontinued Harmony HB analog output modules?
A: Yes. The P-HB-AOT-15010000 is designed as a slot-compatible replacement for Harmony HB analog output positions. Confirm the backplane revision and controller firmware version before installation to ensure full recognition and channel mapping.

Q2: What wiring changes are required during the swap?
A: In most cases, no field wiring changes are required. The module uses the standard Harmony HB terminal interface. Verify loop power configuration (active vs. passive) and confirm shield grounding practice matches the original installation.

Q3: Is the module pre-tested before shipment?
A: Yes. All units undergo functional output verification on all channels prior to dispatch. A support terms confirmed by quotation is included from the shipment date, covering defects in materials and workmanship under normal operating conditions.

Q4: What is the typical lead time and stock availability?
A: Units are available from stock with global dispatch within 3–5 business days. For bulk retrofit projects requiring multiple modules, contact our sales team to confirm allocation and coordinate staged delivery schedules.
