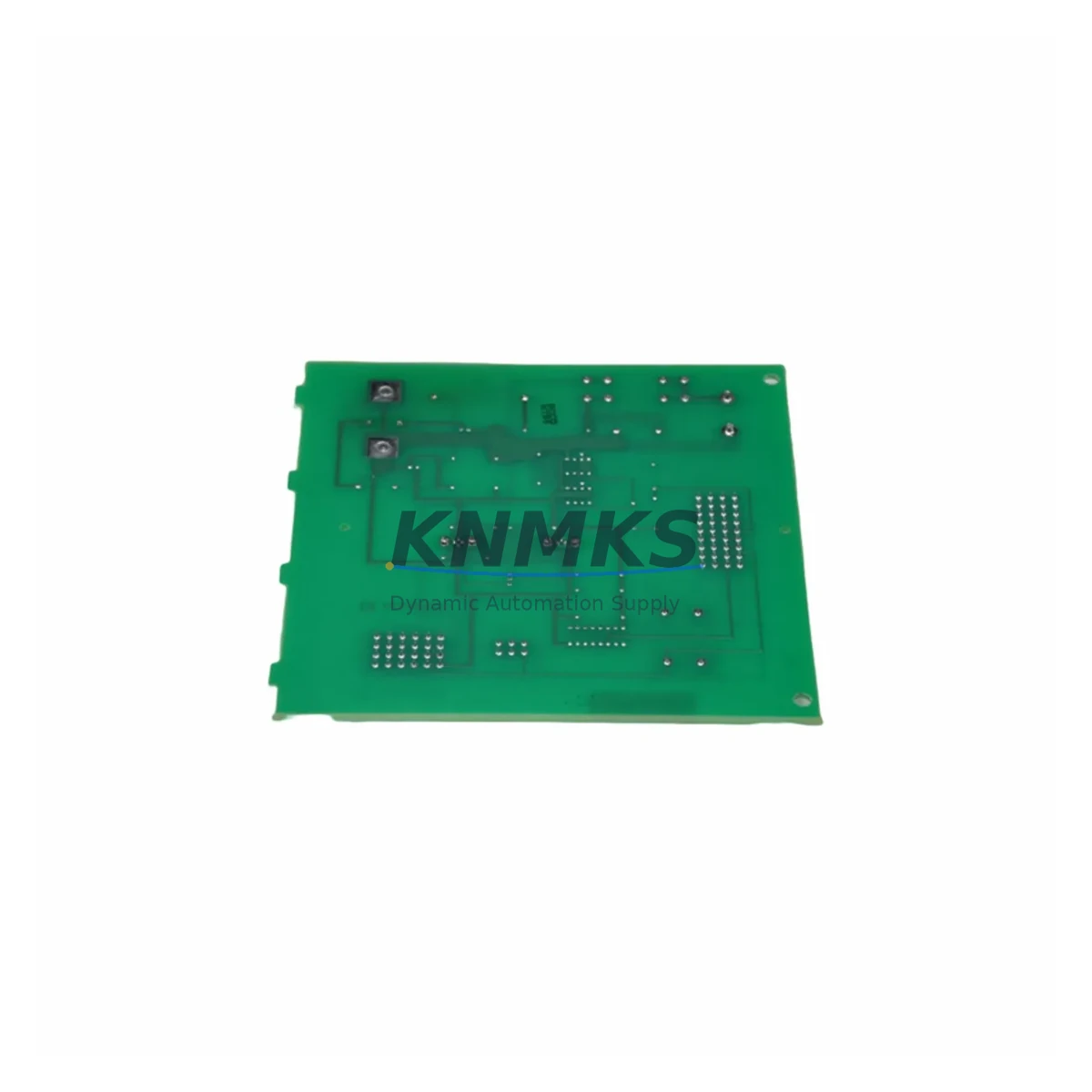

ABB NTRL02 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB NTRL02 Maintenance-Proven Spare Part for Factory Uptime

The ABB NTRL02 is an original S800 I/O termination unit engineered for continuous-duty industrial environments running ABB AC800M Distributed Control Systems. As a field-replaceable module within the S800 I/O family, the NTRL02 serves as the critical interface between field wiring and the I/O processor modules — making it a high-priority spare for any maintenance team responsible for process continuity in power generation, oil & gas, pulp & paper, chemical, and water treatment facilities.

Sourced directly from ABB-authorized supply chains and pre-tested before shipment, every NTRL02 unit we supply is verified for electrical integrity, terminal continuity, and mechanical fit. Our support terms confirmed by quotation cover all supplied units, and multi-region stock ensures fast dispatch for both emergency callouts and scheduled annual shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the NTRL02 termination unit is flagged during a control cabinet inspection or fault isolation routine, experienced maintenance engineers know that the termination unit rarely fails in isolation. A thorough site assessment should extend to the connected S800 I/O processor module — such as the AI810 analog input module or DI810 digital input module — which shares the same backplane cluster and may exhibit latent faults triggered by terminal degradation or wiring disturbance.

Field wiring integrity is equally critical. Before re-commissioning after an NTRL02 swap, verify the condition of shielded signal cables running from field instruments to the termination unit. Damaged cable insulation or loose shield terminations are a common root cause of recurring signal noise on analog channels. Inline signal isolators or barriers protecting 4–20 mA loops should also be checked for drift or saturation, particularly in high-EMI environments.

Power supply stability directly affects S800 I/O cluster reliability. Inspect the 24 VDC panel power supply feeding the I/O cluster for output ripple and voltage regulation. An aging or undersized power supply can cause intermittent module resets that are misdiagnosed as termination unit failures. Fuse holders and miniature circuit breakers protecting the 24 VDC distribution rail should be tested for continuity and replaced if showing signs of heat discoloration.

For sites running AC800M controllers, the PM861 or PM864 processor module and its associated CI854 PROFIBUS communication interface should be included in the annual inspection checklist whenever S800 I/O faults are logged. Communication errors at the fieldbus level can mask what appears to be a termination unit fault but is actually a bus timing or addressing issue. Confirm that all S800 cluster addresses are correctly set and that the CI854 module firmware is current.

Finally, terminal blocks and DIN rail end stops within the control cabinet should be inspected for mechanical looseness, especially in high-vibration environments such as compressor stations or marine installations. Loose terminal connections are a leading cause of intermittent I/O faults and can accelerate oxidation on the NTRL02 screw terminals.

Site Replacement Workflow

Step 1 — Isolation: Place the affected S800 I/O cluster in manual or safe mode via the AC800M engineering station. Document all channel assignments and field wiring labels before disconnecting.

Step 2 — Wiring Removal: Photograph the existing field wiring layout on the NTRL02 terminal block. Loosen and remove field cables systematically, labeling each conductor. Do not disturb adjacent termination units in the cluster.

Step 3 — Module Extraction: Release the NTRL02 from the DIN rail or backplane mounting. Inspect the backplane connector for bent pins or contamination before installing the replacement unit.

Step 4 — Replacement Installation: Seat the new NTRL02 firmly onto the backplane. Reconnect field wiring in reverse order, verifying terminal torque to manufacturer specification (typically 0.5–0.6 Nm for signal terminals).

Step 5 — Verification: Restore the I/O cluster to automatic mode. Confirm all channel readings in the AC800M engineering tool (Control Builder M). Cross-check live process values against field instrument readings to validate signal integrity before returning the loop to service.

This workflow minimizes downtime to under 60 minutes for a single NTRL02 replacement on a prepared site, preserving system compatibility and eliminating the need for controller reconfiguration.

Spare Parts Support FAQ

Q1: Is the NTRL02 compatible with all S800 I/O processor modules?
The NTRL02 termination unit is designed for use with the ABB S800 I/O family and is compatible with standard analog and digital I/O processor modules including the AI810, AO810, DI810, DO810, DI811, and DO821. Always verify the specific I/O module type and cluster configuration against the ABB S800 I/O hardware documentation before ordering.

Q2: How is the NTRL02 tested before shipment?
Every NTRL02 unit undergoes pre-shipment electrical testing covering terminal continuity, insulation resistance, and mechanical integrity checks. Units that do not meet specification are quarantined and not dispatched. A test report is available upon request for critical plant applications.

Q3: What is the lead time and support terms coverage?
We maintain multi-region stock of the NTRL02 to support both emergency replacements and planned annual shutdowns. Standard dispatch is within 1–3 business days from confirmed order. All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance.

Q4: Can the NTRL02 be used as a long-term replacement for end-of-life S800 I/O infrastructure?
Yes. The NTRL02 is a proven component for extending the operational life of legacy AC800M-based DCS installations. For sites planning a phased migration to newer ABB platforms, maintaining a buffer stock of NTRL02 units ensures uninterrupted production during the transition period. We offer long-term supply agreements for customers requiring guaranteed availability over multi-year maintenance contracts.
