ABB NTLS01 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB NTLS01 Maintenance-Proven Spare Part for Factory Uptime

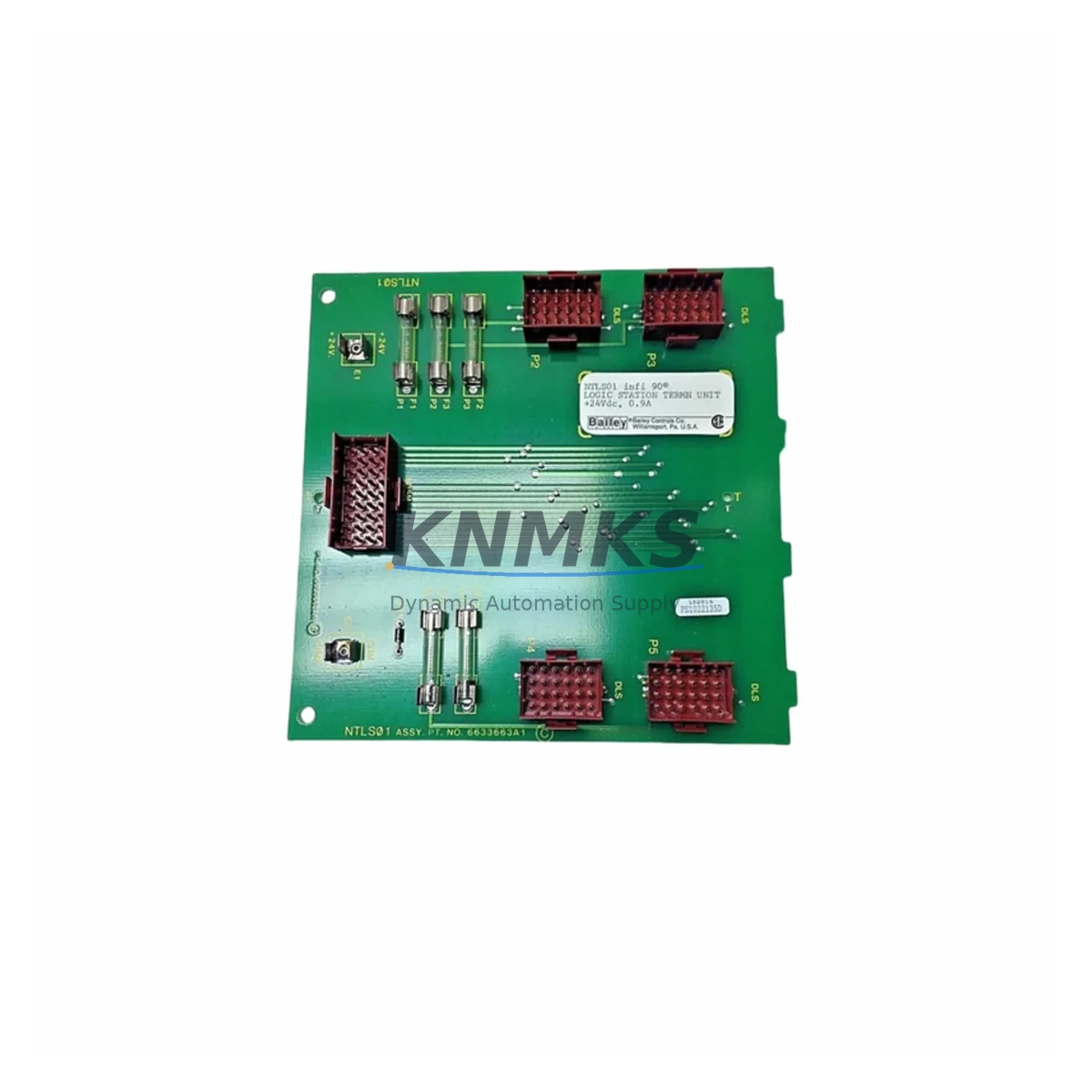

The ABB NTLS01 is a Logic Station Termination Unit designed for the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across power generation, oil & gas, pulp & paper, and chemical processing facilities. As a critical interface component between the controller backplane and field wiring, the NTLS01 plays a central role in signal integrity, I/O connectivity, and system reliability. Maintaining a verified spare of the NTLS01 in your site inventory is a foundational step in any proactive maintenance strategy for AC800M-based control cabinets.

For maintenance engineers managing aging DCS infrastructure, the NTLS01 represents a high-priority spare. Termination units are subject to thermal cycling, vibration stress, and connector wear over years of continuous operation. When an NTLS01 fails or degrades, the result is often unexpected I/O loss, signal drift, or complete controller isolation — all of which translate directly into unplanned downtime. Having a pre-tested, original replacement unit on hand reduces mean time to repair (MTTR) and allows technicians to execute a controlled swap during a planned outage window rather than scrambling during an emergency.

This unit is sourced as an original ABB component, manufactured in Germany, and has undergone pre-shipment functional verification. It ships with a support terms confirmed by quotation and is supported by multi-region stock for fast global dispatch — including emergency same-week fulfillment for critical plant situations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance or responding to an NTLS01 fault, experienced DCS engineers know that the termination unit rarely fails in isolation. A thorough cabinet inspection should accompany any NTLS01 replacement to prevent repeat failures and ensure full system restoration.

Start by inspecting the AC800M processor module (such as the PM856 or PM860) seated above the termination unit. Verify firmware version compatibility and check for any fault LEDs indicating communication errors that may have been masked by the termination issue. Next, examine the TB820 or TB840 Modulebus Modem — these communication interface modules connect the AC800M to remote I/O clusters and are often stressed when a termination fault causes bus interruptions.

Field wiring connected to the NTLS01 should be inspected for insulation degradation, loose ferrules, and terminal oxidation. If the plant environment involves vibration or moisture ingress, consider replacing the terminal block assemblies and verifying torque on all screw terminals. Signal isolation barriers and MTL or P+F signal isolators in the same loop should be tested for drift, as a degraded termination unit can induce ground loops that stress isolation components over time.

For sites running redundant AC800M configurations, also verify the CI854 or CI857 communication interface modules for PROFIBUS or FOUNDATION Fieldbus connectivity. A termination fault can sometimes corrupt bus parameters stored in the communication module, requiring a configuration reload after the NTLS01 is replaced. Finally, check the 24VDC power supply rails feeding the controller rack — an undersized or aging power supply can cause intermittent termination faults that mimic hardware failure.

Procurement engineers should note that the NTLS01 is an end-of-production component with limited availability on the open market. Securing a minimum of two units per AC800M controller cluster is recommended as part of a long-term spare parts strategy, particularly for plants with 5+ year operational horizons on their existing DCS infrastructure.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the NTLS01 part number against the existing unit label and the AC800M system documentation. Cross-reference with the plant’s DCS configuration backup to identify all I/O channels routed through this termination unit.

Step 2 — Controller Isolation: Place the affected AC800M controller in manual or backup mode per your site’s MOC (Management of Change) procedure. For redundant systems, verify that the standby controller has assumed control before proceeding.

Step 3 — Field Wiring Documentation: Photograph or document all field wiring connections before disconnection. Label each wire with its channel designation to ensure accurate reconnection. This step is critical for minimizing loop re-commissioning time.

Step 4 — Module Swap: Remove the faulty NTLS01 by releasing the DIN rail locking mechanism and disconnecting the backplane connector. Install the replacement unit, ensuring the backplane connector is fully seated and the locking tab is engaged.

Step 5 — Reconnection and Loop Check: Reconnect field wiring per the documented channel assignments. Perform a loop check on all I/O channels before returning the controller to automatic mode. Verify signal values against the DCS historian to confirm accurate restoration.

Step 6 — System Restoration: Return the AC800M to normal operation. Monitor the controller for 30–60 minutes post-replacement to confirm stable communication and I/O performance. Update the plant’s maintenance log and spare parts inventory record.

Spare Parts Support FAQ

Q1: Is this NTLS01 an original ABB component or a third-party replacement?
This is an original ABB NTLS01 termination unit, sourced directly from authorized supply channels. It is not a third-party replica or remanufactured substitute. Each unit undergoes pre-shipment functional testing before dispatch to ensure it meets OEM performance specifications.

Q2: How do I verify compatibility with my specific AC800M configuration?
The NTLS01 is compatible with the AC800M controller family, including systems built around PM851, PM856, PM860, and PM861 processor modules. To confirm compatibility with your specific rack configuration and firmware version, share your system’s hardware catalog or configuration export with our technical team at [email protected] prior to ordering.

Q3: What is the lead time and can you support emergency dispatch?
Standard orders ship within 3–5 business days from multi-region stock. For emergency plant situations, same-week express dispatch is available to most global destinations. Contact us directly at +86 18359268345 to confirm stock availability and arrange priority fulfillment.

Q4: What does the support terms confirmed by quotation cover, and what is the long-term supply commitment?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond rated limits. For long-term supply agreements — including annual blanket orders and multi-site spare parts programs — KNMKS offers dedicated account support to ensure continuity of supply for critical DCS components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
