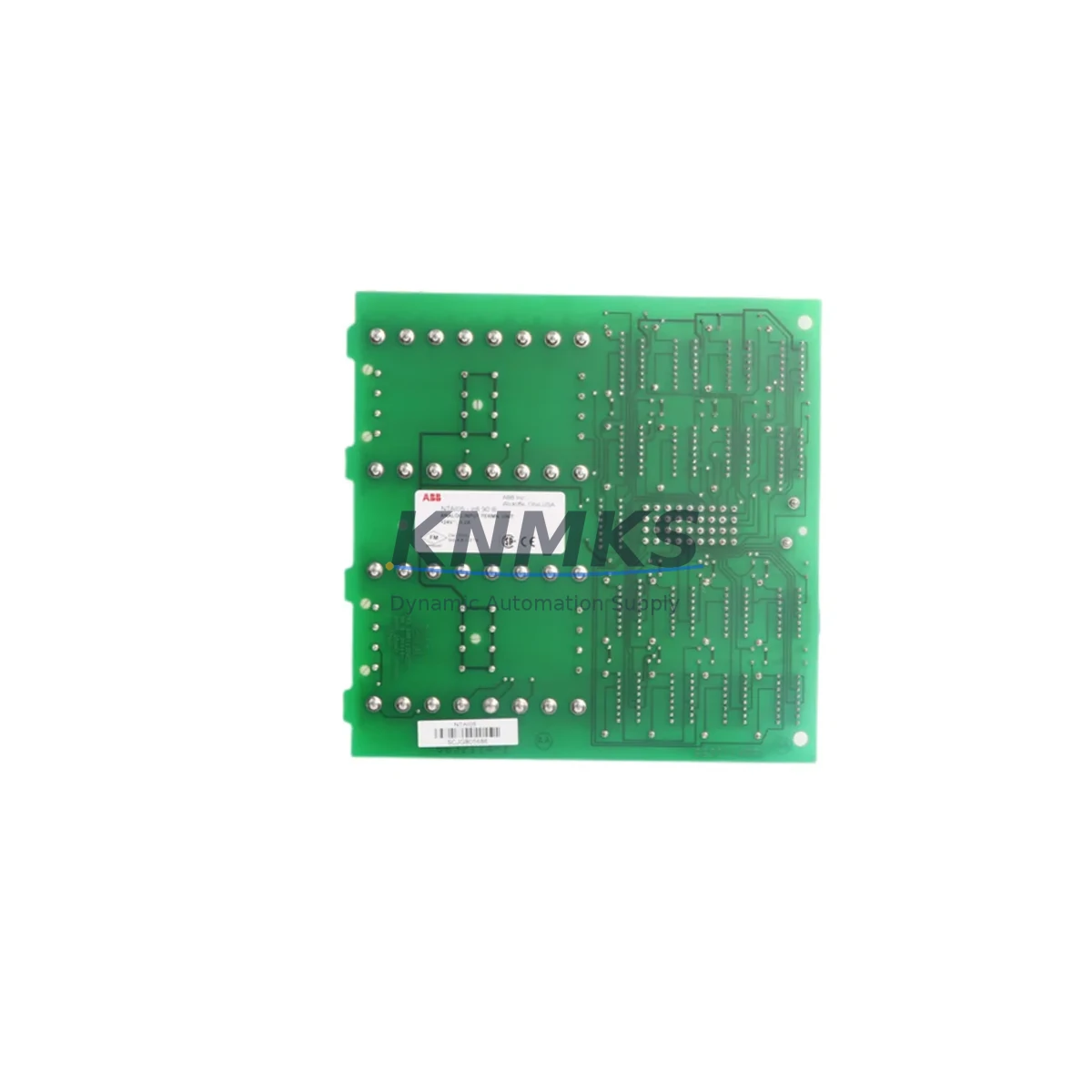

ABB NTAI05 Migration-Ready Analog Input Termination for S800

Overview

ABB NTAI05 Migration-Ready Analog Input Termination for S800: Legacy System Retrofit & Compatibility Upgrade

The ABB NTAI05 is a field-proven analog input termination unit engineered for the S800 I/O distributed I/O platform, widely deployed alongside the AC800M process controller in continuous process, power generation, and discrete manufacturing environments. As legacy DCS and hybrid control architectures approach end-of-support milestones, the NTAI05 has become a critical retrofit component for engineers tasked with extending system life, replacing discontinued termination assemblies, and modernizing analog signal infrastructure without full platform migration.

The NTAI05 provides the physical and electrical interface between field-side analog signal wiring and the S800 I/O analog input modules. It supports standard 4–20 mA current loop signals and is designed for direct mounting on the S800 I/O baseplate, making it a drop-in mechanical and electrical replacement for worn, damaged, or obsolete termination units in existing control cabinets. Before installation, engineers should confirm available baseplate slot positions, verify that the existing AI810 or AI820 analog input module firmware is compatible with the current AC800M controller version, and check that field cable termination pitch and wire gauge match the NTAI05 terminal block specification.

Power budget verification is an essential pre-retrofit step. The NTAI05 draws its operating power from the S800 I/O baseplate bus; confirm that the installed SD821 or SD822 power supply module has sufficient residual capacity to support the NTAI05 alongside existing I/O modules on the same rack. Overloading the baseplate power bus is a common cause of intermittent faults during retrofit commissioning and should be ruled out before energizing the upgraded assembly.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful NTAI05 retrofit projects begin with a thorough audit of the existing control cabinet layout. Identify the baseplate model in use — the TB820V2 and TB840A baseplates are the most common hosts for NTAI05 termination units in AC800M-based systems — and confirm that the slot adjacent to the target AI module is physically clear and electrically available. In cabinets where space is constrained, engineers may need to reorganize module placement or add an additional baseplate segment before the NTAI05 can be installed without mechanical interference.

Field wiring adaptation is frequently the most time-consuming element of an NTAI05 replacement. Document all existing terminal assignments before disconnecting any wiring. The NTAI05 uses a standard screw-terminal block; verify that existing field cables use compatible wire cross-sections (typically 0.5–2.5 mm²) and that cable shields are properly landed to the termination unit’s shield bar to maintain signal integrity on long analog runs. In plants where the original wiring was installed to an earlier ABB termination standard, a short adapter harness may be required to match legacy pin assignments.

For systems communicating over PROFIBUS DP via a CI840A communication interface module, confirm that the PROFIBUS node address assigned to the S800 I/O station remains unchanged after the NTAI05 swap. Address conflicts introduced during module replacement are a leading cause of post-retrofit communication faults. Similarly, if the control system uses CI854A for IEC 61850 or Ethernet-based I/O communication, verify that the IP address and subnet configuration of the communication interface are preserved throughout the maintenance window.

HMI faceplate and alarm configuration should be reviewed before the retrofit window opens. In systems where the AC800M controller runs ABB Control Builder M application logic, confirm that the analog input function block connected to the NTAI05 channel retains its engineering unit scaling, high/low alarm limits, and filter time constant after the module is reseated. If the plant HMI runs on ABB System 800xA, verify that the aspect object associated with the replaced termination unit does not require re-binding after the hardware swap.

Where the retrofit scope extends beyond a single termination unit — for example, when upgrading an entire I/O rack from first-generation S800 hardware to current-production modules — consider sequencing the replacement to maintain partial system availability. Replacing the NTAI05 and its associated AI module as a paired unit, rather than individually, reduces the number of separate commissioning steps and minimizes the risk of introducing wiring errors across multiple maintenance interventions.

Downtime Control During System Migration

Minimizing unplanned downtime during an NTAI05 replacement requires preparation that begins well before the maintenance window. The most effective approach is to pre-configure and bench-test the replacement NTAI05 alongside its paired AI module — such as the AI810 — before the unit reaches the plant floor. Bench testing confirms that the module combination powers up correctly, that analog channel scaling matches the expected engineering range, and that no hardware faults are present before the unit is installed in a live control cabinet.

During the maintenance window itself, follow a structured sequence: isolate the field loop, document terminal assignments, remove the defective termination unit, install the NTAI05, reconnect field wiring in documented order, restore power, and perform a live loop check on each analog channel before releasing the loop to automatic control. This sequence, when followed without shortcuts, typically allows an experienced technician to complete a single NTAI05 replacement in under two hours, including loop verification.

To protect existing program logic, do not perform any online program downloads to the AC800M controller during the hardware replacement window unless specifically required by the retrofit procedure. Unintended program changes introduced during a hardware maintenance window are a significant source of post-retrofit process upsets. If a firmware update to the AI module or communication interface is planned as part of the same maintenance event, schedule it as a separate, documented step with its own rollback procedure.

All NTAI05 units supplied by KNMKS are tested prior to shipment and include a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for same-week dispatch, supporting urgent replacement scenarios where extended lead times from the original manufacturer are not acceptable.

Retrofit Support FAQ

Q1: Is the NTAI05 a direct drop-in replacement for an existing unit on my S800 baseplate?
Yes. The NTAI05 mounts directly onto the S800 I/O baseplate without mechanical adapters. Confirm that the baseplate slot is compatible (TB820 or TB840 series) and that the adjacent AI module type matches the termination unit’s signal configuration before installation.

Q2: What commissioning steps are required after installing a replacement NTAI05?
After mechanical installation and field wiring reconnection, perform a 4–20 mA loop test on each analog channel, verify engineering unit scaling in the AC800M application, check alarm limit configuration in the HMI, and confirm that no hardware fault diagnostics are active in Control Builder M or System 800xA before returning the loop to service.

Q3: How do I verify wiring compatibility between my existing field cables and the NTAI05 terminal block?
The NTAI05 uses a standard screw-terminal block accepting 0.5–2.5 mm² conductors. Compare your existing field cable cross-section and terminal pitch against the NTAI05 datasheet before the maintenance window. If legacy wiring uses a non-standard pitch, a short adapter harness can be fabricated in advance to avoid delays during the replacement.

Q4: What is the support terms coverage and how is pre-shipment testing conducted?
All NTAI05 units are functionally tested before dispatch. The support terms confirmed by quotation cover manufacturing defects and operational failures under specified conditions. Units are shipped from available stock; contact [email protected] or +86 18359268345 to confirm current inventory and lead time for your quantity requirement.
