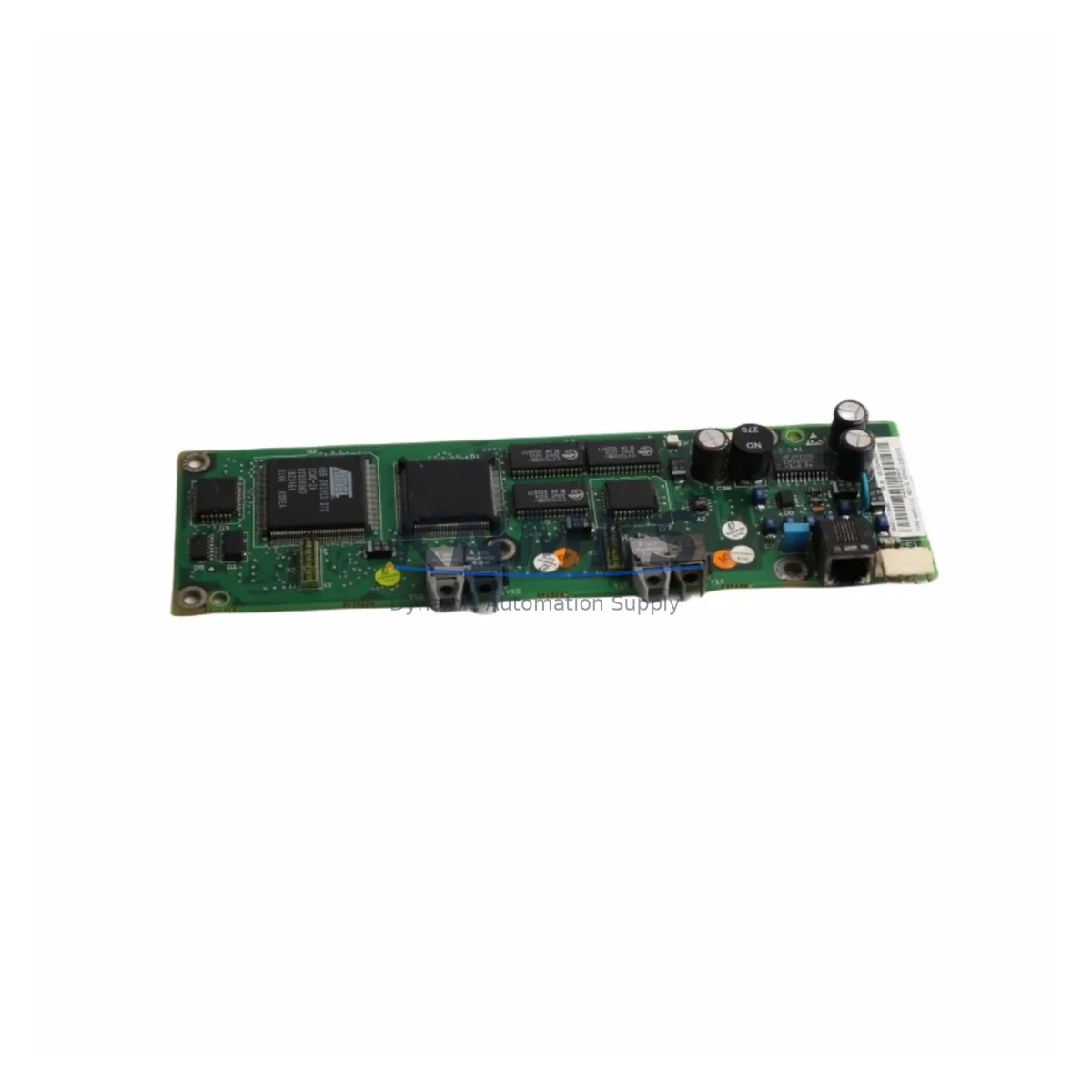

ABB NPOW-02 3535000901 Migration-Ready Power Supply

Overview

ABB NPOW-02 3535000901 Migration-Ready Power Supply for Legacy Control Systems

The ABB NPOW-02 (part number 3535000901) is a migration-ready internal power supply module engineered for the ACS800 and DCS800 series of AC and DC drives. As industrial facilities accelerate the retirement of aging automation infrastructure, the NPOW-02 has become a critical component in retrofit projects where the original power supply has failed, degraded, or is no longer available through standard distribution channels. This module provides regulated DC power to the drive’s control board, RDCO communication adapter, and optional I/O extension modules, making it a foundational element in any drive modernization or emergency restoration effort.

For maintenance engineers managing legacy ABB drive installations, sourcing a verified replacement NPOW-02 is often the fastest path to restoring production without committing to a full drive replacement. The module slots directly into the existing ACS800 control section, preserving the original terminal wiring, fieldbus configuration, and application macro settings stored in the RMIO control board. This means that in most retrofit scenarios, the replacement NPOW-02 can be installed without reprogramming the drive or modifying the existing PROFIBUS-DP or Modbus RTU communication links established through the RDCO-02 or RDCO-03 adapter.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NPOW-02 retrofit begins well before the module arrives on site. Engineers should first confirm the exact ACS800 or DCS800 frame size and control section variant, as the backplane connector pinout and physical clearance requirements differ between R2–R6 and R7–R8 frame configurations. Once the frame is confirmed, the existing RMIO-01 or RMIO-11 control board should be inspected for firmware version compatibility, since certain NPOW-02 hardware revisions are paired with specific RMIO firmware releases. If the drive is part of a multi-drive cabinet using a shared DC bus, the power sequencing of the NPOW-02 must be coordinated with the master inverter unit to avoid control section brownout during startup.

Terminal wiring on the RMIO board — including the 24 VDC external power input, digital input commons, and analog reference channels — should be documented before the old module is removed. In many legacy installations, the RAIO-01 analog I/O extension and RDIO-01 digital I/O extension are stacked on the RMIO board and draw auxiliary power through the NPOW-02 rail. Disconnecting these modules without first noting their address DIP switch settings can result in I/O mapping errors after the new power supply is installed. Similarly, if the drive communicates via a RDCO-02 PROFIBUS-DP adapter, the node address and baud rate settings stored in the adapter must be verified against the PLC configuration before the drive is returned to service.

For installations where the ACS800 is integrated with an ABB AC500 PLC or a third-party Siemens S7-300 controller via PROFIBUS, the communication link should be tested in offline simulation mode before live commissioning. The NPOW-02 replacement does not alter the drive’s fieldbus identity, but a cold restart of the drive after the swap will cause a brief communication interruption that the PLC program must handle gracefully. If the HMI panel — typically a CP600 or a legacy Panel Builder display — is configured to monitor drive status via the fieldbus, the HMI screen objects should be verified after the drive comes back online to confirm that speed reference, current feedback, and fault status signals are updating correctly.

Downtime Control During System Migration

Minimizing unplanned downtime during an NPOW-02 swap requires a structured pre-outage checklist. Before isolating the drive, the original application macro and all modified parameters should be uploaded from the RMIO board to a laptop running DriveWindow Light or saved to the ACS800’s optional memory unit. This backup ensures that if the replacement NPOW-02 triggers a control board reset or clears volatile parameter memory, the drive can be restored to its exact pre-outage configuration within minutes rather than hours.

During the physical swap, the main AC input and DC bus should be fully de-energized and the drive’s capacitors allowed to discharge — typically a minimum of five minutes after power removal — before the control section is accessed. The NPOW-02 is secured by a single locking tab on the backplane connector; releasing this tab and sliding the module out horizontally avoids mechanical stress on the RMIO board’s connector pins. The replacement module should be inserted firmly until the locking tab engages, and the control section cover should be refitted before power is restored.

On power-up, the drive should be allowed to complete its self-diagnostic sequence before any run command is issued. If the drive displays a fault related to the power supply rail — such as a DC undervoltage or control board supply fault — the NPOW-02 seating should be checked before assuming a module defect. Once the drive passes self-diagnostics, the backed-up parameters should be downloaded and the drive run in local control mode at reduced speed to verify that analog feedback, digital interlocks, and fieldbus communication are all functioning correctly before returning the drive to automatic production control. This structured approach typically limits total downtime to under two hours for a single-drive swap, even in complex multi-axis or multi-drive cabinet configurations.

Retrofit Support FAQ

Q: Is the NPOW-02 (3535000901) a direct replacement for the original ABB power supply in my ACS800?
A: Yes. The NPOW-02 is the OEM-specified internal power supply for the ACS800 and DCS800 control section. It installs directly onto the backplane without any wiring modification, and the drive’s existing parameter set, fieldbus configuration, and I/O mapping are preserved after the swap.

Q: Do I need to reprogram the drive or update firmware after installing a replacement NPOW-02?
A: In most cases, no. The NPOW-02 does not store drive parameters or firmware. However, if the RMIO control board was also damaged, you should verify that the RMIO firmware version is compatible with your application macro before returning the drive to service. A parameter backup via DriveWindow is always recommended before any hardware change.

Q: How do I verify that the replacement NPOW-02 is compatible with my specific ACS800 frame size and control board revision?
A: Check the drive’s type designation label on the inside of the cabinet door. The frame size (R2–R8) and control board variant (RMIO-01 or RMIO-11) are listed there. Cross-reference these against the NPOW-02 compatibility matrix in the ACS800 Hardware Manual (3AFE64527592). If you are unsure, contact us with your drive’s full type code and we will confirm compatibility before shipment.

Q: What does the support terms confirmed by quotation cover, and is the module tested before shipping?
A: Every NPOW-02 unit is functionally tested on a compatible ACS800 test bench before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Units are shipped in anti-static packaging with a test report. If a unit fails within the confirmed support period, we provide a replacement or documented resolution support — no return-to-manufacturer delays.
