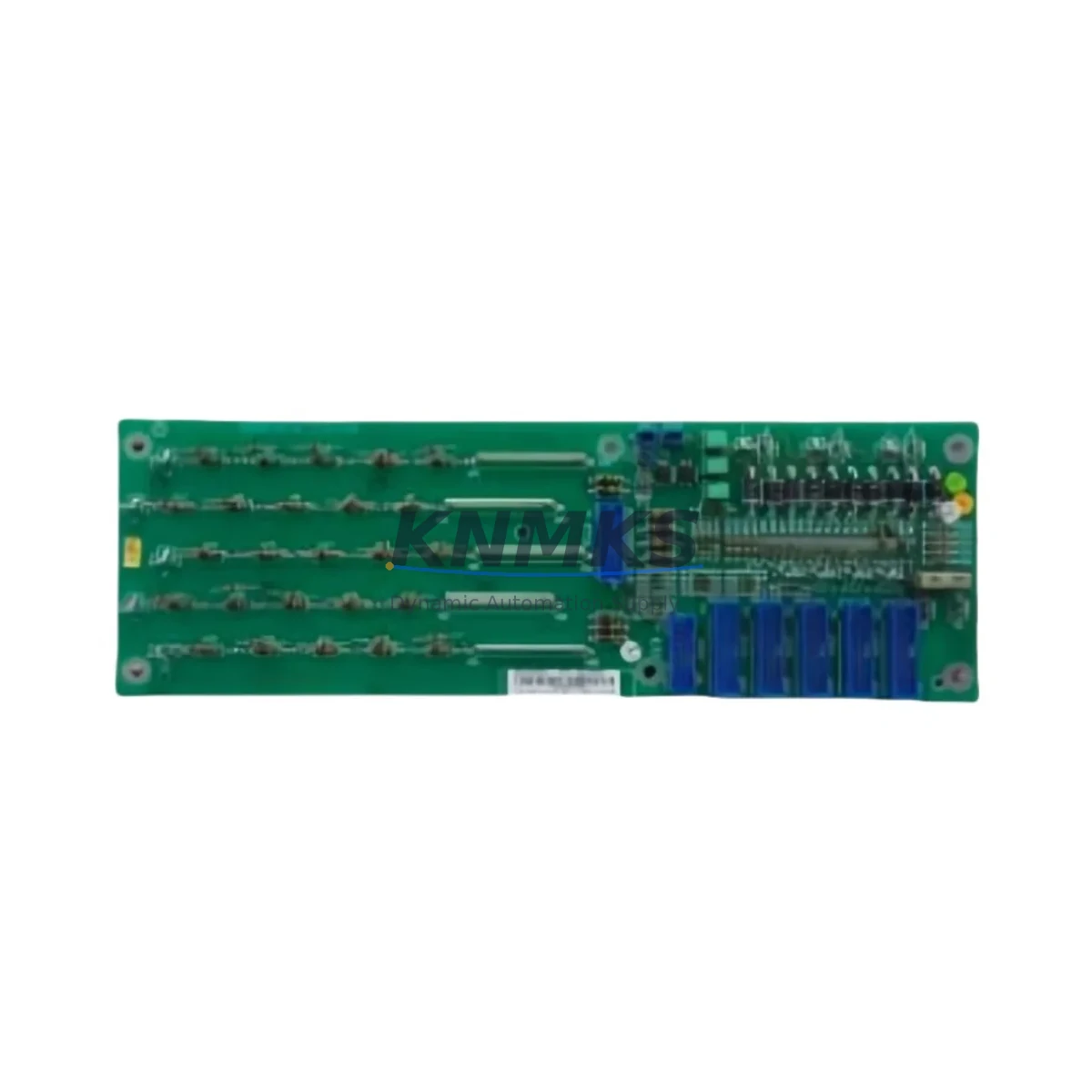

ABB LD LPTR-01 Migration-Ready Gate Driver for Legacy Systems

Overview

ABB LD LPTR-01 Migration-Ready Gate Driver for Legacy Control Systems

The ABB LD LPTR-01 is a gate driver isolation module engineered for the ABB LD Series drive platform, widely deployed across industrial motor control, variable speed drive cabinets, and process automation systems. As legacy LD Series installations approach end-of-service milestones, the LD LPTR-01 has become a critical spare part for maintenance teams managing retrofit projects, unplanned drive failures, and scheduled control system upgrades. This module provides the gate signal isolation and amplification function between the drive control board and the IGBT power stage, making it a direct functional replacement in systems where the original module has degraded or failed.

Engineers planning a retrofit or emergency replacement of the LD LPTR-01 must verify several key parameters before installation. Power supply compatibility with the existing drive’s internal 15V or 24V auxiliary rail must be confirmed. Terminal wiring assignments on the gate driver connector should be cross-referenced against the LD Series drive schematic to ensure signal polarity and ground isolation are maintained. The module’s physical footprint and PCB mounting pattern are consistent with the original LD Series gate driver bay, but installation clearance within the drive cabinet should be measured before ordering, particularly in compact enclosures where adjacent components such as the ABB LD SINT-41C interface board or the LD AINT-02 analog input module may limit access.

For sites running multiple LD Series drives in parallel or in master-follower configurations, replacing the LD LPTR-01 in one drive without verifying firmware version alignment across the drive stack can introduce timing asymmetries in gate pulse delivery. The drive’s RMIO-11C control board firmware version should be noted and confirmed compatible with the replacement gate driver before commissioning. In systems where the LD Series drives communicate over PROFIBUS-DP or Modbus RTU, the communication adapter module — typically an ABB NPBA-12 or NMBP-01 — should remain undisturbed during the gate driver swap to avoid disrupting the fieldbus node address and baud rate configuration.

During the physical replacement procedure, the IGBT gate resistor values on the replacement LD LPTR-01 should be verified against the original module’s specification sheet. Mismatched gate resistors can affect switching speed, increase EMI emissions, and in worst cases cause IGBT desaturation faults under high-load conditions. After installation, a bench-level gate signal test using an oscilloscope is recommended before reconnecting the DC bus. This step is particularly important in retrofit scenarios where the drive has been in storage or where the root cause of the original module failure has not been fully diagnosed.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful LD LPTR-01 retrofit begins with a complete audit of the drive cabinet’s current configuration. In most LD Series installations, the gate driver module is mounted adjacent to the IGBT power module stack, with signal cables routed to the RMIO-11C control board. Before removing the failed module, photograph the existing wiring layout and record the terminal designations. This documentation step is especially important in older installations where the original wiring labels may have faded or been modified during previous service interventions.

In multi-drive systems, the LD LPTR-01 replacement should be coordinated with a review of the ABB LD SINT-41C serial interface board, which manages the communication link between the drive control section and external supervisory systems. If the SINT-41C is also showing signs of age — intermittent communication faults, CRC errors on the fieldbus, or erratic parameter read-back — it is operationally efficient to address both modules during the same maintenance window rather than scheduling a second outage. Similarly, if the drive’s ABB AINT-02 analog input module has not been serviced recently, verifying its signal scaling and zero-offset calibration during the gate driver replacement reduces the risk of a follow-on fault after the drive is returned to service.

For sites where the LD Series drives are integrated into a broader DCS or SCADA architecture — for example, systems running on Emerson DeltaV or Honeywell Experion — the drive’s fieldbus node must be taken offline in a controlled manner before the gate driver is replaced. The DCS operator should place the affected drive loop in manual mode and confirm that the process variable is being held by an upstream or downstream control element before the drive is de-energized. After the LD LPTR-01 is replaced and the drive is re-energized, the fieldbus node should be brought back online and the drive’s speed reference and torque limit parameters should be verified against the DCS setpoint before returning the loop to automatic mode.

In retrofit scenarios involving older LD Series frames where the original ABB NMBP-01 Modbus adapter or NPBA-12 PROFIBUS adapter is still in service, confirm that the adapter’s node address and baud rate settings have not been altered during the gate driver replacement. These adapters store their configuration in non-volatile memory, but physical disturbance of the connector during adjacent module replacement can occasionally cause a parameter reset to factory defaults, which will result in a communication loss alarm at the DCS or SCADA level immediately after drive restart.

Downtime Control During System Migration

Minimizing downtime during an LD LPTR-01 replacement requires advance preparation of the replacement module, a clear shutdown and isolation procedure, and a structured recommissioning checklist. The replacement module should be bench-tested for gate signal output before the maintenance window begins. This pre-verification step eliminates the risk of discovering a second faulty module after the drive has already been de-energized and the production line has been stopped.

The original drive program parameters — including speed references, acceleration and deceleration ramps, current limits, and fault response settings — should be uploaded from the RMIO-11C control board to a laptop using the ABB DriveWindow or Drive Composer tool before the drive is powered down. This parameter backup ensures that if the control board loses its parameter set during the power cycle, the drive can be restored to its pre-maintenance configuration within minutes rather than requiring a full recommissioning from the motor nameplate data.

During the physical swap, the DC bus capacitors must be fully discharged before the gate driver module is touched. The discharge time for LD Series drives varies by frame size and DC bus voltage, but a minimum wait of five minutes after main power isolation is standard practice. Use a calibrated DC voltmeter to confirm bus voltage is below 50V before proceeding. After the LD LPTR-01 is installed and the drive is re-energized, run the drive at low speed (5–10 Hz) under no-load conditions for a minimum of two minutes before applying full process load. Monitor the drive’s fault log and current waveform during this initial run to confirm that the gate driver is functioning correctly and that no IGBT desaturation or overcurrent faults are present.

Retrofit Support FAQ

Q: Is the ABB LD LPTR-01 a direct replacement for the original module in all LD Series drive frames?
A: The LD LPTR-01 is designed for use across the ABB LD Series drive platform. However, specific frame sizes and power ratings may use different gate driver variants. Confirm the exact drive model number and frame size before ordering to ensure the correct module is supplied. Our technical team can assist with cross-referencing if the original module label is damaged or missing.

Q: What pre-shipment testing is performed on the LD LPTR-01?
A: Each LD LPTR-01 unit is functionally tested for gate signal output, isolation integrity, and power supply compatibility before shipment. A test report is available upon request. All units are shipped with anti-static packaging and include a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q: Can the LD LPTR-01 be installed without re-parameterizing the drive?
A: In most cases, yes. The LD LPTR-01 is a hardware module and does not store drive parameters. The drive’s parameter set is held in the RMIO-11C control board’s non-volatile memory and is not affected by gate driver replacement. However, a parameter backup before the maintenance window is strongly recommended as a precaution against unexpected control board behavior during power cycling.

Q: What is the typical lead time and stock availability?
A: The ABB LD LPTR-01 is maintained in regional warehouse stock to support emergency replacement and planned maintenance programs. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact our sales team to confirm current stock levels and delivery schedule for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

LD LPTR-01
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB LD LPTR-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
