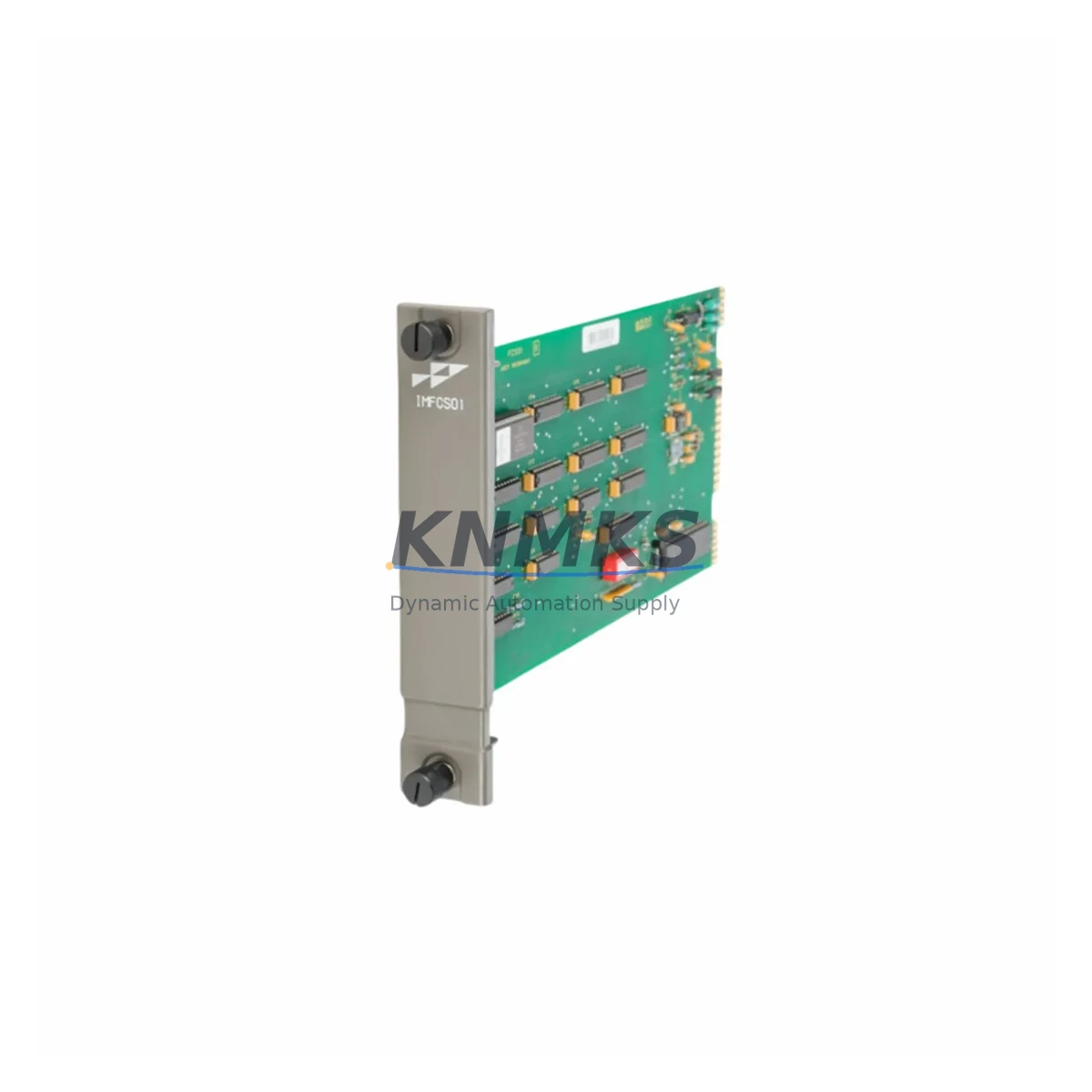

ABB IMFCS01 Migration-Ready Frequency Counter for AC800M

Overview

ABB IMFCS01 Migration-Ready Frequency Counter for AC800M: Legacy System Retrofit and Compatibility Upgrade

The ABB IMFCS01 is a frequency counter slave module designed for the ABB AC800M distributed control system platform. As industrial facilities accelerate the retirement of aging automation infrastructure, the IMFCS01 has become a critical component in phase-by-phase migration strategies — particularly in plants where legacy AC800M racks continue to serve as the backbone of process control. Whether you are replacing a failed unit during an unplanned outage or executing a scheduled control system modernization, the IMFCS01 provides a verified, drop-in-compatible solution that preserves existing program logic, terminal wiring, and backplane addressing without requiring a full controller replacement.

In retrofit scenarios, engineers must confirm several key parameters before commissioning the IMFCS01 as a replacement. Power supply capacity on the existing rack — typically provided by an ABB SD821 or SD822 power supply module — must be verified to support the additional module load. Terminal wiring from field-side frequency sensors or pulse transmitters should be mapped against the IMFCS01’s input channel configuration to ensure signal compatibility. Backplane slot addressing must match the original module position to avoid I/O remapping in the AC800M controller program. If the original module occupied a specific slot in an ABB TB820V2 or TB840A communication interface rack, the replacement must be installed in the same physical position to maintain the existing node address and avoid controller fault alarms.

Program compatibility is a primary concern during any frequency counter module swap. The AC800M controller application, typically developed in ABB Control Builder M, references the IMFCS01 by its hardware unit address and channel index. Provided the replacement module is installed in the same rack slot and the firmware version is compatible with the running AC800M controller firmware, no program modification is required. Engineers should verify the controller firmware version against ABB’s compatibility matrix before installation, particularly in systems running older AC800M firmware releases that may not support newer module revisions. HMI faceplates connected to frequency measurement tags should be validated post-commissioning to confirm that signal scaling and engineering unit conversion remain intact.

Communication link integrity is another critical checkpoint. In AC800M architectures, the IMFCS01 communicates over the internal S800 I/O bus. If the migration plan involves transitioning from an S800 I/O bus topology to a PROFIBUS DP or PROFINET architecture as part of a broader system upgrade, additional interface modules such as the ABB CI854A PROFIBUS DP interface or the ABB CI873AK PROFINET adapter may be required in parallel with the IMFCS01 installation. These communication modules must be configured and addressed before the IMFCS01 is brought online to avoid bus conflicts during the cutover window.

Installation space confirmation is essential in densely populated control cabinets. The IMFCS01 occupies a standard S800 I/O module slot and is compatible with the ABB TB811 and TB820 termination unit families. Engineers should verify that the target rack has an available slot and that the termination unit is present and undamaged before scheduling the replacement. In cases where the original termination unit has been damaged or is no longer available, a replacement TB811 or compatible unit must be sourced and installed prior to module commissioning.

Pre-shipment testing is performed on every IMFCS01 unit prior to dispatch. Each module is powered, initialized, and verified for channel response before packaging. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Multi-region stock is maintained to support both emergency same-week dispatch and scheduled outage windows, minimizing the risk of extended downtime due to parts availability.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful IMFCS01 integration into an existing AC800M control system requires a structured pre-migration checklist. Begin by auditing the target rack’s current module population and available slot positions. If the rack is fully populated, a rack expansion using an additional ABB S800 I/O rack and a CI854A PROFIBUS DP communication interface may be required to accommodate the replacement module without displacing other active I/O channels.

Terminal wiring from field devices — including turbine flow meters, magnetic pickup sensors, and pulse-output transmitters — must be documented and verified against the IMFCS01 channel input specifications. In systems where the original wiring was routed through an ABB TB811 termination unit, the existing field cable connections can typically be retained without modification, significantly reducing installation time and the risk of wiring errors during the cutover.

For facilities transitioning from older ABB Advant OCS or MOD 300 platforms to AC800M, the IMFCS01 may be introduced as part of a phased migration where legacy controllers are replaced rack by rack while field wiring and termination units are reused. In this scenario, the IMFCS01 works alongside other newly introduced S800 I/O modules — such as the ABB AI810 analog input module for 4–20 mA process signals, the ABB DI810 digital input module for discrete status inputs, and the ABB AO810V2 analog output module for control valve positioning — to build out the new I/O layer incrementally without requiring a full plant shutdown.

Signal isolation requirements should be assessed during the planning phase. In environments with high electrical noise from variable frequency drives or large motor starters, signal isolators may be required between field pulse sources and the IMFCS01 input channels to prevent measurement errors. This is particularly relevant in retrofit projects where the IMFCS01 is being installed in a control cabinet that also houses ABB ACS880 or ACS580 drives, where conducted interference can affect pulse signal integrity.

Programming cable and laptop access to the AC800M controller should be arranged in advance of the installation window. The ABB TK212A programming cable or equivalent USB-to-serial adapter is required for direct controller access during commissioning. Control Builder M should be pre-loaded with the current application backup before the module swap begins, ensuring that a known-good program version is available for immediate reload if required.

Downtime Control During System Migration

Minimizing downtime during an IMFCS01 replacement requires careful pre-staging and a clearly defined cutover sequence. Before the maintenance window begins, the replacement module should be physically inspected, firmware version confirmed, and slot address documented. A full backup of the AC800M controller application should be taken and stored offline. Field operators should be briefed on the expected duration of the I/O interruption and any manual control procedures that will be required during the cutover period.

During the swap, the AC800M controller should be placed in a controlled state that prevents automatic process responses to the temporary loss of frequency input signals. Depending on the process, this may involve placing affected control loops in manual mode or activating substitute setpoints in the controller application. The IMFCS01 can typically be removed and replaced without powering down the entire rack, provided the rack supports hot-swap operation — this should be confirmed against the specific AC800M rack and firmware version in use before proceeding.

After installation, the replacement IMFCS01 should be allowed to complete its initialization sequence before the controller application is restarted or the affected I/O channels are returned to automatic control. Channel-by-channel verification of frequency input readings against known field conditions — such as pump speed feedback or flow meter pulse output — should be completed before handing control back to the process. HMI displays showing frequency-derived values should be monitored for a minimum of 15 minutes post-commissioning to confirm stable, accurate readings before the maintenance window is formally closed.

Maintaining a spare IMFCS01 unit in local inventory is strongly recommended for facilities where frequency measurement is critical to process safety or production continuity. With multi-region stock availability and same-week dispatch capability, KNMKS supports both planned procurement and emergency replacement scenarios, ensuring that a verified, pre-tested unit is available when it is needed most.

Retrofit Support FAQ

Q: Can the IMFCS01 directly replace a failed unit without modifying the AC800M controller program?
A: Yes, provided the replacement module is installed in the same rack slot as the original and the firmware version is compatible with the running AC800M controller firmware. No program modification is required under these conditions. Engineers should verify the firmware compatibility matrix before installation to confirm version alignment.

Q: What termination units are compatible with the IMFCS01, and can existing field wiring be reused?
A: The IMFCS01 is compatible with ABB TB811 and TB820 series termination units. In most retrofit scenarios, existing field wiring connected to the original termination unit can be retained without modification, eliminating the need for rewiring and significantly reducing installation time and risk.

Q: Is the IMFCS01 tested before shipment, and what support terms is provided?
A: Every IMFCS01 unit is powered on, initialized, and verified for channel response before dispatch. A support terms confirmed by quotation is provided, covering manufacturing defects and functional failures under normal operating conditions. Units are dispatched from multi-region stock to support both emergency and scheduled replacement requirements.

Q: What should be confirmed regarding installation space and rack compatibility before ordering?
A: Confirm that the target AC800M rack has an available S800 module slot and that the appropriate termination unit (TB811 or TB820) is present and undamaged. Verify the rack’s available power budget against the SD821 or SD822 power supply capacity. If the rack is fully populated, a rack expansion with an additional S800 I/O rack and CI854A communication interface may be required.
