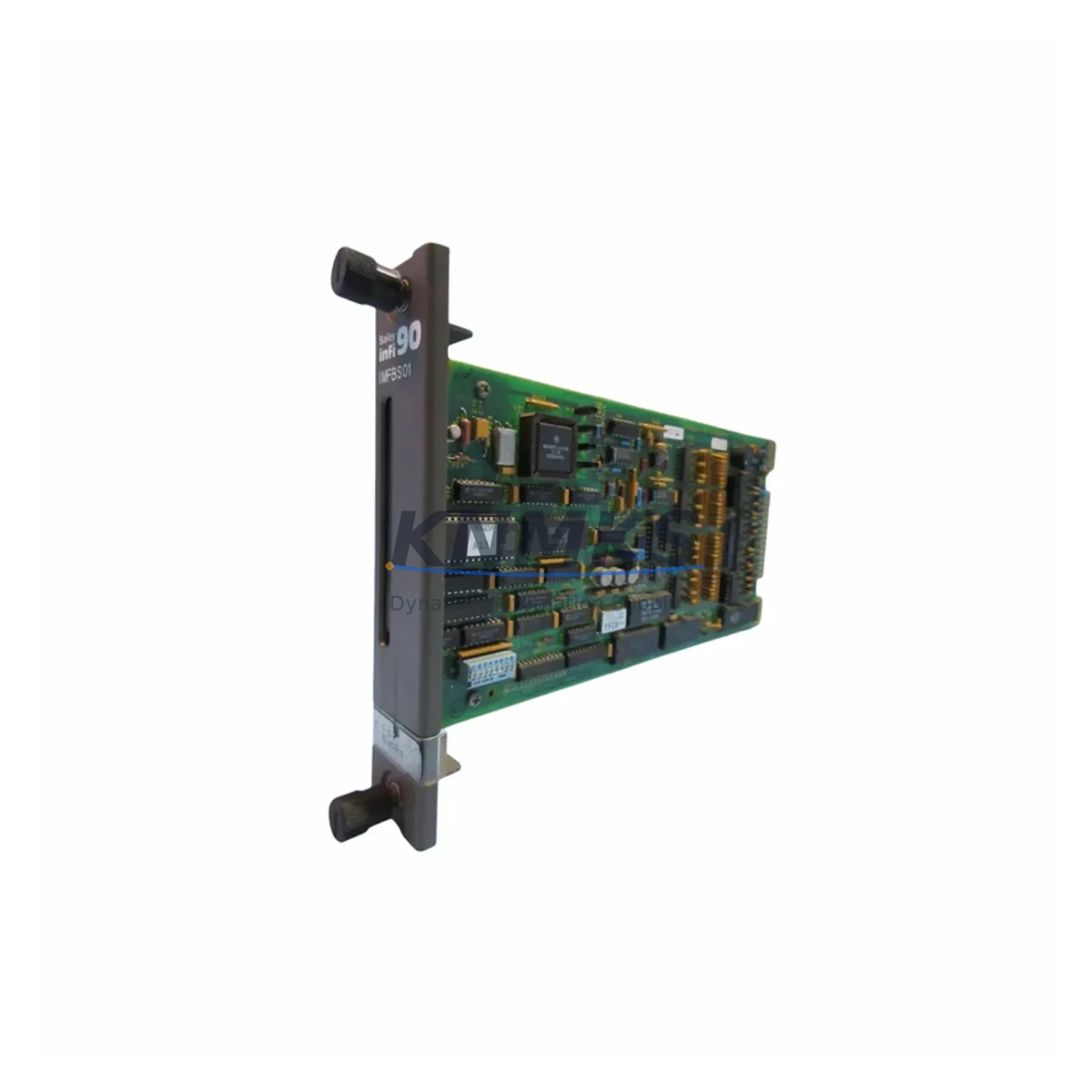

ABB IMFBS01 Fail-Safe PROFIBUS DP Interface Module

Overview

ABB IMFBS01 Fail-Safe PROFIBUS DP Interface Module: Fault Protection and Critical Industrial Control Reliability

The ABB IMFBS01 is a PROFIBUS DP Slave Interface Module engineered for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in continuous process industries. Designed to bridge field-level instrumentation and the AC800M controller backplane via the PROFIBUS DP protocol, the IMFBS01 delivers deterministic, low-latency communication in environments where signal integrity, control loop continuity, and safety interlock reliability are non-negotiable.

In critical production facilities — petrochemical complexes, power generation plants, mineral processing operations, water treatment infrastructure, and metallurgical furnace lines — a single fieldbus communication failure can cascade into unplanned shutdowns, safety system activations, or equipment damage. The IMFBS01 is purpose-built to prevent exactly these scenarios. Its robust hardware design addresses the most common failure vectors in industrial fieldbus deployments: electromagnetic interference (EMI), power supply transients, surge events, thermal stress, vibration fatigue, and connector degradation from humidity and particulate ingress.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The IMFBS01 does not operate in isolation — its reliability is maximized when deployed within a well-engineered control cabinet architecture. In high-density AC800M installations, the module is typically mounted alongside the ABB PM865 or PM891 processor modules, which serve as the primary DCS controllers managing the PROFIBUS DP master network. Ensuring these processor modules receive clean, stable power is critical: the ABB SD823 or SD833 power supply modules are the recommended companions, providing regulated 24 VDC with built-in redundancy support and protection against input voltage fluctuations common in heavy industrial environments.

For cabinet-level surge and transient protection — particularly in sites with frequent motor starts, transformer switching, or lightning exposure — integrating a dedicated surge protection device on the PROFIBUS DP cable entry point is strongly advised. This prevents voltage spikes from propagating into the IMFBS01’s communication circuitry. Additionally, the ABB CI854 PROFIBUS DP Master Interface Module is frequently deployed in the same cabinet to manage the master-side of the fieldbus network, creating a fully ABB-native, tightly integrated communication architecture that simplifies diagnostics and firmware management.

In cabinets with high thermal loads — common in continuous process plants running 24/7 — pairing the IMFBS01 installation with proper thermal management (forced air cooling, cabinet air conditioners, or heat exchangers) ensures the module operates well within its rated temperature envelope. Where redundant fieldbus communication is required for SIL-rated safety loops, the ABB CI858 redundant fieldbus interface provides a complementary solution, allowing hot-standby communication paths that keep safety interlocks active even during single-module maintenance events.

Critical Industrial Safety Applications

The IMFBS01 has established a strong track record across the most demanding continuous process industries:

Petrochemical and Refinery Operations: In hydrocarbon processing units, the IMFBS01 connects distributed field instruments — pressure transmitters, flow meters, valve positioners — to the AC800M DCS via PROFIBUS DP. Its EMI resistance is critical in environments saturated with variable-frequency drives (VFDs) and high-current motor control centers. Any communication dropout in a refinery control loop can trigger emergency shutdowns (ESD) with significant production and safety consequences.

Power Generation: Thermal and combined-cycle power plants rely on PROFIBUS DP networks to coordinate boiler control, turbine governor feedback, and auxiliary system monitoring. The IMFBS01’s deterministic communication ensures that control commands reach actuators within the timing windows required for stable load control and grid synchronization.

Mining and Mineral Processing: Crusher circuits, flotation cells, and conveyor drive systems generate extreme levels of electrical noise and mechanical vibration. The IMFBS01’s vibration-rated design and surge-tolerant fieldbus interface maintain communication integrity in these harsh environments, preventing nuisance trips that halt production.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate in high-humidity, chemically aggressive environments. The IMFBS01’s humidity tolerance and sealed module construction support reliable long-term operation in pump control, dosing system management, and SCADA-integrated monitoring applications.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines subject control hardware to intense thermal cycling and electromagnetic disturbances. The IMFBS01’s robust design supports reliable fieldbus communication in these extreme conditions, protecting critical process interlocks from communication-induced failures.

Port and Marine Automation: Crane control systems, ship loading arms, and offshore platform automation increasingly rely on PROFIBUS DP for coordinated motion control. The IMFBS01 supports these applications with its wide operating temperature range and vibration compliance, ensuring reliable operation in marine-grade environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the IMFBS01?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified PROFIBUS DP communication functions within the confirmed support period, KNMKS will provide a replacement or repair at no additional cost. Support requests are supported with full documentation and fast turnaround to minimize your downtime exposure.

Q2: What pre-shipment testing is performed on each IMFBS01 unit?
Every IMFBS01 unit undergoes full functional verification before dispatch. This includes communication protocol validation, power-up self-test confirmation, and physical inspection for connector integrity and module condition. Units that do not pass testing are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IMFBS01 compatible with all AC800M controller variants and PROFIBUS DP master networks?
The IMFBS01 is designed for the ABB AC800M controller family and is compatible with the Freelance DCS platform. It operates as a PROFIBUS DP slave and is interoperable with any IEC 61158-compliant PROFIBUS DP master, including third-party DCS and PLC systems. Compatibility with specific firmware versions or hardware revisions should be confirmed against your site’s AC800M configuration documentation.

Q4: Can KNMKS support long-term supply agreements for the IMFBS01 as a critical spare?
Yes. KNMKS maintains multi-region inventory of the IMFBS01 to support both emergency replacement orders and planned maintenance schedules. For facilities managing end-of-life ABB hardware or executing phased migration programs, we offer long-term supply agreements with reserved stock allocation, priority dispatch, and technical documentation support to ensure continuity of your control system operations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IMFBS01
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IMFBS01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
