ABB IMDSI12 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB IMDSI12 Maintenance-Proven Spare Part for Factory Uptime

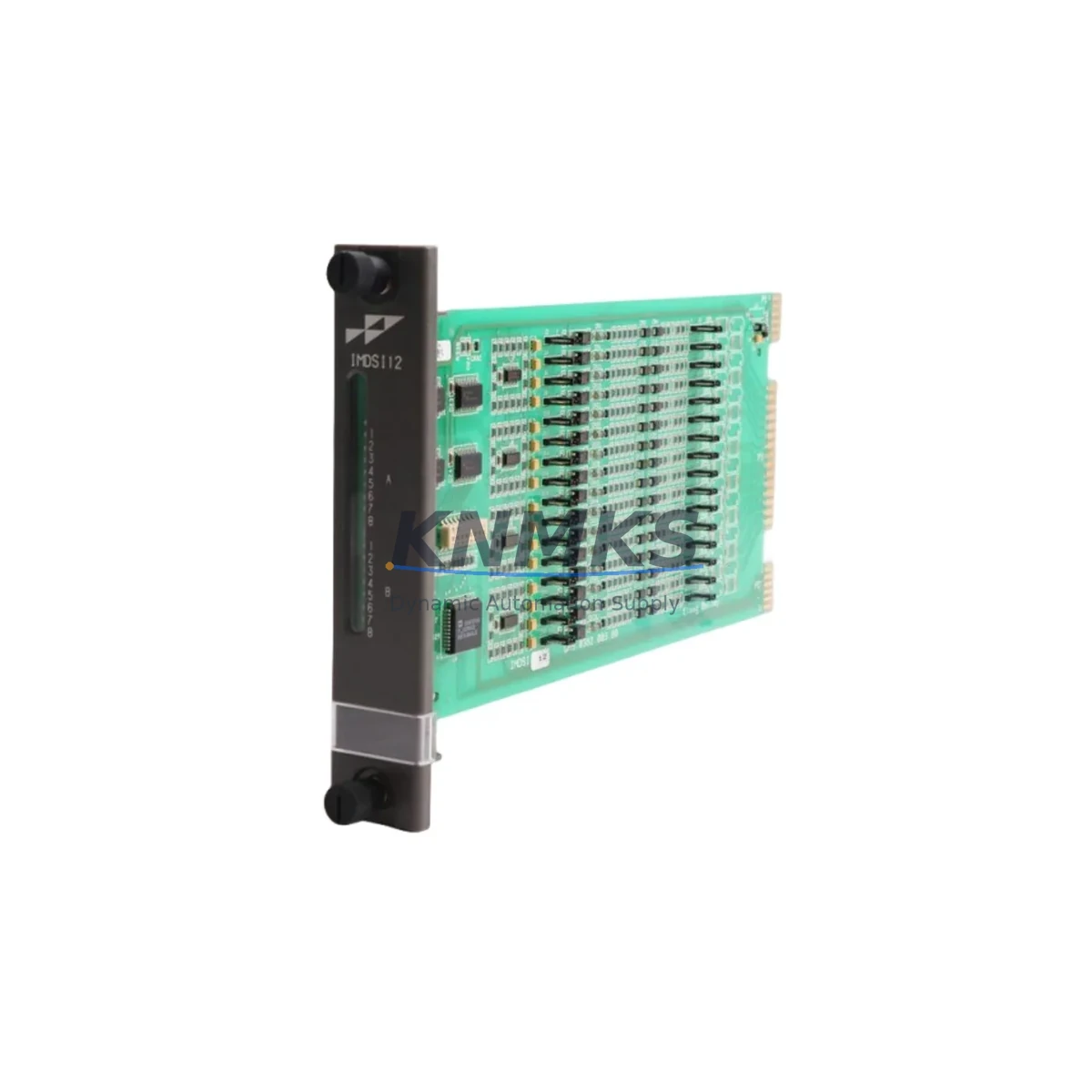

The ABB IMDSI12 is a 12-channel digital input module engineered for the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across petrochemical, power generation, water treatment, and metallurgical facilities. As a direct OEM-equivalent spare, the IMDSI12 is a critical component for maintenance engineers managing aging AC800M control cabinets where unplanned downtime carries significant operational and safety risk. KNMKS stocks verified IMDSI12 units, pre-shipment tested, with a support terms confirmed by quotation and fast global dispatch to support both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the IMDSI12 during a planned shutdown or emergency callout, maintenance engineers should treat the module as part of a broader S800 I/O subsystem inspection. The IMDSI12 operates within an I/O station alongside companion modules such as the IMDSO08 (8-channel digital output) and IMFEC08 (field excitation and communication) — all of which share the same ModuleBus backplane and should be visually inspected for corrosion, loose connectors, or LED fault indicators during the same maintenance window.

The TB820V2 ModuleBus Modem and CI854 PROFIBUS-DP communication interface are upstream dependencies of the IMDSI12’s signal chain. A degraded CI854 or a faulty TB820V2 can produce symptoms that mimic IMDSI12 channel failures — misdiagnosis leads to unnecessary module swaps and extended downtime. Always verify communication integrity at the CI854 level before condemning the input module itself.

Field wiring terminations at the TU830V1 or TU831V1 terminal units are a common source of intermittent digital input faults. Inspect terminal blocks for loose screws, oxidized contacts, and correct cable shielding before replacing the IMDSI12. Similarly, the 24 VDC field power supply feeding the DI channels should be load-tested — an under-voltage condition on the field supply rail will cause multiple channels to report false-off states, which is frequently misattributed to module failure.

For facilities running long-term AC800M installations, a proactive spare parts strategy should include at minimum one IMDSI12 per I/O station cluster, alongside a PM864AK01 controller module and a set of SD823 power supply modules to cover the most failure-prone components in the control cabinet. Procurement engineers should note that IMDSI12 lead times from OEM channels can extend to 16–26 weeks; maintaining a local buffer stock eliminates this risk entirely for critical process lines.

Site Replacement Workflow

The IMDSI12 is a hot-swap capable module within the S800 I/O architecture, provided the AC800M controller is configured for redundant I/O or the process permits a brief channel interruption. Follow this sequence for a controlled replacement:

1. Pre-replacement verification: Confirm the replacement IMDSI12 carries the same hardware revision as the installed unit. Check the label on the module faceplate for revision suffix. Mismatched hardware revisions may require a firmware parameter update in the AC800M engineering tool (Control Builder M).

2. Channel isolation: In Control Builder M, force the affected DI channels to a safe state or place the associated function blocks in manual mode. Notify the control room operator before proceeding.

3. Physical swap: Disengage the module locking lever, slide the IMDSI12 out of the TU830V1/TU831V1 terminal unit, and insert the replacement unit. The terminal unit remains wired — no field cable disconnection is required, which significantly reduces replacement time and re-commissioning risk.

4. Post-swap validation: Confirm all 12 channel LEDs return to normal state. In Control Builder M, verify that the module is recognized on the ModuleBus and that all DI channel values are reading correctly against known field device states. Release channels from manual mode and confirm process interlocks are restored.

This workflow supports a target replacement time of under 30 minutes for a trained maintenance technician, minimizing production impact and supporting rapid line recovery after an unplanned fault event.

Spare Parts Support FAQ

Q1: Is the IMDSI12 compatible with all AC800M controller versions?
The IMDSI12 is compatible with the full AC800M family including PM860, PM861, PM864, and PM866 controller modules when used with the S800 I/O ModuleBus. Compatibility with specific firmware versions should be confirmed against the ABB S800 I/O System Product Guide. KNMKS can assist with hardware revision matching prior to shipment.

Q2: How is the IMDSI12 tested before shipment?
Each unit undergoes functional verification on an AC800M-compatible test bench, confirming ModuleBus communication, channel-by-channel DI response, and LED status indication. A test report is available upon request. Units that do not pass full functional verification are not dispatched.

Q3: What is the long-term supply outlook for IMDSI12?
ABB has transitioned the AC800M platform toward end-of-life support phases in some markets. KNMKS maintains a dedicated buffer stock of IMDSI12 and related S800 I/O modules to support customers through system lifecycle extensions and migration projects. Long-term supply agreements are available for facilities managing multi-year maintenance plans.

Q4: Does the support terms confirmed by quotation cover field installation failures?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. KNMKS provides pre-shipment documentation and installation guidance to minimize field installation risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IMDSI12
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IMDSI12
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
