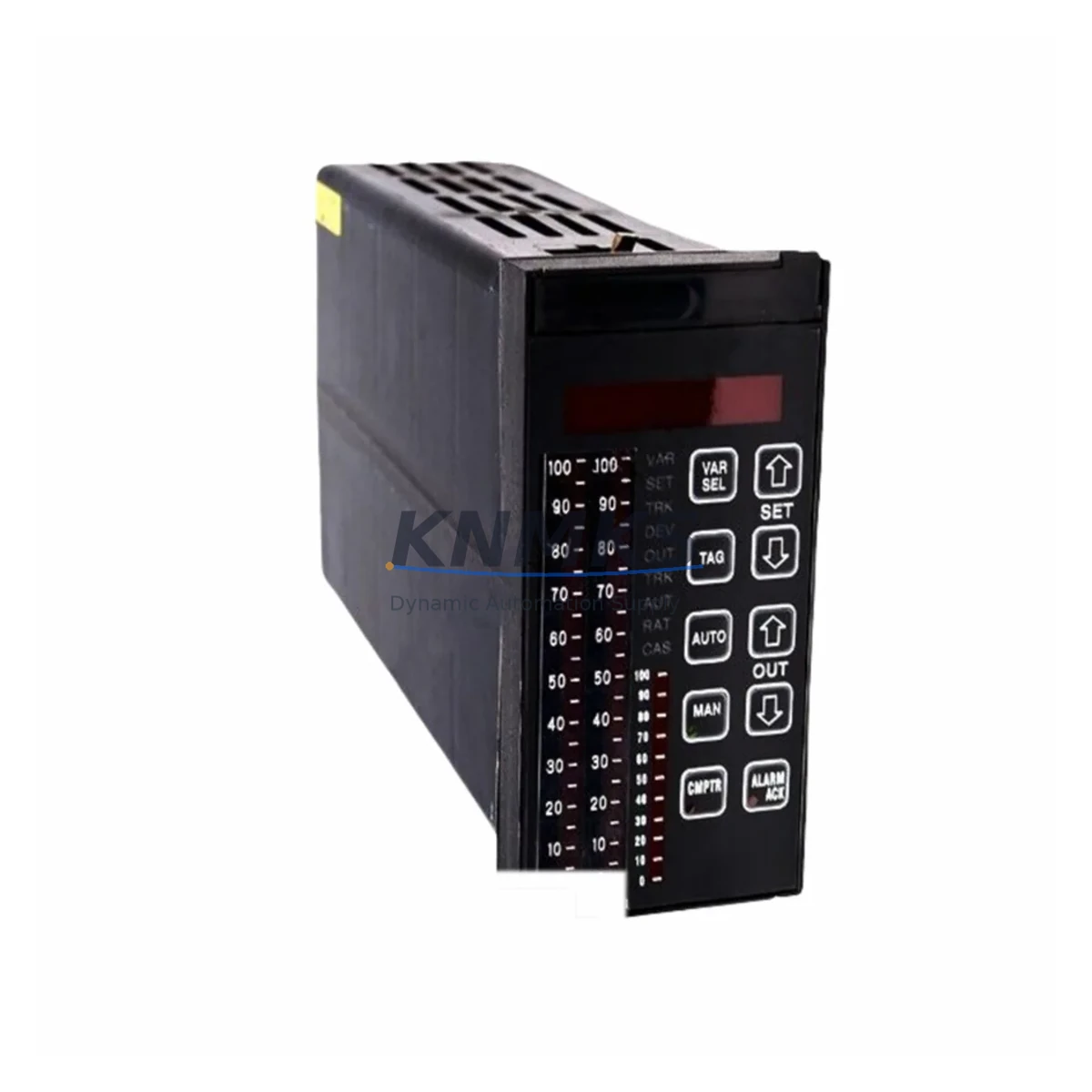

ABB IISAC01 Fail-Safe Analog Control Station

Overview

ABB IISAC01 Fail-Safe Analog Control Station: Fault Protection and Critical Industrial Field Reliability

The ABB IISAC01 is a safety-enhanced analog control station engineered for deployment within ABB’s AC800M Distributed Control System architecture. Designed to sustain uninterrupted signal integrity across continuous production environments, the IISAC01 delivers robust fail-safe performance in applications where control loop interruption, signal drift, or power fluctuation can trigger cascading process failures. Its hardened analog I/O interface ensures that field signals remain stable and accurately conditioned even under high electromagnetic interference, voltage surges, and thermally demanding cabinet conditions.

In critical interlock circuits — such as emergency shutdown (ESD) sequences, burner management systems, and high-integrity pressure protection loops — the IISAC01 provides the signal conditioning reliability that safety instrumented systems demand. Its architecture supports deterministic response to process deviations, reducing the risk of spurious trips or missed fault detection that could compromise personnel safety and asset integrity. For facilities operating under IEC 61511 or IEC 61508 functional safety frameworks, the IISAC01 represents a field-proven analog interface solution with a documented safety pedigree within the ABB AC800M ecosystem.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog signal management within a heavy-load control cabinet requires a coordinated protection strategy across multiple layers. The ABB IISAC01 analog control station operates as the signal conditioning core, but its effectiveness is amplified when deployed alongside complementary protection and communication components within the same AC800M cabinet architecture.

Surge and transient events entering through field wiring are a primary cause of analog signal corruption. Pairing the IISAC01 with dedicated surge protection barriers — such as those used in ABB’s S800 I/O marshalling panels — ensures that transient energy is diverted before it reaches the module’s analog front-end. For power supply stability, the ABB SD831 or SD832 24 VDC power supply modules provide regulated, low-ripple DC power to the I/O bus, preventing voltage fluctuation from inducing measurement errors in the IISAC01’s analog channels.

Communication integrity between the IISAC01 and the AC800M CPU is maintained through the S800 I/O optical bus interface. In high-EMI environments — common in variable frequency drive (VFD) rooms, arc furnace control buildings, and high-voltage switchgear areas — the optical bus architecture of the ABB CI854A or CI858 communication interface modules eliminates ground loop interference that would otherwise corrupt analog readings. For cabinet thermal management, the IISAC01 should be installed with adequate spacing from heat-generating components such as the ABB PM866 or PM891 processor modules, ensuring that ambient cabinet temperature remains within the module’s rated operating range.

In safety-critical loops, the IISAC01 is frequently deployed in conjunction with ABB’s AI810 or AO810 analog I/O modules to provide redundant signal paths for critical process variables such as reactor temperature, separator pressure, and compressor discharge flow. This multi-module analog architecture ensures that a single module failure does not result in loss of process visibility or control authority, supporting the fail-safe design intent of the overall safety instrumented system.

Critical Industrial Safety Applications

The ABB IISAC01 analog control station is deployed across a broad spectrum of safety-critical and continuous-process industries where control loop reliability is non-negotiable.

In petrochemical and refinery operations, the IISAC01 conditions analog signals from pressure transmitters, flow meters, and temperature sensors feeding into emergency shutdown and high-integrity pressure protection systems. Its stable 4–20 mA signal conditioning prevents the signal drift that can cause nuisance trips or, more critically, missed high-pressure exceedances in distillation columns and reactor vessels.

In power generation and grid substations, the module supports analog feedback loops for turbine governor control, boiler drum level regulation, and generator excitation systems. The IISAC01’s EMI tolerance is particularly valuable in environments with large rotating machinery and high-voltage bus bars that generate significant electromagnetic noise.

In mining and mineral processing, where dust ingress, vibration from crushing and grinding equipment, and wide ambient temperature swings are constant challenges, the IISAC01’s robust construction and sealed cabinet compatibility ensure sustained analog signal accuracy for conveyor load control, flotation cell level management, and mill motor current monitoring.

In water and wastewater treatment, the module provides reliable analog conditioning for flow control valves, chemical dosing pumps, and UV disinfection systems — applications where signal integrity directly impacts regulatory compliance and public health outcomes.

In metallurgical and steel production facilities, the IISAC01 supports analog control of furnace temperature profiles, ladle weight measurement, and rolling mill tension control — processes where millisecond-level signal accuracy determines product quality and prevents equipment damage.

In port and marine automation, including ship loading systems, crane control, and vessel management systems, the IISAC01’s vibration resistance and wide operating temperature range make it suitable for harsh maritime environments where standard industrial modules may fail prematurely.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB IISAC01?
All IISAC01 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures, and signal conditioning anomalies identified under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch.

Q2: What pre-shipment testing is performed on each IISAC01 unit?
Every IISAC01 undergoes a full functional test prior to dispatch, including analog signal channel verification across the 4–20 mA range, power supply input tolerance testing, and communication bus interface validation. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IISAC01 compatible with existing ABB AC800M and 800xA DCS installations?
Yes. The IISAC01 is designed for direct integration into ABB AC800M controller racks and S800 I/O carrier assemblies. It is compatible with the 800xA DCS platform and supports standard ABB Control Builder M configuration workflows. No firmware modifications or hardware adapters are required for drop-in replacement in existing installations.

Q4: Can KNMKS support long-term or scheduled supply agreements for the IISAC01?
Yes. KNMKS maintains multi-region inventory of the IISAC01 to support both emergency replacement requirements and planned maintenance outages. Long-term supply agreements with scheduled delivery windows are available for facilities managing multi-year maintenance contracts or phased migration programs from legacy ABB DCS platforms.
