ABB ICSI16D1 Maintenance-Proven Spare Part for Factory Uptime

Overview

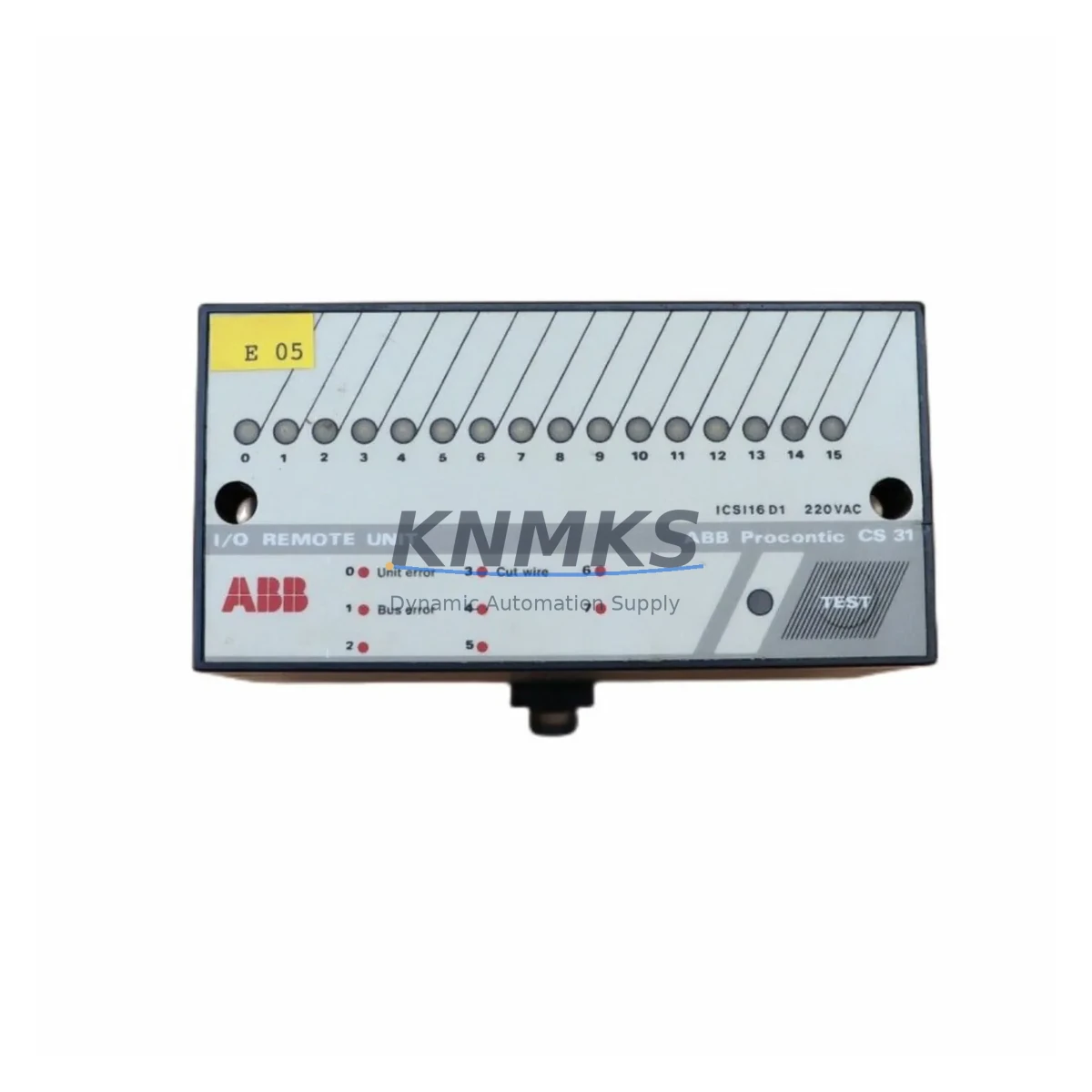

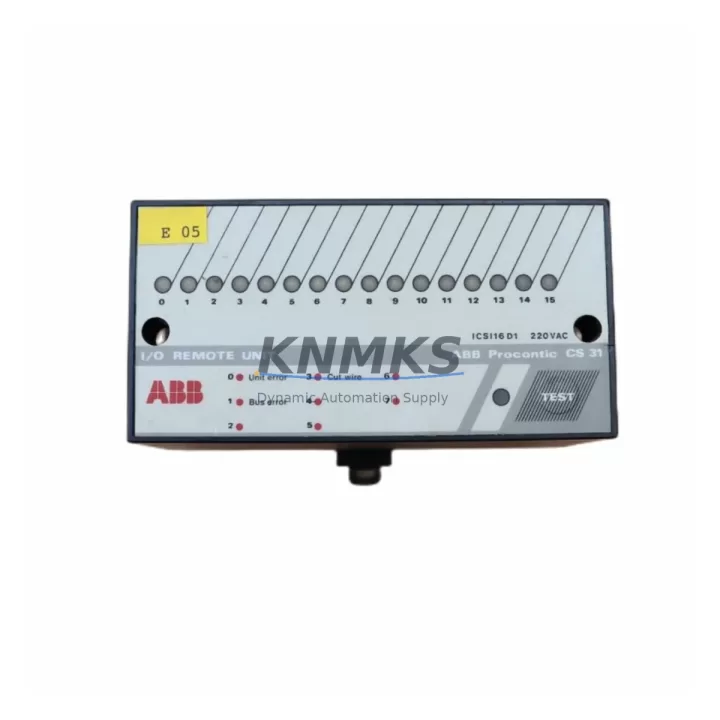

ABB ICSI16D1 Maintenance-Proven Spare Part for Factory Uptime

The ABB ICSI16D1 is a 16-channel 24 VDC digital input module designed for the S800 I/O series, widely deployed in AC800M DCS and high-availability process control architectures across power generation, oil & gas, chemical processing, and heavy manufacturing. As a maintenance-proven spare, the ICSI16D1 enables rapid slot-for-slot replacement during scheduled shutdowns or unplanned fault events, restoring full I/O capacity without firmware reconfiguration or hardware rework.

For maintenance engineers managing aging control cabinets, holding a verified ICSI16D1 spare on the shelf is a direct risk-mitigation measure. Digital input modules are among the highest-turnover components in any S800 rack — exposed to field wiring transients, ground faults, and cumulative thermal stress over multi-year service cycles. When a channel fails or the module enters fault state, production impact is immediate. A pre-tested, shelf-ready ICSI16D1 reduces mean time to repair (MTTR) from days to under an hour.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing an ICSI16D1 in the field, a disciplined maintenance engineer does not stop at the module itself. The S800 rack environment involves multiple interdependent components, and a single fault event often reveals stress across adjacent hardware. Before closing the cabinet, the following components should be inspected or tested as part of the same maintenance window:

The TB820 ModuleBus Modem or TB840A communication interface that links the S800 rack to the AC800M controller should be verified for firmware version compatibility and communication health — a degraded modem can cause intermittent I/O faults that are misdiagnosed as module failures. Similarly, the SD821 or SD822 power supply module feeding the S800 rack should be load-tested; an under-voltage condition on the 24 VDC rail is a common root cause of digital input module faults and will damage a replacement unit if left uncorrected.

Field wiring terminations on the TB25 or TB26 terminal base should be inspected for loose connections, corrosion, or insulation breakdown — particularly on channels that were reporting faults prior to module replacement. If the installation uses signal isolators (such as ABB’s ISOCON series or equivalent DIN-rail isolators) between field sensors and the S800 input channels, these should be tested for output accuracy and isolation integrity. A failed isolator will present as a module fault and is frequently overlooked.

For cabinets with mixed I/O, check adjacent ICSO08D1 digital output modules and any ICAI08H1 analog input modules sharing the same carrier for signs of thermal stress or connector wear. Fuse holders and 24 VDC branch circuit fuses protecting individual field loops should be continuity-tested — blown fuses on input circuits are a silent failure mode that prevents accurate fault diagnosis. If the system includes CI854A or CI858 PROFIBUS/PROFINET communication modules, verify that the fieldbus segment is error-free after the I/O swap, as module replacement can trigger address conflicts in some firmware versions.

Procurement engineers sourcing ICSI16D1 spares should also consider stocking the TB820 modem and at least one SD821 power supply as companion spares. These three components together cover the majority of S800 rack downtime scenarios and represent a practical minimum viable spare kit for any facility running AC800M-based control systems.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the ICSI16D1 using the AC800M Control Builder diagnostic view. Check the module LED status (RUN, ERR, and channel fault indicators) and log the fault code before powering down.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the 24 VDC field supply to the affected terminal base. Do not remove the module under live field voltage.

Step 3 — Module swap: The ICSI16D1 is hot-swap capable on supported S800 carriers. If the system configuration permits, the module can be replaced without a full rack power-down. Slide the module out of the carrier slot, insert the replacement unit, and confirm the RUN LED illuminates within 10–15 seconds as the module initializes from the carrier’s stored configuration.

Step 4 — Post-replacement validation: Force-test each of the 16 input channels from the field side using a loop calibrator or test switch. Confirm all channels report correctly in the Control Builder I/O list. Clear any latched fault alarms in the DCS historian.

Step 5 — Documentation: Record the replaced module’s serial number, installation date, and fault history in the site CMMS. Update the spare parts inventory to trigger reorder of a replacement ICSI16D1 for the shelf stock.

This workflow applies equally to planned annual maintenance shutdowns and emergency fault-response scenarios. The ICSI16D1’s plug-in form factor and carrier-stored configuration make it one of the fastest field replacements in the S800 family, with typical swap time under 20 minutes for a trained technician.

Spare Parts Support FAQ

Q1: Is this ICSI16D1 compatible with both AC800M and S800 remote I/O configurations?
Yes. The ICSI16D1 is designed for the S800 I/O platform and operates in both local rack (mounted near the AC800M controller) and remote I/O configurations connected via ModuleBus over fiber or copper. Compatibility is determined by the carrier and modem type, not the module itself. Confirm your TB820 or TB840A firmware version supports the module revision before installation.

Q2: How is the module tested before shipment?
Each ICSI16D1 unit is bench-tested for channel continuity, input threshold response, optical isolation integrity, and LED status behavior before dispatch. A test report is available on request. Units are shipped in anti-static packaging with physical protection for the connector pins.

Q3: What is the support terms coverage and what does it include?
All ICSI16D1 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, channel failure under normal operating conditions, and DOA (dead-on-arrival) replacement. It does not cover damage from incorrect installation, over-voltage events, or physical mishandling. Support requests are processed within 5 business days.

Q4: Can you support long-term or repeat procurement for maintenance programs?
Yes. For facilities running scheduled annual maintenance or managing multi-site S800 installations, we support blanket purchase orders, reserved stock arrangements, and priority dispatch agreements. Contact our team to discuss volume pricing and lead time commitments for ongoing spare parts programs.
