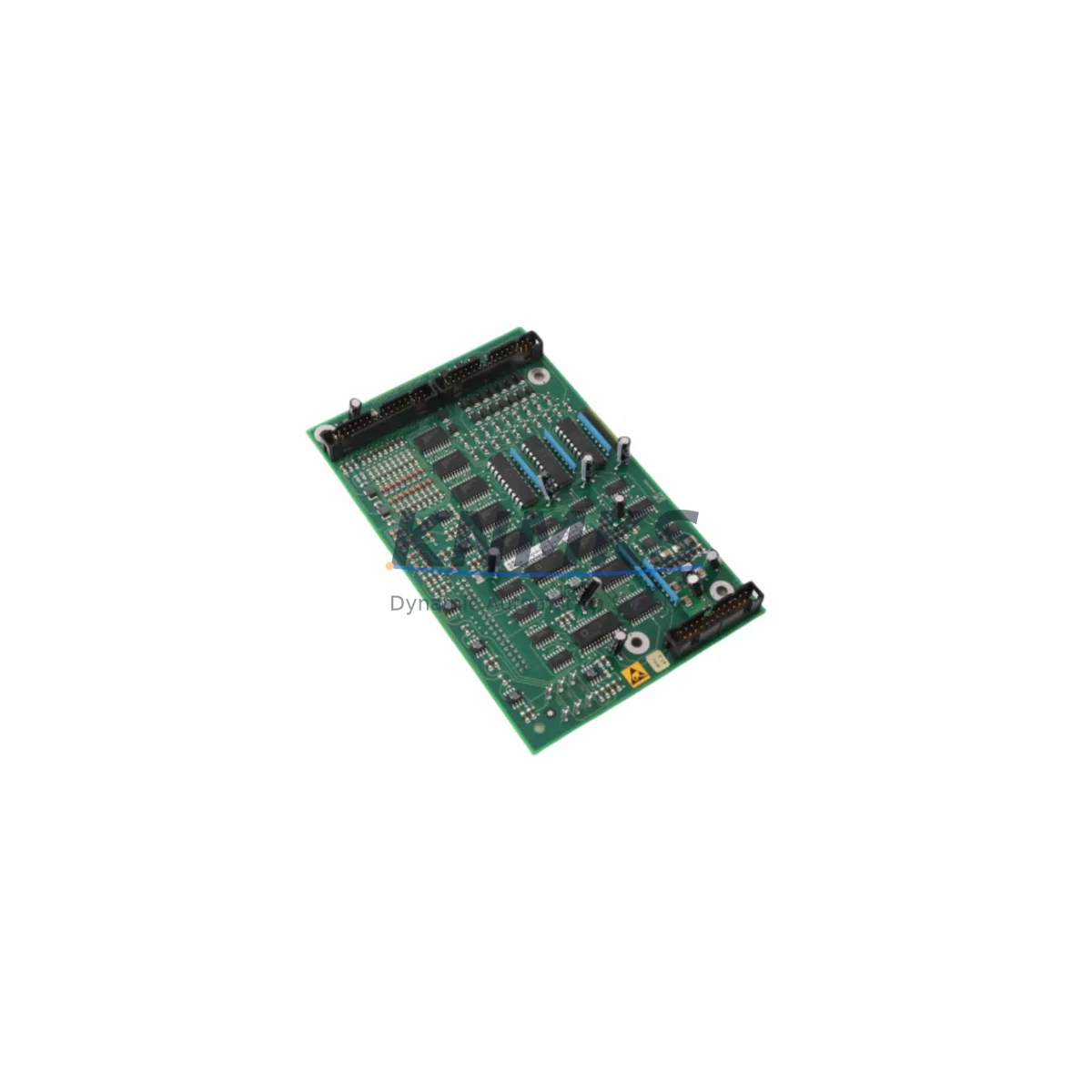

ABB HIEE405246R0002 UNS0867a-P Spare Part for AC800M

Overview

ABB HIEE405246R0002 UNS0867a-P Spare Part for AC800M: Maintenance-Proven DCS Extension Card for Factory Uptime

The ABB HIEE405246R0002 (UNS0867a-P) is a DCS Extension Card designed for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in energy, petrochemical, pulp and paper, and heavy manufacturing environments. When this card fails or reaches end-of-service life, the impact on process continuity is immediate. Sourcing a verified, original replacement is the fastest path to restoring full system operation without compromising safety or control integrity.

At KNMKS, every HIEE405246R0002 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence to stock this card as a critical spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the HIEE405246R0002 is rarely an isolated task. In a well-maintained AC800M cabinet, this extension card interfaces directly with the controller backplane, I/O bus, and communication infrastructure. A thorough site replacement plan should include inspection of the following components to prevent repeat failures and ensure stable recommissioning:

• AC800M Processor Modules (PM856 / PM864 / PM866): Confirm firmware version compatibility with the replacement card. Mismatched firmware revisions are a leading cause of post-replacement communication faults.
• S800 I/O Modules (AI810, AO810, DI810, DO810): Inspect field-side wiring and terminal blocks for corrosion or loose connections that may have contributed to the original card failure.
• CI854 / CI857 Communication Interface Modules: Verify PROFIBUS or FOUNDATION Fieldbus link integrity. A degraded communication module can cause false diagnostics on a newly installed extension card.
• TB820 / TB840 Termination Units: Check for oxidized contacts and verify that all signal cables are correctly seated. Termination unit faults are frequently misdiagnosed as extension card failures.
• 24 VDC Backplane Power Supply (SD821 / SD822 / SD823): Measure output voltage under load before installing the replacement card. Undervoltage conditions accelerate card wear and can void support terms coverage.
• Cabinet Fusing and Protection: Inspect fuse holders and MCBs on the 24 VDC distribution rail. A blown fuse protecting the extension card slot is a strong indicator of a downstream wiring fault that must be resolved before energizing the replacement.

Stocking the HIEE405246R0002 as part of a planned critical spare inventory — alongside at least one processor module and one communication interface card — reduces mean time to repair (MTTR) from days to hours in the event of an unplanned shutdown.

Site Replacement Workflow

Step 1 — Isolation: Place the AC800M controller in manual or safe-state mode via the DCS operator station. Confirm all field outputs are in a safe position before proceeding.

Step 2 — Documentation: Record the existing card’s slot position, firmware label, and any jumper or DIP switch settings. Photograph the backplane connector and adjacent wiring before removal.

Step 3 — Removal: Power down the affected controller rack following ABB lockout/tagout procedures. Remove the HIEE405246R0002 by releasing the card ejector levers. Inspect the backplane connector pins for damage or contamination.

Step 4 — Installation: Insert the replacement HIEE405246R0002 UNS0867a-P firmly into the correct slot. Verify the card is fully seated before restoring rack power.

Step 5 — Recommissioning: Power up the rack and monitor the controller diagnostic LEDs. Confirm all I/O channels report correctly in the DCS engineering station. Run a full I/O loop check before returning the controller to automatic mode.

Step 6 — Documentation Closure: Update the plant CMMS with the replacement date, new card serial number, and any observations noted during the procedure. Retain the removed card for failure analysis if required.

This workflow is compatible with both hot-standby and simplex AC800M configurations. For redundant controller pairs, coordinate the replacement with the control room to ensure the standby controller assumes control before the primary rack is isolated.

Spare Parts Support FAQ

Q1: Is the HIEE405246R0002 UNS0867a-P a direct drop-in replacement for earlier UNS0867 revisions?
In most AC800M installations, the UNS0867a-P is backward-compatible with earlier UNS0867 variants. However, firmware version alignment between the extension card and the host processor module (PM8xx series) should always be verified in the ABB AC800M Hardware Configuration Manual before installation. KNMKS can provide revision-specific units on request.

Q2: How is each unit tested before shipment?
Every HIEE405246R0002 dispatched by KNMKS undergoes a pre-shipment functional test that includes power-on verification, backplane communication check, and I/O bus integrity confirmation. A test report is available upon request. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed within 5 business days of receipt of the returned unit, with a replacement or credit issued promptly.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. For customers managing aging AC800M fleets or planning multi-year maintenance contracts, KNMKS offers long-term supply commitments with reserved stock allocation, priority dispatch, and fixed pricing agreements. Contact our team to discuss a tailored spare parts support program for your site.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE405246R0002 UNS0867a-P
AC800M Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB HIEE405246R0002 UNS0867a-P
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
