ABB HIEE320639R1 LT8978b V1 Maintenance-Proven Spare Part

Overview

ABB HIEE320639R1 LT8978b V1 Maintenance-Proven Spare Part for Factory Uptime

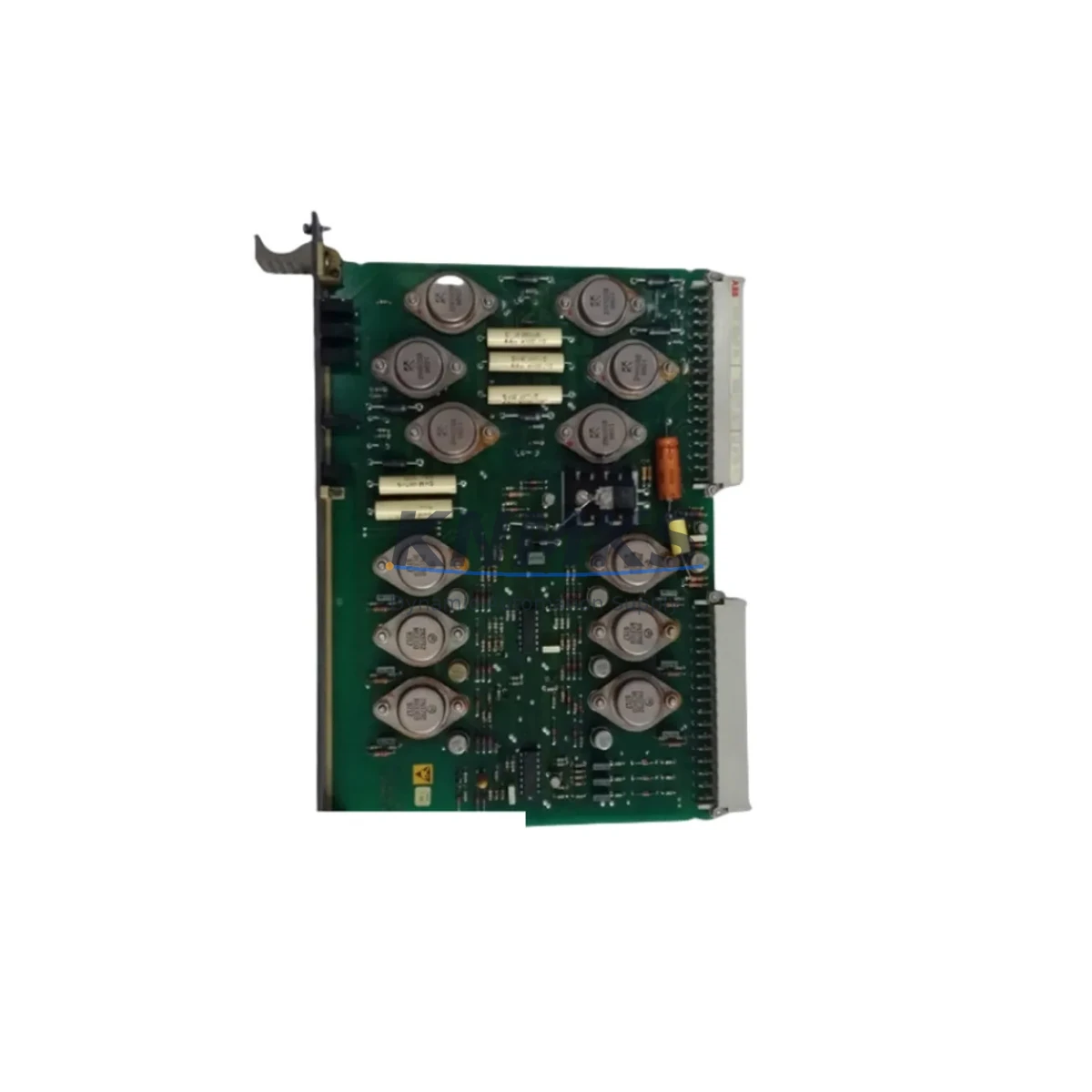

The ABB HIEE320639R1 LT8978b V1 is a gate drive board engineered for ABB ACS series variable frequency drives and AC800M control platforms. As a critical power electronics component, this board governs IGBT switching signals, directly controlling motor torque, speed regulation, and drive protection logic. In industrial environments where unplanned downtime translates to significant production loss, maintaining a verified spare of the HIEE320639R1 LT8978b V1 in your cabinet inventory is a foundational element of any proactive maintenance strategy.

This spare part is sourced as an original ABB component, manufactured in Germany, and subjected to pre-shipment functional testing before dispatch. Each unit ships with a support terms confirmed by quotation, providing procurement engineers with the confidence needed for long-cycle spare parts planning across multi-site facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the HIEE320639R1 LT8978b V1 gate drive board, maintenance engineers should treat the intervention as a full drive health audit rather than a single-component swap. Gate drive board failures in ACS series drives are frequently symptomatic of upstream or downstream stress on adjacent components — and replacing the board without inspecting the surrounding circuit risks repeat failure within weeks.

Begin with the DC bus capacitor bank: voltage ripple or capacitor aging is a leading cause of gate drive stress. Inspect and measure capacitance values if the drive has been in service for more than five years. Next, verify the condition of the IGBT power module itself — a degraded IGBT can destroy a new gate drive board during the first power-on cycle. Use a diode-mode multimeter check or dedicated IGBT tester before reinstalling.

Check the ACS drive control board (typically the RMIO or RDCO series for AC800M-linked configurations) for firmware version compatibility and any active fault logs that may indicate communication errors between the control layer and the gate drive layer. If the drive uses a fieldbus adapter module (such as RPBA-01 for PROFIBUS or RCAN-01 for CANopen), verify that the adapter is seated correctly and that communication parameters are intact after board replacement.

Inspect the drive input fuses and AC choke for signs of thermal stress or partial blow — these protect the rectifier bridge and indirectly affect gate drive stability. Review the fan and cooling assembly: blocked airflow is a primary cause of thermal cycling damage to gate drive boards in enclosed cabinets. For drives connected to I/O extension modules or signal isolators on the analog reference circuit, confirm that 0–10V or 4–20mA reference signals are within tolerance after the board swap, as gate drive replacement can sometimes reset drive parameter defaults.

Finally, if the drive cabinet includes a brake chopper module or regenerative unit, inspect the chopper IGBT and its associated gate resistors — these share the same DC bus and can be stressed by the same fault event that damaged the original HIEE320639R1 board. Documenting all findings in a maintenance log supports long-term spare parts planning and justifies stocking a second HIEE320639R1 LT8978b V1 unit for rapid response during future fault events.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ACS drive, apply LOTO, and wait for DC bus voltage to discharge below 50V (verify with a calibrated multimeter). Do not open the drive cabinet until discharge is confirmed.

Step 2 — ESD Preparation: Ground yourself with an ESD wrist strap before handling the HIEE320639R1 LT8978b V1 board. Gate drive PCBs are sensitive to electrostatic discharge; handle only by board edges.

Step 3 — Document Existing Configuration: Photograph the existing board orientation, connector positions, and any jumper or DIP switch settings before removal. This is especially important if the drive has been field-modified from factory defaults.

Step 4 — Board Removal & Inspection: Disconnect all ribbon cables and gate signal connectors. Remove the board and inspect the IGBT module gate pins and emitter connections for burn marks, carbon tracking, or mechanical damage. If damage is found on the IGBT, replace the IGBT module before installing the new gate drive board.

Step 5 — Install HIEE320639R1 LT8978b V1: Seat the new board, reconnect all connectors in the documented sequence, and verify that no cables are pinched or under tension.

Step 6 — Power-On & Verification: Restore power in stages. Monitor drive status LEDs and control panel for fault codes. Run the drive at low speed (5–10 Hz) under no-load conditions before returning to full production load. Log the commissioning result and update the maintenance record.

This workflow is compatible with direct replacement of earlier LT8978 revisions in the same ACS drive frame, reducing the need for full drive replacement and extending system service life by several years — a key advantage for facilities managing legacy automation infrastructure.

Spare Parts Support FAQ

Q1: Is the HIEE320639R1 LT8978b V1 compatible with all ACS drive frame sizes?
The HIEE320639R1 LT8978b V1 is designed for specific ACS drive frame sizes within the ABB ACS product family. Compatibility should be confirmed against the drive’s nameplate frame designation and the ABB spare parts catalog for your specific ACS model. Our technical team can assist with cross-reference verification prior to order confirmation.

Q2: What pre-shipment testing is performed on this gate drive board?
Each HIEE320639R1 LT8978b V1 unit undergoes functional verification before dispatch, including gate signal output checks and visual PCB inspection. Units that do not pass testing are not shipped. The support terms confirmed by quotation cover component failure under normal operating conditions from the shipment date.

Q3: Can you support long-term supply agreements for this spare part?
Yes. For facilities requiring guaranteed availability over 12–36 month horizons — particularly for legacy ACS drive fleets — we support blanket order arrangements and reserved stock programs. Contact our sales team to discuss volume, lead time, and pricing terms for multi-site procurement.

Q4: What should I do if the replacement board triggers a new fault code after installation?
If a new fault code appears after installing the HIEE320639R1 LT8978b V1, first verify that all connectors are fully seated and that the IGBT module passed pre-installation testing. Check the drive’s fault history log for any pre-existing faults that may have been masked. If the fault persists, contact our technical support team with the drive model, fault code, and installation details — we will assist with diagnosis and, if necessary, arrange a support terms replacement.

—
