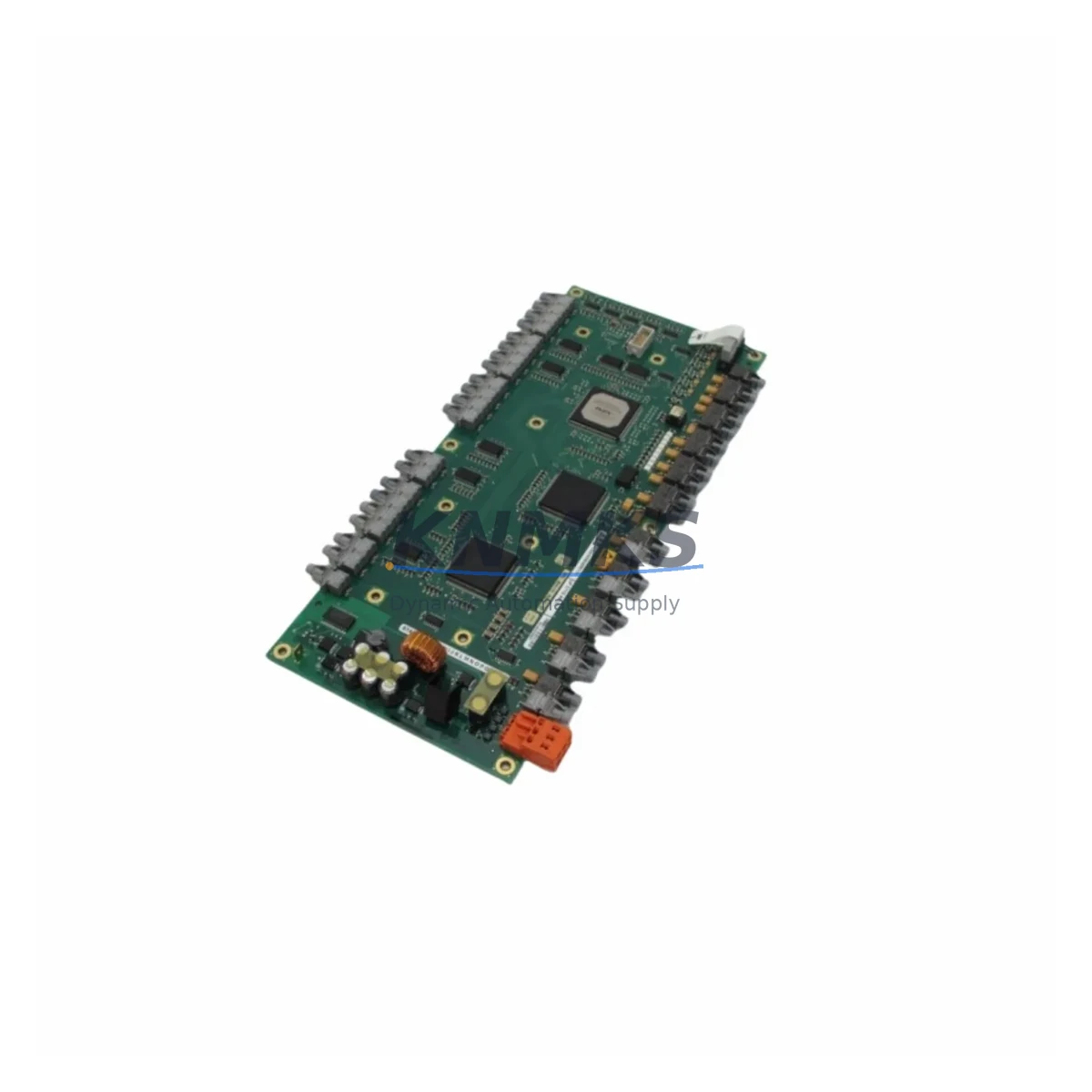

ABB HIEE300936R0101 Spare Part for UFC718 DCS Interface

Overview

ABB HIEE300936R0101 Spare Part for UFC718 DCS Interface: Maintenance-Proven for Factory Uptime

The ABB HIEE300936R0101 is the main circuit interface board for the UFC718 AE01 unit, a critical component within ABB’s Advant OCS and AC800M distributed control system platforms. Designed for long-cycle industrial environments including pulp and paper, power generation, oil and gas, and chemical processing, this board manages the primary signal routing between the DCS controller and field I/O circuits. When this module fails or degrades, the consequences extend beyond a single loop — entire process segments can go offline, triggering unplanned shutdowns and costly production losses.

Sourcing a verified, pre-tested HIEE300936R0101 from a reliable spare parts supplier is the fastest path to restoring system integrity. Each unit supplied by KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams confidence in both quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance or responding to an unplanned fault involving the HIEE300936R0101, a thorough inspection of the surrounding system is essential to avoid repeat failures and ensure a clean restoration. Maintenance engineers should treat this replacement as an opportunity to audit the full UFC718 assembly and its associated infrastructure.

Begin with the rack power supply. The UFC718 AE01 board draws power from the backplane, and a degraded or undersized power module — such as the ABB HIEE300916R0001 or equivalent UFC760 power supply unit — can cause intermittent board faults that mimic interface board failure. Confirm that the rack PSU is within its rated output capacity before condemning the HIEE300936R0101.

Next, inspect the backplane and rack chassis. Corroded or damaged backplane connectors are a common root cause of interface board communication errors in aging Advant OCS installations. If the rack has been in service for more than ten years, consider a full backplane continuity check before reinserting the replacement board.

The communication link between the UFC718 and the AC800M controller — typically routed through an INSUM or MasterBus 300 network — should also be verified. A faulty DSSB110 or DSBC172 communication module upstream can generate fault codes that appear to originate from the interface board. Clearing these upstream faults before commissioning the new HIEE300936R0101 prevents misdiagnosis and repeat callouts.

On the field side, review the terminal wiring connected to the I/O modules associated with this interface board. Loose terminals, corroded ferrules, or miswired signal cables can introduce ground loops or signal noise that stress the interface board circuitry. A wiring audit using the original loop drawings is recommended before powering up the replacement.

If the system includes an ABB Operator Interface Terminal or a legacy HMI panel linked to this DCS segment, verify that the HMI tag database and alarm configuration remain intact after the board swap. In some Advant OCS configurations, replacing the main circuit interface board requires a soft reset of the associated controller node to re-establish tag mapping.

Finally, check any signal isolators or barriers installed between the DCS I/O and field instruments. Zener barriers and galvanic isolators in the same loop as the UFC718 AE01 can mask or amplify faults during the replacement window. Confirming their integrity before and after the swap reduces commissioning time and protects the new board from field-side transients.

Site Replacement Workflow

A structured on-site replacement workflow minimizes downtime and reduces the risk of secondary faults during the HIEE300936R0101 swap.

Step 1 — Pre-Replacement Documentation: Before removing the faulty board, photograph the rack slot position, backplane connector orientation, and any field wiring labels. Record the current firmware version displayed in the engineering workstation for the UFC718 node. This baseline is critical if a firmware reload is required after replacement.

Step 2 — Controlled Shutdown: Place the affected DCS loop in manual mode at the operator station. Notify field operators of the impending control interruption. If the process cannot tolerate a manual hold, coordinate with operations to identify a safe maintenance window. Avoid hot-swapping the HIEE300936R0101 unless the system documentation explicitly confirms hot-swap capability for this slot.

Step 3 — Board Removal and Inspection: Power down the rack or isolate the slot per the site’s lockout/tagout procedure. Remove the HIEE300936R0101 carefully, inspecting the backplane connector pins for damage or contamination. Clean the slot with dry compressed air if debris is present.

Step 4 — Replacement Installation: Insert the new HIEE300936R0101 firmly into the rack slot, ensuring full backplane engagement. Restore rack power and observe the board’s status LEDs during initialization. A steady green status indicator confirms successful backplane communication.

Step 5 — System Verification: From the engineering workstation, confirm that the UFC718 node has re-established communication with the AC800M controller. Verify all I/O tags associated with this interface board are reading correctly. Return the loop to automatic control and monitor for 15–30 minutes before closing the work order.

Step 6 — Spare Stock Update: Log the replacement in the site’s CMMS and update the spare parts inventory. Given the criticality of the HIEE300936R0101 in Advant OCS and AC800M systems, maintaining at least one verified spare on-site is strongly recommended for facilities with extended lead times from OEM channels.

Spare Parts Support FAQ

Q1: Is the HIEE300936R0101 compatible with both Advant OCS and AC800M systems?
The HIEE300936R0101 is the main circuit interface board for the UFC718 AE01 module, which is used across ABB’s Advant OCS, MOD 300, and Master Series DCS platforms. Compatibility with AC800M-based systems depends on the specific rack and backplane configuration. We recommend confirming the rack type and slot assignment against your system’s hardware configuration documentation before ordering. Our technical team can assist with compatibility verification based on your system’s hardware list.

Q2: How is the HIEE300936R0101 tested before shipment?
Every HIEE300936R0101 unit supplied by KNMKS undergoes pre-shipment functional verification, including backplane interface checks and visual inspection for component-level defects. Units that do not pass verification are not dispatched. A support terms confirmed by quotation is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended spare stock strategy for the HIEE300936R0101?
For facilities operating Advant OCS or AC800M systems in continuous process environments, we recommend maintaining a minimum of one HIEE300936R0101 on-site as a critical spare. Given that ABB has transitioned many Advant-series products to limited availability, sourcing verified spares through specialist distributors is increasingly important for long-term maintenance planning. KNMKS maintains stock of this module and can support long-term supply agreements for multi-site operations.

Q4: Can the HIEE300936R0101 be installed without re-programming the DCS controller?
In most cases, replacing the HIEE300936R0101 with an identical spare does not require controller re-programming, as the configuration resides in the AC800M or Advant controller, not on the interface board itself. However, a soft reset of the associated controller node may be required to re-establish communication after the swap. Always verify with your system’s engineering documentation and perform the replacement during a planned maintenance window to allow for post-installation verification.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300936R0101
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HIEE300936R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
