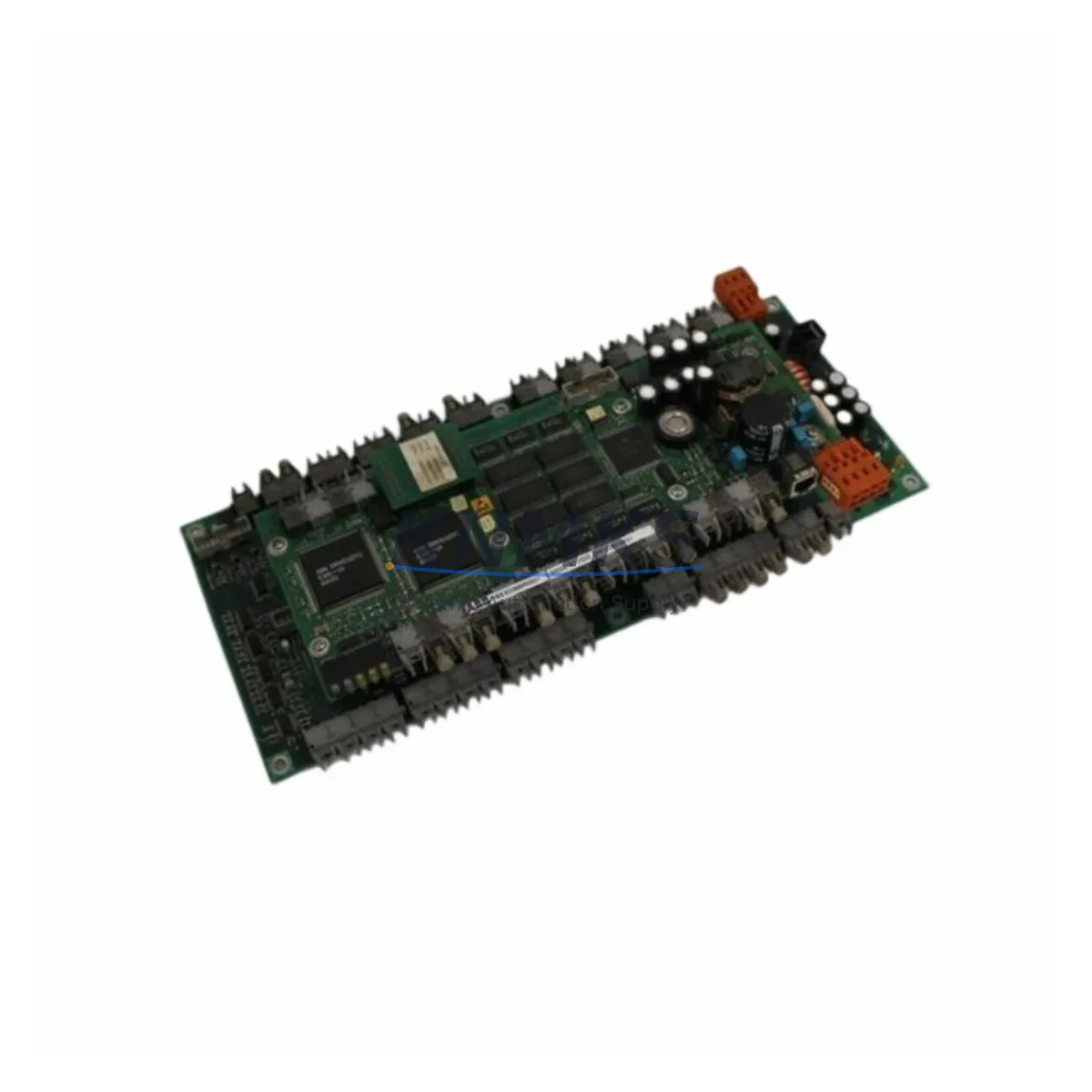

ABB HIEE300888R1 UAC389AE01 Migration-Ready DCS Board for Legacy Control Systems

The ABB HIEE300888R1 UAC389AE01 is a processor and communication control board designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, pulp & paper, and chemical processing industries. As ABB progressively phases out legacy AC800M hardware variants, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that can be integrated without rewriting control logic or reconfiguring the entire automation backbone.

This unit is stocked as a migration-ready spare, pre-tested prior to shipment and supplied with a support terms confirmed by quotation. It is suited for direct replacement of failed or end-of-life HIEE300888R1 boards in existing AC800M controller cabinets, as well as for planned retrofit projects where aging DCS hardware must be upgraded without full system replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the HIEE300888R1 UAC389AE01 within a live AC800M installation requires careful pre-planning across several interdependent system layers. Before removing the existing board, engineers should document the current module address configuration using ABB Control Builder M and export a full project backup. This ensures that if the replacement board requires firmware re-flashing or address re-assignment, the original logic can be restored without data loss.

Power supply capacity is a critical checkpoint. The AC800M rack typically draws power from a dedicated PM856 or compatible power supply module. Before installing the HIEE300888R1 replacement, verify that the PSU can sustain the additional load, particularly in cabinets where S800 I/O modules — such as the AI810 analog input module or DI810 digital input module — are densely populated on the same backplane segment. Overloaded power rails are a common root cause of intermittent faults after board replacement.

Terminal wiring and field signal integrity must also be confirmed. In retrofit scenarios where the original wiring harness has aged, it is advisable to inspect the TB820 termination board connections and verify that signal shielding is intact. Loose or corroded terminations at the field junction can introduce noise that mimics board-level faults, leading to misdiagnosis during commissioning.

For systems using PROFIBUS DP communication, the replacement board must be assigned the correct GSD file and station address within the PROFIBUS master configuration. If the plant also operates ABB Freelance or Symphony Plus controllers on the same network segment, ensure that address conflicts are resolved before energizing the new module. Communication link integrity between the AC800M controller and connected CI854 PROFIBUS communication interface modules should be verified using the network diagnostic tools available in Control Builder M.

HMI screen re-binding is frequently overlooked during board-level replacements. If the plant uses ABB 800xA or a third-party SCADA system with tag-based addressing, confirm that all process variable tags linked to the replaced board’s I/O channels are correctly mapped after the swap. Unbound tags will appear as bad quality signals in the operator display, which can trigger unnecessary process alarms during the first hours of post-replacement operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing DCS control boards in active production environments. The recommended approach is to schedule the HIEE300888R1 replacement during a planned maintenance window, with a pre-staged spare module that has already been tested and configured offline. This eliminates the configuration time that would otherwise be required during the outage window itself.

Where the process cannot tolerate a full controller shutdown, assess whether the AC800M rack supports redundant controller configurations. In redundant setups, the standby PM864 or PM866 controller can maintain process control while the primary board is replaced, reducing the effective downtime to the switchover interval — typically under 30 seconds for a well-configured redundancy pair.

Original program logic should be preserved by maintaining a version-controlled backup in Control Builder M prior to any hardware intervention. After the replacement board is installed and powered, perform a controlled download of the application program and verify that all I/O channels report expected values before releasing the system back to automatic control. Field technicians should have the original loop diagrams and cabinet layout drawings available during commissioning to accelerate fault isolation if unexpected behavior is observed.

Inventory availability for the HIEE300888R1 UAC389AE01 is maintained to support both emergency replacement and planned retrofit schedules. Long-term supply agreements covering 12–36 months of forward stock are available for multi-site operators seeking to standardize their spare parts strategy across multiple AC800M installations.

Retrofit Support FAQ

Q: Is the HIEE300888R1 UAC389AE01 a direct replacement for all HIEE300888R1 suffix variants?
A: The UAC389AE01 suffix designates a specific hardware revision. While the board is physically compatible with standard AC800M racks, confirm the UAC suffix of the original installed unit before ordering to ensure full firmware and feature parity. Our technical team can assist with cross-reference verification.

Q: What commissioning steps are required after installation?
A: After physical installation, assign the module address in Control Builder M, download the application program, verify I/O channel mapping, and confirm communication link status on all connected PROFIBUS or Modbus segments. HMI tag bindings should be checked before returning the system to automatic operation.

Q: Is pre-shipment testing performed on this unit?
A: Yes. Every HIEE300888R1 UAC389AE01 unit is functionally tested prior to dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering hardware defects under normal operating conditions.

Q: Can long-term supply agreements be arranged for multi-site AC800M installations?
A: Yes. We support 12–36 month forward inventory agreements for plant operators managing multiple AC800M systems. Contact our sales team to discuss volume requirements, lead times, and consignment stock options.
