ABB HIEE300725R0001 UAC317AE Spare Part for AC800M Uptime

Overview

ABB HIEE300725R0001 UAC317AE Spare Part for AC800M Uptime

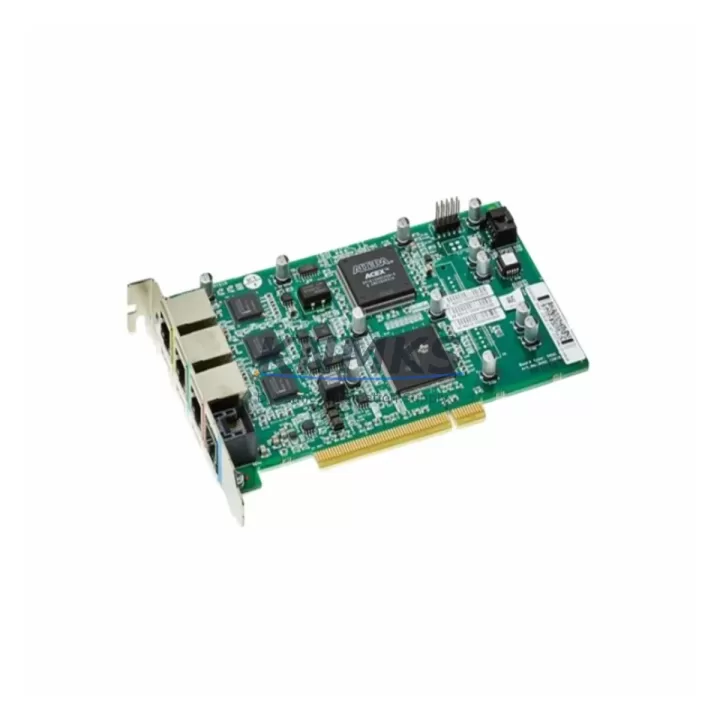

The ABB HIEE300725R0001 (UAC317AE) is an original DCS interface module engineered for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in process automation, power generation, and heavy industry. For maintenance engineers managing aging AC800M cabinets, this module is a critical spare: it handles communication and I/O interfacing between the controller backplane and field devices, and its failure can trigger unplanned shutdowns across entire process lines. Stocking a verified replacement unit is the most reliable strategy to minimize mean time to repair (MTTR) and protect factory uptime.

KNMKS supplies the HIEE300725R0001 as a tested, original ABB spare part with a support terms confirmed by quotation. Each unit undergoes functional verification prior to shipment, ensuring it arrives ready for immediate installation. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a preventive maintenance inventory, this module ships globally with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE300725R0001 UAC317AE in an AC800M cabinet, a disciplined maintenance engineer will not stop at the module itself. The AC800M architecture distributes control across tightly coupled components, and a fault in the interface module is frequently a symptom of broader electrical stress in the cabinet. Before returning the system to service, inspect the following associated components:

Start with the PM866 or PM891 processor module — the CPU that the UAC317AE interfaces with. Check firmware version compatibility and verify no fault codes are latched in the controller log. Next, inspect the TB820 or TB840 PROFIBUS DP communication module if the cabinet uses fieldbus I/O; a degraded communication module can cause intermittent faults that are misdiagnosed as interface module failures. Review the SD821 or SD822 power supply module for output voltage stability — undervoltage on the backplane rail is a common root cause of module resets and communication errors.

For I/O integrity, check the AI810 analog input module and DO810 digital output module on the same backplane segment. Loose terminal connections or oxidized I/O terminals can introduce signal noise that stresses the interface module. If the cabinet includes a CI854 or CI857 fieldbus interface module for FOUNDATION Fieldbus or PROFIBUS PA, verify its diagnostic LEDs and communication health before closing the cabinet. Finally, inspect all backplane connectors and module retention latches — mechanical wear in high-vibration environments is a leading cause of intermittent module faults that appear as interface errors.

For procurement engineers, we recommend maintaining a minimum of one HIEE300725R0001 unit per AC800M cabinet cluster in your spare parts inventory. Given the long lead times for original ABB DCS modules through standard distribution channels, a pre-positioned spare eliminates the risk of extended downtime while awaiting delivery. KNMKS supports blanket order arrangements and long-term supply agreements for facilities managing multiple AC800M systems.

Site Replacement Workflow

Replacing the HIEE300725R0001 UAC317AE on-site follows a structured sequence to minimize downtime and avoid configuration loss. Begin by exporting the current AC800M project configuration from ABB Control Builder M and saving it to a secure backup location — this is non-negotiable before any hardware change. Confirm the replacement module’s part number and hardware revision match the installed unit; ABB occasionally releases hardware revisions (R0001, R0002, etc.) with minor differences in firmware compatibility.

With the system in a safe state (process permitting), remove the faulty module by releasing the front panel latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement. Seat the new HIEE300725R0001 firmly until the latch engages, then power the cabinet and observe the module’s status LEDs through the startup sequence. In most AC800M configurations, the module will self-configure from the controller’s stored project data within 60–90 seconds. Verify all I/O channels and communication links are restored before returning the process to automatic control.

This workflow is compatible with both hot-standby redundant AC800M configurations and single-controller installations. For redundant systems, the replacement can typically be performed without a full process shutdown by switching control to the redundant controller first — consult your site-specific safety procedures before proceeding.

Spare Parts Support FAQ

Q1: Is the HIEE300725R0001 compatible with all AC800M controller variants?
The UAC317AE interface module is designed for the AC800M platform and is compatible with the PM866, PM891, and related processor modules. Compatibility with specific hardware revisions should be confirmed against your installed AC800M firmware version. KNMKS technical support can assist with compatibility verification before purchase.

Q2: What testing is performed before shipment?
Every HIEE300725R0001 unit supplied by KNMKS undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation and communication interface checks. A support terms confirmed by quotation is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can KNMKS support long-term or blanket supply for multiple AC800M sites?
Yes. KNMKS supports long-term supply agreements and blanket purchase orders for facilities managing multiple AC800M installations. We maintain multi-region stock to support rapid delivery globally. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.

Q4: What is the recommended spare parts strategy for AC800M cabinets?
For critical process applications, we recommend stocking one interface module per cabinet cluster, with a review cycle aligned to your annual maintenance shutdown. Modules in continuous service for more than 8–10 years should be considered for proactive replacement during planned outages, even without visible fault symptoms, to reduce the risk of unplanned failure during peak production periods.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300725R0001-UAC317AE
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HIEE300725R0001-UAC317AE
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
