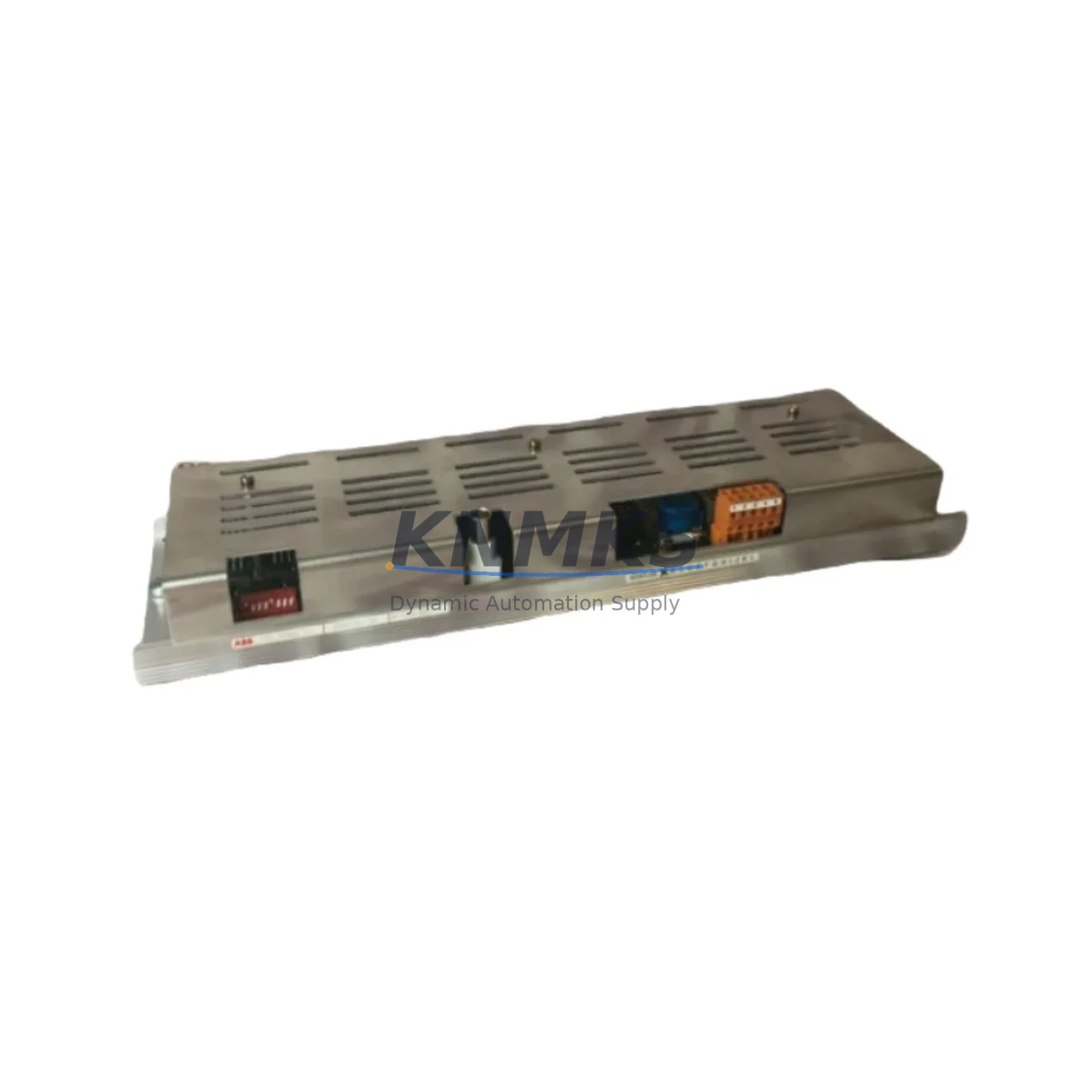

ABB HIEE300690R1 ARC093 A V1 Maintenance-Proven Spare Part

Overview

ABB HIEE300690R1 ARC093 A V1 Maintenance-Proven Spare Part for Factory Uptime

The ABB HIEE300690R1 ARC093 A V1 is an original analog output module engineered for the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures across oil & gas, power generation, pulp & paper, and chemical processing facilities. As a direct-fit, factory-original spare part, this module is a critical component for maintenance engineers managing aging AC800M cabinets where analog signal integrity directly governs process loop performance and plant uptime.

Sourced from verified supply channels and pre-shipment tested against ABB factory specifications, the HIEE300690R1 ARC093 A V1 is stocked for immediate dispatch to support emergency replacement, planned annual overhaul, and strategic spare parts inventory programs. Each unit ships with a support terms confirmed by quotation and full functional test documentation, giving procurement engineers the confidence to commit to long-term supply agreements without qualification risk.

For maintenance teams operating AC800M-based control systems, the analog output module is a high-wear, high-criticality component. Signal drift, channel failure, or firmware incompatibility in this module can cascade into process loop instability, spurious shutdowns, or loss of regulatory control — all of which translate directly into unplanned downtime and production loss. Keeping a verified spare on the shelf is not optional; it is a fundamental element of any responsible maintenance strategy for continuous process plants.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE300690R1 ARC093 A V1 in an AC800M cabinet, a disciplined maintenance engineer will not stop at the module itself. The analog output signal chain involves multiple upstream and downstream components whose condition directly affects whether the replacement restores full loop performance or simply shifts the fault to an adjacent component.

Begin with the AC800M processor module (PM860 or PM861 series) — verify firmware revision compatibility with the ARC093 A V1 hardware revision before installation. A firmware mismatch can cause the module to enumerate incorrectly on the S800 I/O bus, producing intermittent faults that are difficult to distinguish from a hardware defect. Next, inspect the TB820 or TB840 ModuleBus modem that bridges the processor to the I/O cluster; a degraded modem will introduce latency and communication errors that persist even after a clean module swap.

Check the SD821 or SD822 power supply module feeding the I/O rack. Analog output modules are sensitive to supply ripple and voltage sag — a power supply operating near end-of-life will cause output channel instability that mimics a faulty AO module. Replace or test the power supply in parallel with the HIEE300690R1 swap to eliminate this variable. Similarly, inspect the field terminal unit (TU830 or TU831) connected to the module; corroded or loose terminal contacts are a common source of 4–20 mA signal errors that survive a module replacement.

For facilities running PROFIBUS DP or FOUNDATION Fieldbus segments alongside the AC800M, verify that the CI854 or CI858 communication interface module in the same cabinet is operating within specification. A degraded fieldbus interface can generate bus errors that the DCS controller misattributes to I/O module faults. Finally, review the fuse and surge protection assemblies on the analog output field wiring — a blown fuse or a failed transient voltage suppressor on a 4–20 mA loop will produce a dead channel reading that is indistinguishable from a failed AO module until the protection components are inspected.

Stocking the HIEE300690R1 ARC093 A V1 alongside these associated components — power supply, ModuleBus modem, terminal unit, and fieldbus interface — constitutes a complete AC800M analog output maintenance kit and is the recommended approach for facilities with mean-time-to-repair (MTTR) targets below four hours.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module part number and revision via the AC800M engineering tool (Control Builder M). Cross-reference the HIEE300690R1 ARC093 A V1 revision against the installed firmware baseline. Document the current channel configuration (range, scaling, fault action) before powering down the rack slot.

Step 2 — Safe isolation: Place the affected control loop in manual mode at the DCS operator station. Notify field operators of the impending analog output interruption. De-energize the I/O rack slot using the local rack power switch or remove the module with the rack powered if the AC800M configuration supports hot-swap for this module type — verify this in the AC800M hardware manual before proceeding.

Step 3 — Module swap: Remove the legacy HIEE300690R1 unit by releasing the front locking lever and sliding the module from the backplane. Insert the replacement ARC093 A V1 unit, ensuring the backplane connector seats fully. The module will self-identify on the S800 I/O bus within 10–30 seconds of power restoration.

Step 4 — Configuration restore: Using Control Builder M, download the channel configuration to the replacement module. Verify that all output channels report correct engineering unit values at the operator station. Perform a loop check on each active 4–20 mA channel against the field instrument to confirm signal integrity end-to-end.

Step 5 — Return to automatic: Once all channels verify correctly, return the control loop to automatic mode. Monitor the loop for 15–30 minutes for any residual instability. Update the maintenance log with the replacement date, new module serial number, and post-swap loop performance data.

This workflow minimizes process disruption, ensures configuration continuity, and provides a complete audit trail — all of which are requirements for ISO 55001-aligned asset management programs and process safety management (PSM) compliance in regulated industries.

Spare Parts Support FAQ

Q1: Is the HIEE300690R1 ARC093 A V1 an original ABB part or a compatible replacement?
This unit is an original ABB spare part sourced from verified supply channels. It is not a third-party compatible or remanufactured substitute. Each unit is tested against ABB factory specifications prior to shipment and carries a support terms confirmed by quotation covering manufacturing defects and functional performance.

Q2: How do I confirm compatibility with my specific AC800M cabinet configuration?
Compatibility is determined by the AC800M hardware generation and the Control Builder M project configuration. The HIEE300690R1 ARC093 A V1 is compatible with standard AC800M I/O racks using the S800 I/O bus architecture. Provide your cabinet hardware list or Control Builder M hardware configuration export to our technical team at [email protected] for a pre-purchase compatibility confirmation.

Q3: What is the recommended spare parts stocking strategy for AC800M analog output modules?
For continuous process plants, the industry standard recommendation is to maintain a minimum of one spare analog output module per four installed units, with a floor of two spares per cabinet regardless of installed count. For facilities with extended lead-time risk (remote locations, single-source supply), a ratio of one spare per two installed units is advisable. Annual consumption data from your CMMS should be used to refine this ratio based on actual failure rates.

Q4: What does the support terms confirmed by quotation cover, and what is the process for a support terms claim?
The support terms confirmed by quotation cover functional failure under normal operating conditions, including channel output failure, bus communication errors, and hardware defects present at the time of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. To initiate a support terms claim, contact [email protected] with the order reference, module serial number, and a description of the fault. Replacement units are dispatched within 5 business days of fault confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300690R1 ARC093 A V1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HIEE300690R1 ARC093 A V1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
