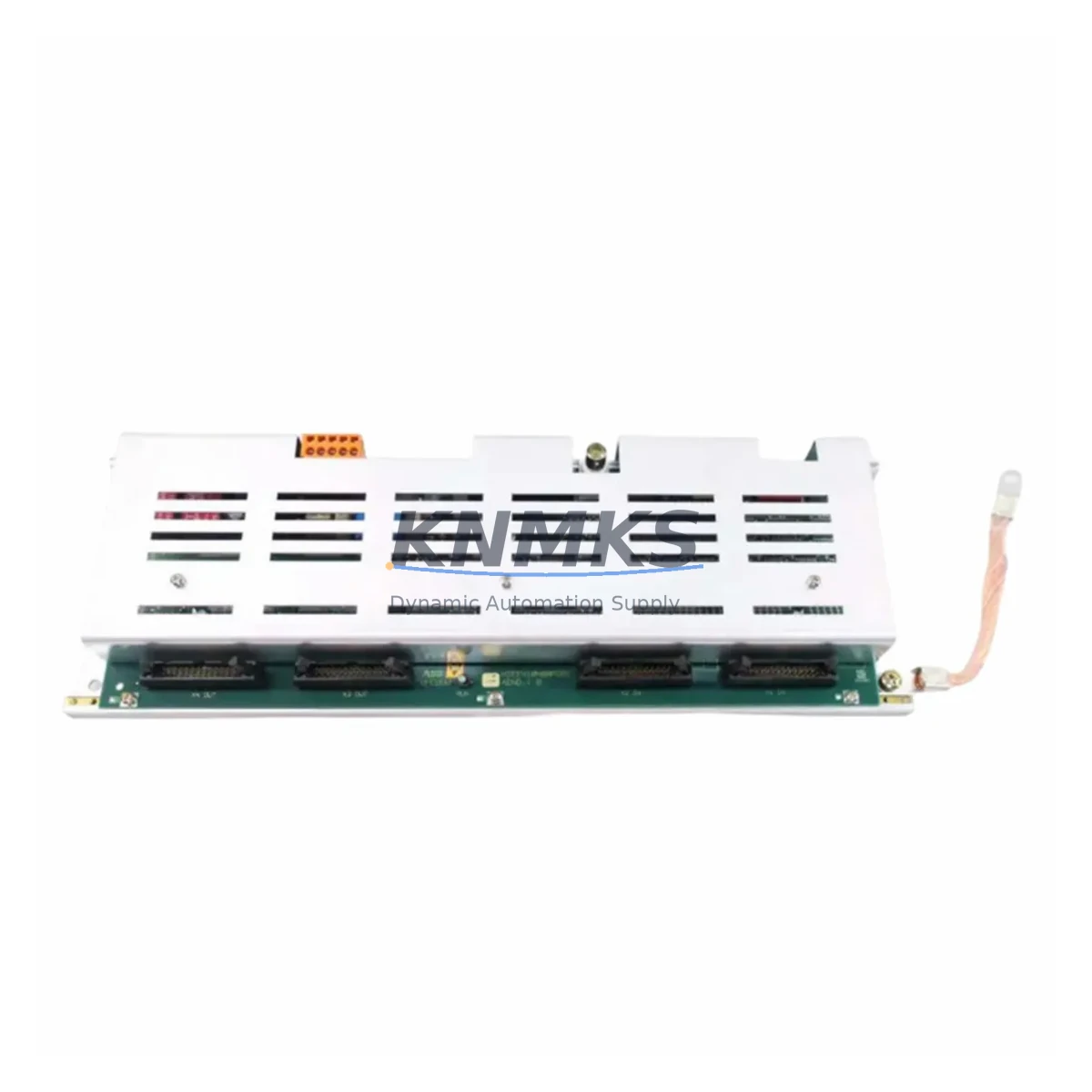

ABB HIEE300661R0001 Migration-Ready Coupler for Legacy DCS

Overview

ABB HIEE300661R0001 Migration-Ready Coupler for Legacy DCS Control Systems

The ABB HIEE300661R0001 is a MASTERBUS Coupler Card engineered for backplane communication within ABB’s legacy Distributed Control System (DCS) architecture. As industrial facilities accelerate migration away from end-of-life control platforms, this module serves as a critical bridge component — enabling engineers to extend operational continuity, preserve existing program logic, and defer full system replacement while maintaining process reliability. Whether you are executing a phased retrofit, replacing a failed spare, or upgrading a legacy control cabinet, the HIEE300661R0001 provides a verified, drop-in compatible solution with a support terms confirmed by quotation and pre-shipment functional testing.

This coupler card is specifically designed for integration within ABB’s MASTERBUS communication backbone, supporting backplane slot addressing and inter-module data exchange in multi-rack DCS configurations. Its compact form factor and standardized terminal interface make it suitable for direct installation into existing control cabinets without structural modification, minimizing downtime during changeover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HIEE300661R0001 into a legacy ABB DCS environment requires systematic pre-installation verification across several interdependent subsystems. Engineers should begin by auditing the existing rack configuration — confirming available backplane slots, verifying that the MASTERBUS rack (such as the ABB DSBC 176 or equivalent backplane chassis) has sufficient physical clearance, and documenting the current slot address assignments to avoid address conflicts after module insertion.

Power supply capacity is a frequent oversight in retrofit projects. Before installing the HIEE300661R0001, confirm that the rack’s 24 VDC power supply module — for example, an ABB DSQC 604 or equivalent PSU — has sufficient current headroom to support the additional coupler load. Overloaded power rails are a leading cause of intermittent communication faults in legacy DCS environments.

Terminal wiring must be cross-referenced against the original as-built drawings. The HIEE300661R0001’s terminal interface follows ABB’s standard backplane pinout, but field wiring modifications made during previous maintenance cycles may have introduced deviations. Photograph and document all terminal connections before disconnection.

For systems incorporating ABB DSAI 130 analog input modules or ABB DSDO 115 digital output modules on the same rack, confirm that the coupler’s slot address does not conflict with existing I/O module addressing. In multi-rack configurations, the MASTERBUS coupler’s node address must be set consistently with the host controller’s rack topology map — typically configured via DIP switch or firmware parameter depending on the CPU module revision.

Communication link integrity should be validated using the ABB system’s built-in diagnostic tools or an external MASTERBUS protocol analyzer before returning the system to production. If the control system includes an ABB Panel 800 HMI or equivalent operator interface, verify that all process variable tags continue to resolve correctly after the coupler replacement. In most like-for-like swap scenarios, no HMI reconfiguration is required; however, if the replacement involves a firmware revision change, tag re-mapping may be necessary.

For facilities also managing ABB DSMB 127 memory backup modules or ABB DSPC 155 processor cards within the same control cabinet, coordinate the coupler replacement with the broader spare parts lifecycle plan to ensure system-wide firmware consistency and reduce the risk of inter-module compatibility issues during future maintenance windows.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS retrofit. The HIEE300661R0001 is supplied pre-tested and ready for installation, eliminating the bench-testing phase that typically adds 2–4 hours to emergency replacement workflows. Each unit undergoes functional burn-in verification prior to shipment, with a test report available on request to satisfy site acceptance requirements.

For planned maintenance windows, the recommended replacement sequence is: (1) back up the current CPU program and rack configuration to an offline storage device; (2) de-energize the affected rack section following site lockout/tagout procedures; (3) document and photograph all terminal connections; (4) remove the failed coupler and install the HIEE300661R0001 in the same slot position; (5) restore power and verify MASTERBUS communication status via the host controller’s diagnostic interface; (6) confirm all I/O modules on the rack are reporting correctly before releasing the system to production.

In facilities where continuous process control is required, consider staging a parallel rack with the replacement coupler pre-installed and pre-addressed, enabling a rapid switchover with minimal process interruption. This approach is particularly effective in chemical, power generation, and water treatment applications where even brief control interruptions carry significant operational risk.

Original program logic is fully preserved during a like-for-like coupler replacement — no re-download or re-commissioning of the CPU program is required. Field calibration data stored in analog input modules such as the ABB DSAI 130 is unaffected by the coupler swap. This significantly reduces the post-installation verification workload and supports a controlled, low-risk return to service.

Retrofit Support FAQ

Q1: Is the HIEE300661R0001 a direct drop-in replacement for the original ABB MASTERBUS coupler?
A: Yes, for like-for-like replacement within the same rack slot and firmware revision environment. Confirm the slot address, backplane connector type, and firmware version of the host CPU module before installation. No program re-download is required for direct replacement.

Q2: What pre-installation checks are required before wiring the HIEE300661R0001?
A: Verify rack power supply headroom, confirm backplane slot address assignment, cross-reference terminal wiring against original as-built drawings, and document all existing connections before disconnection. Check that adjacent I/O modules (e.g., analog input or digital output cards) do not have conflicting slot addresses.

Q3: Has this unit been tested before shipment, and is a support terms provided?
A: Yes. Every HIEE300661R0001 unit undergoes functional burn-in testing prior to shipment. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can you supply multiple units for a phased retrofit or long-term spare parts program?
A: Yes. Stock availability is confirmed prior to order acceptance. For phased retrofit projects or long-term spare parts programs requiring multiple units, contact our sales team for volume pricing, lead time confirmation, and coordinated delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300661R0001
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HIEE300661R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
