ABB HIEE300550R1 Fail-Safe DCS Processor for Industrial Control

Overview

ABB HIEE300550R1 Fail-Safe DCS Processor for Industrial Control Reliability

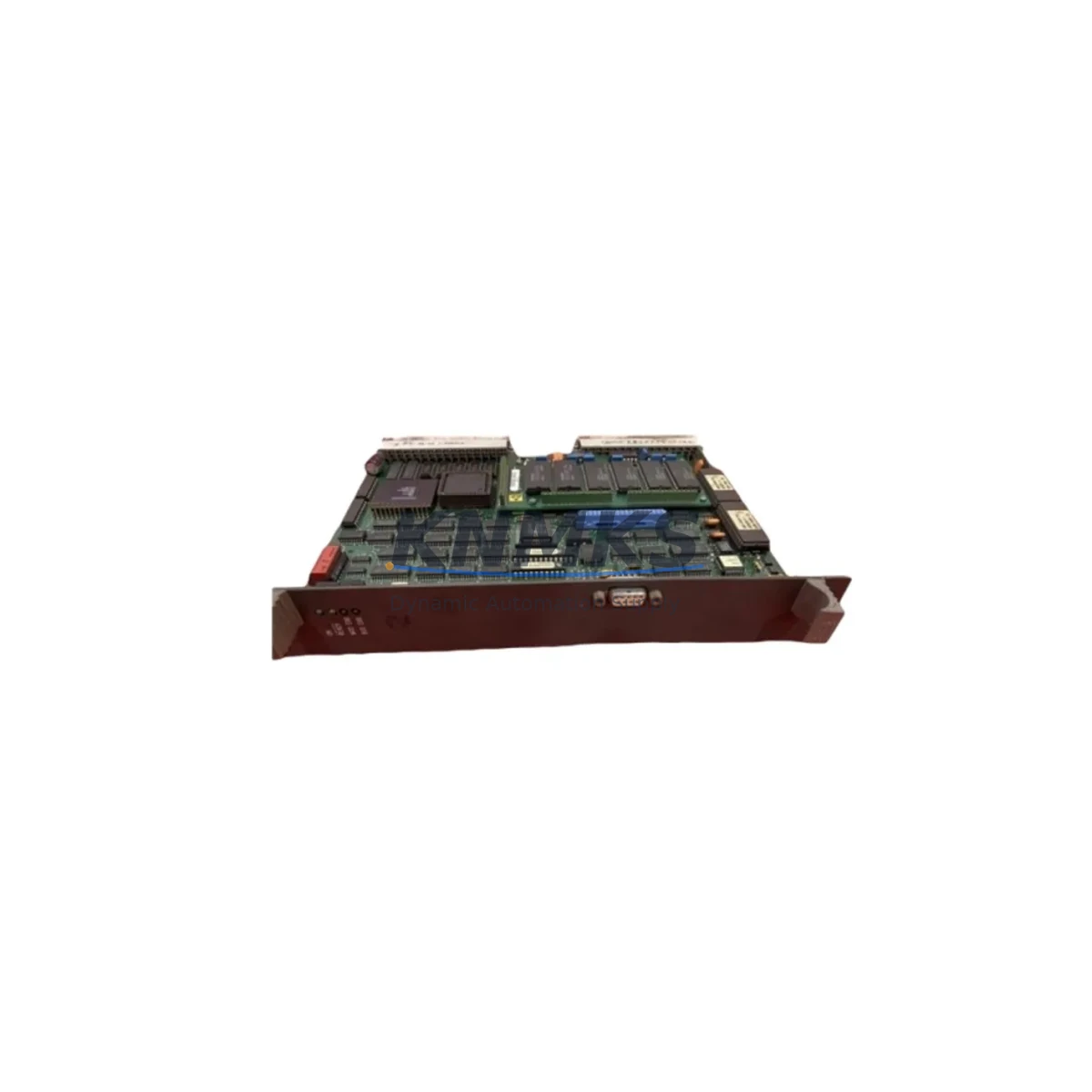

The ABB HIEE300550R1 PPB022CE V01 is a high-integrity DCS processor board engineered for continuous, uninterrupted operation in safety-critical industrial environments. Designed as a core processing unit within ABB’s AC800M distributed control architecture, this module delivers deterministic scan-cycle execution, robust fault isolation, and sustained signal integrity across demanding field conditions — including high electromagnetic interference, voltage transients, ambient temperature extremes, mechanical vibration, and elevated dust or humidity exposure.

In continuous process industries — petrochemical refining, power generation, metallurgical smelting, water treatment, and port logistics — control system downtime is not merely a productivity loss; it is a safety event. The HIEE300550R1 PPB022CE V01 addresses this reality by maintaining stable CPU execution even under power supply fluctuation, surge injection, and communication bus anomalies. Its onboard diagnostics actively monitor processor health, memory integrity, and I/O communication status, enabling early fault detection before a process upset can escalate into an unplanned shutdown or safety interlock activation.

Within a typical control cabinet deployment, this processor board operates in close coordination with companion modules including the ABB HIEE300912R1 communication interface unit, HIEE300024R1 power supply module, and HIEE300551R1 redundant processor pair — forming a tightly integrated, fault-tolerant control node. When paired with ABB’s CI854A PROFIBUS DP communication interface or the TB820V2 ModuleBus modem, the HIEE300550R1 supports deterministic fieldbus communication to remote I/O clusters, safety instrumented system (SIS) gateways, and distributed field devices across the plant network.

Signal drift, a persistent risk in high-temperature or high-vibration environments, is mitigated through the board’s stable reference architecture and thermally compensated design. In mining and mineral processing applications — where conveyor interlocks, crusher protection circuits, and slurry pump control loops must remain active under continuous mechanical stress — the HIEE300550R1 provides the processing backbone that keeps safety logic executing without interruption. Similarly, in offshore and marine automation, where salt-laden air and vessel motion introduce both corrosion and vibration fatigue, this processor’s robust construction supports long mean-time-between-failure (MTBF) performance.

Surge and transient protection is a critical consideration for any processor board installed in industrial switchgear rooms or field control panels located near high-voltage equipment, variable frequency drives (VFDs), or large motor starters. The HIEE300550R1 PPB022CE V01 is designed to withstand the conducted and radiated interference levels typical of these environments, reducing the risk of spurious resets, memory corruption, or communication loss that could trigger false safety trips or mask genuine fault conditions.

Every unit supplied by KNMKS undergoes pre-shipment functional testing against ABB factory acceptance criteria, covering processor boot integrity, memory read/write verification, communication port handshake, and power rail stability. This testing protocol ensures that replacement boards arrive site-ready, minimizing the engineering time required for commissioning and reducing the window of exposure during a critical spare parts swap. Long-term spare parts availability is supported through KNMKS’s multi-region inventory program, ensuring that obsolescence or extended lead times from the OEM do not compromise your plant’s maintenance strategy.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DCS control cabinet is never built around a single component. The HIEE300550R1 PPB022CE V01 functions as the processing core, but its operational integrity depends on the quality and compatibility of every surrounding module. In a well-engineered AC800M cabinet, the HIEE300024R1 power supply module provides regulated, filtered DC power to the processor backplane, suppressing low-frequency ripple and high-frequency switching noise that could otherwise induce processor resets or data corruption. Upstream of the power supply, a properly rated surge protective device (SPD) on the incoming AC feed is essential to block lightning-induced transients and utility switching surges from reaching the control electronics.

For process plants running PROFIBUS DP fieldbus networks, the CI854A communication interface board connects the AC800M controller to field devices — including positioners, flow transmitters, and motor protection relays — with deterministic cycle times and built-in bus diagnostics. In parallel, the TB820V2 ModuleBus modem extends the internal I/O bus to remote I/O clusters mounted in field junction boxes, reducing the volume of individual signal cables running back to the central control room and improving overall system noise immunity.

Where process safety requirements mandate SIL-rated interlock functions, the HIEE300550R1 processor node is typically deployed alongside dedicated safety I/O modules and a separate safety logic controller — such as the ABB AC800M HI high-integrity variant — ensuring that safety instrumented functions (SIFs) remain segregated from basic process control logic. This architectural separation is a fundamental requirement of IEC 61511 and reduces the risk of common-cause failures between the BPCS and SIS layers. Cabinet thermal management, achieved through forced-air cooling units or heat exchanger panels, further protects the processor board from thermal stress in high-ambient or high-dissipation enclosures.

Critical Industrial Safety Applications

The ABB HIEE300550R1 PPB022CE V01 is deployed across a broad range of safety-critical and continuous-process industries where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refining facilities, this processor board manages reactor temperature control loops, compressor anti-surge logic, and emergency shutdown (ESD) pre-processing — environments where a spurious trip costs hundreds of thousands of dollars per hour and a missed trip can result in a catastrophic release. In power generation plants, including coal-fired, gas turbine, and hydroelectric stations, the HIEE300550R1 supports turbine governor control, boiler combustion management, and grid synchronization logic, where millisecond-level response consistency is non-negotiable.

In mining and mineral processing, the processor board controls conveyor sequencing, crusher protection interlocks, and flotation cell reagent dosing — all in environments characterized by heavy dust loading, ground vibration, and frequent electrical transients from large drive systems. Water and wastewater treatment plants rely on DCS processor boards of this class to manage pump station sequencing, chemical dosing control, and SCADA communication — often in unmanned remote stations where mean-time-to-repair (MTTR) must be minimized through reliable hardware and fast spare parts availability.

In metallurgical and steel production facilities, extreme radiated heat, high-current bus bars, and continuous mechanical vibration create one of the most demanding environments for control electronics. The HIEE300550R1’s robust construction and thermal tolerance make it a proven choice for electric arc furnace (EAF) control, rolling mill automation, and ladle metallurgy station management. Port and marine automation applications — including ship-to-shore crane control, bulk material handling, and vessel management systems — benefit from the board’s vibration resistance and communication reliability in salt-air environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB HIEE300550R1 PPB022CE V01?
Every HIEE300550R1 PPB022CE V01 supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers functional failure under normal operating conditions and includes technical support for installation and commissioning queries. Support requests are processed promptly to minimize plant downtime.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Each unit undergoes a structured pre-shipment functional test covering processor initialization, memory integrity verification, communication port handshake, and power rail stability checks. This testing protocol is aligned with ABB factory acceptance criteria and ensures that every board dispatched is confirmed operational before it reaches your site.

Q3: Is the HIEE300550R1 PPB022CE V01 compatible with existing AC800M controller configurations?
The HIEE300550R1 PPB022CE V01 is designed for use within ABB’s AC800M distributed control system platform. Compatibility with your specific controller revision, firmware version, and backplane configuration should be verified against your system’s engineering documentation. KNMKS technical support can assist with compatibility assessment based on your existing system details — contact [email protected] for guidance.

Q4: Can KNMKS support long-term spare parts supply for this module?
Yes. KNMKS maintains multi-region inventory of ABB AC800M series components, including the HIEE300550R1, to support planned maintenance programs, emergency replacements, and long-term spare parts strategies — particularly for sites where OEM lead times have extended due to product lifecycle changes. Contact our team to discuss scheduled supply agreements or emergency stock reservation.
