ABB HIEE300025R2 VDA330 A02 Maintenance-Proven Spare Part

Overview

ABB HIEE300025R2 VDA330 A02 Maintenance-Proven Spare Part for Factory Uptime

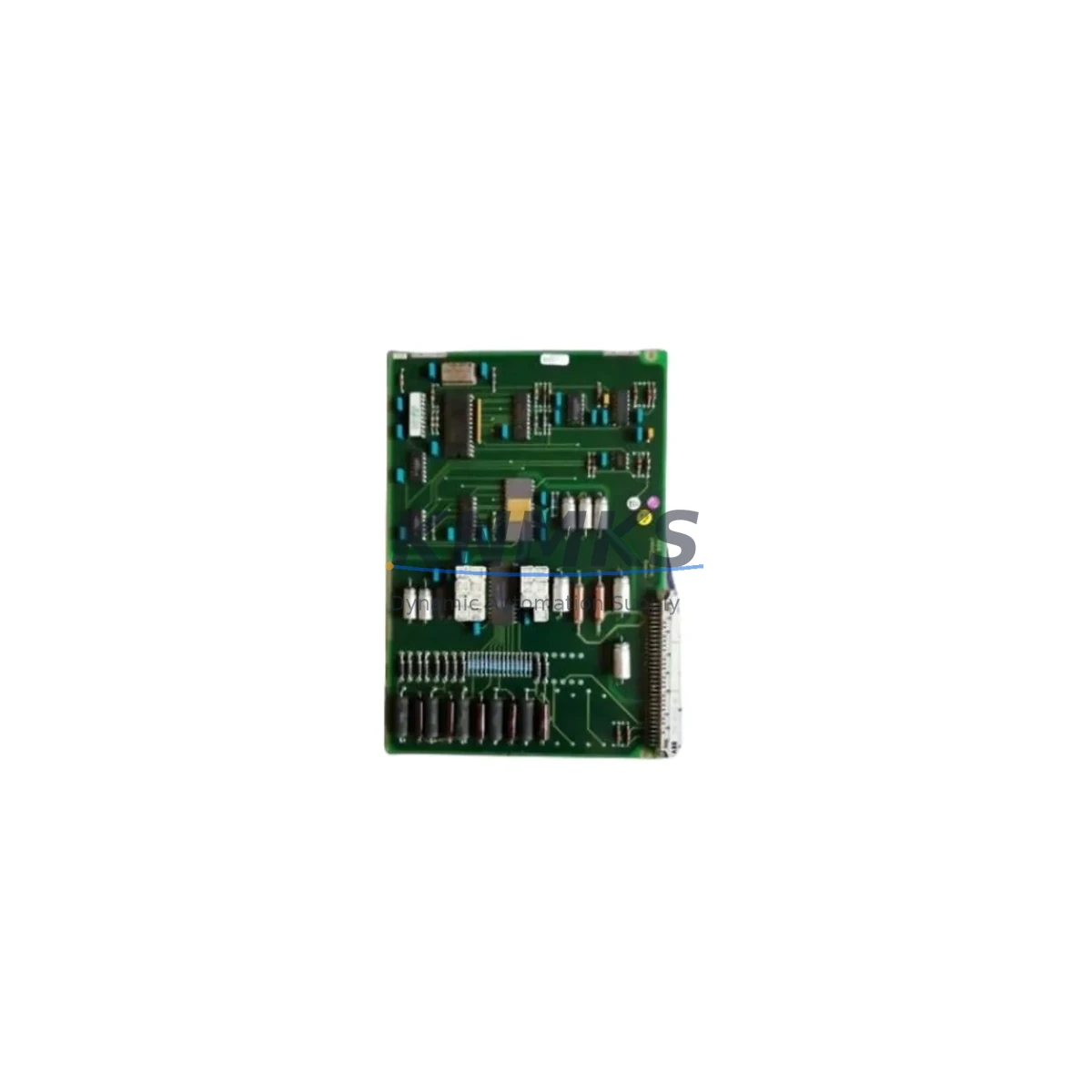

The ABB HIEE300025R2 VDA330 A02 is an original power distribution board engineered for the AC800M controller platform and compatible ABB DCS architectures. Designed for continuous industrial operation, this module serves as a critical internal power routing component within the AC800M controller cabinet — distributing regulated DC power to processor modules, I/O bus backplanes, and communication interfaces. For maintenance engineers managing legacy ABB control systems, keeping a verified spare of the VDA330 A02 on the shelf is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the HIEE300025R2 VDA330 A02 power distribution board, a thorough site assessment of the surrounding electrical environment is essential to prevent repeat failures and ensure stable system recovery. Maintenance engineers should begin by verifying the upstream 24 VDC supply rail feeding the AC800M cabinet — a degraded or fluctuating input voltage is a common root cause of power board failures. The PM861 or PM864 processor module mounted on the same backplane should be inspected for fault indicators, as power distribution anomalies often manifest as CPU resets or watchdog trips before the board itself fails visibly.

The TB820 or TB840 I/O bus termination units connected downstream of the power distribution board should be checked for proper seating and continuity. Loose or corroded backplane connectors can cause intermittent power interruptions that are difficult to diagnose without a spare board available for swap testing. Similarly, the CI854 or CI858 communication interface modules — which rely on stable backplane power for PROFIBUS or FOUNDATION Fieldbus communication — should be verified for link integrity after any power board replacement.

Fuse and protection components within the cabinet deserve equal attention. Inline fuses on the 24 VDC distribution rail, surge protection devices on the incoming power feed, and any DSQC series power supply modules sharing the same cabinet should be inspected and load-tested. For sites running extended AC800M installations, the SA811F or SA801F analog I/O modules connected to the same backplane segment may exhibit signal drift or calibration offsets following a power interruption — a post-replacement functional check is recommended before returning the system to automatic control.

Procurement engineers sourcing the HIEE300025R2 VDA330 A02 should also consider stocking the associated HIEE300024R2 VDA320 power supply board as a complementary spare, as both modules operate within the same power chain and share similar failure modes under aging or thermal stress conditions. A dual-spare strategy covering both the VDA320 and VDA330 variants provides comprehensive protection for the AC800M power subsystem and is consistent with best-practice spare parts management for critical DCS infrastructure.

Site Replacement Workflow

Replacing the ABB HIEE300025R2 VDA330 A02 in the field follows a structured procedure to minimize controller downtime and avoid configuration loss. Before removal, document the current system status via the ABB Control Builder engineering tool and confirm that a controller backup has been saved to the engineering station. Power down the AC800M controller in the correct sequence — disabling field outputs before removing backplane power — to prevent I/O transients from affecting connected field devices.

The VDA330 A02 board is typically secured to the AC800M backplane via a locking rail mechanism. After removal, inspect the backplane connector pins for oxidation or mechanical damage before inserting the replacement unit. Once the new HIEE300025R2 is seated and secured, restore power in reverse sequence and monitor the controller startup diagnostics via the local LED indicators and the Control Builder online view. Confirm that all I/O modules report healthy status and that communication links to the DCS operator station are re-established before releasing the system to production.

For sites migrating from older Advant OCS or AC400 controller platforms, the VDA330 A02 is compatible with the AC800M migration path and can be integrated into modernized cabinet layouts without requiring full system replacement — significantly reducing retrofit costs and preserving existing field wiring investments.

Spare Parts Support FAQ

Q1: Is the HIEE300025R2 VDA330 A02 compatible with both AC800M and AC800F controllers?
The VDA330 A02 is primarily designed for the AC800M platform. Compatibility with AC800F depends on the specific cabinet configuration and backplane revision. We recommend confirming the target system’s hardware revision before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: What pre-shipment testing is performed on this spare part?
Every HIEE300025R2 VDA330 A02 unit undergoes functional power-on testing and visual inspection before dispatch. Electrical parameters including output voltage stability and connector integrity are verified. A test report is available upon request for quality-critical procurement processes.

Q3: Can you support long-term supply agreements for this part?
Yes. We offer 12–36 month supply agreements for the HIEE300025R2 and related AC800M spare parts. Long-term agreements include reserved stock allocation, priority lead times, and fixed pricing — suitable for multi-site maintenance programs and annual shutdown planning.

Q4: What is covered under the support terms confirmed by quotation?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch within 5 business days of confirmed fault diagnosis.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300025R2 VDA330 A02
AC800M Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB HIEE300025R2 VDA330 A02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
