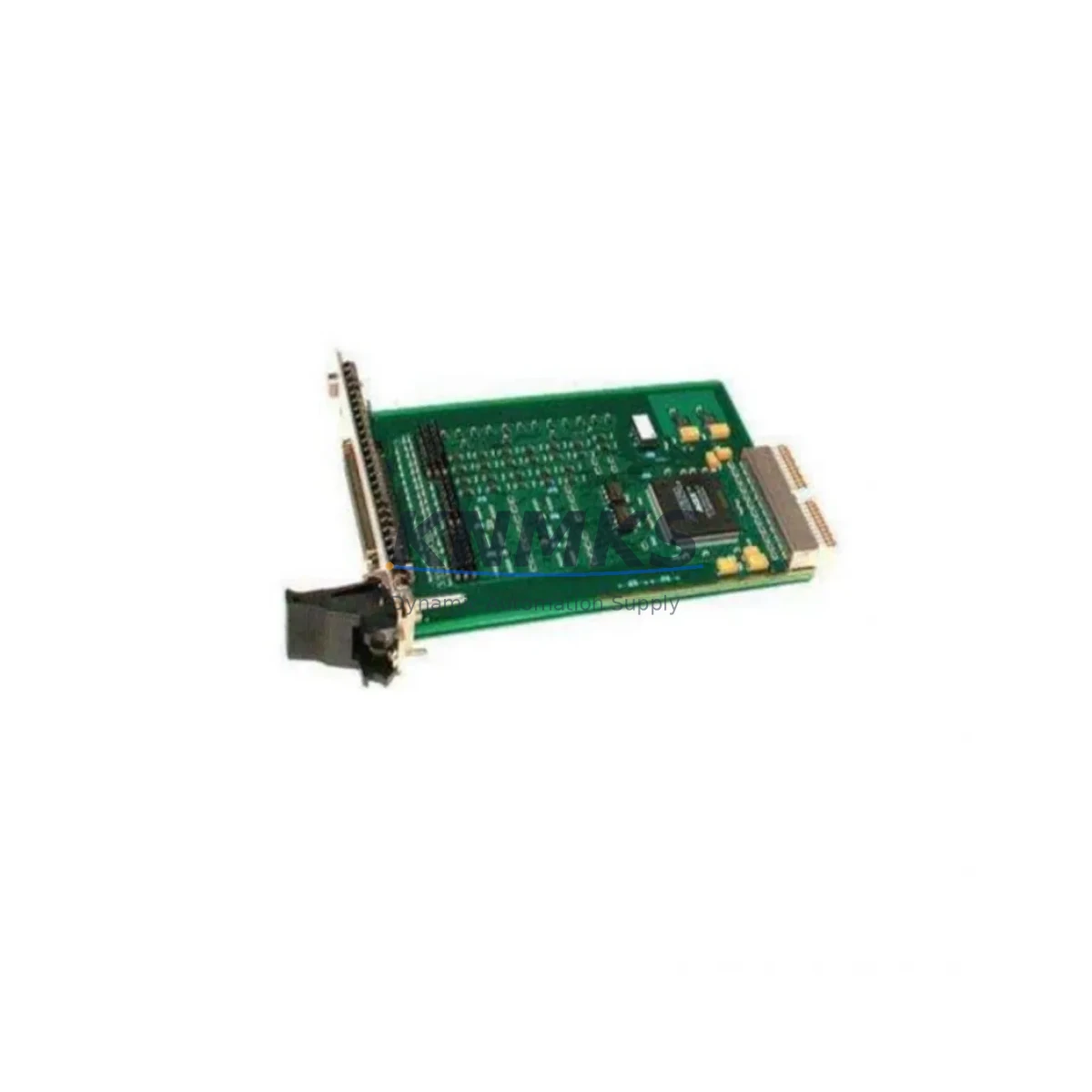

ABB HIEE205014R1 UNC4673A V1 Fail-Safe Relay Output Module

Overview

ABB HIEE205014R1 UNC4673A V1 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Field Reliability

The ABB HIEE205014R1 UNC4673A V1 is a safety-rated relay output module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to meet the demanding requirements of continuous production environments, this module delivers deterministic switching performance, robust fault isolation, and sustained signal integrity across high-EMI, high-vibration, and thermally stressed control cabinet installations. Whether deployed in petrochemical interlock loops, power generation control panels, or heavy industrial automation architectures, the HIEE205014R1 UNC4673A V1 provides the fail-safe output switching capability that mission-critical processes depend on.

In safety-critical control systems, relay output modules are the final execution layer between the controller logic and field actuators. A degraded or failed output module can trigger unplanned shutdowns, false actuations, or — in worst-case scenarios — dangerous process states. The HIEE205014R1 UNC4673A V1 addresses these risks through hardened relay contact design, internal surge suppression, and compatibility with the AC800M’s redundant I/O architecture. Its German-engineered construction reflects ABB’s commitment to long-term field reliability in environments where component failure is not an option.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The HIEE205014R1 UNC4673A V1 operates as part of a layered control cabinet protection strategy within the AC800M ecosystem. In a typical safety-rated control cabinet, this relay output module works in coordination with the ABB PM866 processor module, which executes the safety logic and issues switching commands to the relay outputs. Upstream power integrity is maintained by the ABB SD823 power supply module, which provides regulated 24 VDC to the I/O bus — any power fluctuation at this stage can propagate to relay coil energization, making a stable power supply a prerequisite for reliable output switching.

On the communications side, the AC800M backplane relies on the ABB CI854 PROFIBUS DP communication interface to exchange process data between the controller and field devices. Signal integrity on this bus directly affects the command latency seen by the relay output module; in high-EMI environments, shielded cabling and proper bus termination are essential companions to the HIEE205014R1 UNC4673A V1. For installations requiring redundant I/O, the ABB TB820V2 ModuleBus modem extends the I/O bus over fiber, eliminating ground loop interference between remote cabinets and the main DCS rack.

In safety interlock circuits, the relay output module is often paired with ABB AI810 analog input modules that monitor process variables such as pressure, temperature, and flow. When a monitored variable exceeds a safe operating threshold, the safety logic commands the HIEE205014R1 UNC4673A V1 to de-energize the relevant output, isolating the actuator and preventing process escalation. This coordinated response — from sensor input through controller logic to relay output — is the backbone of functional safety in continuous process industries.

Critical Industrial Safety Applications

The ABB HIEE205014R1 UNC4673A V1 is deployed across a wide range of safety-critical industrial sectors where control interruption carries significant operational and safety consequences.

In petrochemical and refinery facilities, this module supports emergency shutdown (ESD) interlock loops, controlling isolation valves and pump trip circuits. Its fail-safe relay design ensures that on loss of control power or signal, outputs default to a safe de-energized state — a fundamental requirement for SIL-rated safety instrumented systems (SIS).

In electric power generation and grid substations, the module is used in turbine protection panels and transformer interlock circuits, where millisecond-level switching reliability is required to prevent equipment damage during fault conditions. The module’s surge suppression capability is particularly valuable in environments exposed to switching transients from high-voltage equipment.

In mining and mineral processing operations, the HIEE205014R1 UNC4673A V1 controls conveyor interlock systems, crusher protection circuits, and ventilation safety loops. These environments subject control hardware to continuous vibration, dust ingress, and wide temperature swings — conditions the module is rated to withstand within a properly sealed control enclosure.

In water and wastewater treatment plants, the module manages pump station interlock logic and chemical dosing control, where unplanned output failures can result in regulatory non-compliance or environmental incidents. Its compatibility with the AC800M redundant I/O architecture supports high-availability configurations that minimize single-point failure risk.

In metallurgical and steel production facilities, the module is integrated into furnace control and rolling mill protection systems, where thermal stress and electromagnetic interference from large motor drives demand robust, interference-immune relay output hardware.

Safety and Quality FAQ

Q1: Does the HIEE205014R1 UNC4673A V1 come with a support terms?
Yes. Every unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional defects and performance failures under normal operating conditions. Our support terms reflects our confidence in the pre-shipment testing process applied to every module before dispatch.

Q2: What pre-shipment testing is performed on this module?
Each HIEE205014R1 UNC4673A V1 undergoes full functional verification prior to shipment, including relay contact continuity testing, coil energization checks, and visual inspection for physical integrity. This process ensures that every unit arrives in field-ready condition, reducing commissioning risk and eliminating the uncertainty associated with untested surplus stock.

Q3: Is this module compatible with all AC800M controller versions?
The HIEE205014R1 UNC4673A V1 is designed for the ABB AC800M DCS platform. Compatibility with specific controller firmware versions and I/O bus configurations should be verified against the ABB AC800M hardware documentation for your installation. KNMKS technical support can assist with compatibility queries prior to purchase.

Q4: Can KNMKS support long-term or repeat supply of this module?
Yes. KNMKS maintains stock of ABB AC800M series modules including the HIEE205014R1 UNC4673A V1 to support both immediate replacement needs and planned spare parts programs. For facilities managing 12- to 36-month maintenance schedules, we recommend contacting our sales team to discuss reserved stock arrangements and volume pricing for critical spare parts.
